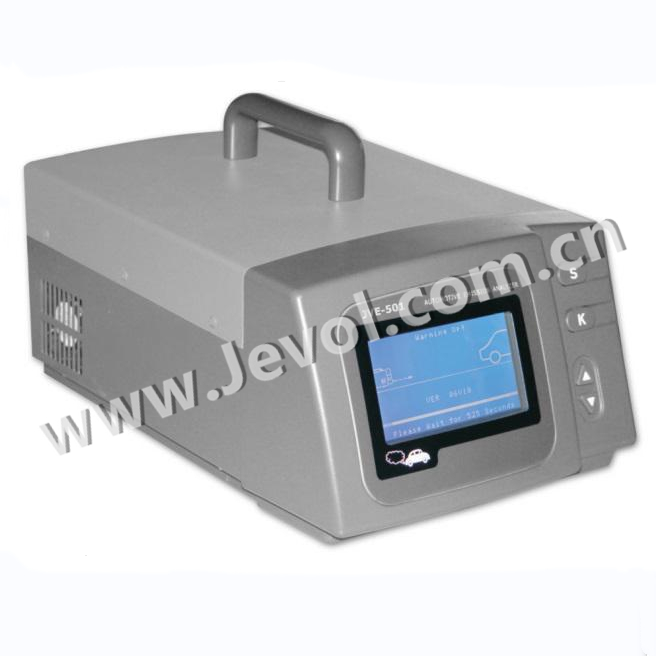

| Item | Parameters |
|---|---|
| Measuring Range |
HC: 0 ~ 9,999 ppm (n-hexane) CO: 0 ~ 10 x 10-2 (%) CO2: 0 ~ 20 x 10-2 (%) O2: 0 ~ 25 x 10-2 (%) NO: 0 ~ 5,000 x 10-6 |
| Measurement Accuracy |
HC: ± 12 x 10-6 (absolute error) or ±5% (relative error) CO: ± 0.06 x 10-2 (%) (absolute error) or ±5% (relative error) CO2: ± 0.50 x 10-2 (%) (absolute error) or ±5% (relative error) O2: ± 0.10 x 10-2 (%) (absolute error) or ±5% (relative error) NO: ± 25 x 10-6 (absolute error) or ±5% (relative error) |
| Warm-up Time | 10 min (5 min warm-up for fast measurement) |
| Response Time | Less than 10s; NO testing less than 15s |
| Power Supply | AC 220V ± 10% 50Hz ± 1Hz |
Most of the machines are packed in wooden cases, but for some heavy machines, they will be packed on a specially-designed steel frame. Some small parts will be loaded into cartons.
Our factory is near the port, so most of the time, it will be used as the loading port.
We are committed to providing customers all over the world with high-quality and stable vehicle testing equipment and providing one-stop services, including equipment selection, testing station layout design, equipment installation guidance, etc.
During the warranty period of the equipment, we will replace any non-human damaged parts free of charge. After the warranty period, customers need to purchase the required accessories, but we will provide permanent free online guidance to help customers solve their problems.
