City Public & School & Campus Buses Monitoring & Management Solution
Intelligent Bus Monitoring & Passenger Counting for City Public & School & Campus Buses
Our complete monitoring system is designed for city public transportation & school Buses, Providing public transportation fleets businesses full visibility of vehicle operation, driver behavior, and passenger counting.

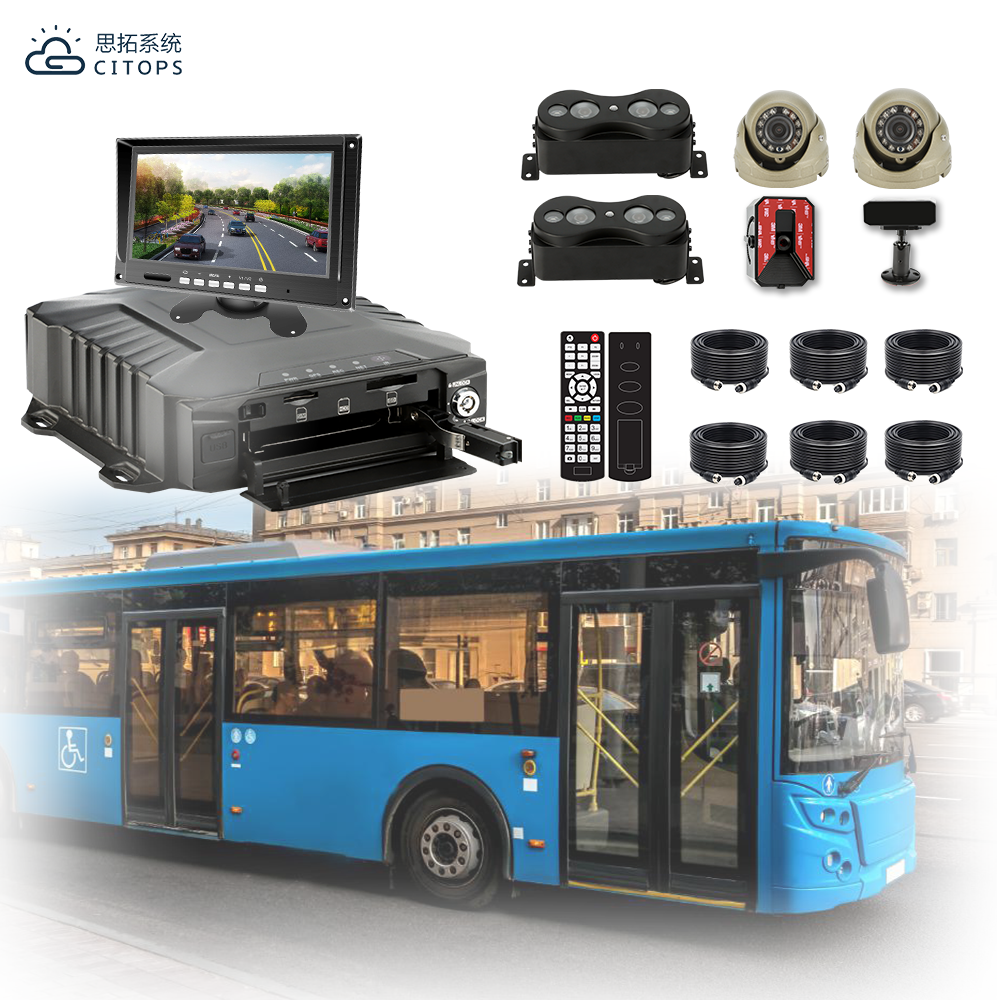

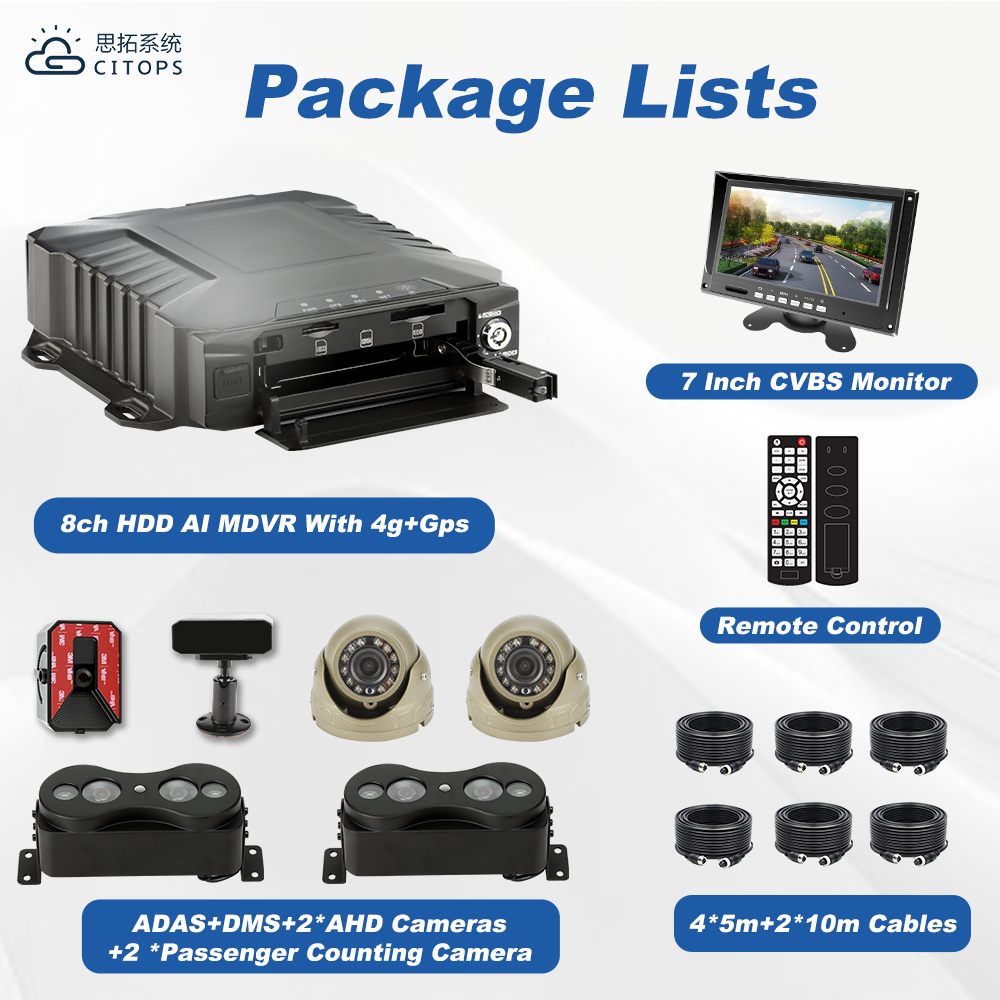

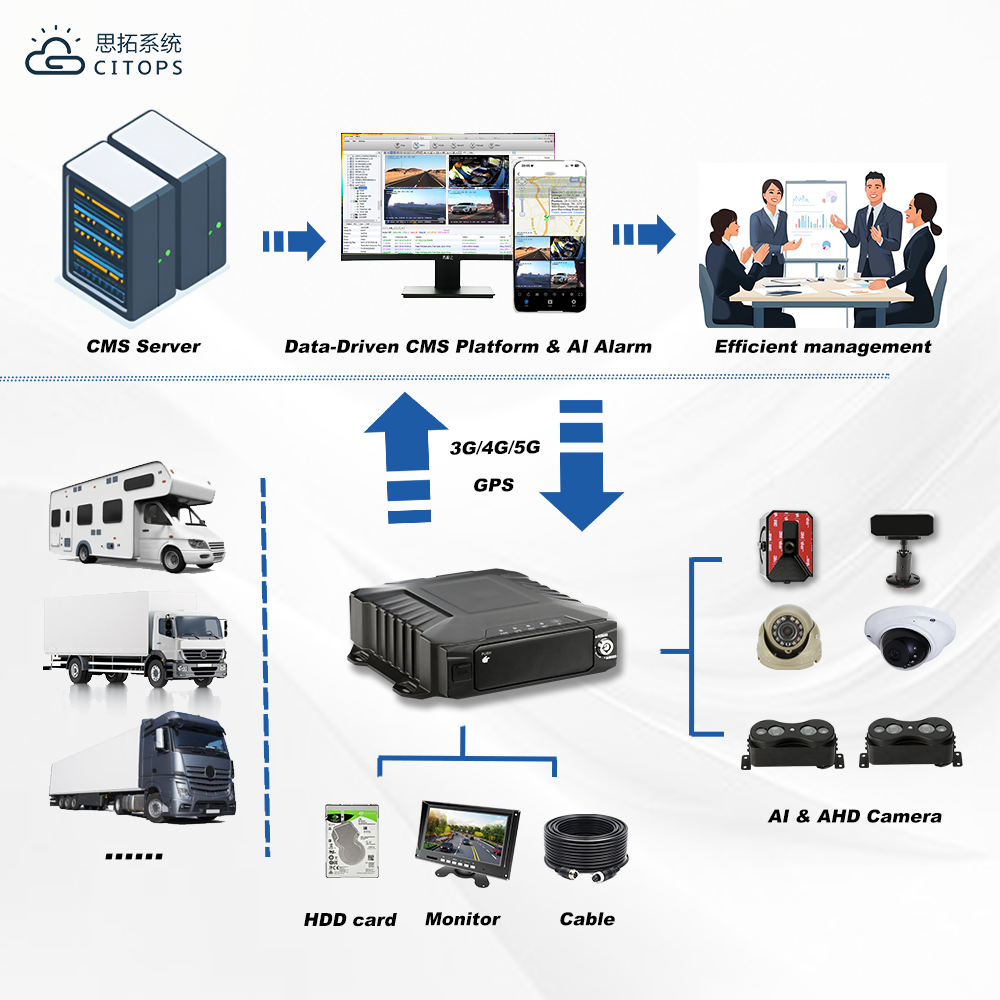

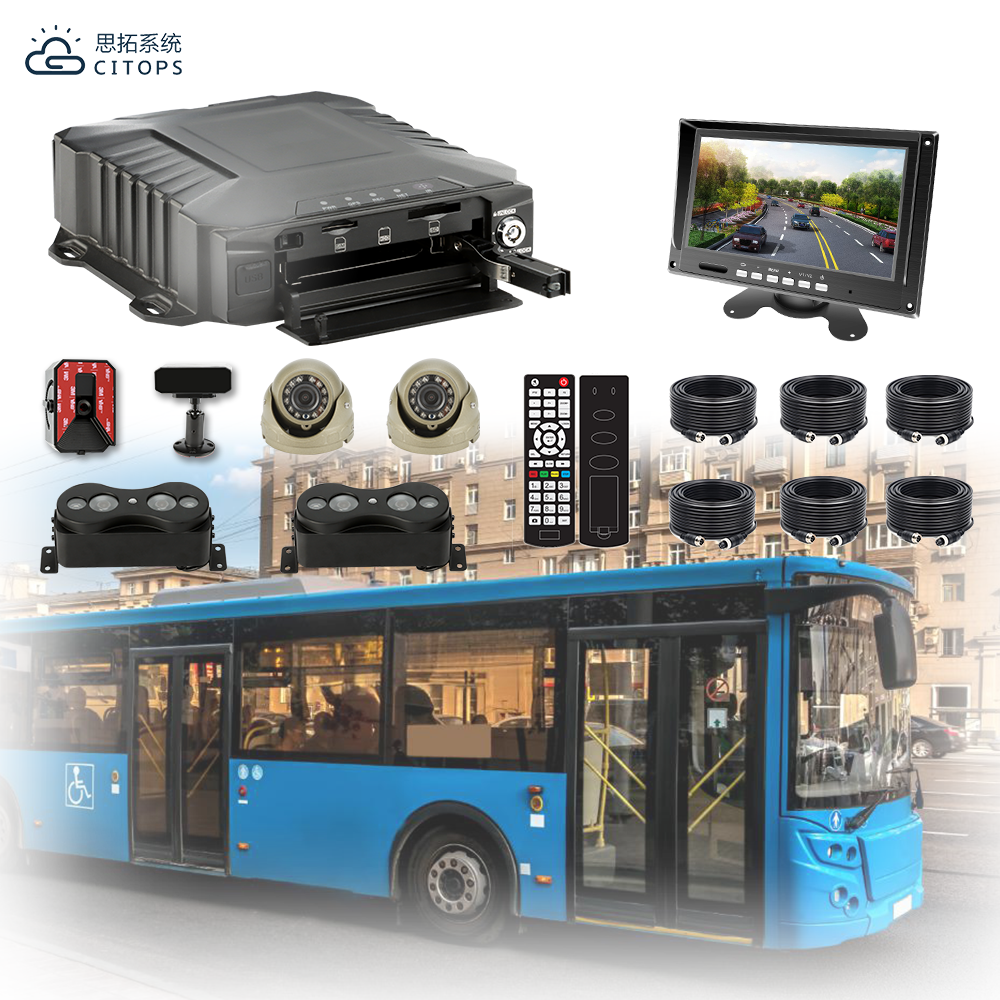

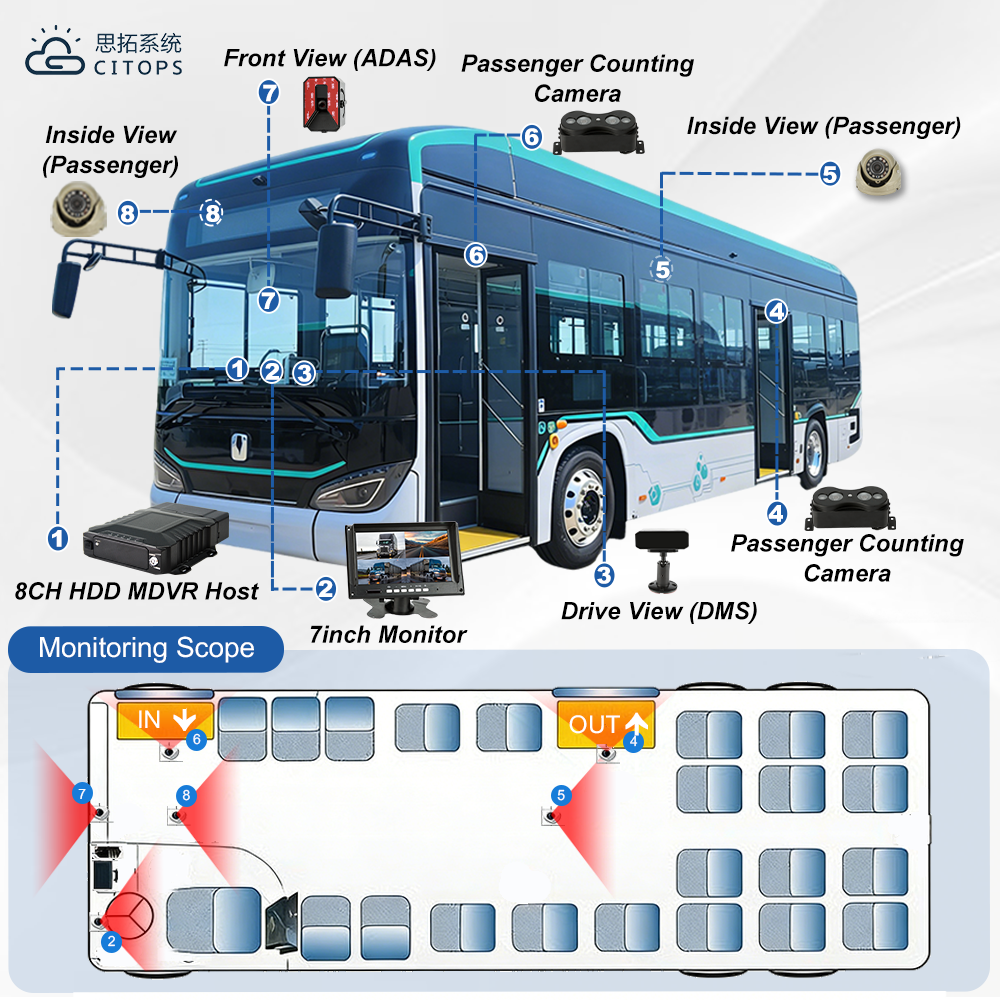

The system integrates HDD AI MDVR host, 8ch 1080P AHD vehicle cameras, GPS/BD positioning, and a cloud management platform to deliver full-process visibility from getting on to getting off the bus.

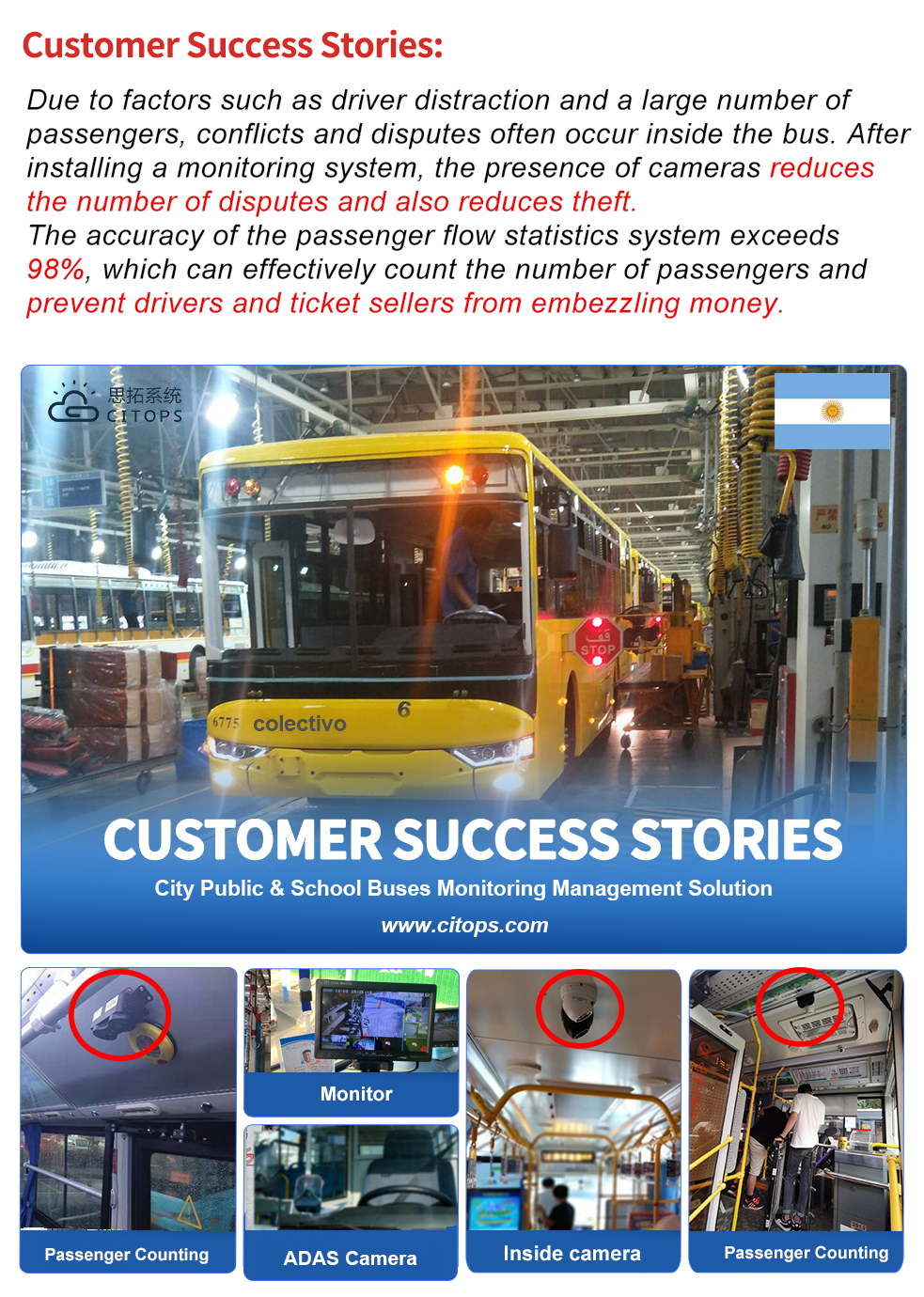

They obtained clear video recordings of vehicle driving and passenger boarding and alighting, enabling real-time visibility, preventing fare evasion, and improving the safety of fleet operations. This transparency not only reduced disputes and liability risks, mitigating their own losses, but also supported the fleet's scalable growth.
Why City Public, School & Campus Buses Need a Smart Monitoring & Management Solution?
City public, school, and campus buses operate in high-risk, high-responsibility environments. Basic dash cameras or standard CCTV systems cannot fully support driver safety, passenger protection, or fleet transparency. A professional bus monitoring and management solution is essential for safe, compliant, and efficient operations.
Key Challenges Bus Operators Must Solve:
- Driver fatigue and distraction risks: Long driving hours increase the likelihood of fatigue, phone usage, and unsafe driving behavior.
- Passenger safety and dispute management: Increases risk of pet injury or equipment accidents.
- Lack of real-time vehicle visibility: Fleet managers cannot effectively supervise buses without live video and GPS tracking.

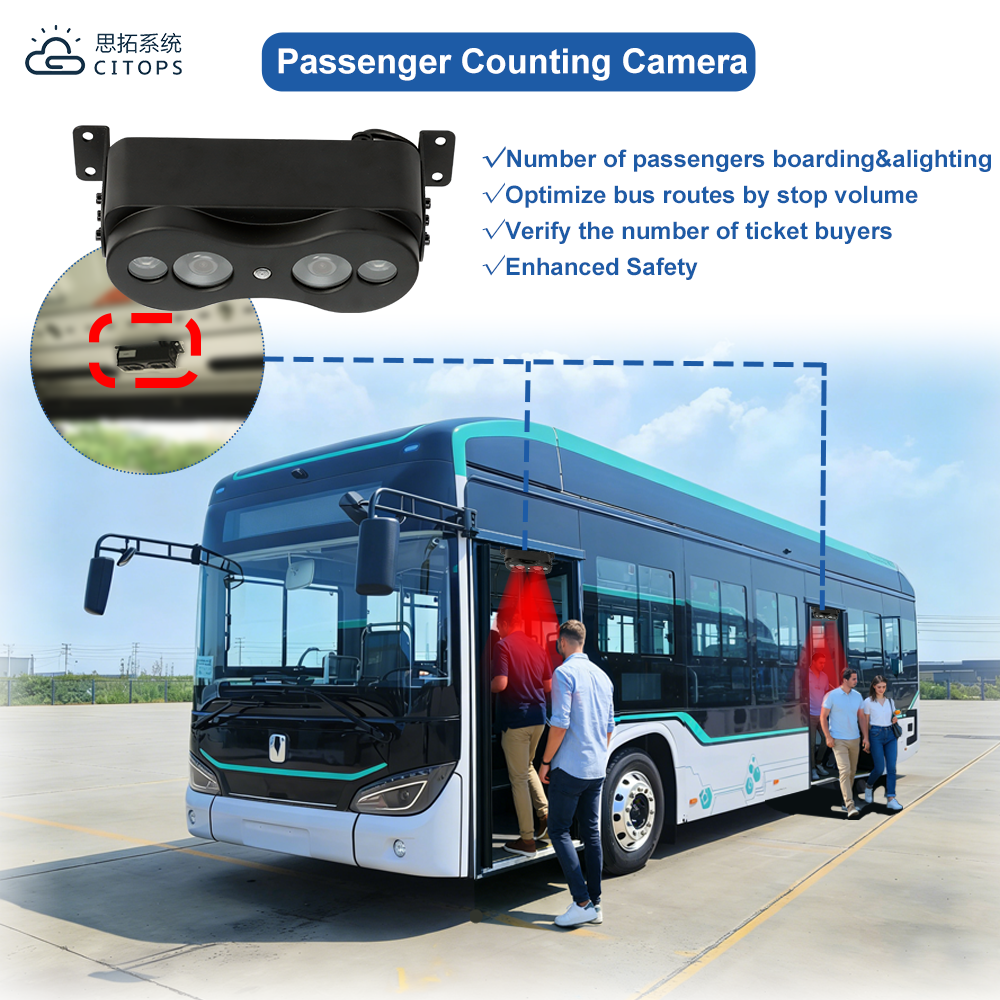

- Inaccurate passenger flow data: Without reliable passenger counting, route planning and scheduling rely on assumptions instead of real data.
- Limited operational transparency: Public transport authorities require traceable records for supervision, auditing, and compliance.
Our 8CH HDD Mobile DVR Solution solves all of these pain points with professional-grade visibility, safety alerts, and secure data storage.
Key Features & Functional Advantages

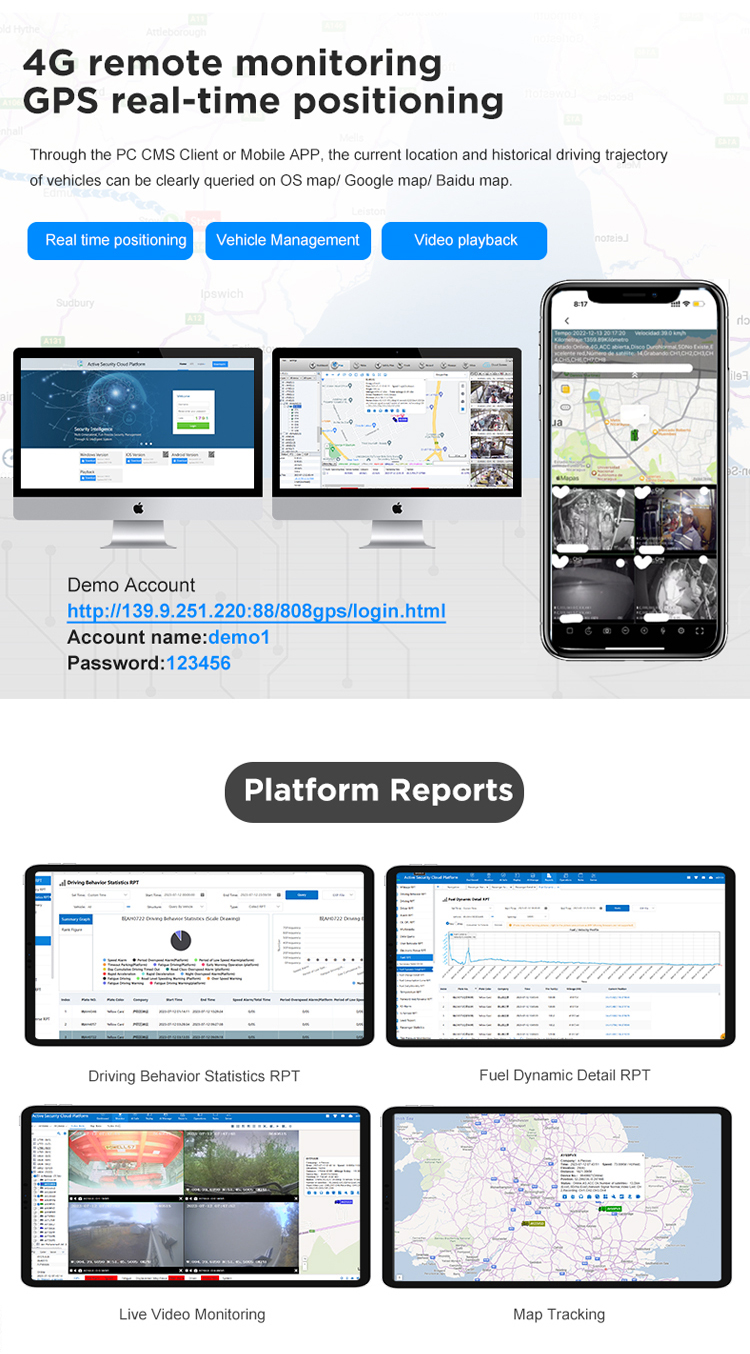

- Real-Time Bus Visibility: Manage all city, school, and campus buses through a unified management platform. Live video, vehicle status, GPS location, and alarm events are accessible anytime via 4G connectivity.
- Smart GPS Tracking & Route Control: Dispatch teams gain real-time location insight to manage daily grooming routes efficiently, reduce delays, and keep appointments on schedule.
- Optimized Route & Schedule Planning: Passenger flow data and GPS tracking help operators reduce congestion, optimize routes, and improve on-time bus dispatch efficiency.
- Live Video Streaming for Bus Management: 4G live video enables transport managers to remotely view onboard conditions, improving operational transparency and supervision.

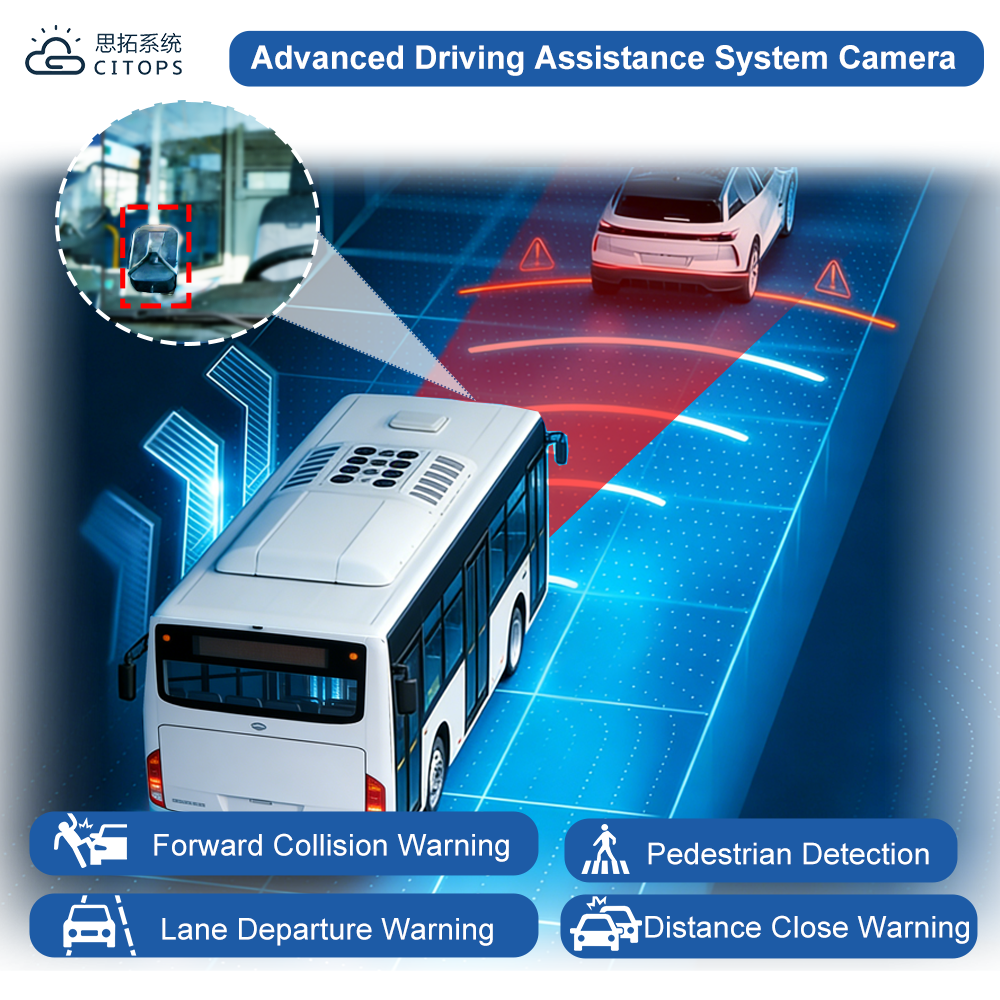

- ADAS, DMS for Driving Safety: ADAS provides forward collision and lane departure warnings, while DMS monitors fatigue and distraction to reduce accident risks.
- Driver Safety & Compliance Monitoring: Continuous monitoring ensures drivers follow safety and operation standards, especially during long shifts and high-frequency routes.
- Evidence-Based Incident & Dispute Resolution: Multi-channel video combined with GPS data delivers reliable evidence for traffic accidents, passenger disputes, and insurance claims.
- Tool-Free 2TB Removable Storage: Patented design enables quick hard drive removal without screws. Large 2TB capacity ensures long-term grooming records and secure data archiving.
- Built for Public Transportation Environments: Industrial anti-vibration MDVR design and durable cameras ensure stable recording on rough roads and during continuous operation.
- Cloud-Based Multi-User Fleet Management: Centralized cloud platform supports multi-level access for operators, dispatch centers, safety managers, and administrators.
Product Parameters
| Item |
M51HV |
M52HV |
| Audio and Video Inputs |
video input |
AHD：4ch 1080P/25fps
IPC：Scalable 1-4ch |
AHD：4/8ch 1080P/25fps
IPC：Scalable 1-4ch |
| audio input |
4ch audio input |
| Audio and Video outputs |
video output |
Default 1-way CVBS output (VGA output optional) |
| speech output |
1ch audio output |
| Audio and video parameter coding |
video coding |
H.264 Main Profile/H.265 |
| Resolution |
1080P/720P/D1 optional |
| audio coding |
Default G.726,G.711A optional |
| storage space |
HDD |
1 2.5-inch optional: SSD/HDD hard disk |
| SD |
Support 1 SD card |
| wireless network |
4G |
Supports 1 SIM card, optional: all major communication modules in the world |
| WIFI |
2.4/5.8G optional |
| locate mode |
BD/GPS |
Support for mixed positioning, speed detection, time synchronization |
| interface |
USB |
USB2.0 interface, support export data, external engineering treasure |
| serial port |
Support 2 RS232, 1 RS485, can be connected with external sensor |
| I/O |
4 level inputs, 2 analog inputs, 2 alarm outputs |
| network interface |
Support external IPC, support hybrid NVR function |
| Intercom |
1 special intercom handheld mark interface |
| Physical Specifications |
size |
176.9mm(L)*186.8mm(W)*54mm(H) |
| weight |
NW：1.4kg
GW：2kg（M51Hv-DGNE1-L as a standard） |
| work environment |
operating temperature |
-20 ~ +70℃ |
| operating humidity |
8% ~ 90% (No condensation) |
| Other |
operator schema |
remote control, APP, WEB |
| Gravity sensor |
Built-in G-Sensor |
Application Scenarios
- City Public Buses
- BRT & Rapid Transit Systems
- Airport Shuttle Buses
- School & Campus Buses
- Tourism & Sightseeing Buses
Common Challenges in Bus Operations
- Lack of real-time visibility inside and outside the bus
- High accident risk caused by fatigue or distracted driving
- Passenger disputes without video evidence
- Difficulty tracking passenger boarding and alighting volume
- Inefficient fleet supervision across multiple routes
- Limited data support for route and schedule optimization
Frequently Asked Questions (FAQ)
What is the warranty period?
We offer 18-month warranty for the full MDVR system.
Can I watch real-time video from my office or phone?
Yes, the system supports 4G live view, playback, GPS tracking, and remote management.
Is the MDVR stable on bumpy roads?
Absolutely. It features a high-grade anti-vibration structure designed for moving vehicles.
Can the platform support multiple buses at the same time?
Yes, the platform supports centralized management of large bus fleets.
What is the passenger counting accuracy?
The AI passenger counting accuracy can reach over 95%, depending on installation and passenger flow conditions.
Can this solution integrate with government platforms?
Yes, the system supports API and SDK integration for government or third-party platforms.
