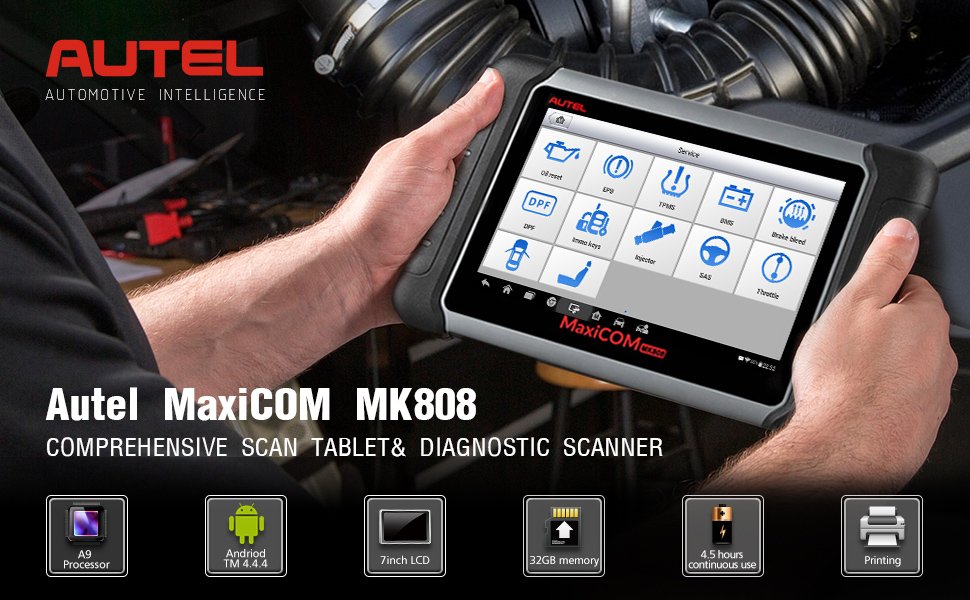

Autel MaxiCom MK808, an advanced tablet automotive scan tool, has the capability of accessing all vehicle systems displaying ECU information, reading and erasing codes, viewing live data, and performing a series of special services. Providing a broad array of productive solutions, this Autel scan tool makes work easier for professionals performing vehicle diagnostics.
Highlights
⚡
1. One Year Free Update Online
After Expiration, You Can Buy Autel MK808 Subscription at $150.
🌐
2. Multi-Language Supported
Default Language is English, German, Spanish, Portuguese, Dutch, French, Italian. Korean, Japanese, Russian, Polish, Swedish for optional.
⚙️
3. Easy to Use
Once accessed to the Diagnostics service of MaxiCOM MK808, here are a variety of functions available including oil reset and EPB/ BMS/ SAS/ DPF service which are used for the safety and efficient maintenance of systems.
💰
4. Cost-Effective Scanner
Consists of the MD802 and MexiCheck Pro, this diagnostic tool provide you with advanced full-systems diagnoses. You are able to test not only 4 systems but other systems including Body, Chassis, Powertrain, Communication and more.
🚗
5. Extensive Coverage
MaxiCOM MK808 works on most 1996 US-based, 2000 EU-based and newer vehicles to do the full systems diagnoses including reading/clearing codes and viewing live data to check the health status of parts. (Support many US cars after 1992, EU cars after 2002, Asia cars after 2008)
📱
6. User-Friendly

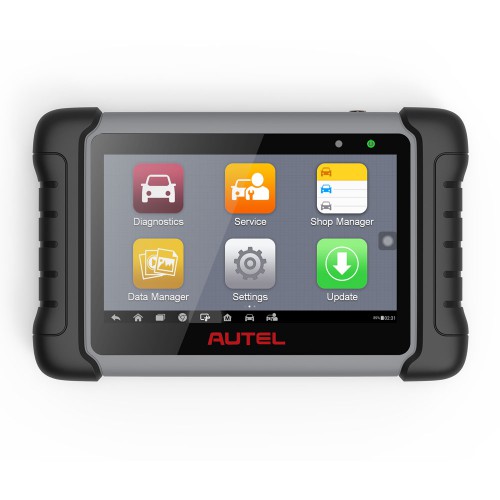

This is a tablet diagnostic scanner with 7" touchable screen and enables sensitive response with fast quad-core process; Moreover, with Wi-Fi connection there is no USB or card reader needed for updating software (one-touch updates).
💻
7. Advanced Hardware
Except its widely-used software, the advanced hardware also brings glory to its smooth and fast operation. Android-based tablet diagnostic tool greatly improves the working efficiency with performance and power optimized multi-core processor. 7 inch touchable LCD screen does a great job in the better using experience; you can directly get what you need with intuitive navigation. 32 GB memory is not only an extended storage space but a way to reduce the possible condition of slow response. Built-in battery has up to 4.5 hours battery life giving you a worry free operation experience.
🆕
8. (Jun.1 2022 Update) New Added All System Special Functions, Active Test and Battery Testing Functions
(Compatible with
Autel BT506)

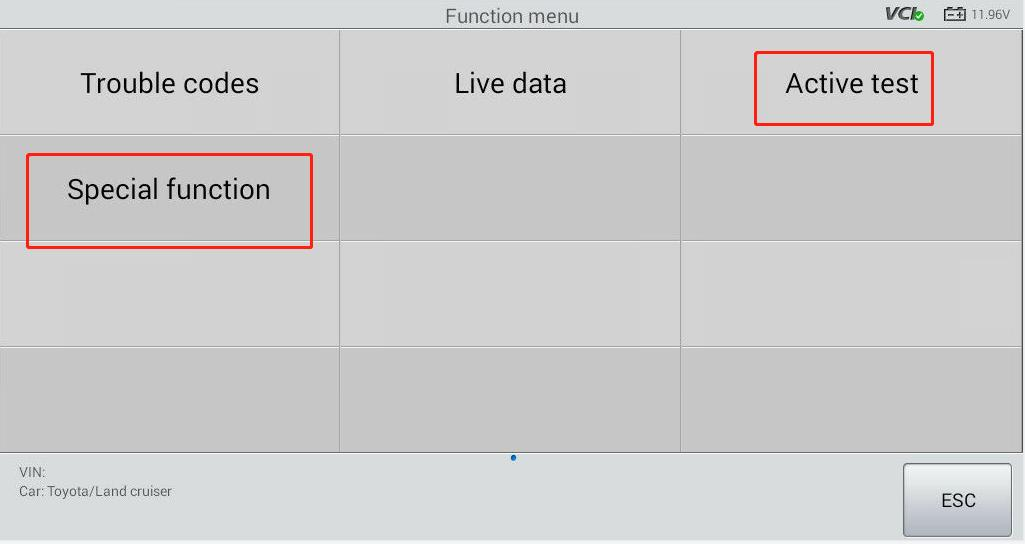

Active Test Function: Used for outputting signal to vehicle control unit using the device to control actuator for test, so that it can test whether the actuator works normally, such as Fuel Pumps test, EGR test, etc.
Special Function: Generally refers to the initial adaptation, self-learning or some auto detection function with many procedures that the vehicle is performed after maintenance or reset is done or some related component in electronic control system is replaced, such as Crankshaft Position Sensor Learn.
Autel MaxiCOM MK808 Functions

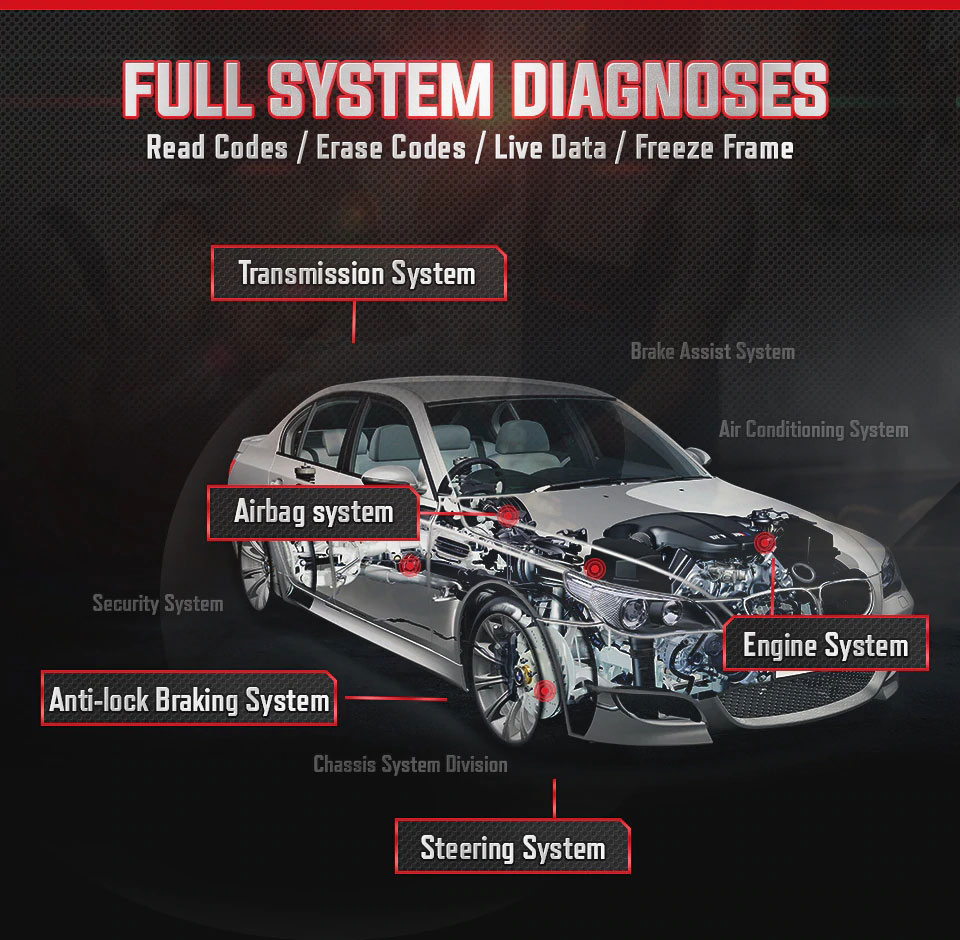

1. Full System Diagnosis
Read and erase codes for all available systems using the supported protocols. The tablet type MaxiCOM diagnostic tool is the best way to display live data in text, graph & analog for easy data review. Autel MK808 can help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission. It makes great sense in the safety driving when your car is slipping or difficult to shift, this diagnostic tool can figure the problems out via reading codes in the Transmission system, or check the health status via live data viewing.

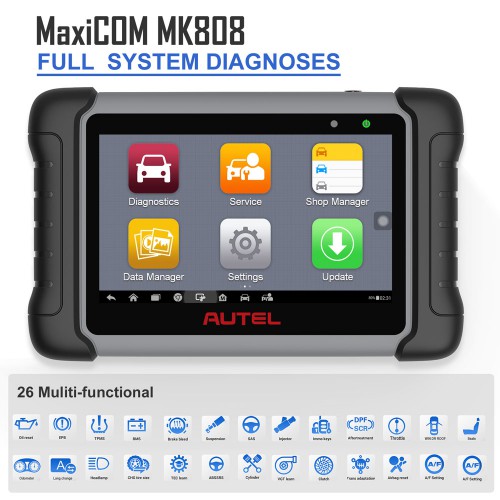

2. Special Service Functions
- Oil reset service: Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
- EPB service: Important in the maintenance of electronic braking system's safety and efficiency.
- BMS service: Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
- DPF service: Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
- SAS service: Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
- TPMS service: Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
- IMMO: The unique function MK808 has at this price, is mainly used to disable the lost vehicle keys and program a new replacement key fob.
3. Complete OBD2 Functions
- 1Reading codes: Show the detailed description of the Diagnostic Trouble Code (DTCs).
- 2Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.
- 3Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
- 4I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
- 5Read Live Data Stream: Show the information of continuous data stream from vehicle in live graphic (waveform) display.
- 6View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
- 7O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle's on-board computer.
- 8On-Board Monitor Test: Retrieves and displays test results for emission-related power train components and systems.
- 9Read Vehicle Information: Display the information such as VIN (Vehicle identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
- 10Component Test: Allows initiating a leak test for the vehicle's EVAP system.
4. Additional Features
- Superior Mechanics Assistant: In addition to the MaxiCOM standard features and special functions, there are also a host of enhanced features that are specifically designed for common repair shop work, including; Relearn parking brake pad position after replacement, Force fuel injector regeneration and adjustment, Battery registration and reset, Sensor relearning after repair or replacement.
- Shop Manager: You can well manage the workshop information with 3 available functions within this application: Vehicle History, Workshop Information, and Customer Manager. Intuitively look up the summarized details.
- Data Manager: The best solution for the data related operations, you can store, print, and review the saved files in Image, PDF, Review Data, Apps Uninstall or Data Logging.
- Remote Desk: You can directly get ad-hoc remote support from Autel via Team Viewer software.

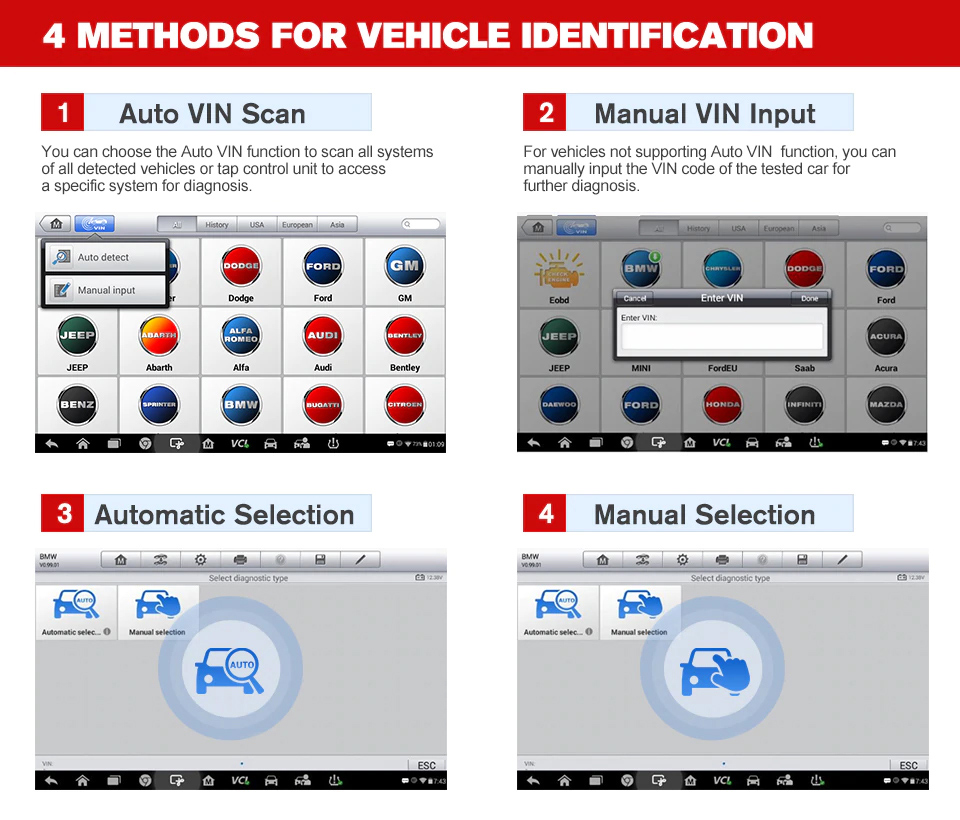

5. The MaxiCOM Diagnostic System Supports 4 methods for Vehicle Identification
- 1Auto VIN Scan: The MaxiCOM diagnostic system features the latest VIN-Based Auto VIN Scan function to identify vehicles and scan all the diagnosable ECUs and run diagnostics on the selected system. This function is compatible with 2006 and newer vehicles.
- 2Manual VIN Input: For vehicles not supporting the Auto VIN Scan function, you may manually enter the vehicle VIN.
- 3Automatic Selection: The Auto VIN Scan can be selected after selecting the test vehicle manufacturer.
- 4Manual Selection: When the vehicle's VIN is not automatically retrievable through the vehicle's ECU, or the specific VIN is unknown, the vehicle can be manually selected.
Autel MaxiCOM MK808 Vehicle Coverage
Asian and European vehicles after 1996. Utilizes new Auto VIN ID Tech to automatically identify the vehicle's make, model and year without the need for user assistance.
Notice:
For Detail Vehicle Coverage List: Please visit Autel Official Website, refer to Support & Updates > Knowledge Base > Vehicle Coverage for details.
Different Choice for Diagnoses
MK808 is suitable for most OBD2 vehicles and support many car brands like Ford, Honda, Chevrolet, Jeep, Toyota, Dodge, GM, Volkswagen, Audi, BMW, Benz, etc.

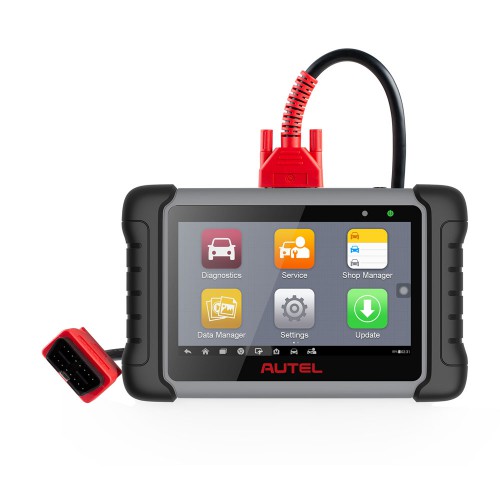

When it comes to the Non-OBD2 vehicles, you can connect the device with vehicles via adapters (not included) to complete car diagnoses, and the signal connected will be more stable. This diagnostic tool support different kinds of adapter connection.
Frequently Asked Questions (FAQ)
Q
How do I update the software on the Autel MaxiCOM MK808?
The MK808 supports one-touch updates via Wi-Fi. There is no need to connect to a computer or use a card reader. Software updates are free for the first year.
Q
Does the Autel MK808 support Active Tests?
Yes, following the June 2022 update, the Autel MK808 has added support for Active Tests (Bi-Directional Control) to let you test components like fuel pumps, valves, and EGR systems directly.
Q
Can I use the MK808 to program new vehicle keys?
The MK808 features IMMO (immobilizer) functions, which can be used to disable lost vehicle keys and program new replacement key fobs. Please check compatibility for your specific car model.
Q
Is the Autel MK808 compatible with battery testers?
Yes, it is compatible with the Autel BT506 battery tester, allowing you to perform detailed battery, starter, and generator tests.
Q
What happens after the one-year free update period expires?
You can still use the tablet with the current software versions. If you wish to continue getting new updates, you can renew the annual subscription for $150.
Q
Can this tool run diagnostics on non-OBD2 vehicles?
Yes, you can run diagnostics on older or non-OBD2 vehicles by using specific OBD1/non-OBD2 adapters (sold separately) to connect the device to the car's diagnostic port.
