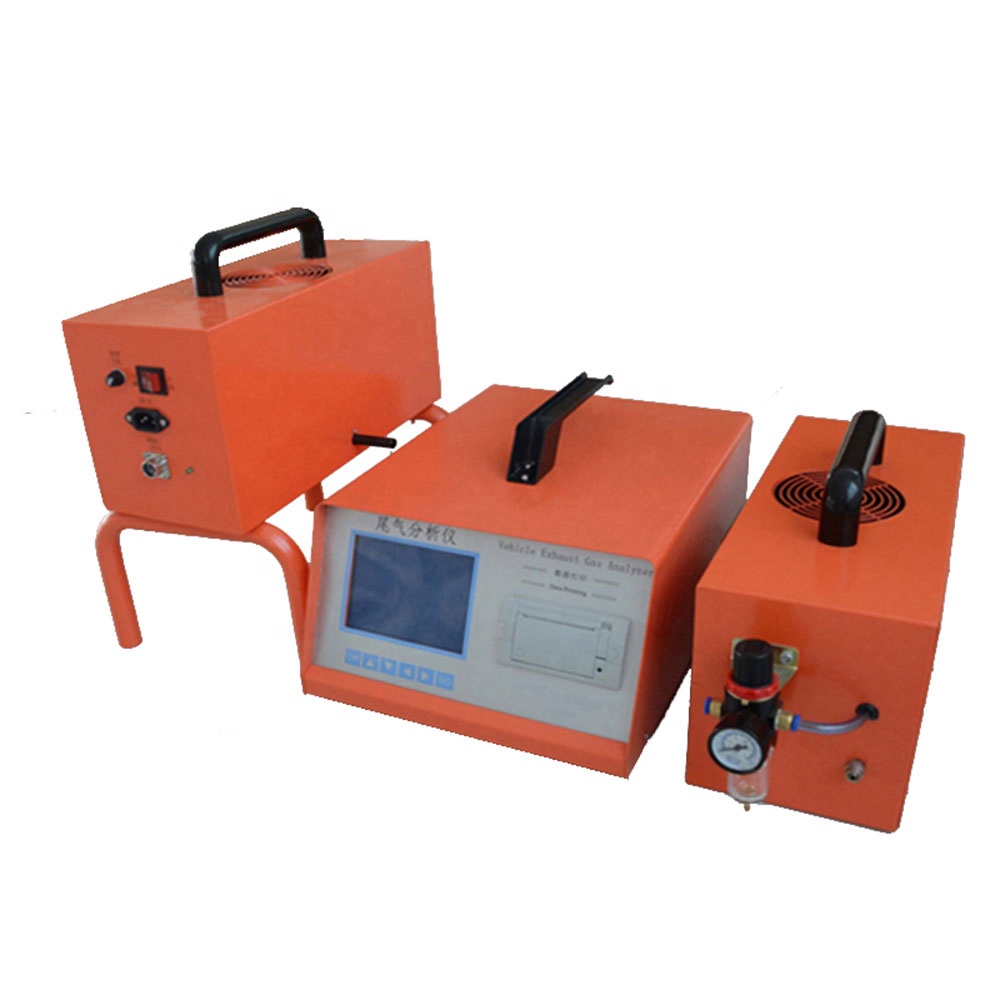

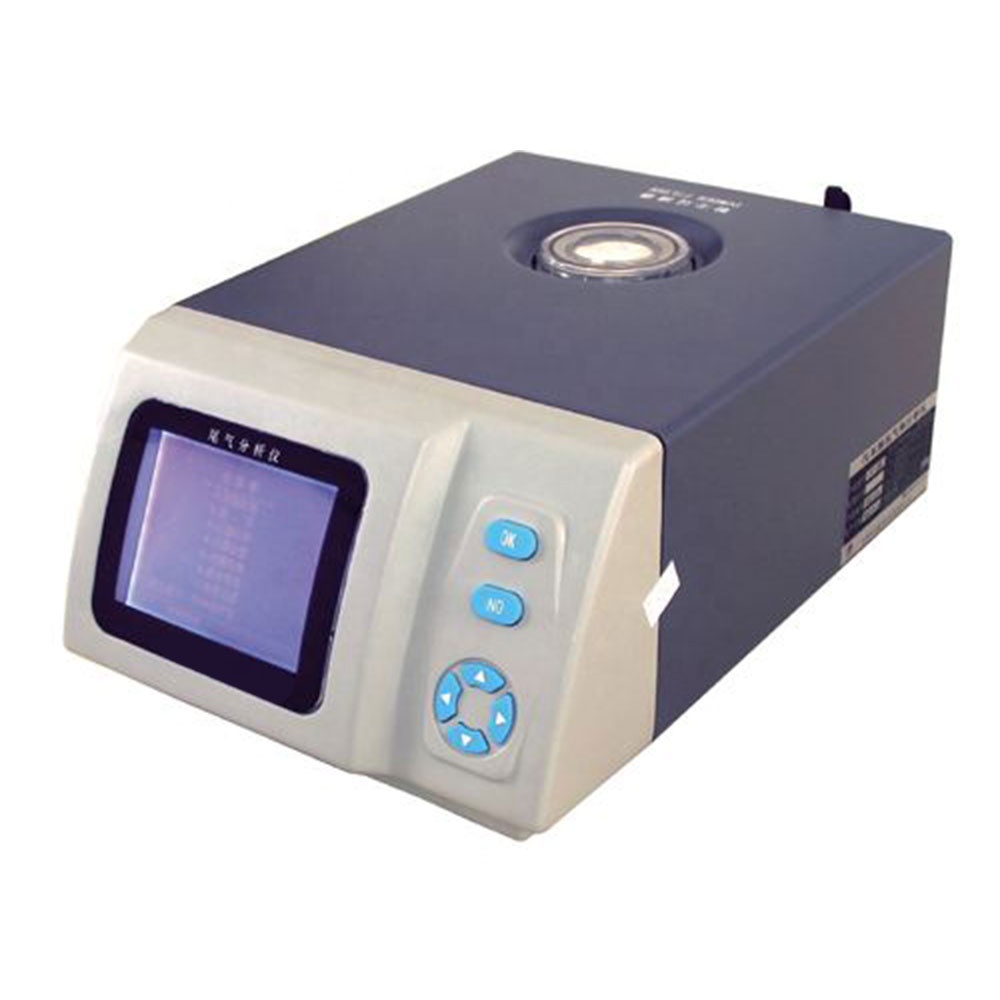

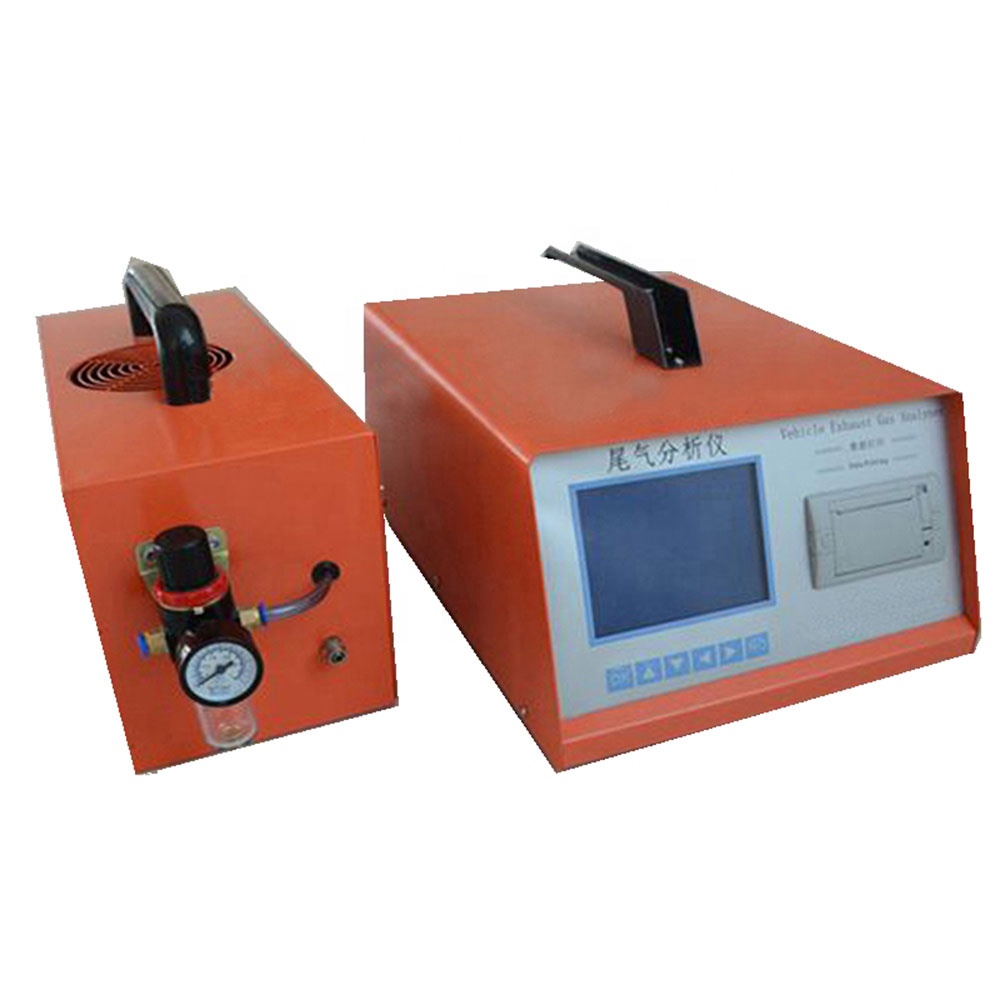

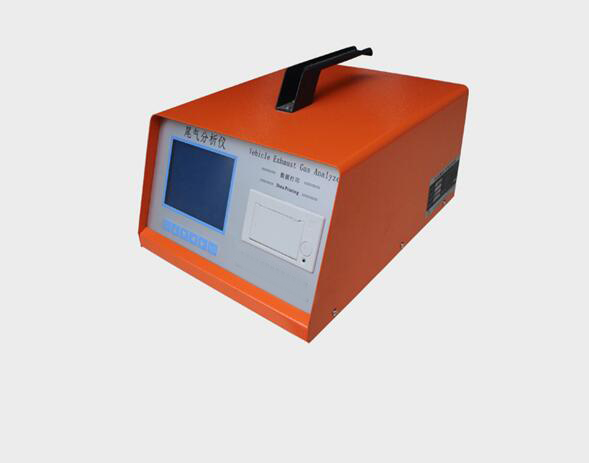

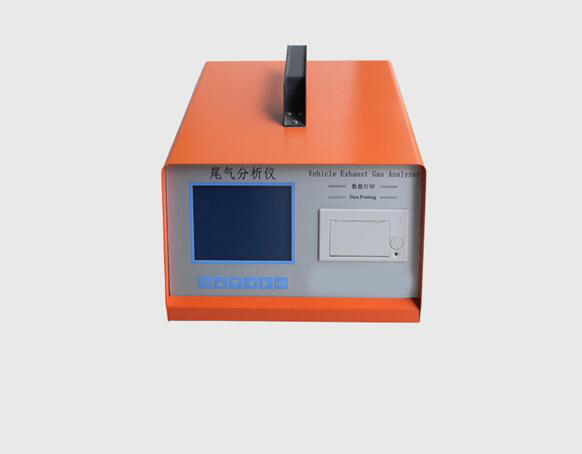

Automobile Exhaust Gas Analyzer Dual-Use Petrol Vehicle Emission Tester
| Device Name | Exhaust Gas Analyzer |
|---|---|
| Measuring Range |
CO: 0~10.0 × 10-2 (%) CO₂: 0~20.0 × 10-2 (%) HC: 0~10000 × 10-6 (ppm) O₂: 0~25.0 × 10-2 (%) NO: 0~5000 × 10-6 (ppm) Optional parameters: Oil temperature: 18°C~150°C | Speed: 100~20000rpm |
| Repeatability Error | ≤ ±2% |
| Zero Drift |
CO: ±0.06 × 10-2 (%)/4h CO₂: ±0.5 × 10-2 (%)/4h HC: ±30 × 10-6 (ppm)/4h O₂: ±0.1 × 10-2 (%)/4h NO: ±25 × 10-6 (ppm)/4h |
| Distance Drift | No more than the permissible error value (4 hours) |
| Indication Error |
CO: ±5% (absolute error: ±0.06 × 10-2) CO₂: ±5% (absolute error: ±0.5 × 10-2) HC: ±5% (absolute error: ±12 × 10-6) / ±5% (absolute error: 4001~10000ppm) O₂: ±5% (absolute error: ±0.1 × 10-2) NO: ±4% (absolute error: ±25 × 10-6) |
| Environment Conditions |
Oil temperature: ±2°C (relative error) Speed: ±1.0% (relative error) Operating Temperature: 0°C~40°C Humidity: ≤ 80% Atmospheric pressure: 60~105KPa Power Supply: AC 220V ±10%; 50Hz ±1Hz |
| Preheating Time | 10 minutes |
| Weight | 10 Kg |
| Volume Dimensions | 460 * 315 * 225mm |
| Sampling Method |

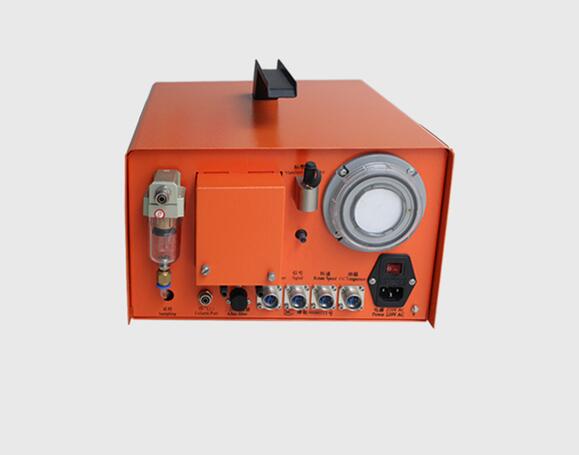

Tail Gas: Direct sampling. Tube length: 5m, Probe length: 900mm. Oil Temperature: Temperature measuring head inserted into the engine oil gauge bore. Protected with a rubber plug to prevent oil spray. Conductor length: 5m. Speed: Speed clamp mounted on a high tension cord of a gasoline engine for measurement. |
| Display Mode | LCD Large screen liquid crystal display |
| Major Functions |
1. Direct measurement of HC, CO, CO₂ (NDIR) and NO, O₂ (electrochemical). Excess air coefficient λ calculation. 2. Satisfies GB18285-2005 requirements. Accuracy level: National standard ISO3930 and international OIML R99 Class I accuracy. 3. Idle and dual idle test functions. 4. Automatic calculation of air-fuel ratio. 5. RS-232C digital serial communication interface for easy networking. 6. License plate number input and time display function. 7. 500 sets of data storage, query access, and built-in micro printer. 8. Suitable for testing vehicles powered by Natural Gas (CNG), Liquefied Petroleum Gas (LPG), and Gasoline. 9. Optional oil temperature and speed measurement options. |
Which exhaust gases can the SV-5Q analyzer measure?
The analyzer measures the concentration of HC, CO, and CO₂ directly in vehicle exhaust gas using the Non-Dispersive Infra-Red (NDIR) method. Additionally, it detects NO and O₂ levels using an electrochemical sensor, allowing it to calculate the excess air coefficient (λ).
Does this emission tester meet international accuracy standards?
Yes, it satisfies GB18285-2005 requirements. It achieves the national standard ISO3930 and international OIML R99 Class I accuracy levels.
Can the analyzer test vehicles using alternative fuels?
Yes. The device is versatile and designed to measure exhaust emissions from vehicles using three types of fuel: natural gas (CNG), liquefied petroleum gas (LPG), and standard gasoline.
How long is the startup preheating time for the device?
The system requires a startup preheating time of approximately 10 minutes to stabilize the components and ensure highly accurate measurements.
Does the device support data logging and immediate reporting?
Yes. It features built-in storage capable of saving up to 500 groups of exhaust gas measurements. An integrated micro-printer is included to print test results directly on-site.
