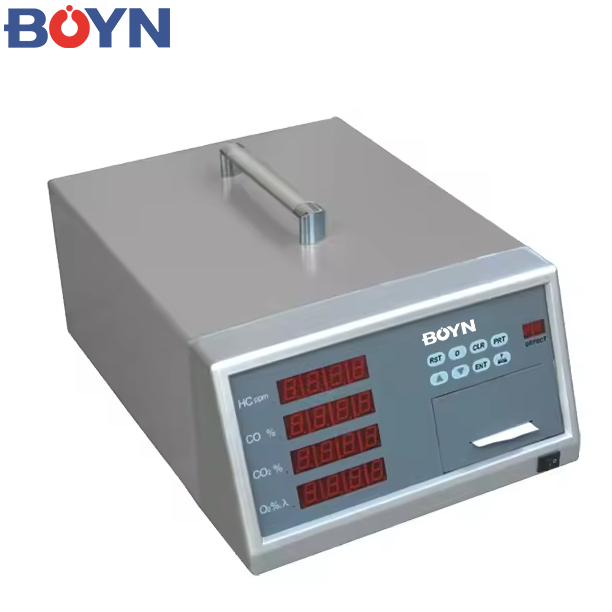

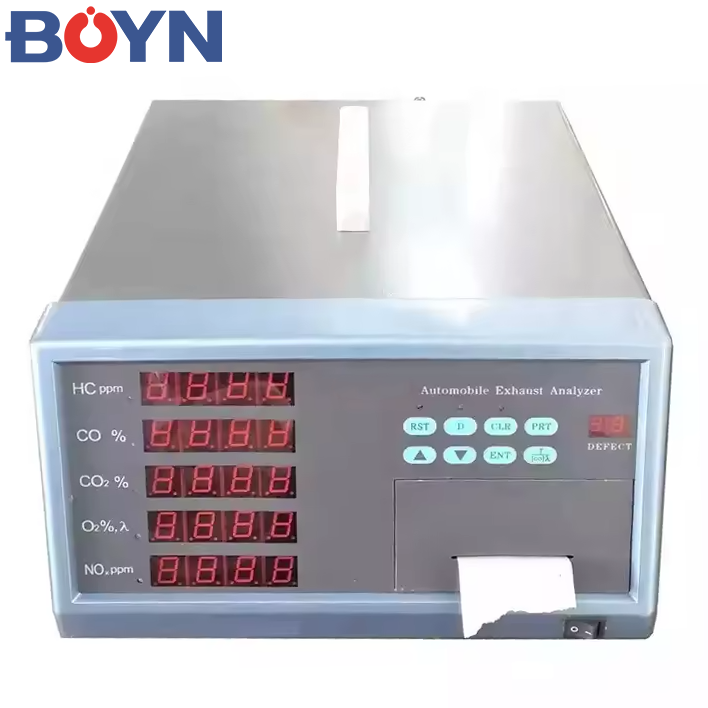

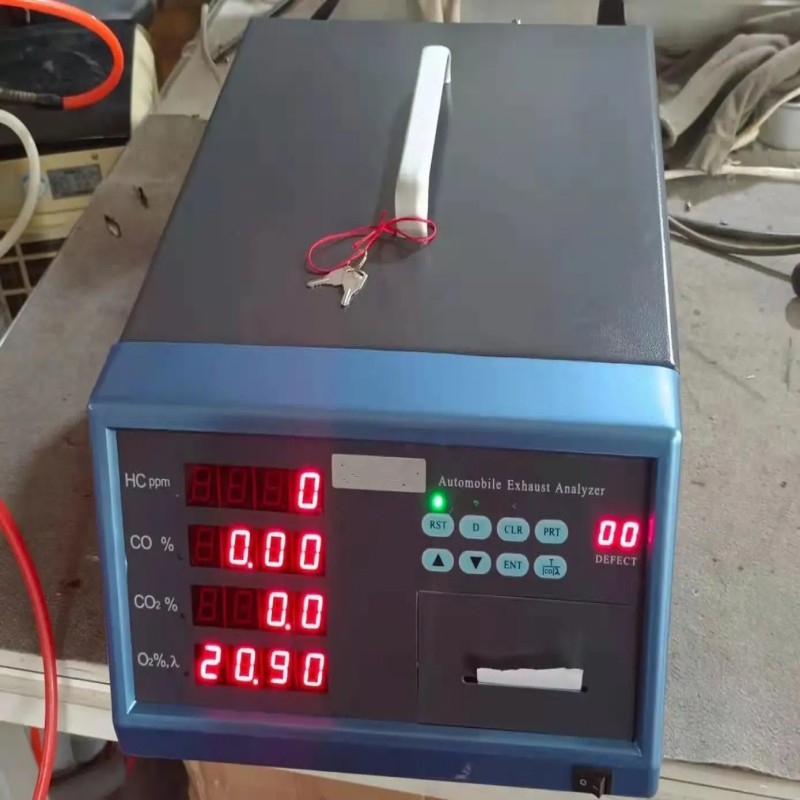

It is used to measure the concentration of HC, CO, CO2, O2 and NOx in the exhaust gas of automobile. It can automatically calculate and display the air-fuel ratio λ. It can comprehensively detect the combustion performance and emission pollution of engine.

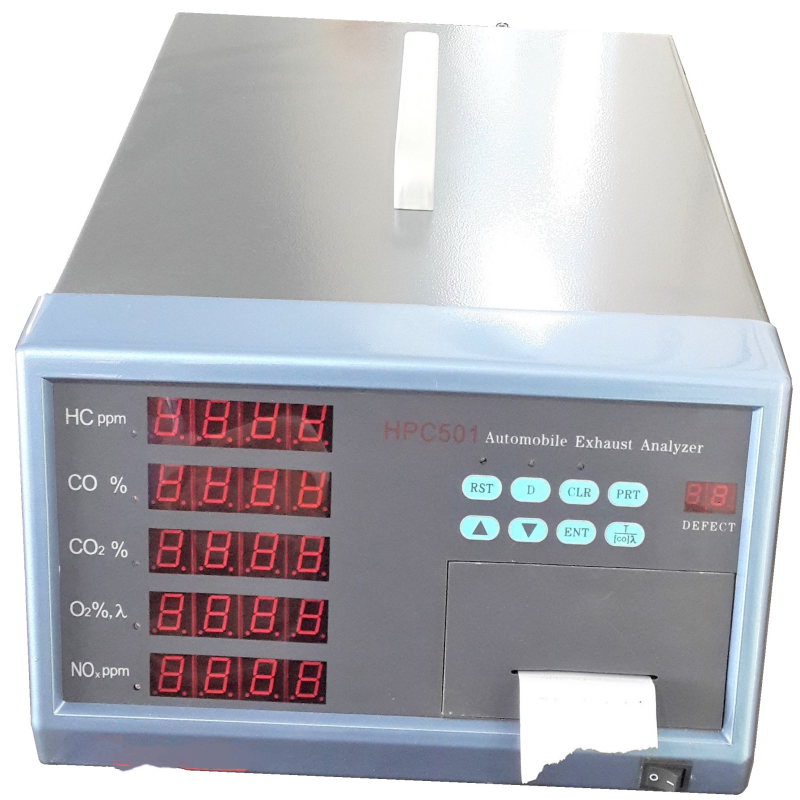

| Model | HPC401 | HPC501 |
|---|---|---|
| Measuring range |
HC: 0~10000×10-6(ppm)vol CO: 0~10×10-2(%)vol CO2: 0~20×10-2(%)vol O2: 0~25×10-2(%)vol |
HC: 0~10000×10-6(ppm)vol CO: 0~10×10-2(%)vol CO2: 0~20×10-2(%)vol O2: 0~20×10-2(%)vol NOx: 0~5000×10-6(ppm)vol |
| Stability | moment drift ≤±3% | |
| Repeatability | ≤±2% | |
| And-use temperature | -5~50°C | |
| Relative humidity | ≤90% | |
| Power | AC100~240V 50/60Hz or DC12V (Add power inverter) | |
| Power consumption | 40VA | |
| Dimension | 420*310*170MM | |
| N./G. Weight | 9/12Kg | |
| Packing Size | 62*44*30cm | |
