Heavy Duty Truck Diagnostic Tools OBD 2 Scanner Car Diagnostic Scanner Device

Still deciding? Get samples of $ !
Order Sample

Product Description

Overview
Product Description
Our Advantages
Basic Info
Model NO.
EDS-V500
Condition
New
Standard
Standard
Language
Spanish, Chinese, Japanese, German, French, English, Russian
Type
Diagnostic Scanner
Product Name
Diesel & Auto 2-in-1 Code Reader Truck
Screen
Color Screen 2.8 Inches, 240*320
Operating Current
70-90mA
Operating Environment
-20~65℃
Storage Temperature
-30~80℃
Transport Package
Carton
Specification
175*258*62mm
Origin
China Hunan
Production Capacity
20000
Packaging & Delivery
Package Size
26.00cm * 18.00cm * 7.00cm
Package Gross Weight
1.500kg
Product Description

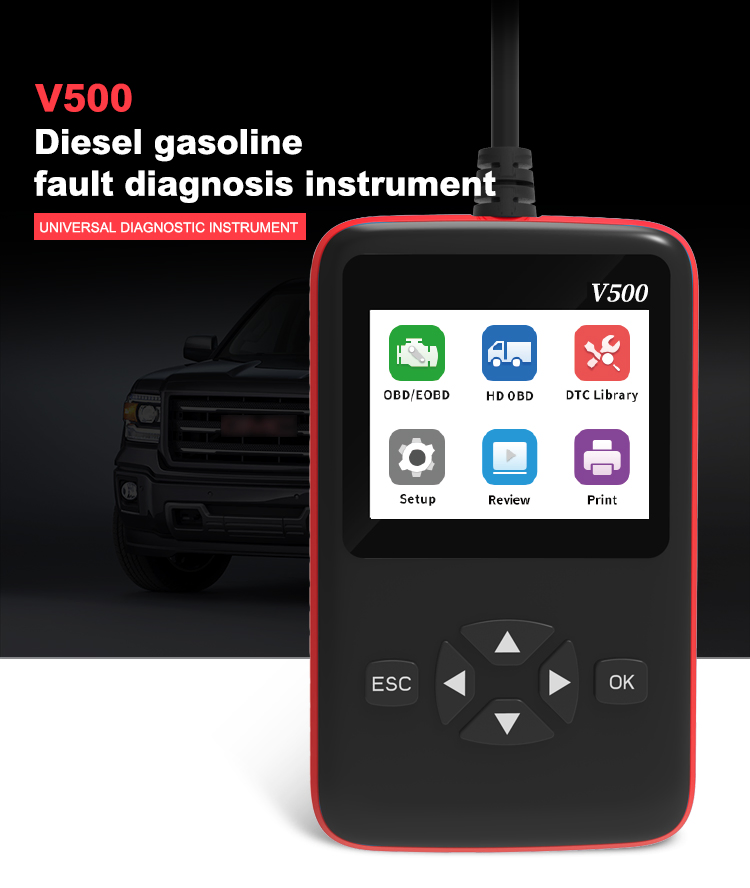

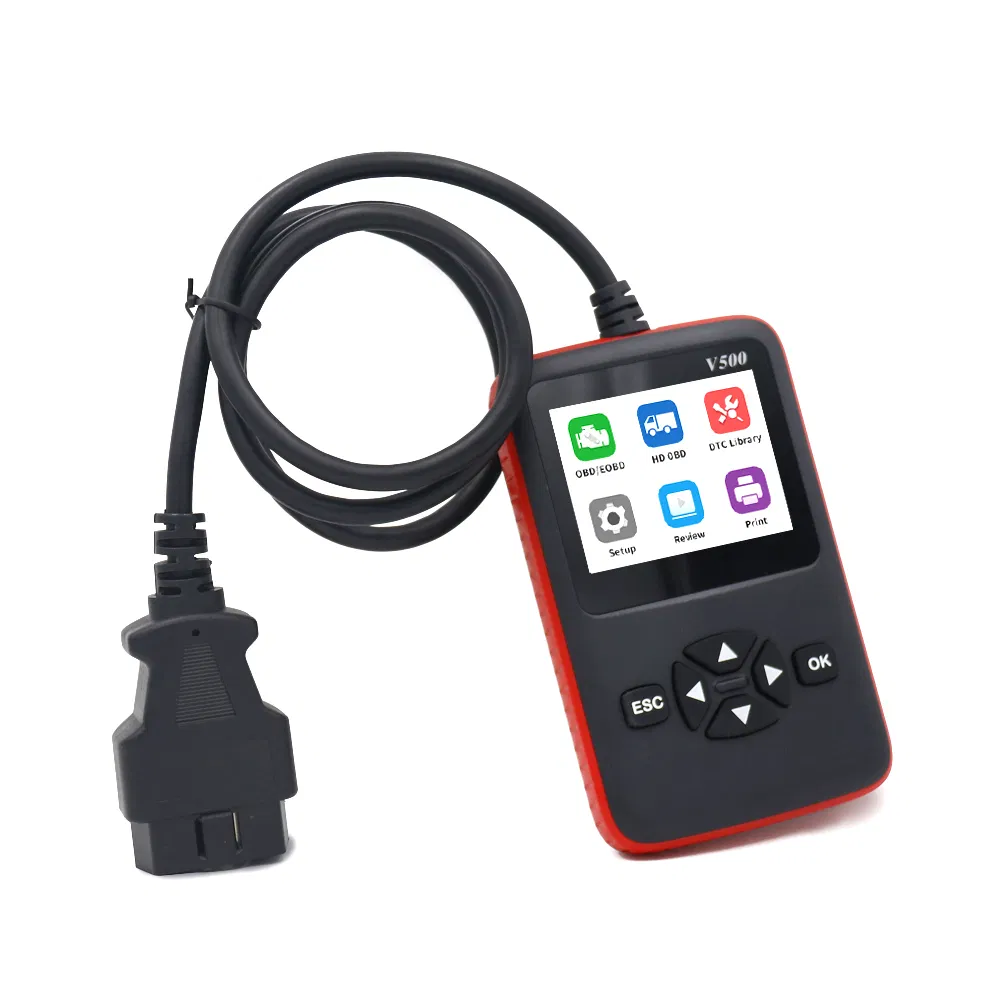

Heavy Duty Truck Diagnostic Tools OBD 2 Scanner Car Diagnostic Scanner Device
Technical Features Parameters Supported Protocols
  • Support OBD II/EOBD nine standard protocols.
  • Support truck SAE J1939/SAE J1708 common protocols.

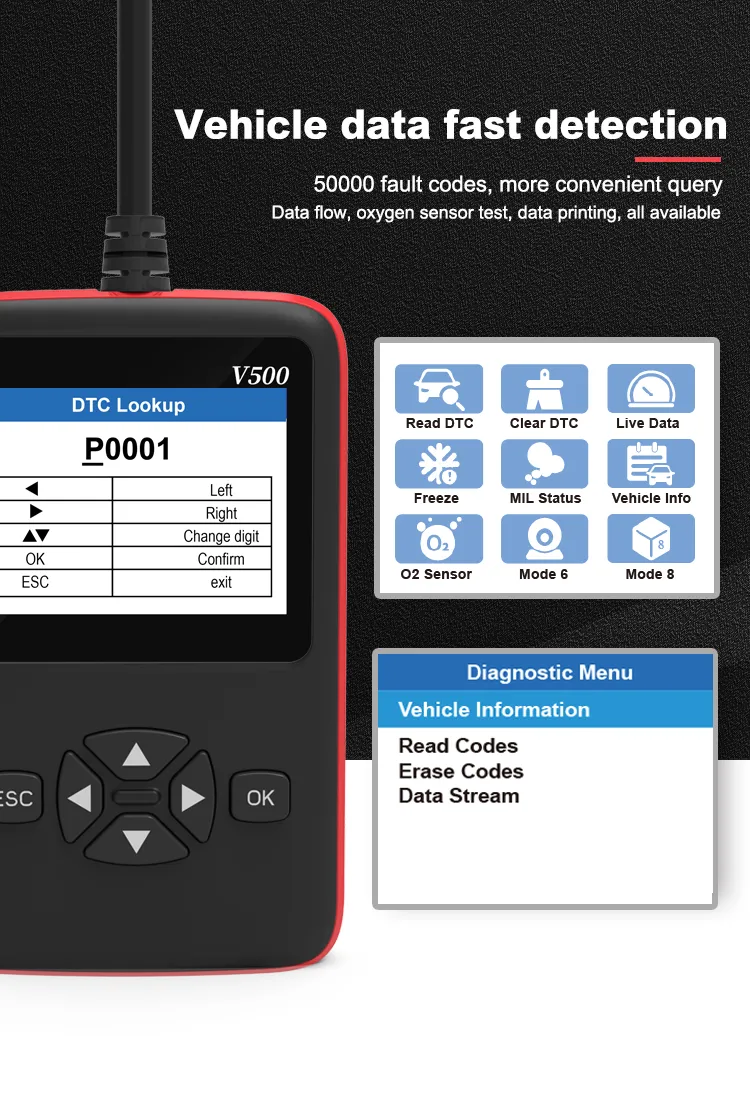

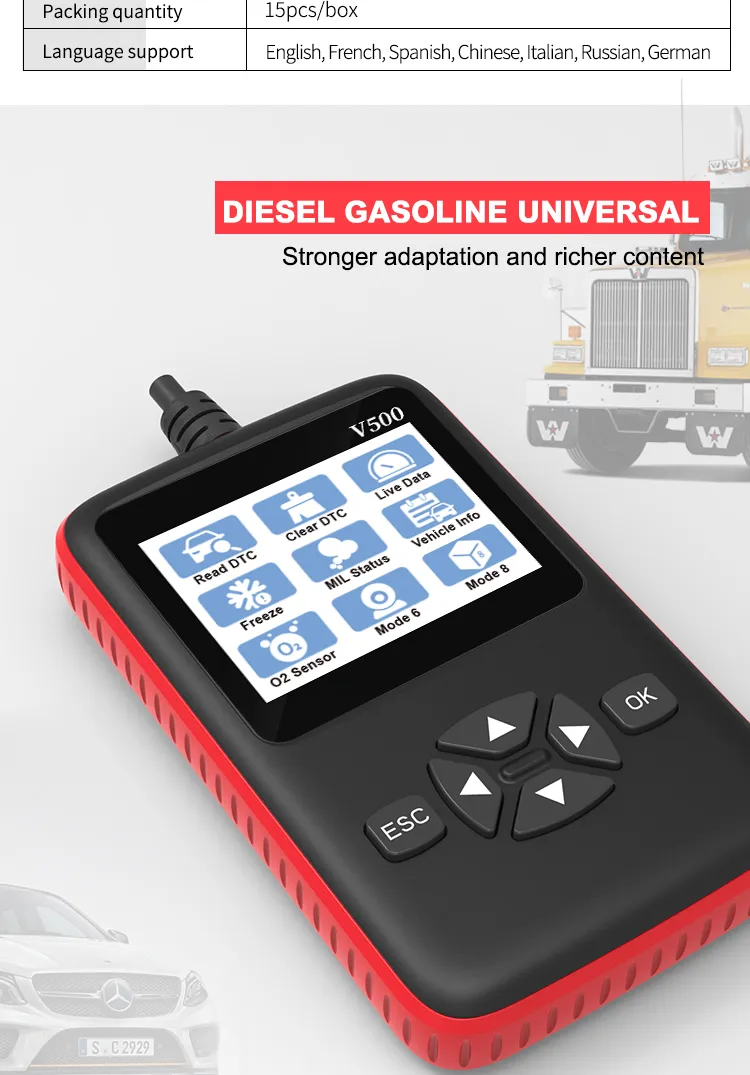

  • Supports gasoline models to read and clear vehicle fault codes, read data streams, freeze frame information, check MIL status, read vehicle information, oxygen sensor test, on-board monitoring (mode 6), evaporation system (mode 8) test.
  • Support truck model to read vehicle information, read/clear fault code information, data flow information.
  • Support fault code information query, built-in about 50,000 fault code library information.
  • Support data stream playback function, view/delete fault code, data stream, freeze frame information.
  • Support USB printing function, can print fault code, data flow, freeze frame information.
  • Support seven languages: English, Chinese, Italian, French, Spanish, German, Russian.

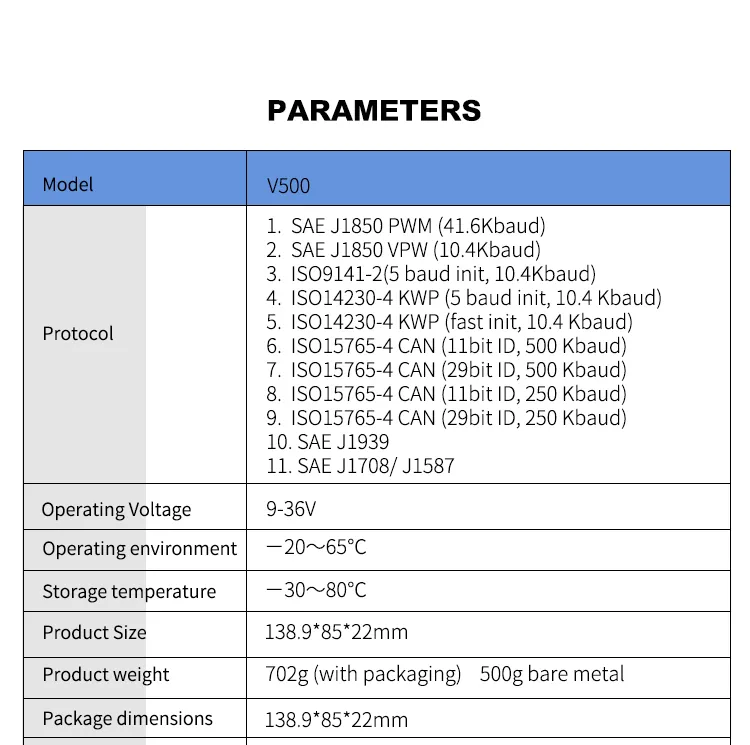

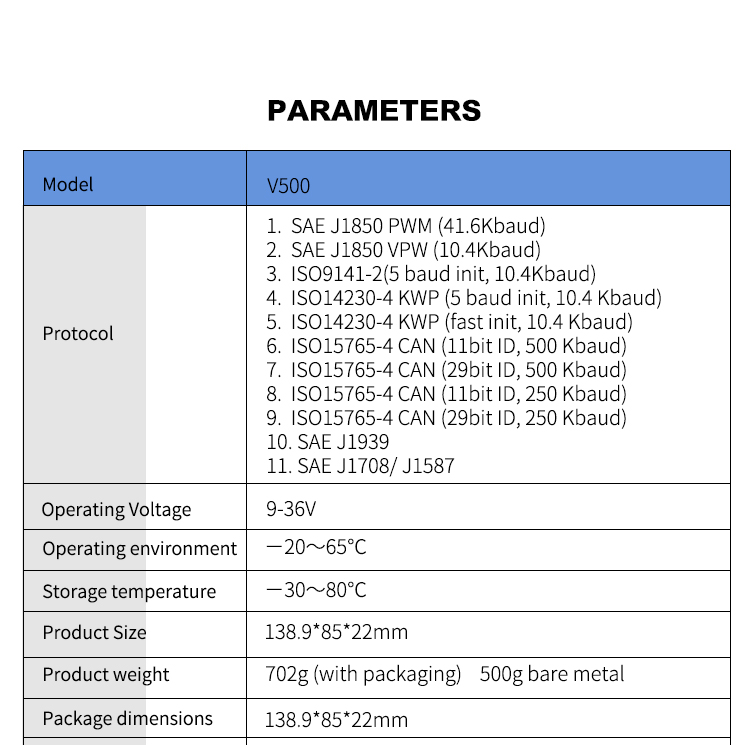

  • Main control chip: LPC1765FBD100
  • Operating voltage: 9~36V
  • Operating current: 89mA
  • Operating environment: -20~65ºC
  • Storage temperature: -30~80ºC
  • Overall Dimension: 138.9*85*22mm
  • Packing size: 175*258*62mm
  • Product weight: 500g
  • With packing: 702g
  • Packing quantity: 15pcs
  • SAE J1850 PWM (41.6Kbaud)
  • SAE J1850 VPW (10.4Kbaud)
  • ISO9141-2(5 baud init, 10.4Kbaud)
  • ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
  • ISO14230-4 KWP (fast init, 10.4 Kbaud)
  • ISO15765-4 CAN (11bit ID, 500 Kbaud)
  • ISO15765-4 CAN (29bit ID, 500 Kbaud)
  • ISO15765-4 CAN (11bit ID, 250 Kbaud)
  • ISO15765-4 CAN (29bit ID, 250 Kbaud)
  • SAE J1939
  • SAE J1708/ J1587
Heavy Duty Truck Diagnostic Tools OBD 2 Scanner Car Diagnostic Scanner Device
Heavy Duty Truck Diagnostic Tools OBD 2 Scanner Car Diagnostic Scanner Device
Heavy Duty Truck Diagnostic Tools OBD 2 Scanner Car Diagnostic Scanner Device
Heavy Duty Truck Diagnostic Tools OBD 2 Scanner Car Diagnostic Scanner Device
Heavy Duty Truck Diagnostic Tools OBD 2 Scanner Car Diagnostic Scanner Device
Heavy Duty Truck Diagnostic Tools OBD 2 Scanner Car Diagnostic Scanner Device
Heavy Duty Truck Diagnostic Tools OBD 2 Scanner Car Diagnostic Scanner Device
Heavy Duty Truck Diagnostic Tools OBD 2 Scanner Car Diagnostic Scanner Device
Hot Selling Products
Heavy Duty Truck Diagnostic Tools OBD 2 Scanner Car Diagnostic Scanner Device
Our Advantages
Rich Product Experience
About 11 years specialized in power supply engineering.
Professional R&D Team
We have a professional team and extensive cooperation with universities.
Quality Assurance
We implement a strict quality management system, and our products have passed ISO, CQC certification.
Attentive Service
Providing lifetime technical service and at least 12-month warranty, and we accept OEM and ODM services.
Company Profile

Established in 2011, we are a professional enterprise engaged in the manufacture of auto parts and accessories, including Portable EV chargers, car jump starters, car battery chargers, car air inflators, car chargers, car vacuum cleaners, PPF car films, reversing cameras, and parking sensors. Driven by rapid development over recent years, we have built a production workshop and research laboratory spanning around 2,000 square meters, equipped with 6 production lines and 6 testing lines.

We own 10 software copyrights, 9 utility model patents, and 3 invention patents, earning a high reputation both domestically and internationally. Committed to rigorous quality control and professional customer service, we have obtained ISO 9001, ISO 45001, ISO 14001, 3A class, and CE certifications. Furthermore, we have established extensive cooperation and communication networks with colleges, universities, and research institutions, forming a school-enterprise scientific research alliance to achieve great results.

Production Workshop
Testing Laboratory
Frequently Asked Questions
How can I get a sample?
You will be charged a sample price plus all related shipping costs. The express delivery charge depends on the quantity of the samples.
What products can you buy from us?
You can buy jump starters, EV chargers, car tire inflators, car battery chargers, car vacuum cleaners, PPF car films, car reversing cameras, car parking sensors, LED headlights, and truck diagnostic tools.
Why should you buy from us rather than other suppliers?
We can provide competitive prices, reliable quality, customized services, and professional after-sales technical support.
What services can we provide?
We support a flexible MOQ starting from single sample orders. We operate under EXW, FOB, and CIF delivery terms. Packing includes standard export packaging with clear instructions and certificates. OEM/ODM customization options are also fully supported.
How do we guarantee product quality?
We enforce strict detection throughout the production process. A detailed final sampling inspection is conducted on all products before shipment to ensure that packaging and product performance remain intact.
What is the shipping method and warranty support?
We offer delivery via express services (FedEx, DHL, UPS, and TNT) or through designated freight forwarders. Our products are covered by a minimum one-year free repair warranty for quality issues, along with lifetime online support.
