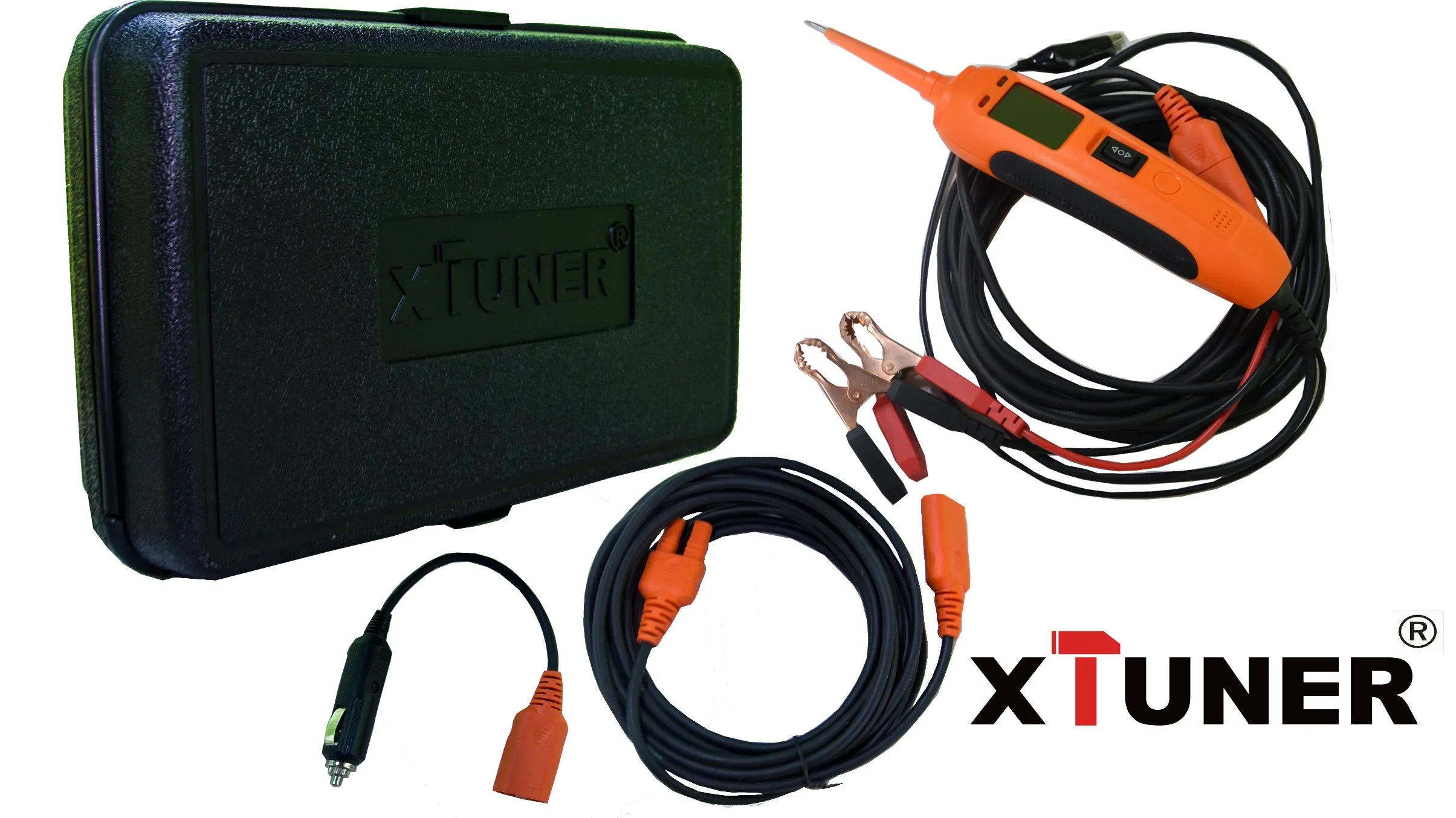

PT101 is the new revolutionary type circuit tester to users. Equipped with AVOmeter, test light, built-in flashlight, short circuit indicator, relay/component tester, continuity tester and bad ground indicator, it provides great simplicity for users to check circuitry conditions.
Support 5 testing modes for 12V-24V to read voltage, current, resistance, and diode by the fingertip.
Elegant streamline design with smooth texture adapted to users' preferences.
Large color LCD screen display with simple operation menu, easy to use.
Automatically reset, no need to push button manually.
Automatic circuit protection when current reaches up to 8 Amp.
Can test resistance up to 10KΩ, extending accessibility.
Supplies power and ground for all functional component testing.
Displays digital Voltmeter with Min/Max Voltage.
Supports power injection, measurement, ground testing, polarity checks, continuity testing, and components activation.
Check positive, negative, open circuits, and bad ground contacts immediately.
Built-in Flashlight helps users work well in dark environments.
Equipped with a 20ft (extendable) cable which offers better testable space.
More functions and more stable for your use.
| Display | TFT color display (160 x 128 PPI) |
| Dimensions | 195 mm (7.68") * 50.5 mm (1.99") * 33mm |
| External Power | 12.0 - 30.0V power provided via vehicle battery. Recommended 12v power supply |
| Supply Details |
Min Operating Voltage: 8 VDC Max Operating Voltage: 40 VDC Max Tip Voltage: 40 Volts Probe Tip Resistance to Ground: 1000 K Ohms Computer Safe: 0.1mA floating tip Voltage Measurement: 0 to 40 VDC / VAC Voltage Resolution: 0V to 40V - 0.01V (10mV) Glitch Capture: >50µS Min Pulse Width Power Feed Test: < 3 mA Resistance Measurement: 0 Ohms to 1M Ohms Frequency Measurement: 1Hz to 20KHz Circuit Breaker: 8 Amp Thermal - Auto Reset Breaker Trip Response: 8 Amps = No Trip / 8 Amps = 1 sec. / Short Circuit = 0.3 sec. Operating Temperature: -20°C (-4°F) to 50°C (122°F) Storage Temperature: -40°C (-40°F) to 65°C (149°F) |
The PT101 supports a testing range of 12V to 24V, and runs on external power of 12.0V to 30.0V provided via the vehicle battery.
Yes, the device is equipped with an 8 Amp thermal circuit breaker that automatically resets, preventing damage without requiring manual intervention.
Yes, the PT101 comes with a built-in flashlight, ensuring clear visibility and safe operation in dark or hard-to-reach vehicle spots.
It can test voltage (0-40 VDC/VAC), resistance (0 Ohms to 1M Ohms), and frequency (1Hz to 20KHz), alongside offering polarity checks, continuity testing, and diode readings.
The PT101 is equipped with a 20ft extendable cable, providing outstanding accessibility and coverage throughout the vehicle space during diagnostics.
