Product Description

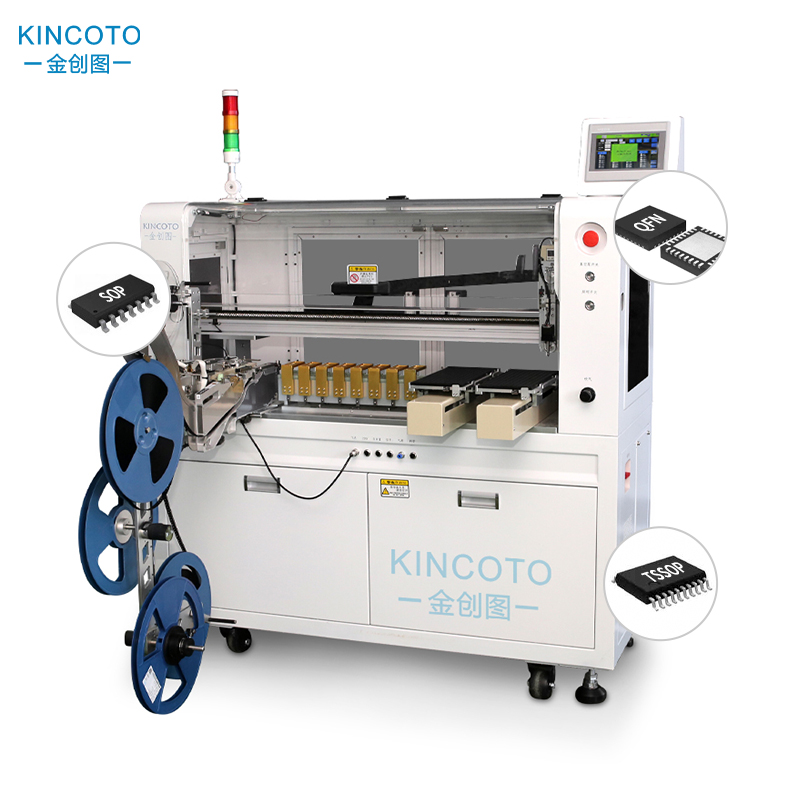

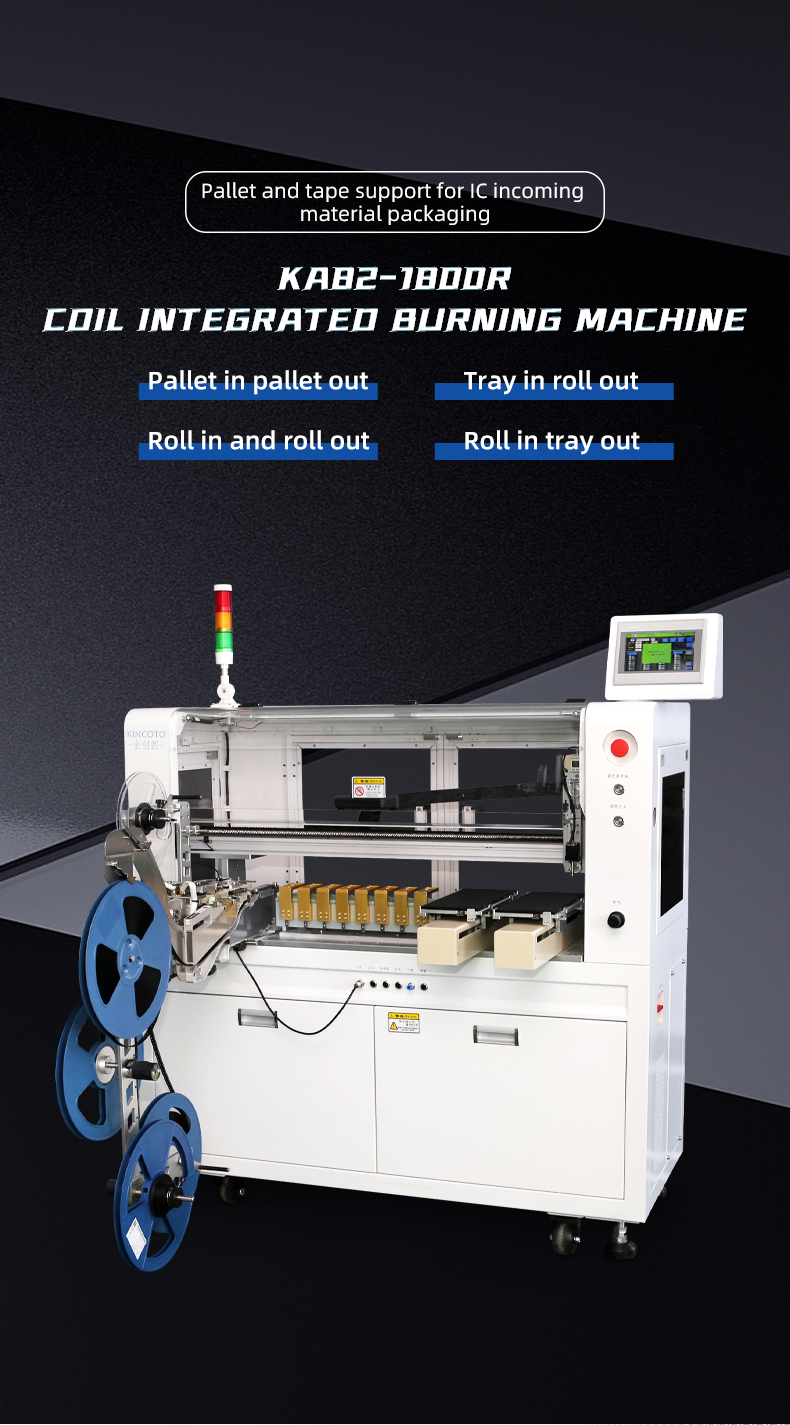

Intergrated tray & tape IC programming machine KA82-1800R
Intergrated tray & tape IC programming machine KA82-1800R

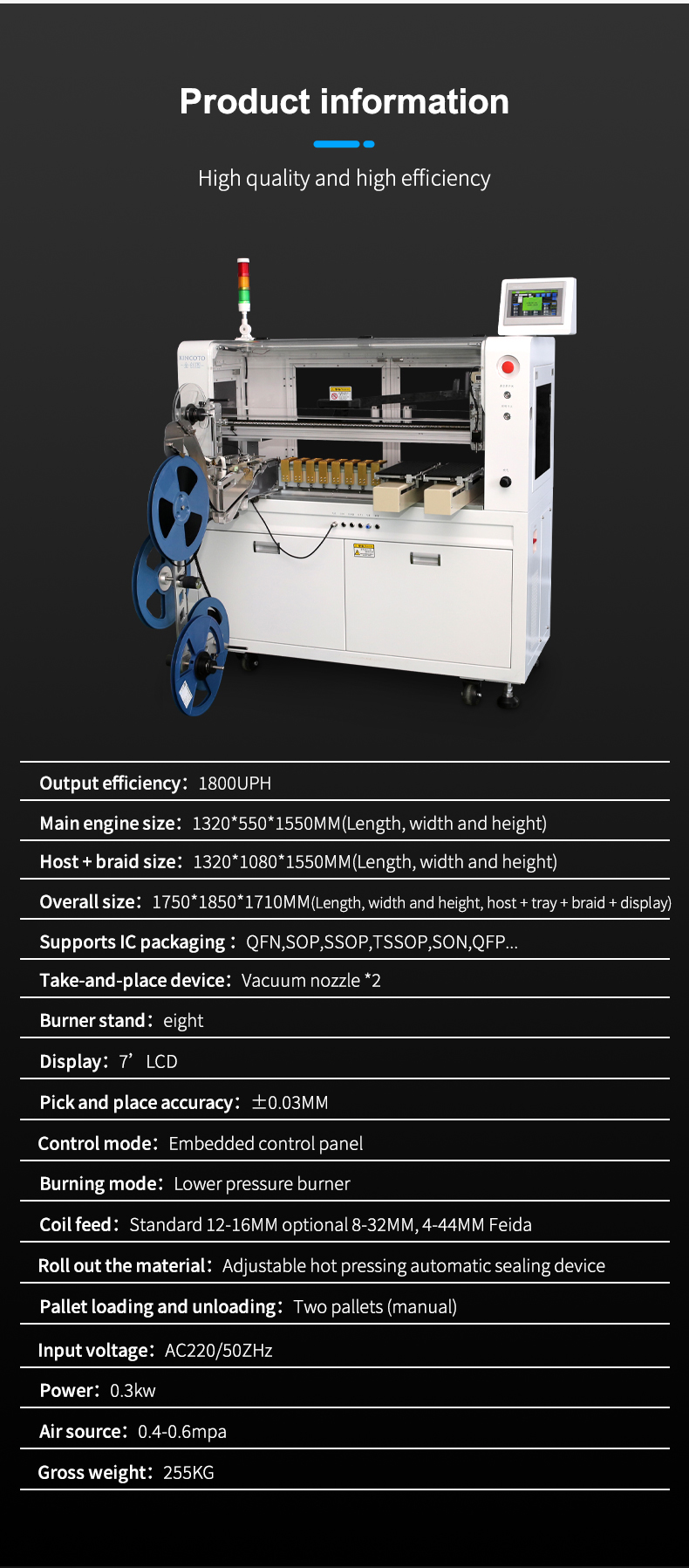

Products Description
Model NO. KA82-1800R
Output efficiency 1800UPH
Host size 1320*550*1550 (Length, width and height)
Over all size 1320*1080*1550 (Length, width and height)
Support IC packaging QFP, QFN, SOP, SSOP, TSSOP.....

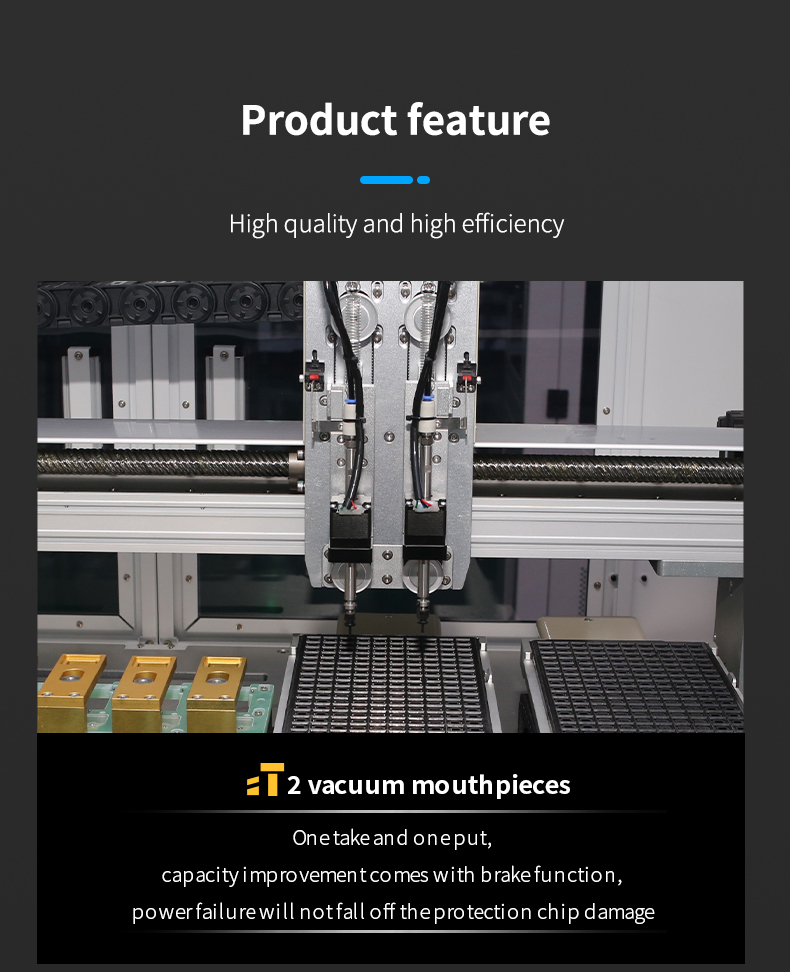

Pick and place device Vacuum nozzle*2
Programming Station 8 stations
Monitor 7” LCD
Pick and place accuracy ±0.03mm
Control mode Embedded control panel
Programming method Down press programming station
Tape feed Standard 12-16MM optional 8-32mm, 4-44mm Feeder
Tape discharge Adjustable automatic hot pressing film sealing device
Tray in and out 2 trays (Manual)
Input voltage AC220/50ZHz.
Power 0.3kw
Gas source 0.4-0.6MPA
Total weight 255KG
Features

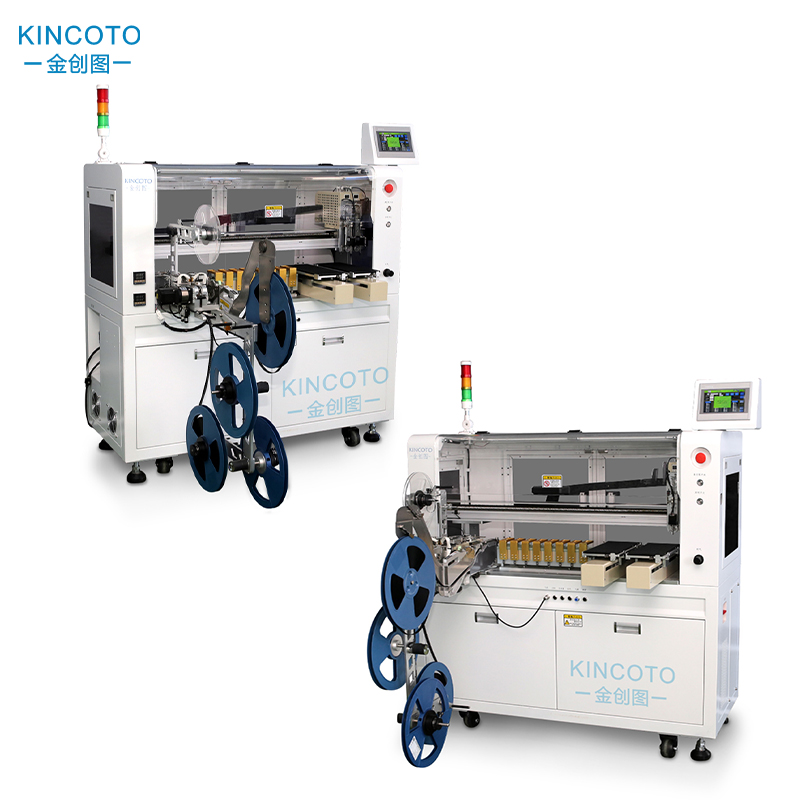

Features Image

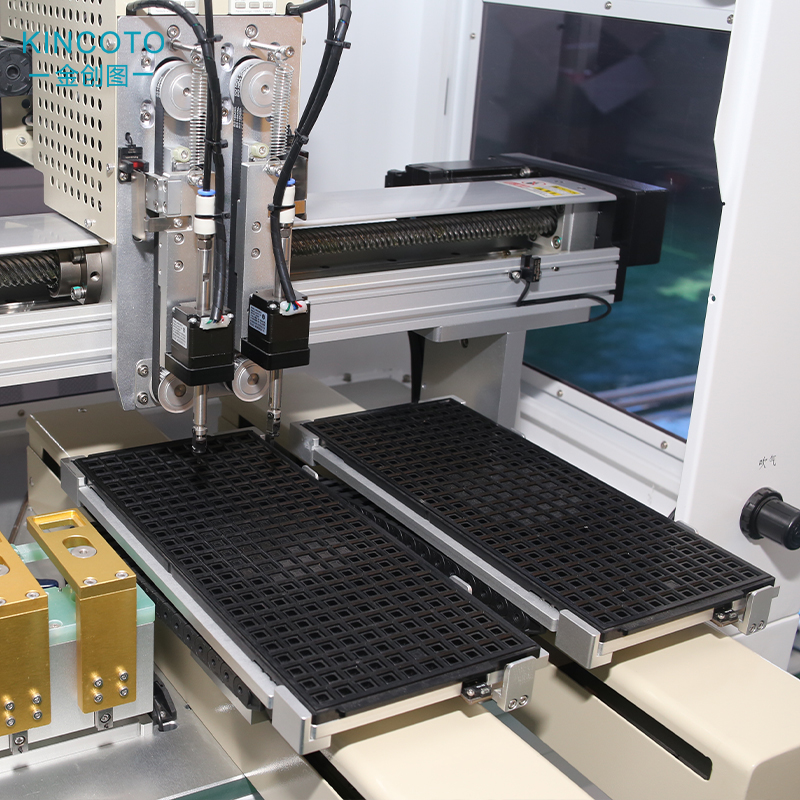

KA82-1800R is an automated device for tape packaging and standard tray programming/testing. It uses a manipulator, has higher screw precision, is equipped with double nozzles to absorb chips, and has an electric feeder for feeding. It has stable performance. The manual tray feeding device allows the tray and the tape to be interchanged for packaging. It is convenient and efficient. The maximum production capacity can reach 1800UPH. It has eight programming stations and is compatible with 8-44mm width carrier tapes, with high equipment compatibility.
Our Advantages
Advantage 1
Advantage 2
Advantage 3
Exhibition
Exhibition Image
Certifications
Certifications Image
Product details

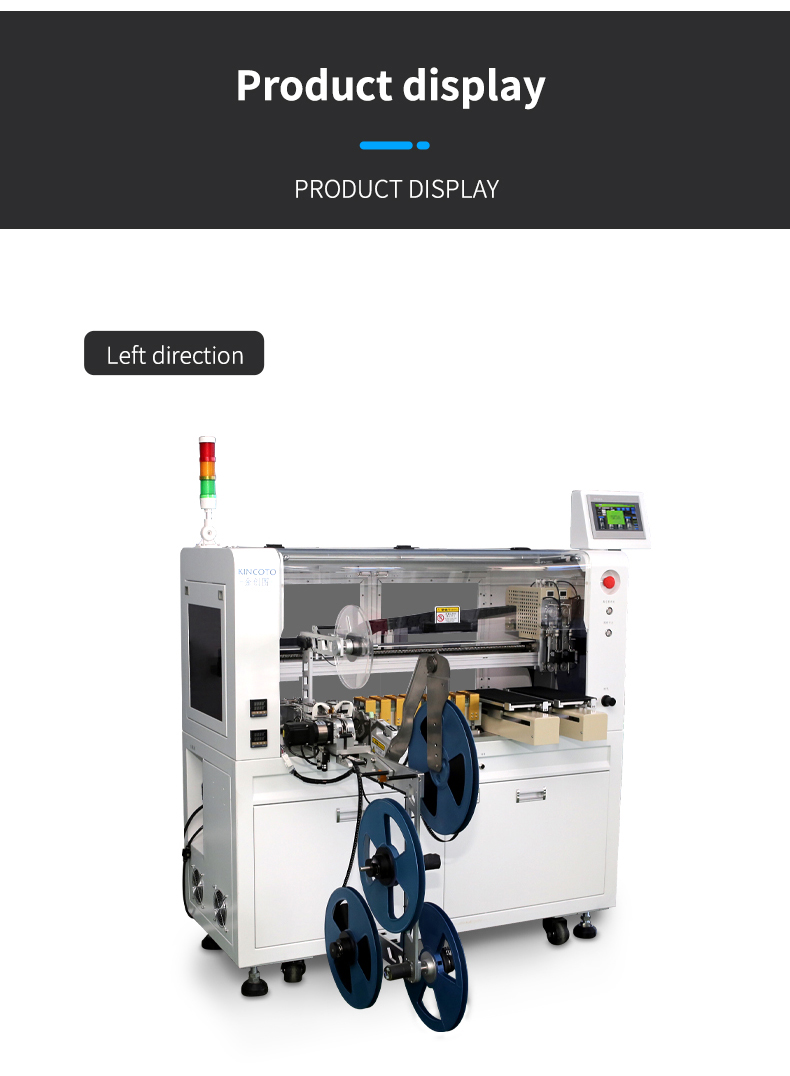

Detail 1

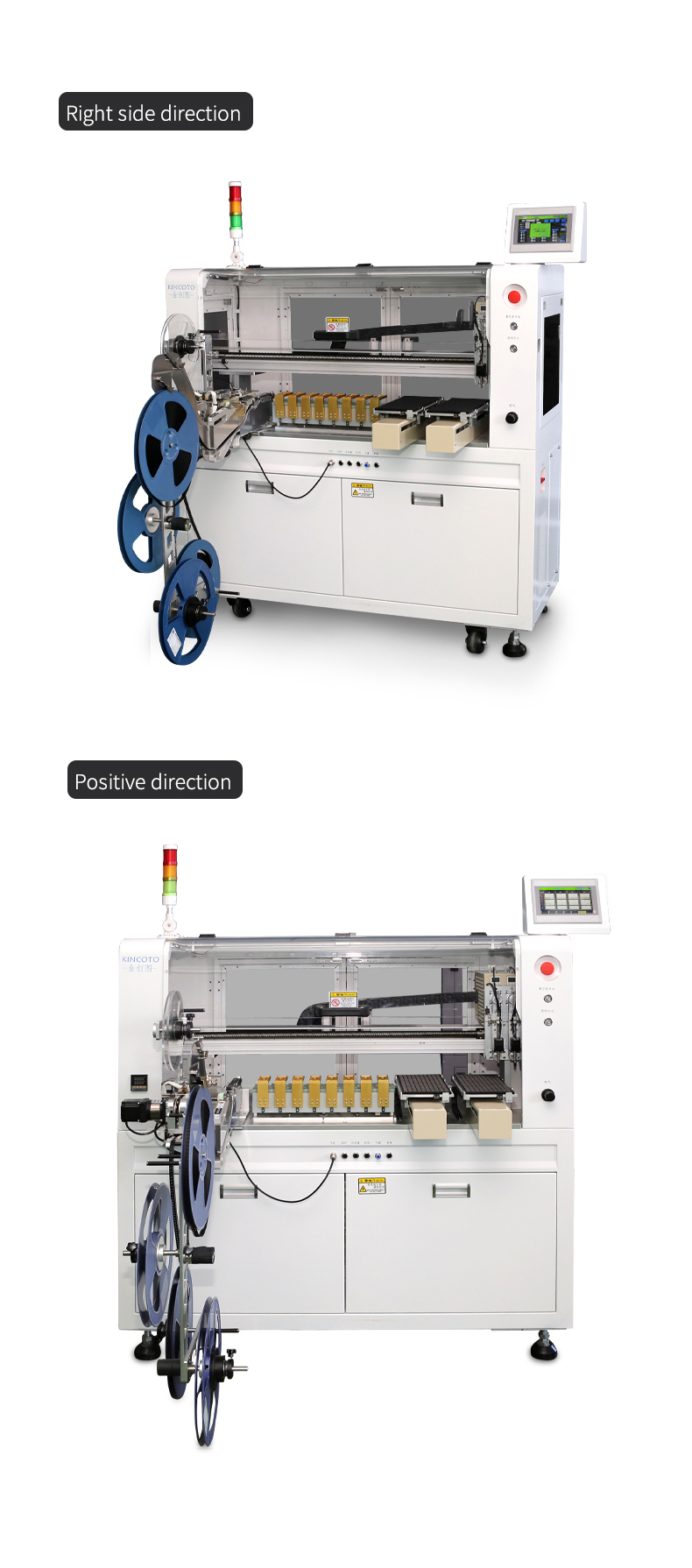

Detail 2
Detail 3

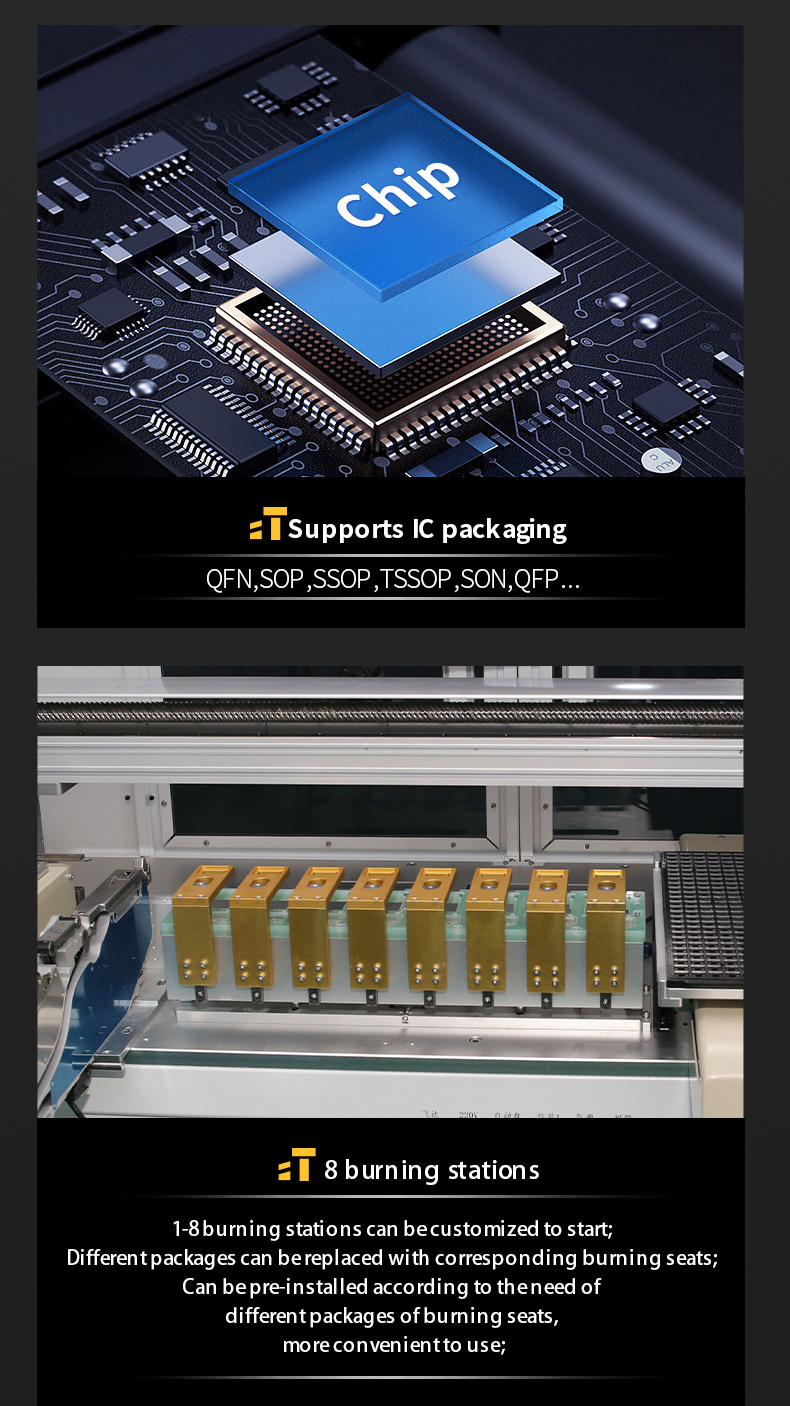

Detail 4

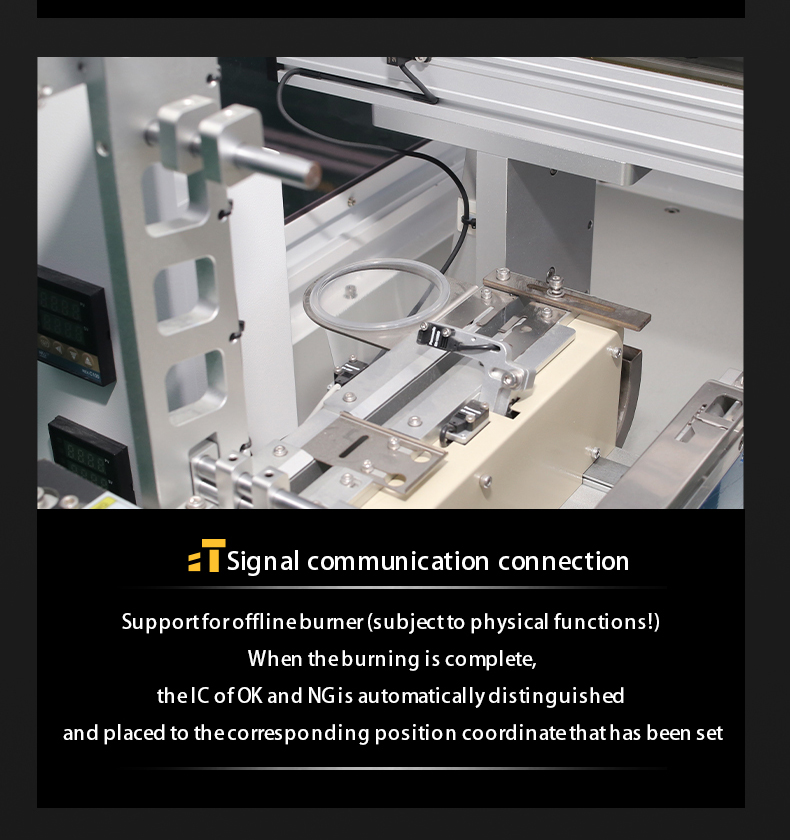

Detail 5

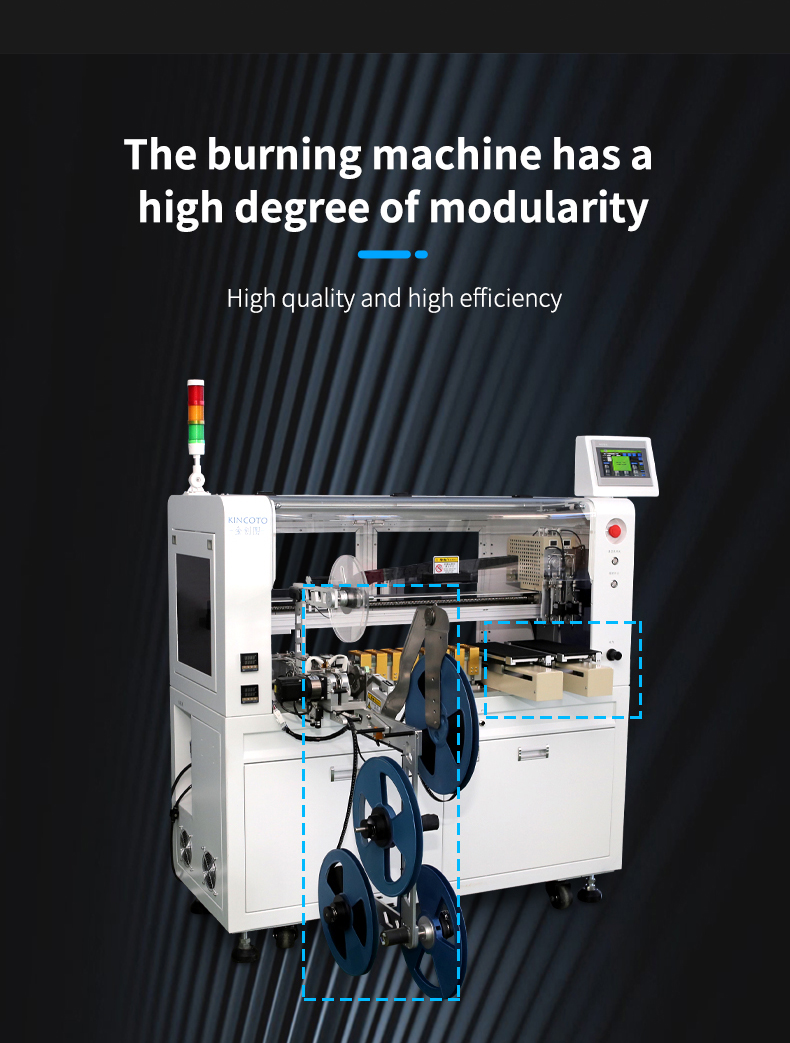

Detail 6

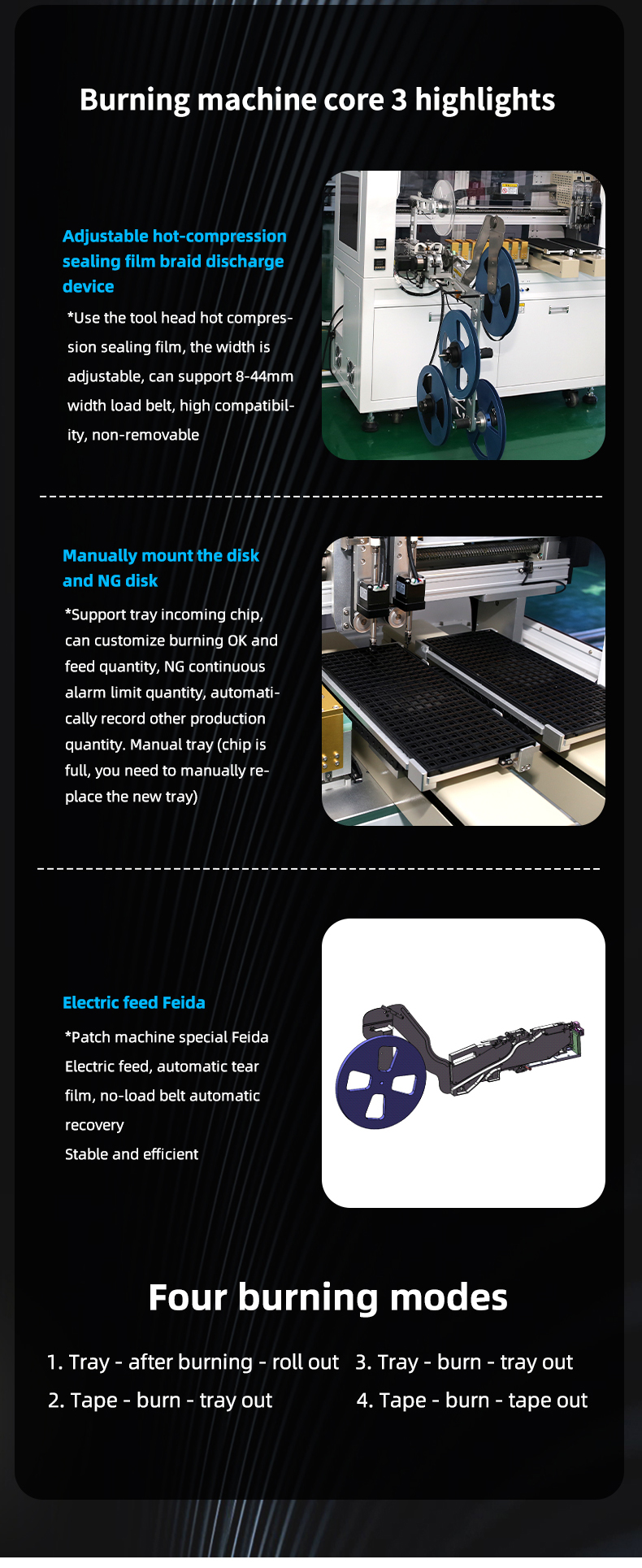

Detail 7

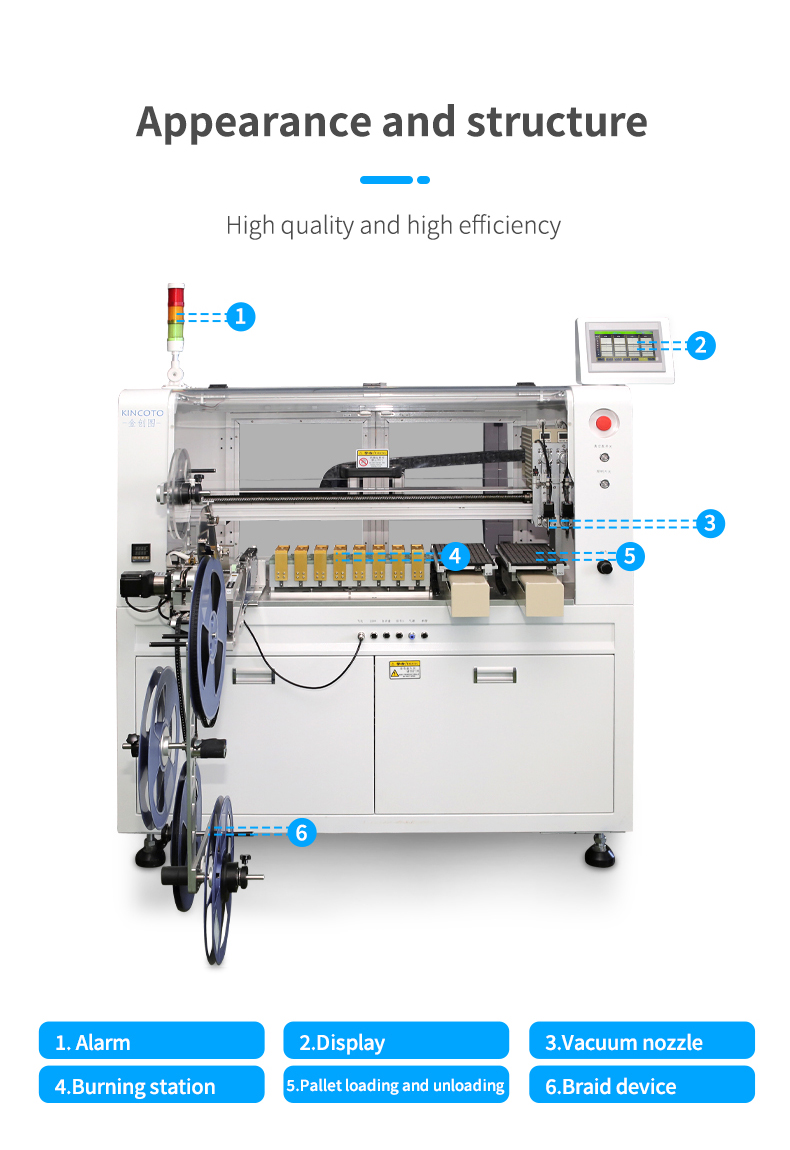

Detail 8

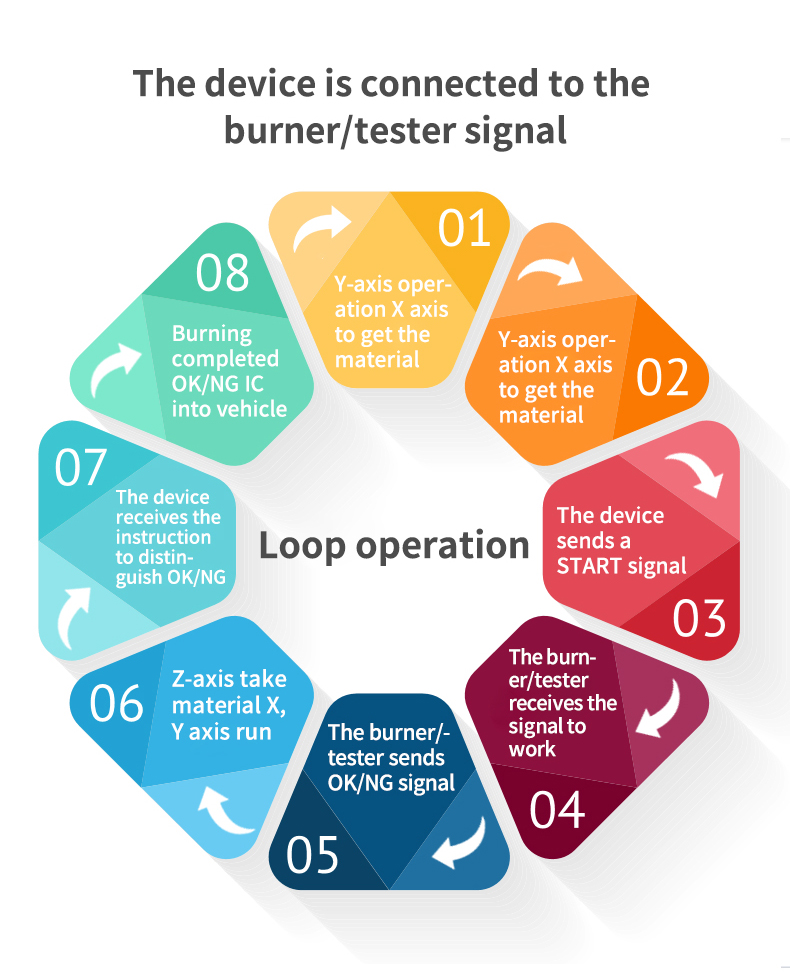

Detail 9
Detail Additional
Transport package
Transport 1
Transport 2
Transport 3
FAQ
Q1Are you a factory?
Yes.
Q2How about your guarantee? After guarantee if our machine has problems how should we do?
All equipment's guarantee is one year except the vulnerable parts. Any problems feel free to ask, we will guard you to repair.
Q3Are all IC programming Machine of the burner suitable?
No, it depends on the package and packaging of the chip.
Q4How do I know if my chip is suitable for this device?
Send us the chip specification and we will recommend the equipment suitable for your chip based on the chip.
Q5What's your usual delivery time?
Mostly normal equipment delivery time is 3 days, while some non-standard types and special motors need more time.
Q6How about your quality? Do you have some certification?
Quality and service are our soles, and the point support us go so long and will forward more far. All equipment has ISO and CE certificated. Quality are assured and approved by customers.
