Product Description

O2-2 Scopebox
Advanced Scopebox For Solving Complex Electrical Faults
Featuring a new design and upgraded hardware, the O2-2 Scopebox is a versatile and easy to use add-on module that can detects high level faults on various electrical components, such as sensors, actuators and circuits. By integrating with the diagnostic scan tools via O2-2 application, it delivers accurate and conclusive diagnostic faults that enable the shop and technician to enlarge their scan tool's functionality.
Key Features
Features the ability to record and playback high-resolution waveform data for future analysis.
One key enable function allows users to capture a particular waveform which makes the process 70% more efficient as compared to other scopes.
Access to 23 variants of automatic measurements that are displayed on one screen for an easy switch.
Ability to input names and characters directly by clicking on the virtual keyboard, this operation streamlines the process and contributes to 90% efficiency.
Use the zoom in/out feature to review precise details.
Customizable personal system settings that can be saved as configuration files for viewing.
The self-calibration function allows optimization of the oscilloscope signal path for maximum measurement accuracy.
Magnifies waveform math operations, such as addition, subtraction, multiplication and FFT function for high level waveform analysis.
Multiple automotive tests include circuits, sensors, actuators, ignition tests and more.
Product Parameters
Parameter Specification Details
Channels 4
Bandwidth 100MHz
Rising Time 3.5ns (typical)
Accuracy ±3%
Input Impedance 1M ±1.5%
Input Type Single-ended, BNC Connector
Input Coupling DC, AC
Overload Protection ±200V on single input
Timebase Ranges 1ns~1ks (1 Channel) / 1ns~1ks (2 Channels) / 1ns~1ks (4 Channels)
Vertical Resolution 8bits
Buffer Memory 10M (for 4 Channels)
Power Interface USB port, DC IN port
Data Exchange Via USB
Trigger Mode Normal, Auto and Single SEQ
Advanced Triggers Edge, Pulse width
Product Gallery

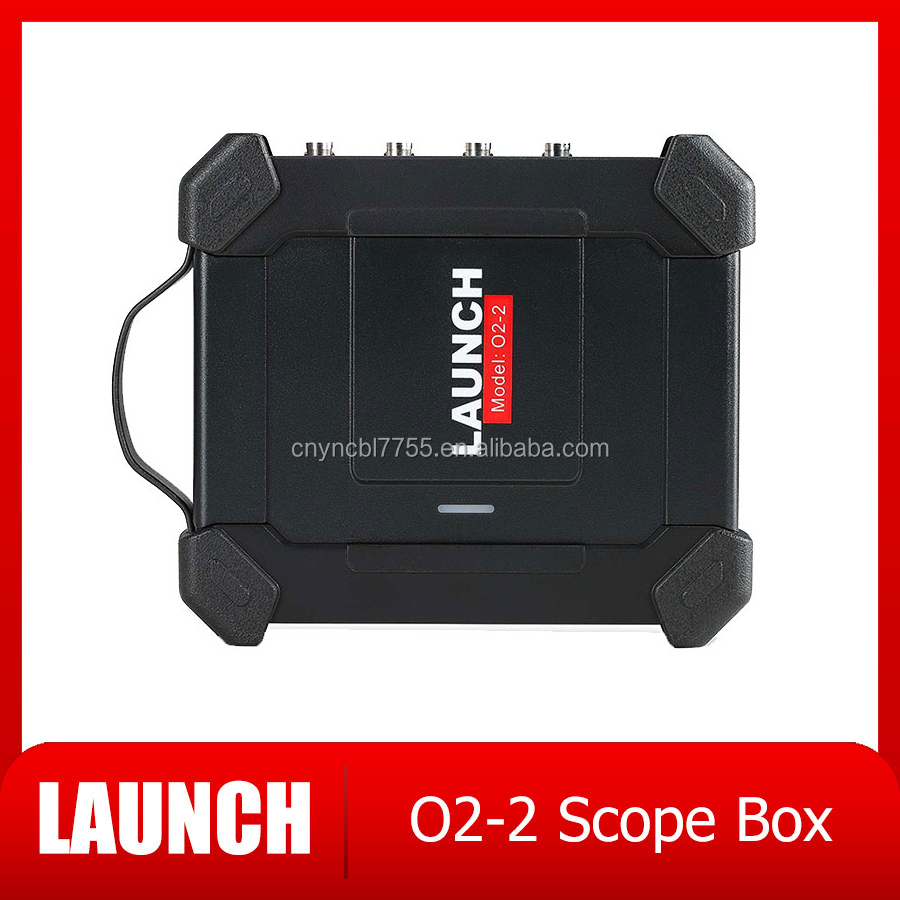

Scopebox Showcase 1
Scopebox Showcase 2
Scopebox Showcase 3

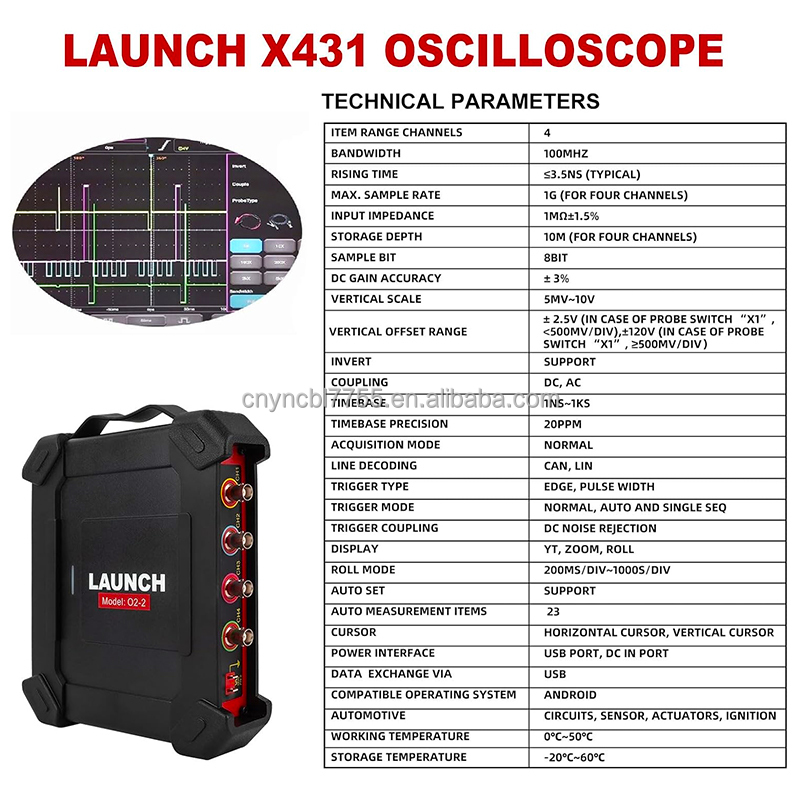

Scopebox Showcase 4

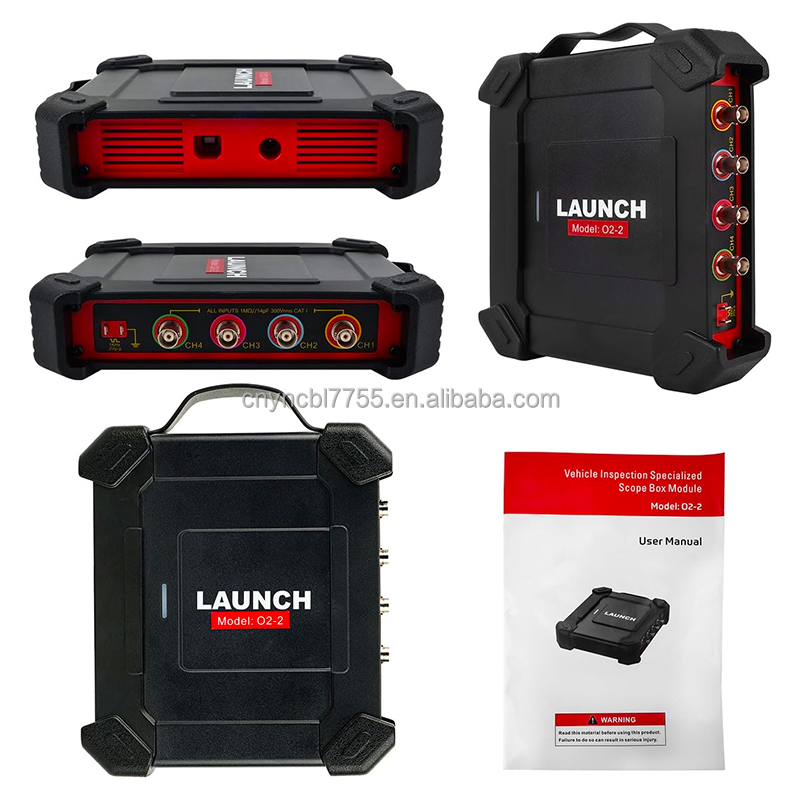

Scopebox Showcase 5

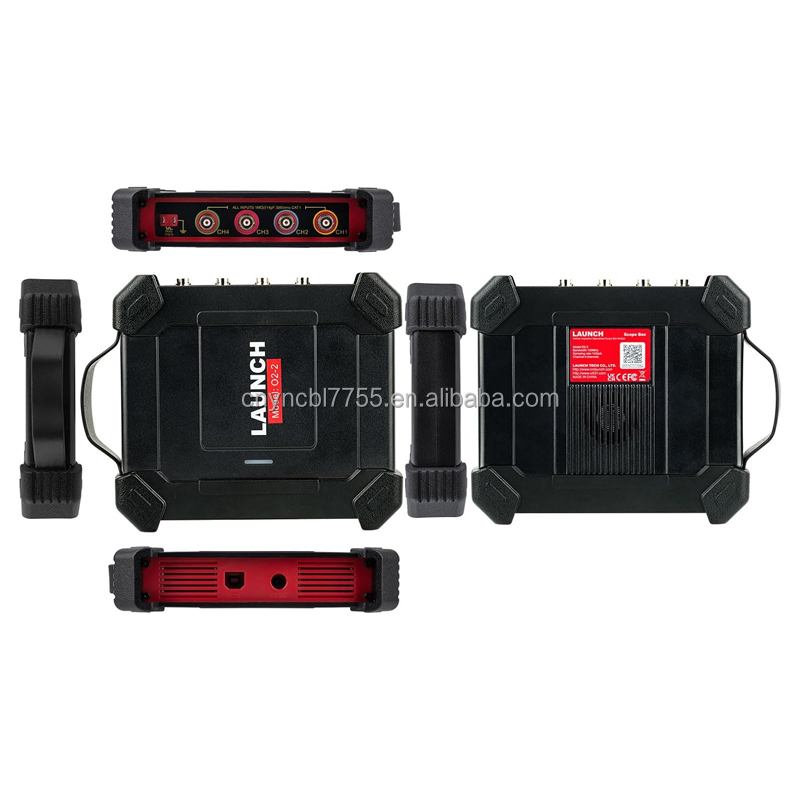

Scopebox Showcase 6

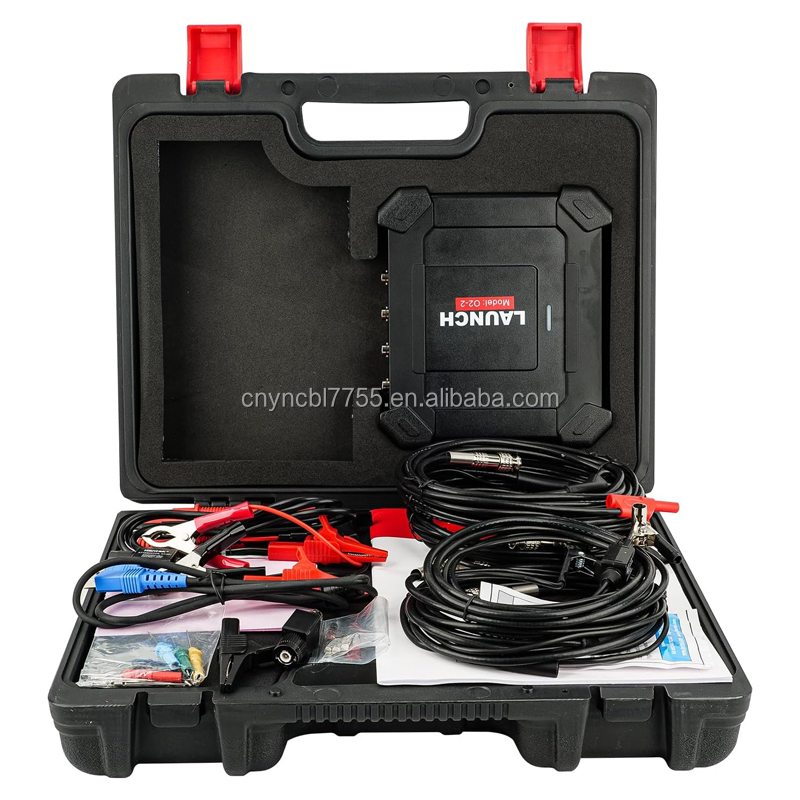

Scopebox Showcase 7
Scopebox Showcase 8
Detailed Product Description
Detailed Description 1
Detailed Description 2
Detailed Description 3
Detailed Description 4
Frequently Asked Questions
Why choose our products?
We offer rich experience with more than 20 years of production and technical development. Our professional team is systematically trained to provide optimal support. We deliver user-friendly English manuals for seamless machine operations and maintenance, ensuring high-quality performance.
What's the Minimum Order Quantity (MOQ)?
There is no MOQ limitation. We gladly receive all kinds of orders, and we support wholesale business as well as drop-ship services.
What is your payment method?
We support convenient payment methods including Alipay, Bank Transfer, and Credit Card payments.
What's the product warranty policy?
All products purchased from us come with a one-year free warranty to ensure you can use your equipment with peace of mind.
How do you handle after-sales service?
We aim to provide excellent purchase experiences. If any issues occur during operation, we offer dedicated technical support. Additionally, we provide replacement components if parts fail during the warranty period.
Can the Scopebox run multiple tests?
Yes, it supports a wide variety of automotive diagnostics, including circuits, sensors, actuators, and advanced ignition tests.
