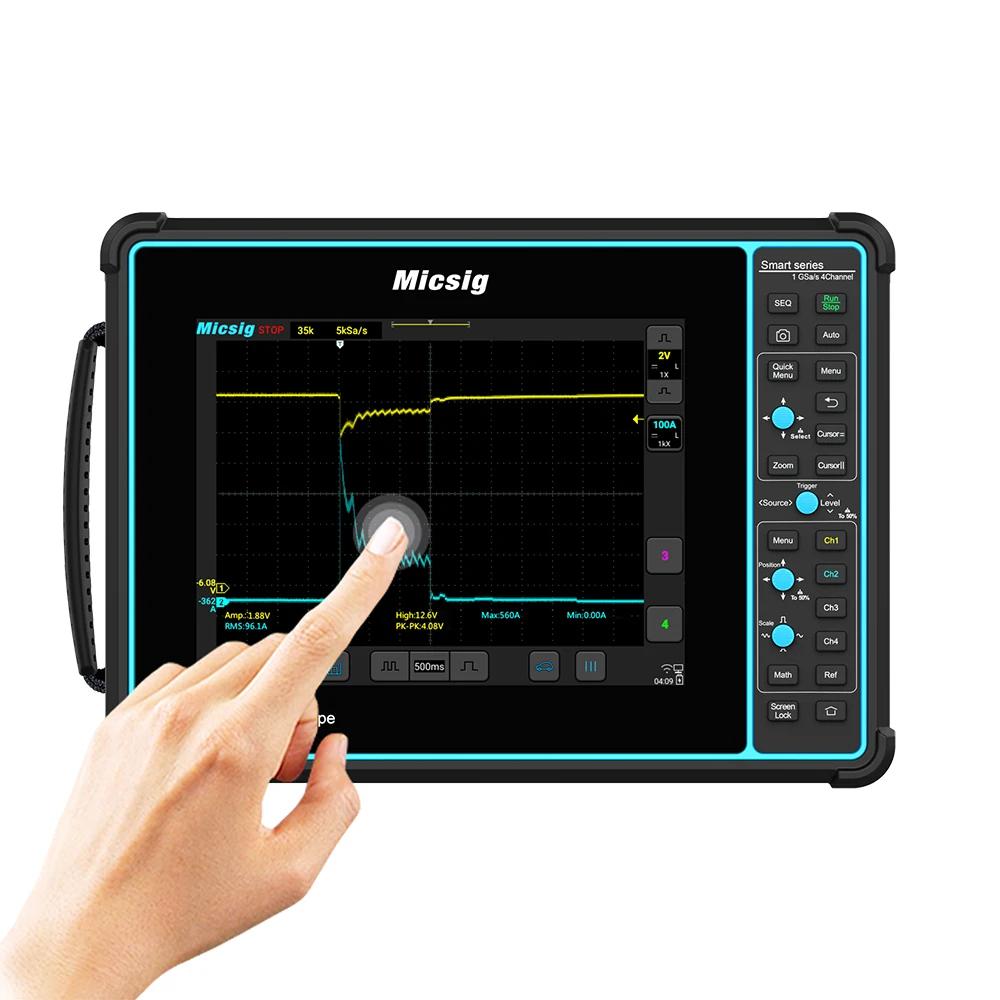

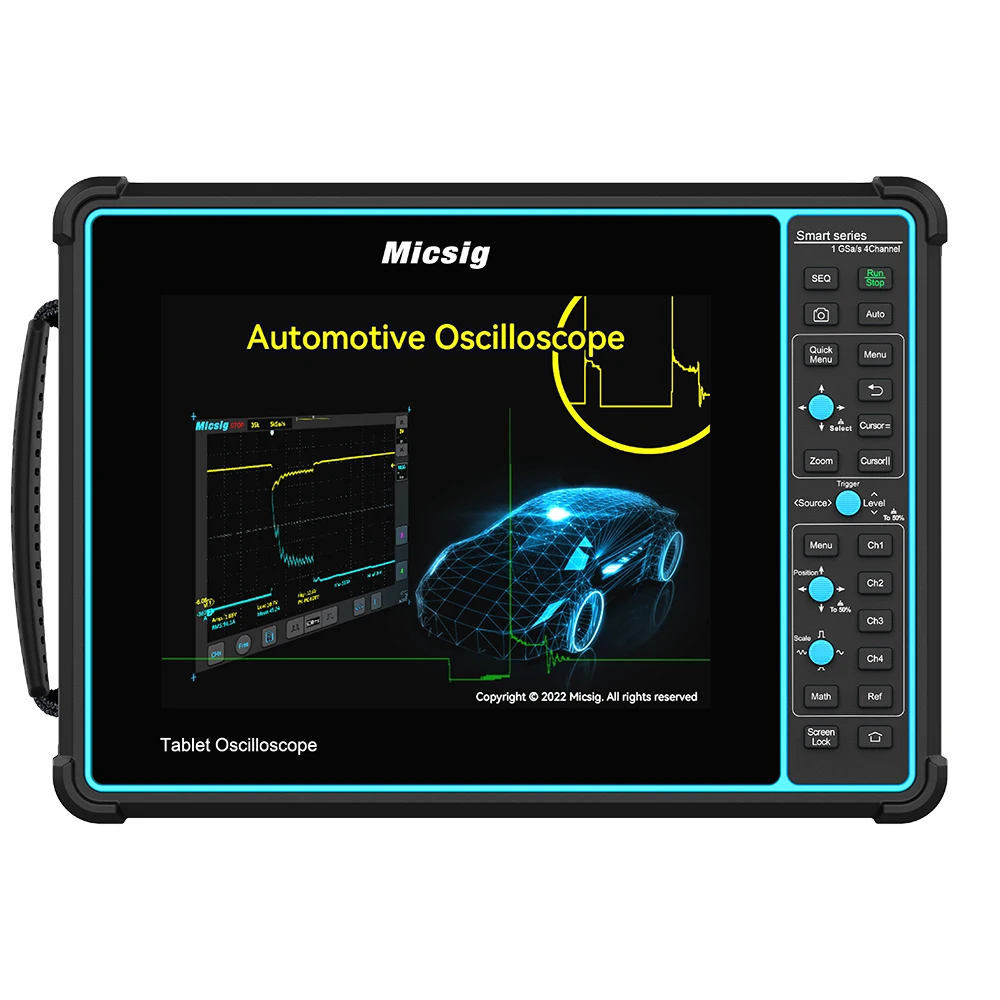

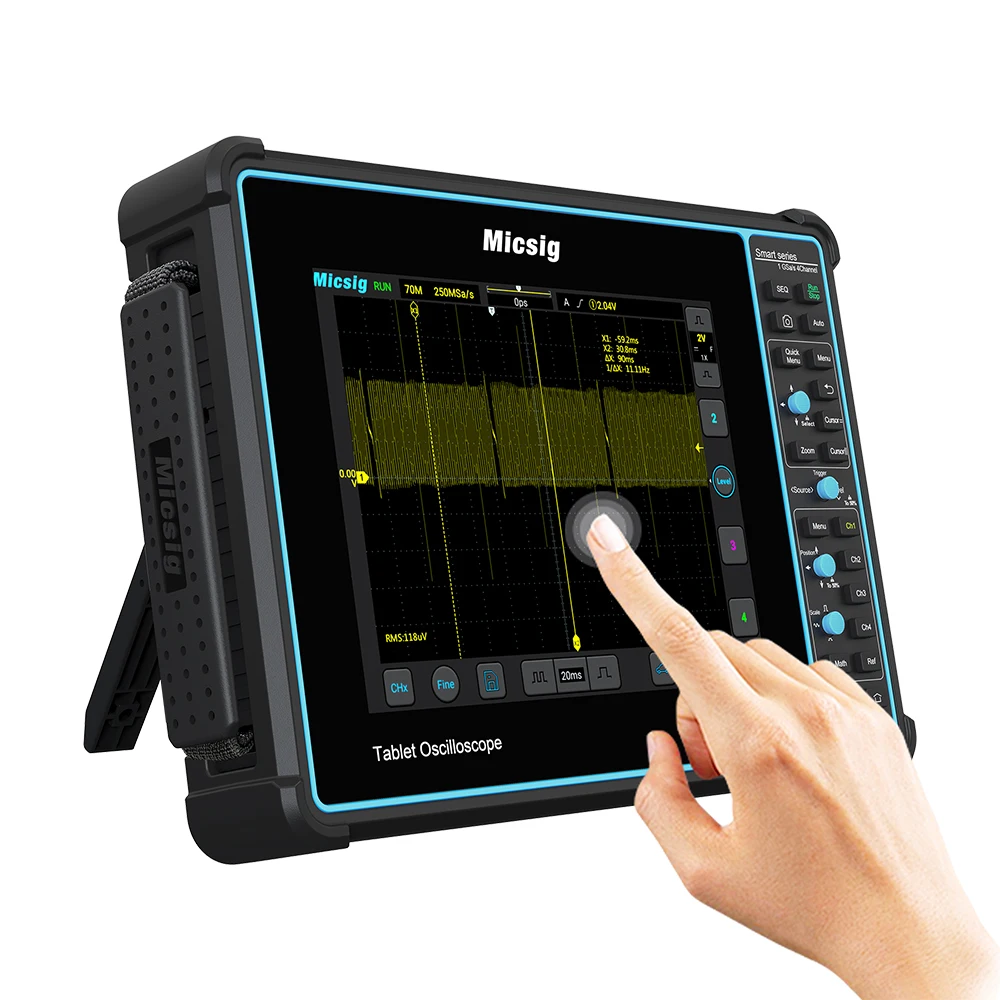

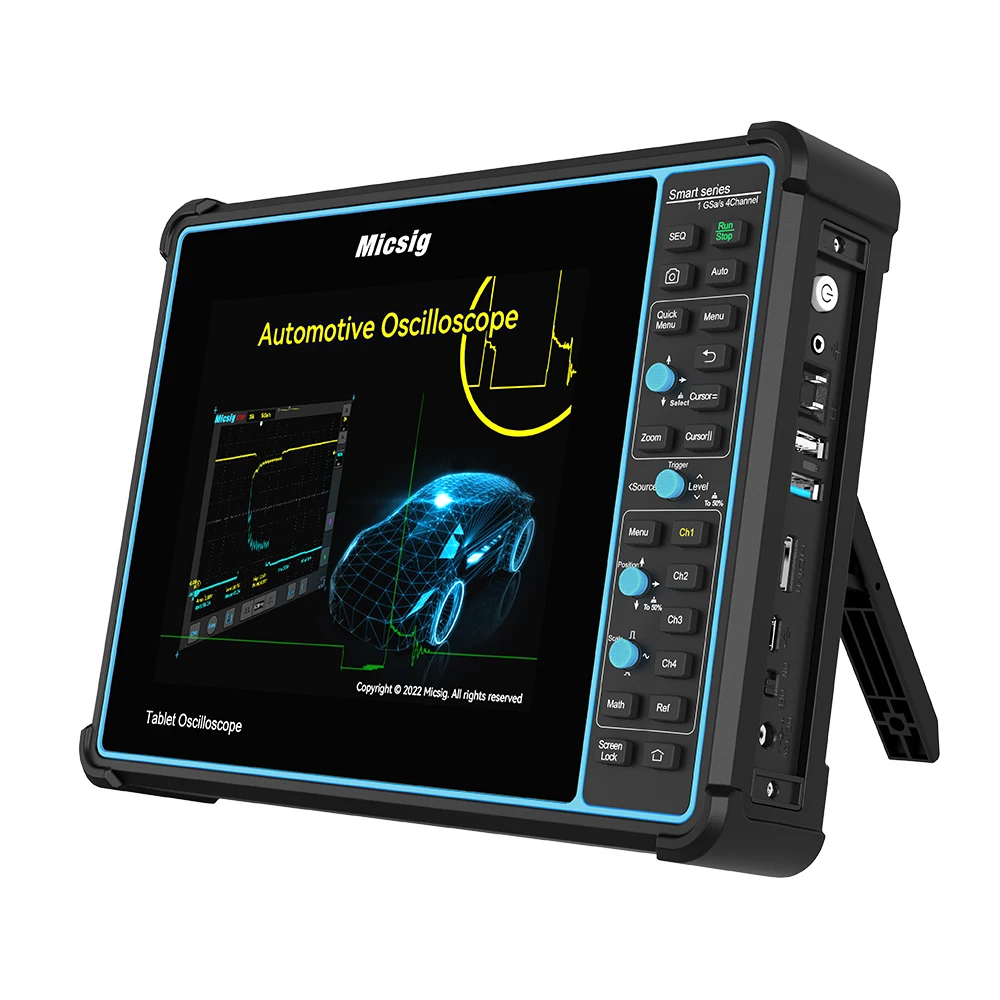

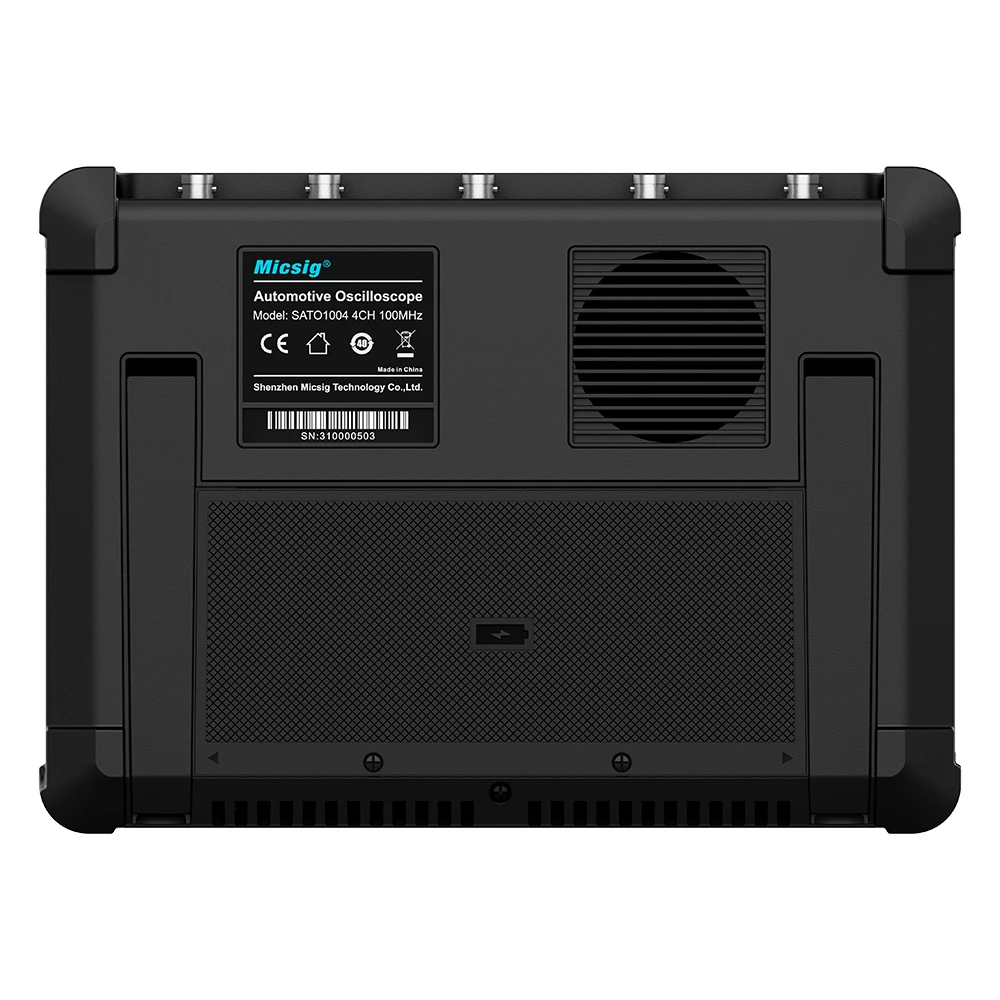

Micsig SATO1004 Portable Automotive Oscilloscope 4 Channels 100MHz Bandwidth 1GSa/s Sampling Rate 8" Touch Screen 8-Bit 1 Year

1 / 5

Micsig SATO1004 Portable Automotive Oscilloscope 4 Channels 100MHz Bandwidth 1GSa/s Sampling Rate 8" Touch Screen 8-Bit 1 Year

Send Inquiry

Product Description

Specifications & Features

Model	SATO1004	SATO2002
Bandwidth	100MHz	200MHz
Number of analog channels	4	2
Rise time	3.5ns	1.75ns
Real time sampling rate	1GSa/s
Storage depth	70Mpts
Maximum waveform capture rate	13Ten thousand times/Seconds
Vertical resolution	8Bit

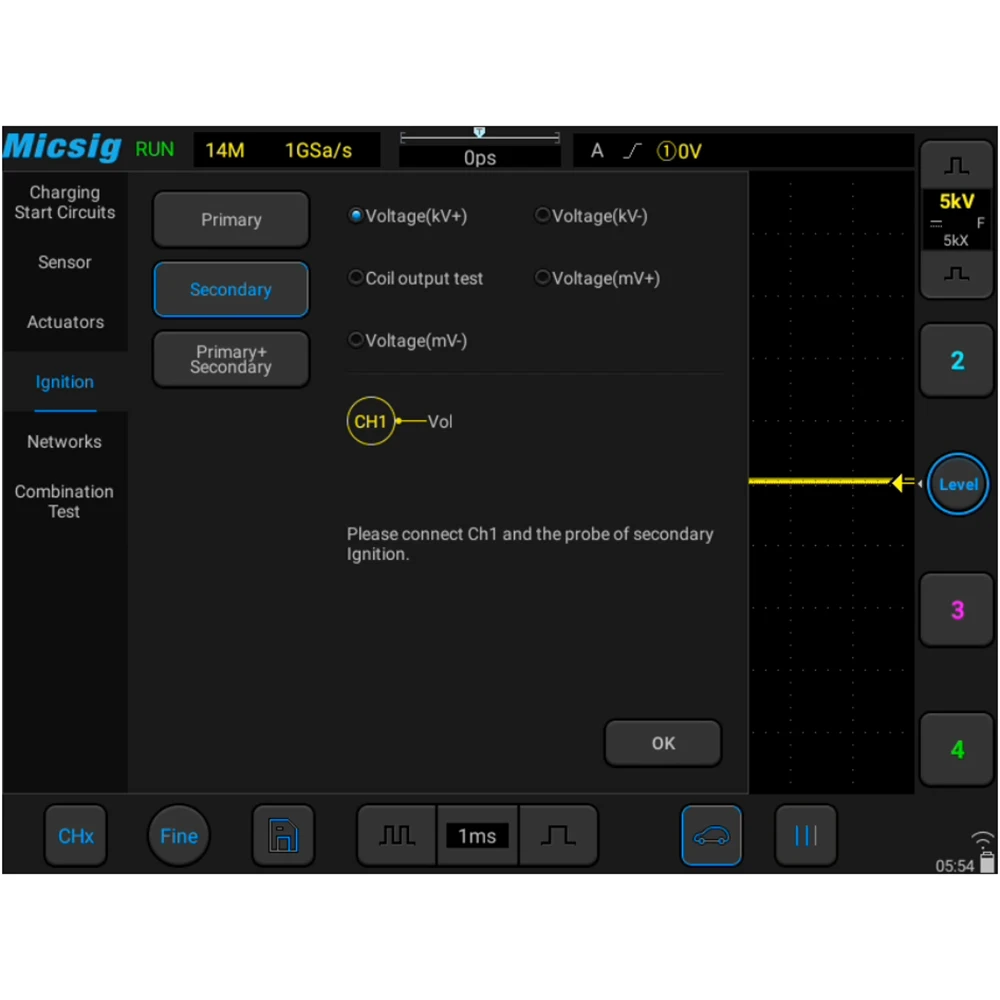

Support testing	Charging circuit, starting circuit, sensor, actuator, ignition test, Communication test (including CAN, CAN FD, LIN, Flexray, KLine, etc.), combined testing
Bandwidth limits	Full bandwidth, low pass
Interface	Wi-Fi, USB 3.0/2.0 Host, USB Type-C, HDMI, Trigger out
Show	Industrial specifications 8 Inch TFT-LCD, 800600 Resolution, 1410 Grid
Size/Net weight	26519250mm / 1.9kg (battery included)
Standard accessories	2 Root passive probe, 4 Root BNC Turn the banana head line (2 Of the channel 2 Root), 2 For flexible needles (2 Of the channel 1 Right), 2 Alligator clips (2 Of the channel 1 Yes), power cord, adapter, battery (built-in), film

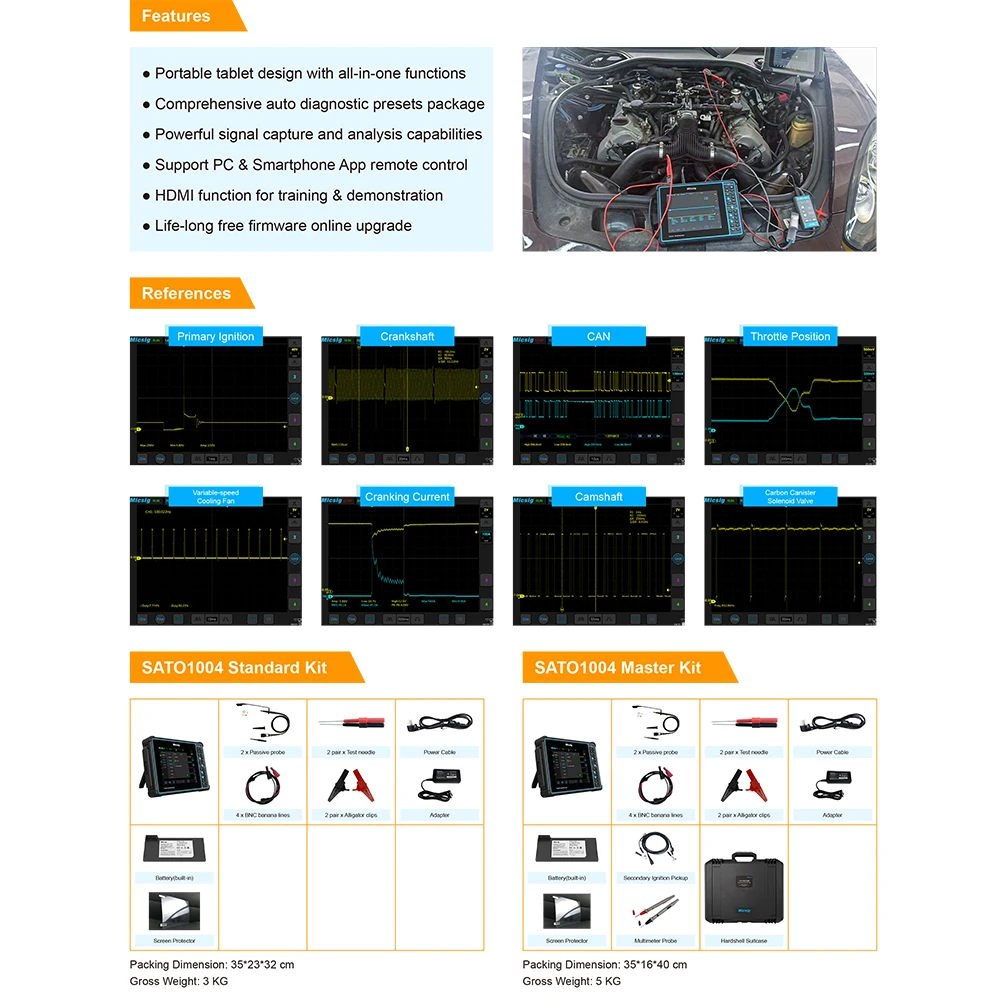

Detailed Applications & Accessories

Frequently Asked Questions

Q1: What are the key differences between the SATO1004 and SATO2002 models?

The SATO1004 is a 4-channel model featuring a 100MHz bandwidth with a 3.5ns rise time. The SATO2002 is a 2-channel model featuring a 200MHz bandwidth with a 1.75ns rise time. Both models offer exceptional diagnostic performance.

Q2: What automotive systems can be tested with these oscilloscopes?

Both models support testing of charging circuits, starting circuits, sensors, actuators, and ignition systems. They are also fully compatible with automotive communication bus tests, including CAN, CAN FD, LIN, Flexray, and K-Line, as well as combined system testing.

Q3: What are the connectivity and output interface options?

The oscilloscopes are highly connected devices featuring built-in Wi-Fi, USB 3.0/2.0 Host, USB Type-C, HDMI output, and a Trigger out port, allowing for seamless data transmission and display mirroring.

Q4: What is the sampling rate and storage depth of the SATO series?

Both models support a real-time sampling rate of up to 1GSa/s and provide a massive storage depth of 70Mpts, enabling detailed capture and analysis of high-speed signals over extended periods.

Q5: What display specifications do these units feature?

They feature an industrial-grade 8-inch TFT-LCD display with an 800x600 resolution and a 14*10 grid, ensuring clear, high-resolution visualization of waveforms under field conditions.

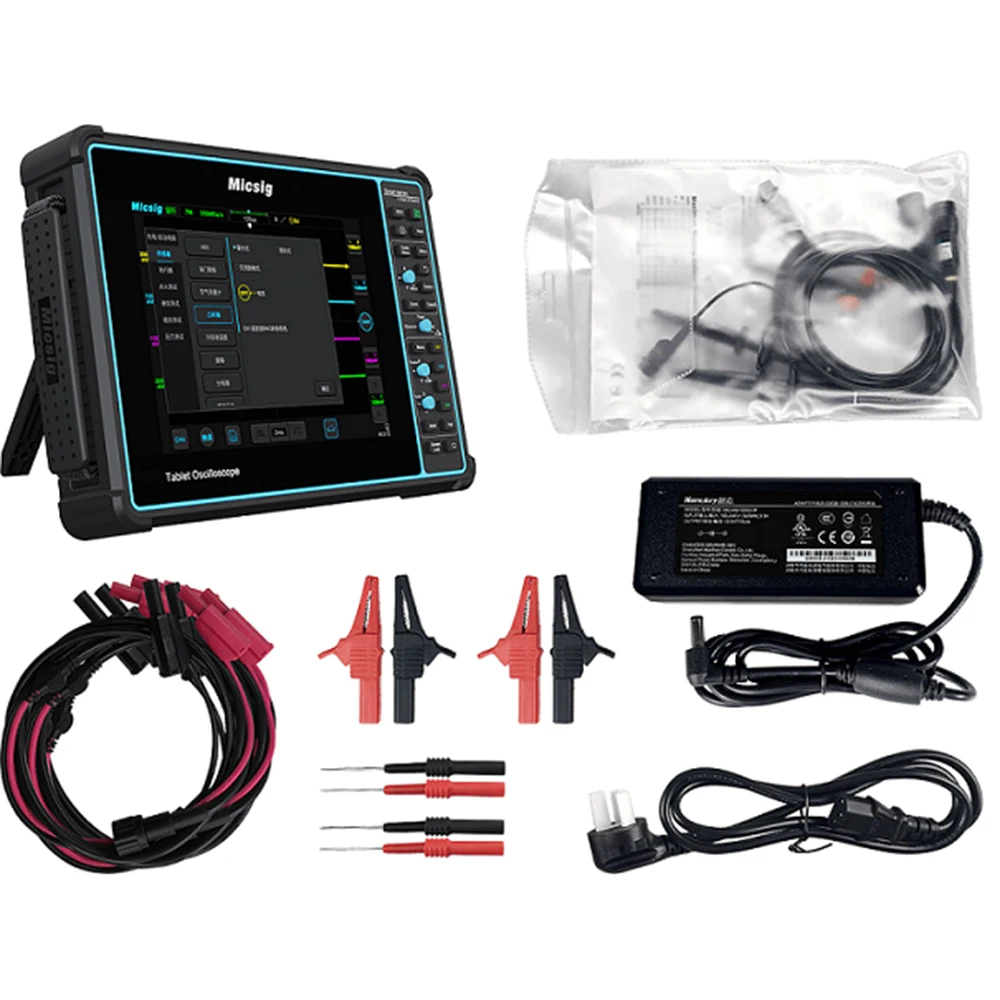

Q6: What standard accessories come included with the device?

The standard package includes 2 passive probes, 4 BNC to banana head lines, 2 flexible needles, 2 alligator clips, a power cord, a charging adapter, a built-in battery, and a protective display film.
