| Technical Specifications | |
|---|---|

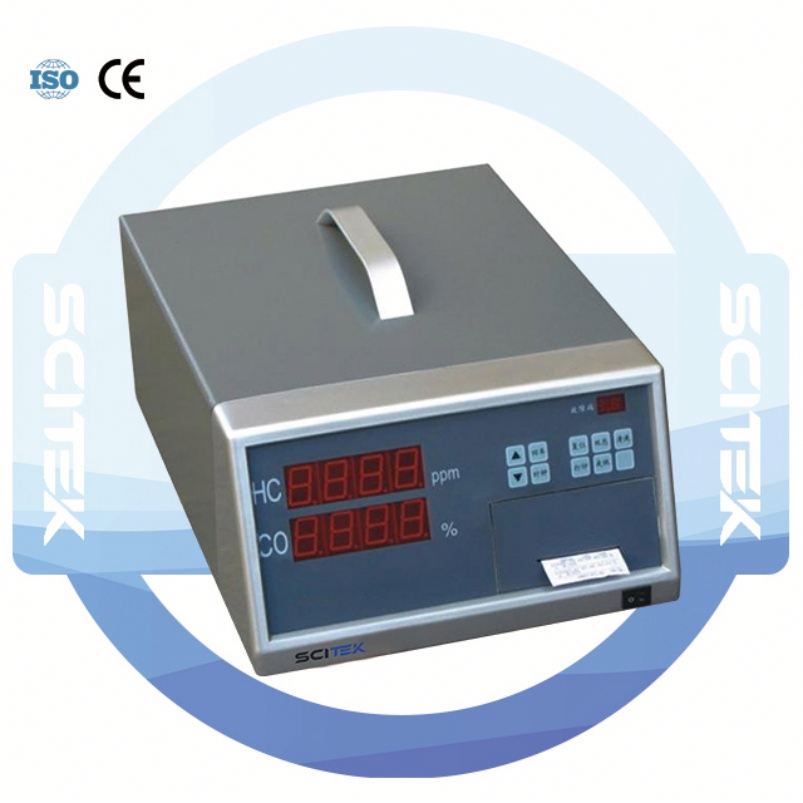

| Model | AEA-401 |
| Measuring Range | HC: 0~10000×10-6(ppm)vol, CO: 0~10×10-2(%)vol |
| CO2: 0~20×10-2(%)vol; O2: 0~25×10-2(%)vol | |
| Lambda: 0.50~3.00; COcor:0~10×10-2(%)vol | |
| Indicating error | HC±12×10-6 (ppm)vol (absolute error) or ±5% (relative error) |
| CO±0.06×10-2 (%)vol (absolute error) or ±5% (relative error) | |
| CO2±0.5×10-2(%)vol (absolute error) or ±5% (relative error) | |
| O2±0.1×10-2(%)vol (absolute error) or ±5% (relative error) | |
| Stability | Moment drift≤±3% Repeatability ≤±2% |
| Resolution | HC:1×10-6(ppm)vol, CO: 0.01×10-2(%)vol |
| CO2: 0.1×10-2(%)vol, O2: 0.01×10-2(%)vol, Lambda: 0.01 | |
| Response Time | 95% response is not more than 10 seconds |
| Preheating Time | 8min (preheating 3min emergency detection) |
| Output Mode | Digital direct reading, gases can be attached printer name, the maximum concentration, average value, minimum value, test time, date. Can interface with computer networking. |
| And-use Temperature | -5~50°C, Relative humidity: ≤90% |
| Power | AC100~240V 50/60Hz or DC12V (Add power inverter) |
| Power Consumption | 40VA |
| Size (WxDxH)(mm) | 420×310×170 |
| Shipping Size (WxDxH)(mm) | 620×435×295 |
| N.W. / G.W. (kg) | 9/12 |
