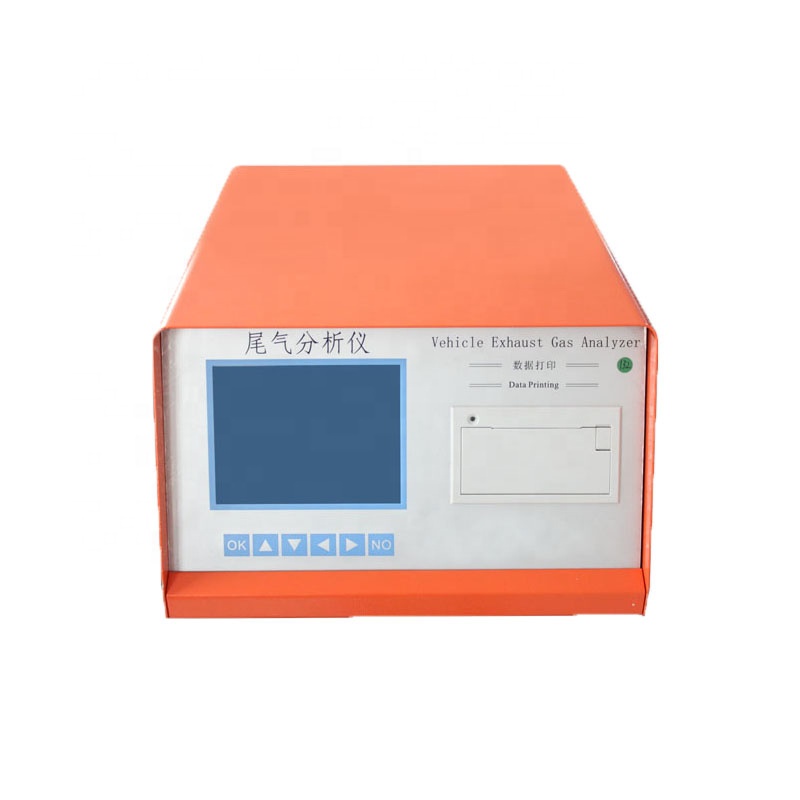

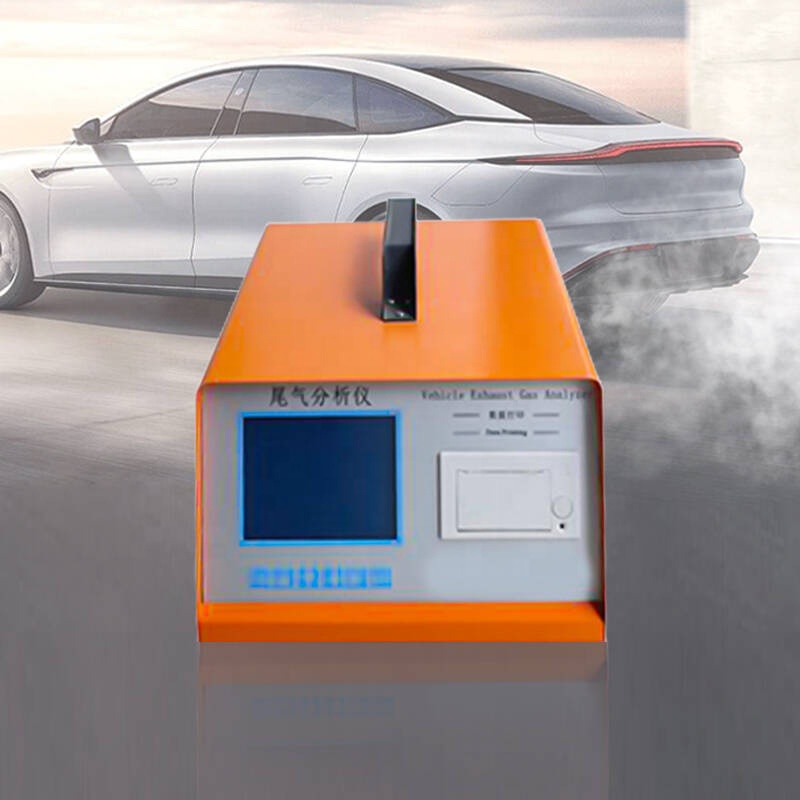

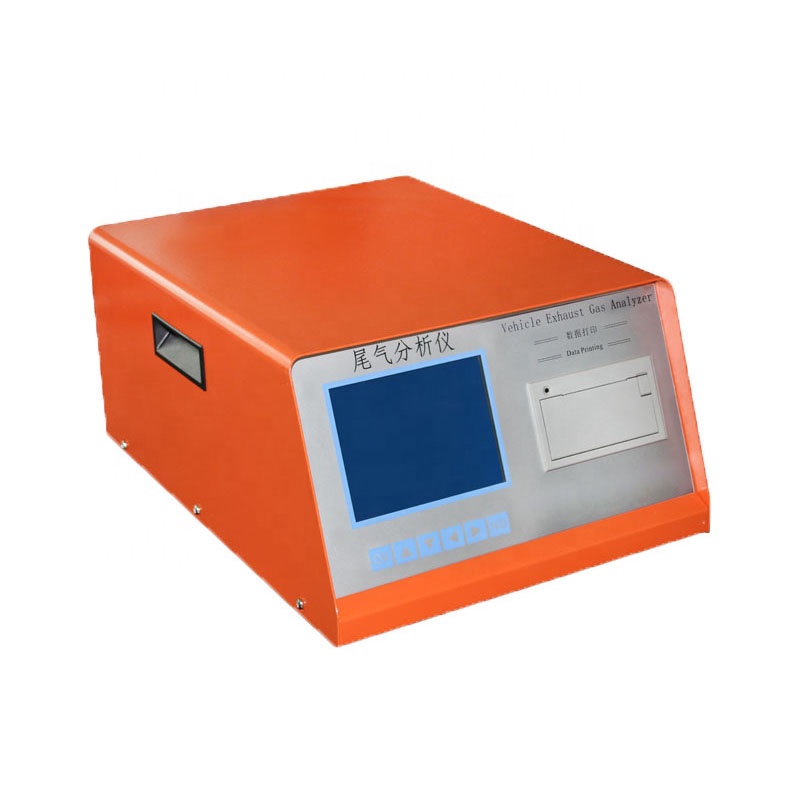

The SV-5Q automobile exhaust analyzer adopts the principle of non dispersive infrared absorption method and measures the concentrations of HC, CO, CO2, O2, and NO (4Q without NO) in the automobile exhaust gas through microcomputer analysis. Suitable for use in various levels of transportation, public security inspection stations, environmental exhaust control points, teaching laboratories in colleges and universities, automobile manufacturers, engine manufacturers, motorcycle manufacturing fields, as well as Class I, II, and III automobile repair shops, 4S stores, and automobile repair and maintenance departments. And it can be equipped with a comprehensive performance testing line specifically designed for the automotive repair industry.
Uses the principle of non dispersive infrared absorption to measure concentrations of HC, CO, CO2, O2, and NO (4Q without NO) in automotive exhaust emissions through microcomputer analysis.
Equipped with idle and dual idle testing functions.

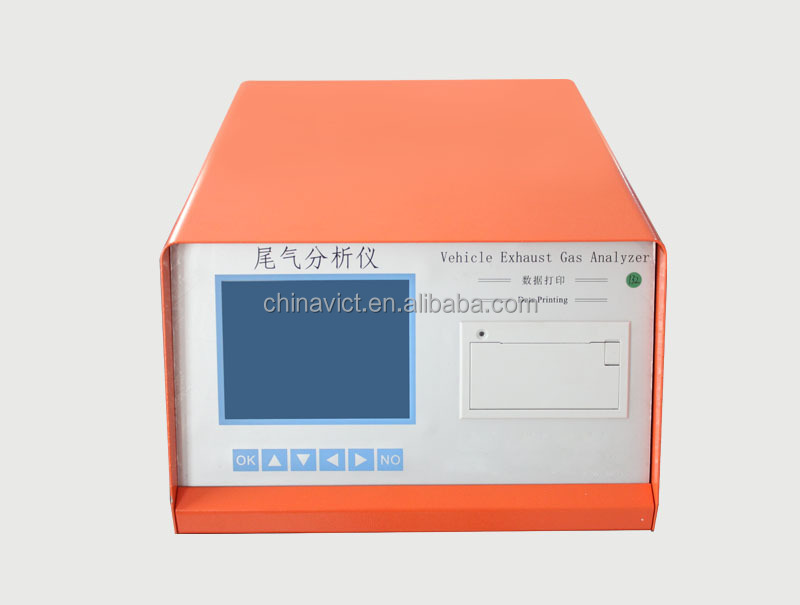

Equipped with a 7-inch high brightness LCD display screen, supporting multiple language operation menus.
Automatically calculates and displays excess air coefficient λ value.

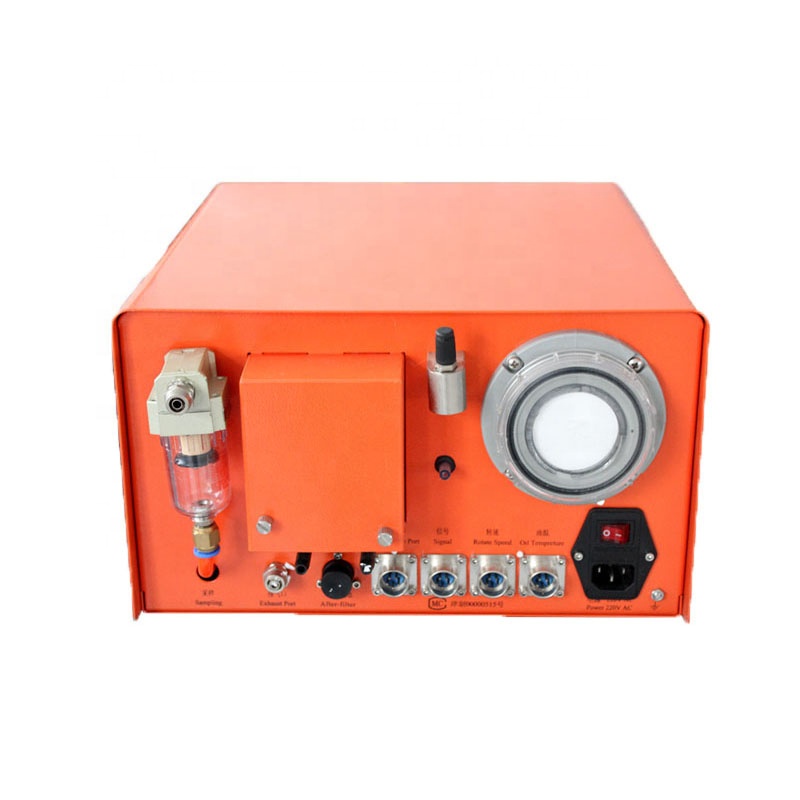

Equipped with RS-232C digital serial communication interface for convenient networking.
Features over 500 sets of data storage and retrieval functions.

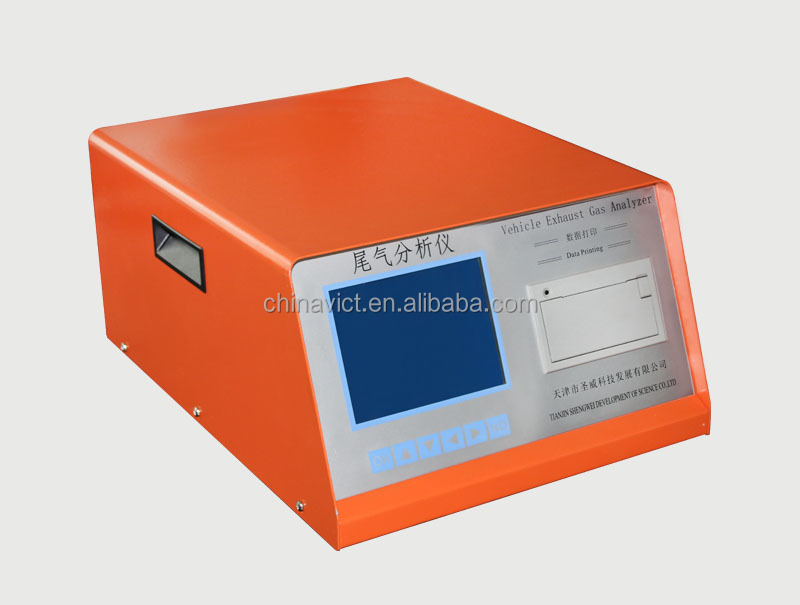

Equipped with an internal printer for immediate report generation.
Capable of conducting exhaust gas testing for vehicles fueled with natural gas, liquefied gas, and gasoline.
Can be configured with a car power inverter, facilitating convenient on-vehicle exhaust gas inspections.
| Specifications / Conditions | Values & Ranges |
|---|---|
| Environmental Conditions for Use | |
| Temperature | -5 ~ 40 °C |
| Humidity | Not more than 95% |
| Atmospheric Pressure | 70.0 ~ 106KPa |
| Power Supply | AC220V ± 10%; 50Hz ± 1Hz |
| Measurement Range | |
| HC | 0 - 10000 10-6 (ppm) vol |
| NO | 0 - 5000 10-6 (ppm) vol |
| CO | 0 - 10.0 10-2 (%) vol |
| CO2 | 0 - 20.0 10-2 (%) vol |
| O2 | 0 - 25.0 10-2 (%) vol |
| Speed | 0 - 10000 rpm |

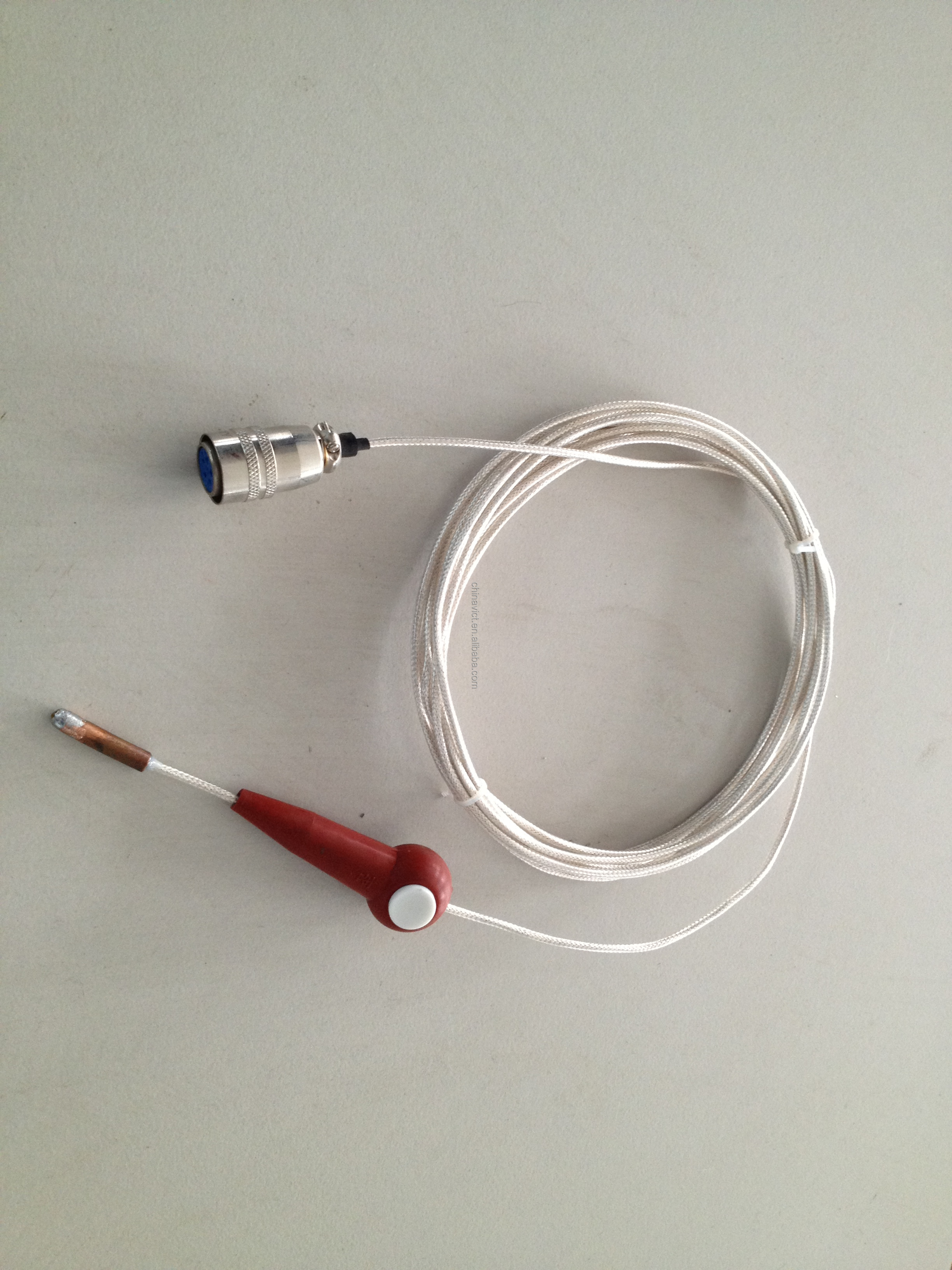

| Oil Temperature | 0 - 120 °C |
| Indication Error Limits | |
| HC / CO / CO2 / O2 | ± 5% |
| NO | ± 4% |
| Physical Specifications | |
| Preheating Time | 10 minutes |
| Weight | 9.8 Kg |
| Packaging Volume | 420 * 320 * 250 mm |
The SV-5Q measures HC, CO, CO2, O2, and NO. Note that the 4Q version does not measure NO.
It adopts the principle of non-dispersive infrared absorption method combined with microcomputer analysis to calculate accurate emission concentrations.
Yes, the analyzer is compatible with exhaust gas testing for vehicles fueled by gasoline, liquefied gas (LPG), and natural gas (CNG/LNG).
The preheating time required for the machine to start performing precise measurements is 10 minutes.
Yes, it has over 500 sets of built-in data storage space and is equipped with an RS-232C digital serial communication interface for seamless networking.
Yes, it can be configured with an optional car power inverter, allowing convenient exhaust inspections while on the go.
