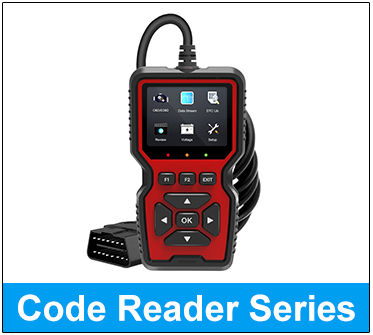

Auto Diagnostic Tools (V519)
Compatible with 98% Vehicles And 10 Languages.
Truck Scanner (V500)
24V OBD for Trucks and Cars.
Battery Tester (BT201)
Test voltage, Battery capacity, battery health and state of charge.

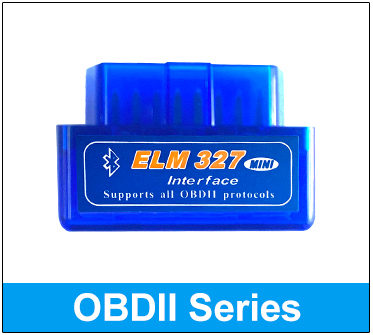

OBDII Scanner (B02 V2.1 NEW)
For ALL OBD2 Cars Since 1996 Bluetooth 5.0
BLE TPMS (V101M)
Battery life: 2-3 Years (Battery can replace). Real-time tire pressure and temperature
Self-developed Brand (LB02)
Self-developed, exclusive patent. Imported PIC18F25K80 MCU
Product Description

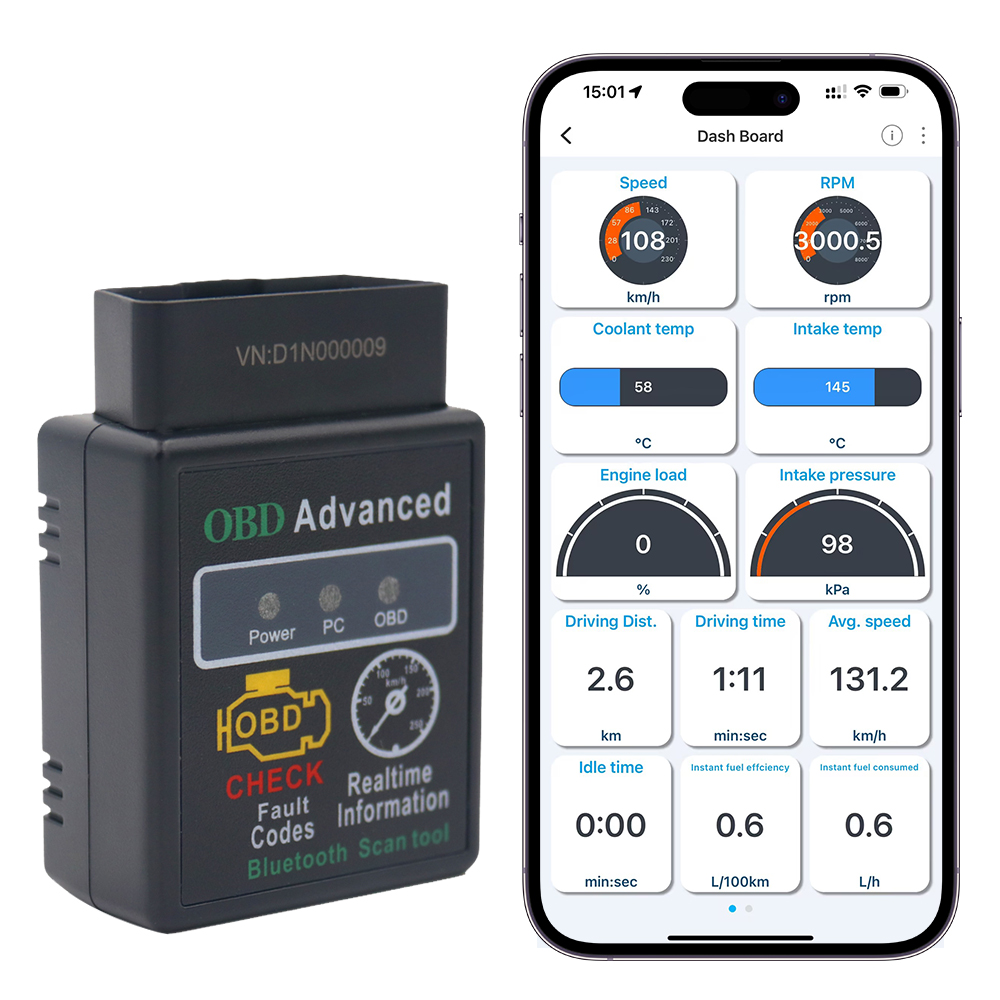

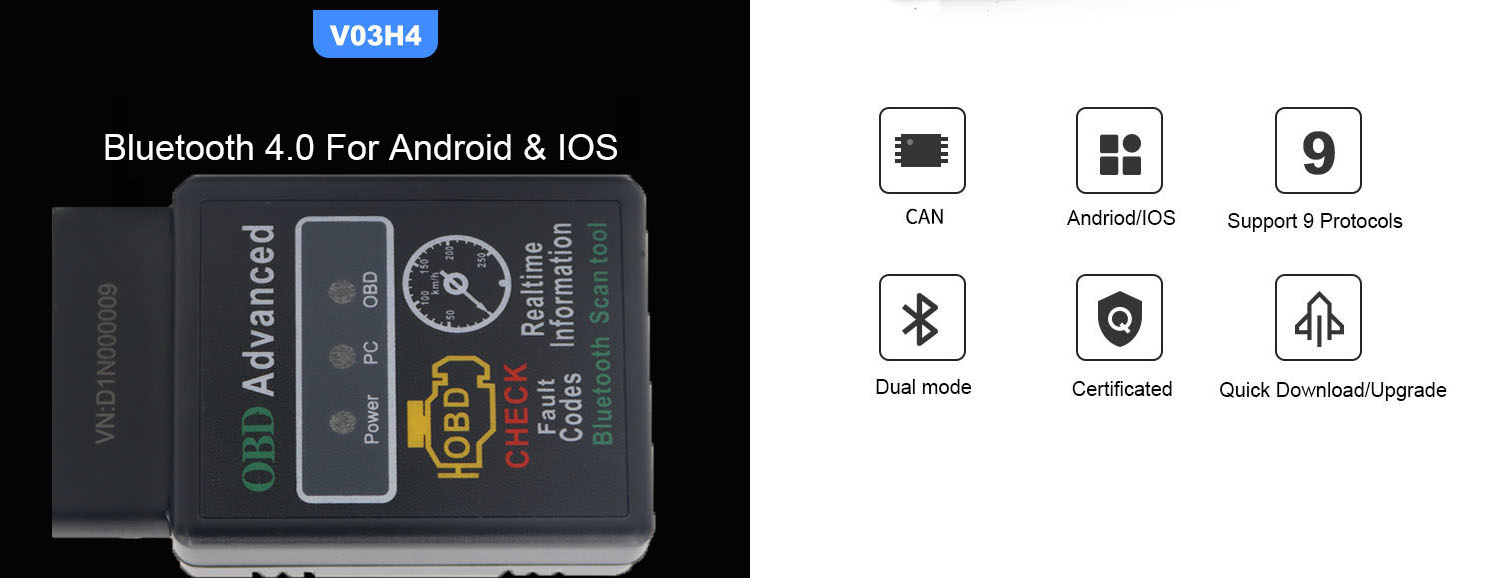

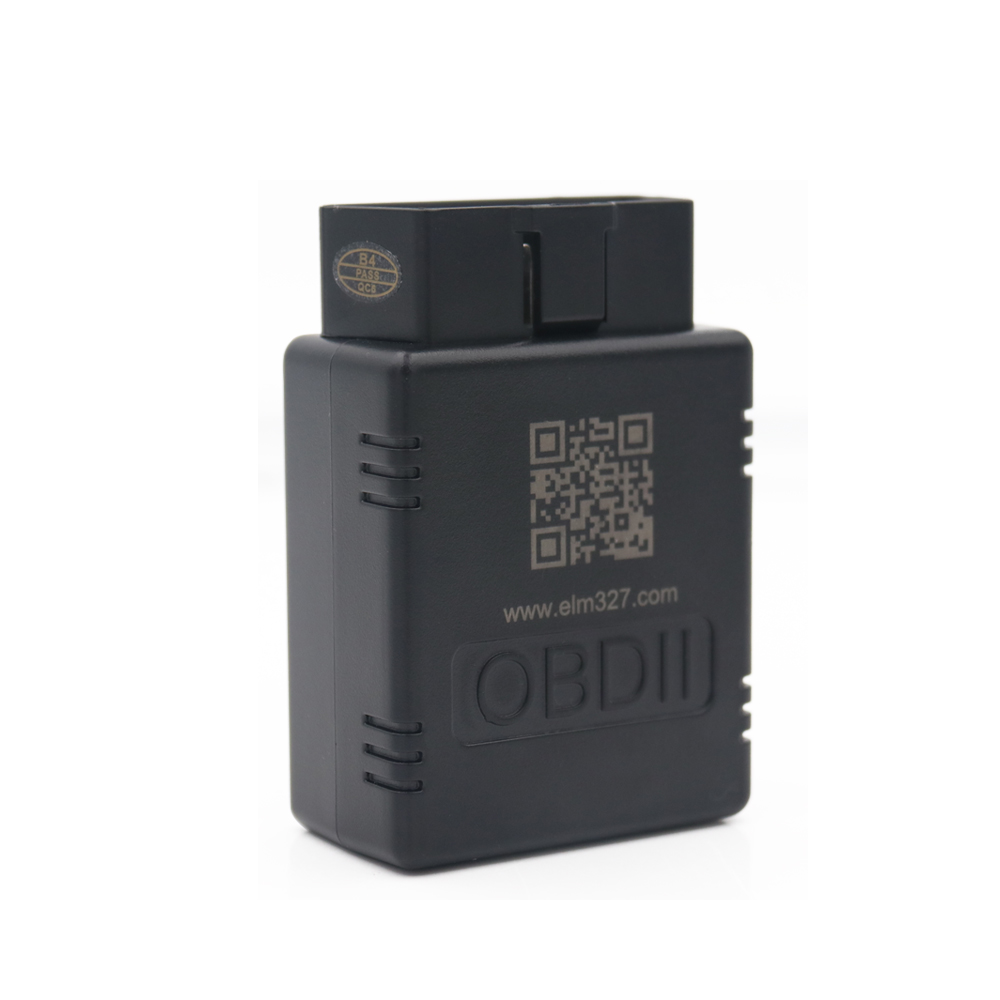

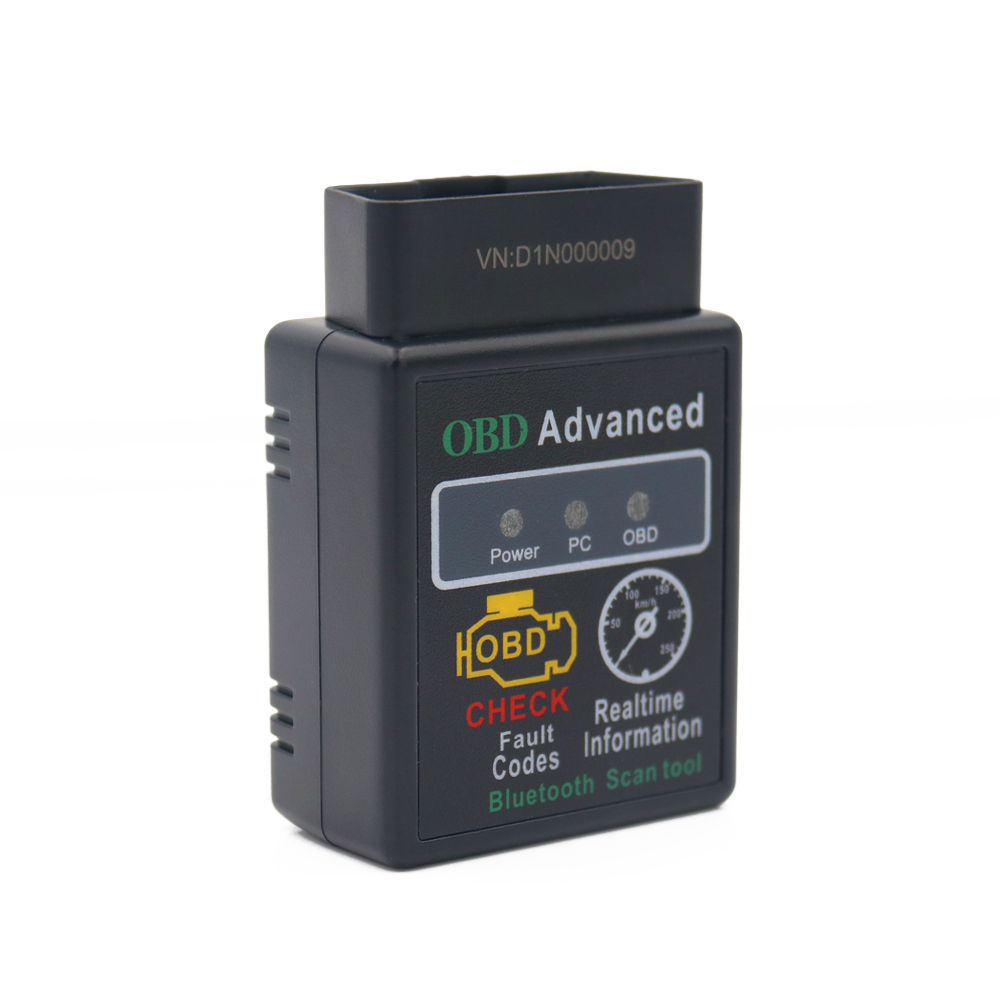

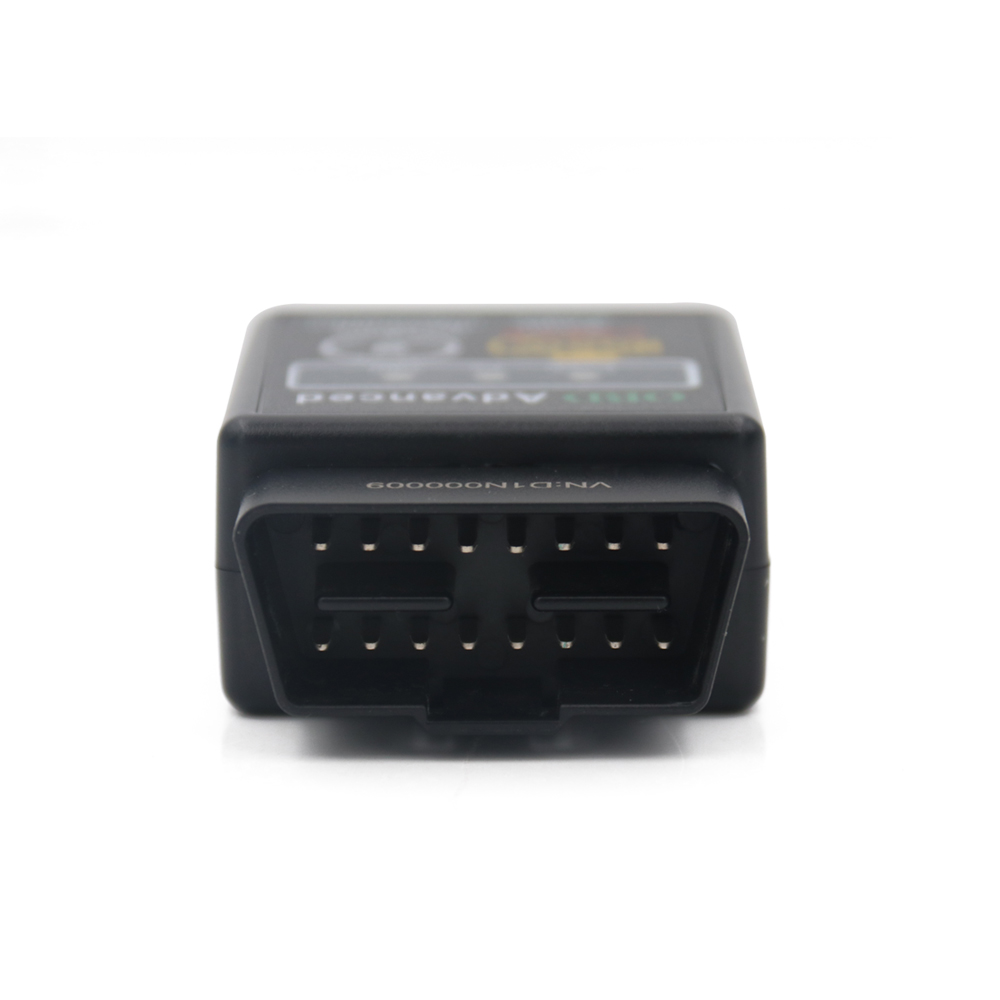

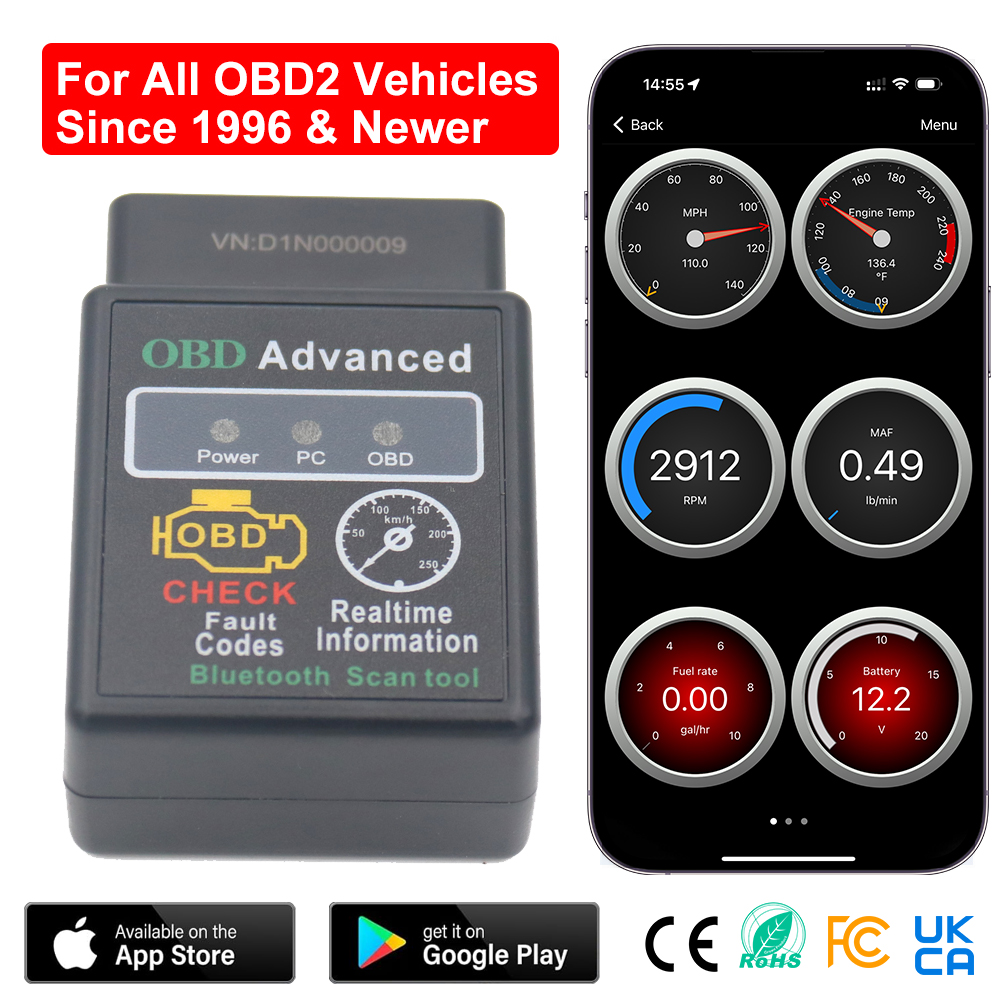

Hot Carscanner ELM327 OBD 2 Bluetooth Obd Auto Diagnostic OBD2 Scanner Car Diagnostic Tools For All Cars Check Engine Light Code
Universal Compatibility
OBD-II Standard Is Supported By The Vehicles (Which Car Support The 9 OBD2 Protocols):
- SAE J1850 PWM (41.6Kbaud)
- SAE J1850 VPW (10.4Kbaud)
- ISO9141-2 (5 baud init, 10.4Kbaud)
- ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
- ISO14230-4 KWP (fast init, 10.4 Kbaud)
- ISO15765-4 CAN (11bit ID, 500 Kbaud)
- ISO15765-4 CAN (29bit ID, 500 Kbaud)
- ISO15765-4 CAN (11bit ID, 250 Kbaud)
- ISO15765-4 CAN (29bit ID, 250 Kbaud)
Support Cover Up to Universal Vehicle Manufacturers From America, Europe, Asia, and etc.
Examples are as follow Chart:
| Country Of Sale |
Model Years |
| American Car |
From 1996-Now |
| European Car |
From 2008-Now |
| Asian Car |
From 2008-Now |
Specifications
| Product Model |
V02H4 |
| Communication method |
Bluetooth 4.0 |
| Compatible platform |
Android / Windows / iOS |
| Operating voltage |
9V~16V |
| Operating current |
35mA |
| Standby current |
25mA |
| Operating temperature |
-40°C~85°C |
| Operating humidity |
<60% |
| Product size |
67.5mm*46mm*26mm |
| Weight |
31G (Static Bag Packing) |

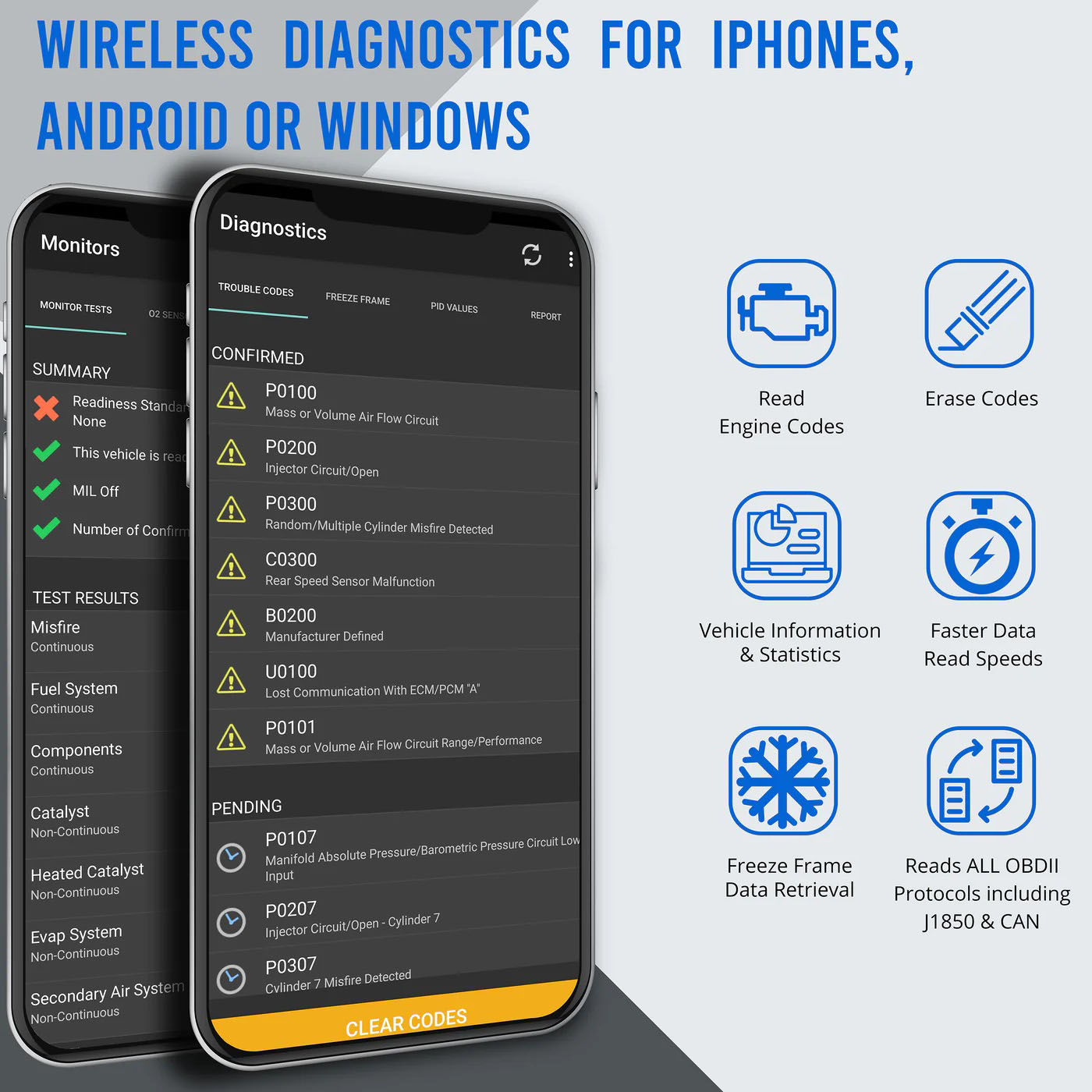

What Are The OBD2 Scanner's Functions?

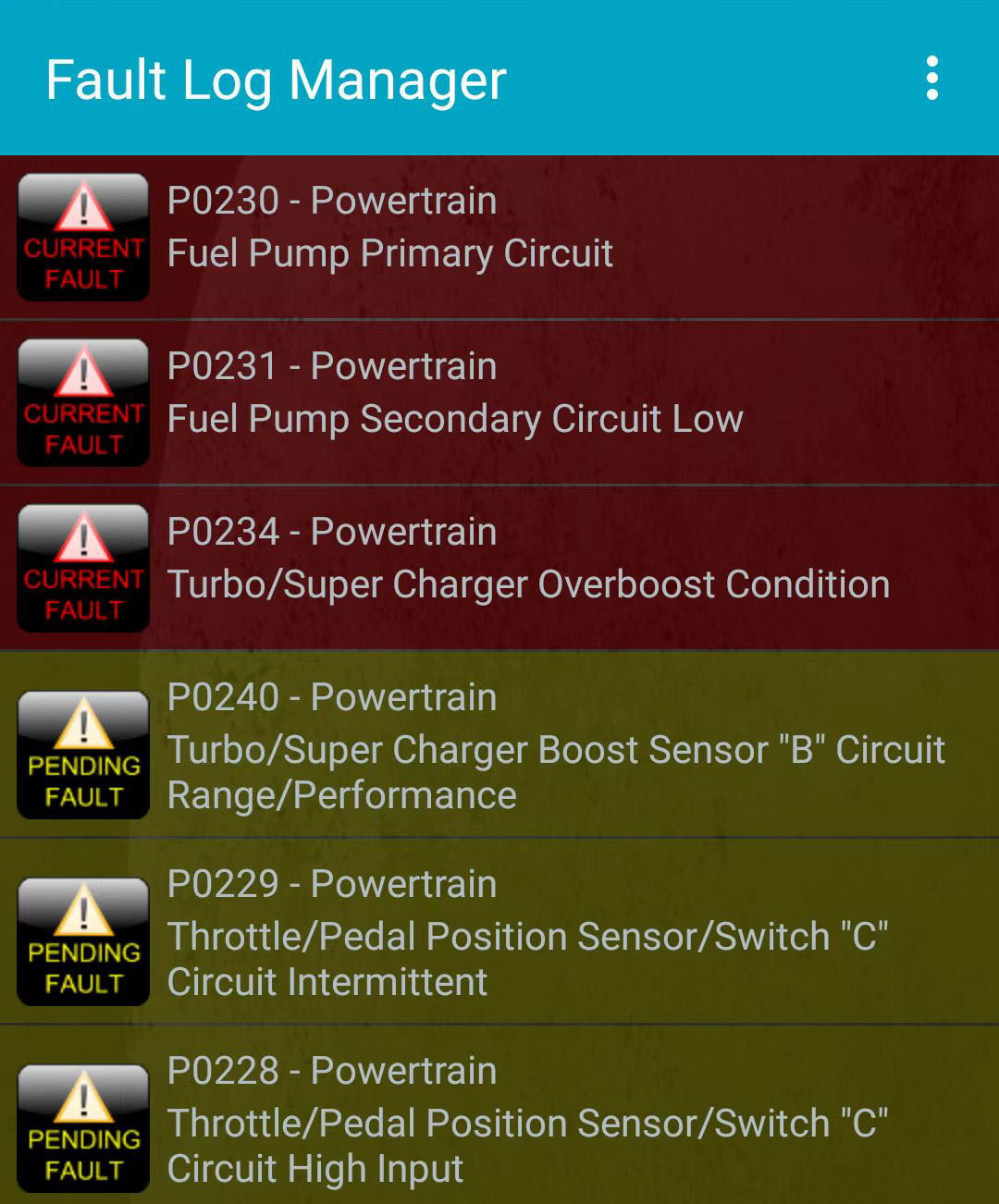

Read Fault Code & Clear Fault Code
Read Diagnostic Trouble Codes, Both Generic And Manufacturer-Specific, Display Meaning Over 3000 Generic Code Definitions In the Database. Clear Trouble Codes And Turn Off The MIL ("Check Engine" light).

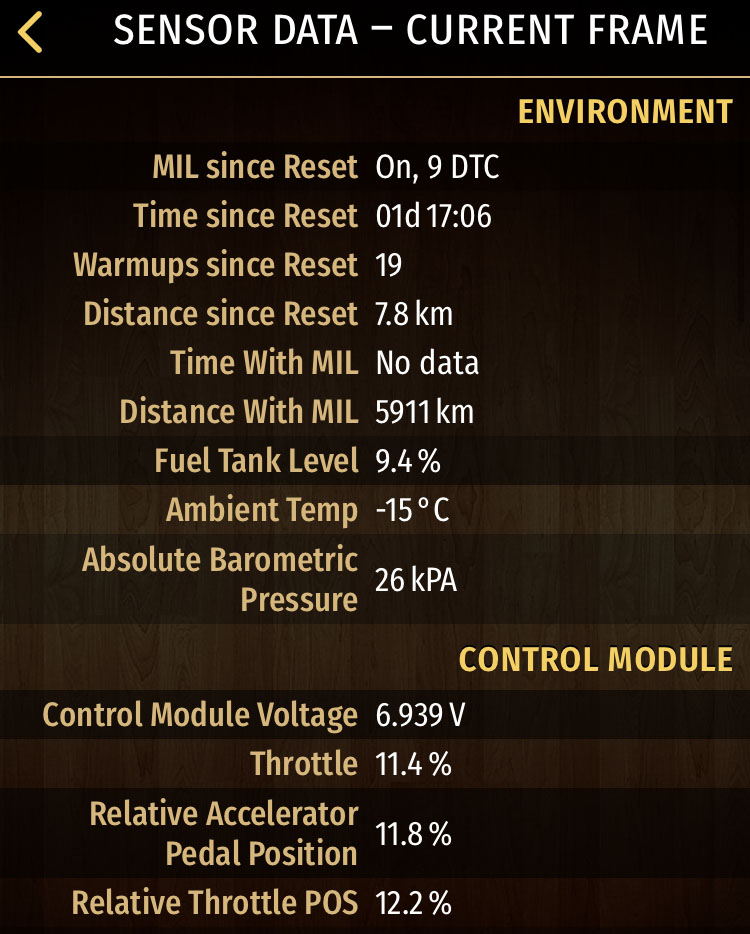

Fault Code Analysis & View Freeze Frame
Display Current Sensor Data, Including: Engine RPM, Calculated Load Value, Coolant Temperature, Fuel System Status, Vehicle Speed, Short Term Fuel Trim, Long Term Fuel Trim, Intake Manifold Pressure, Timing Advance, Intake Air Temperature, Air Flow Rate, Absolute Throttle Position, Oxygen sensor voltages/associated short term fuel trims, Fuel System status, Fuel Pressure, and etc.

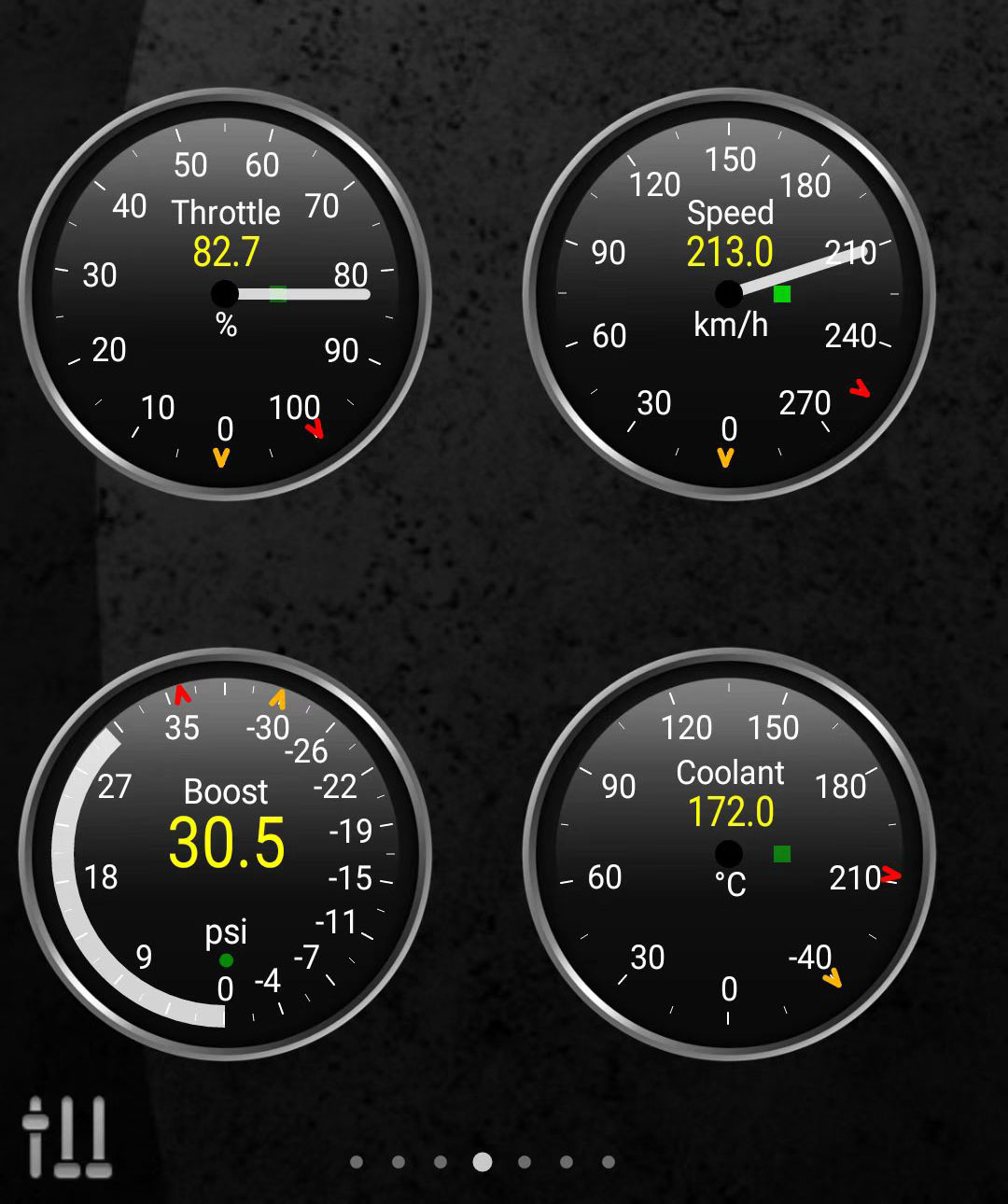

Vehicle Info
Display The Graph And Log Real-Time Sensor Reading. Create Your Own Dashboard And Select The PIDs That You Want To See.

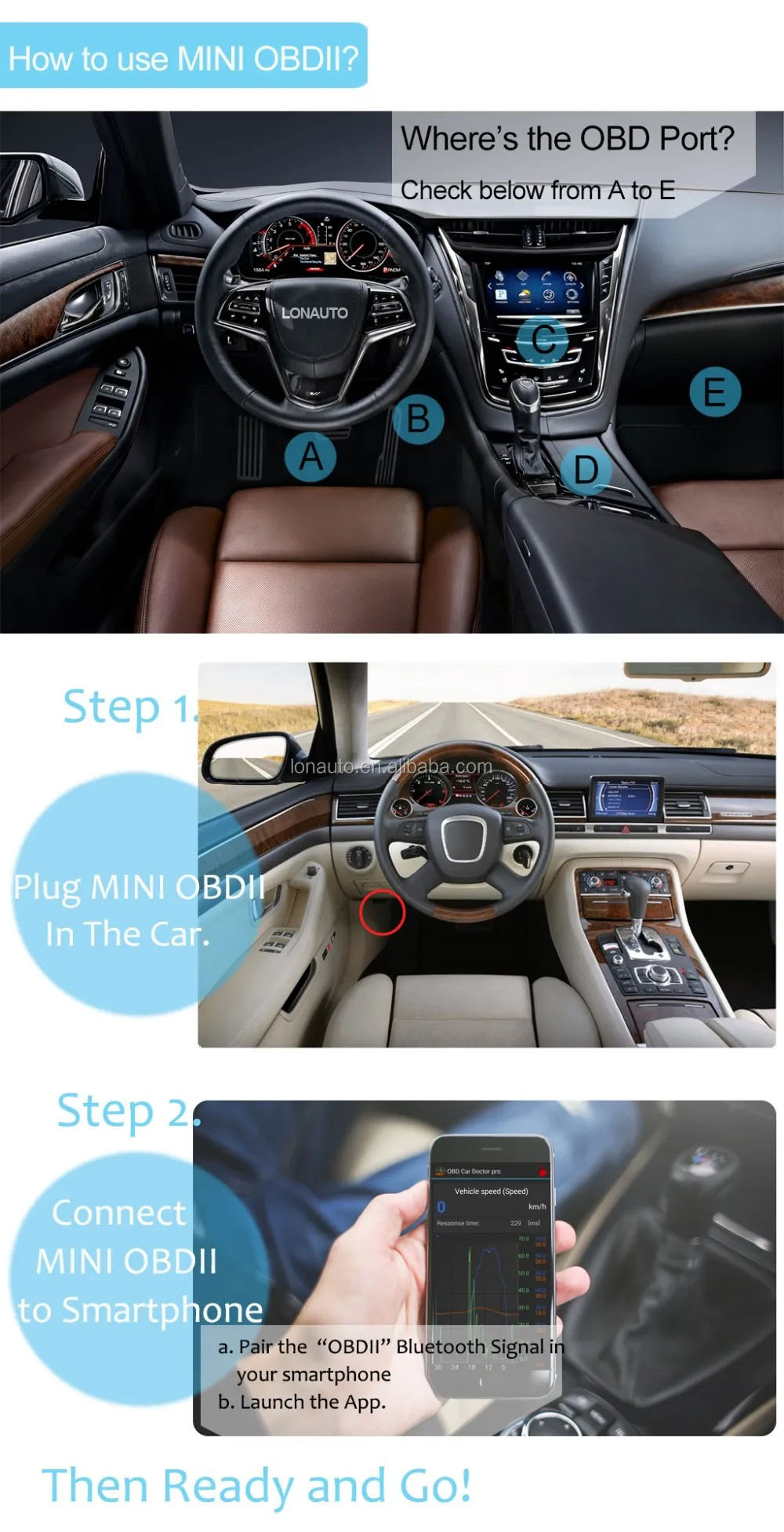

How To Connect With Your Phone?
Do Not connect OBD2 through system Bluetooth settings as it will lead to an error. Just open the App to initiate the connection. The Bluetooth connection will succeed directly through the App.
Please restart your iPhone, and the scanner will show up again.
Restart your phone. Turn Bluetooth off and on again. Disconnect any other active Bluetooth devices.
1. Scanner Does Not use WiFi to connect.
2. For Android devices, please change the default Bluetooth pairing PIN to 1234 in the head unit Bluetooth settings.
FAQ
❓
How long is your delivery time?
For small orders, products will be shipped within 1-3 working days. For OEM orders, please verify the exact shipping time with us.
❓
What shipping methods do you support?
We support delivery via express companies like DHL, TNT, UPS, FedEx, and EMS.
❓
Do you accept OEM/ODM orders?
Yes, we accept OEM/ODM customization. You can customize the label, logo, packaging, change the Bluetooth name and password, or customize the product color.
❓
Do you provide samples?
We charge for samples and shipping costs. However, we will offset or deduct the sample cost when a formal bulk order is finalized.
❓
What are your terms of payment?
We accept payment by T/T, Western Union, and PayPal. For large orders, we require a 30% T/T deposit and full payment prior to shipping. For small orders, full payment is required when placing the order.
❓
How do you build a long-term and good business relationship?
1. We maintain premium quality and competitive pricing to ensure our customers benefit.
2. We respect every customer as our friend and sincerely do business and build relationships with them, regardless of where they come from.

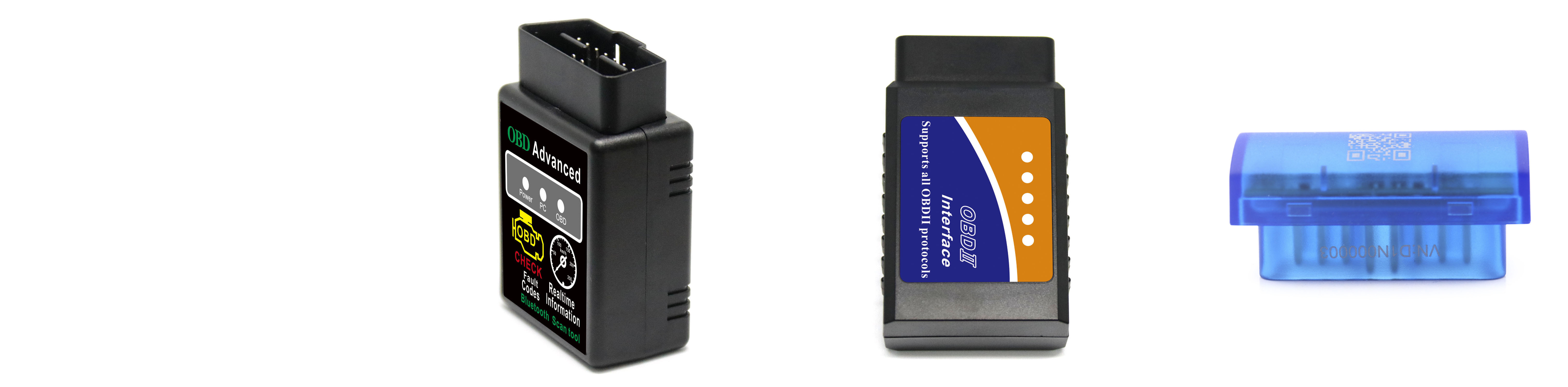

Comparison of Models
| Model |
V02H4 |
V03H2 |
V05LW5 |
| Connection Method |
Bluetooth 4.0 |
Bluetooth 2.0 |
WIFI |
| Firmware Version |
V1.5 |
V1.5 |
V1.5 |
| Works For Android & Windows |
✓ |
✓ |
✓ |
| Works For iOS |
✓ |
✗ |
✓ |
| Low Power Consumption |
✓ |
✓ |
✗ |
| Compatible Apps |
Android: Torque
iOS: Car Scanner, inCarDoc |
Torque |
Android: Torque
iOS: Car Scanner, inCarDoc |
| Features |
Easy To Plug In And Unplug |
Easy To Plug In And Unplug |
Small Size For Minimum Space |
| Master chip |
No |
PIC18F25K80 |
No |
