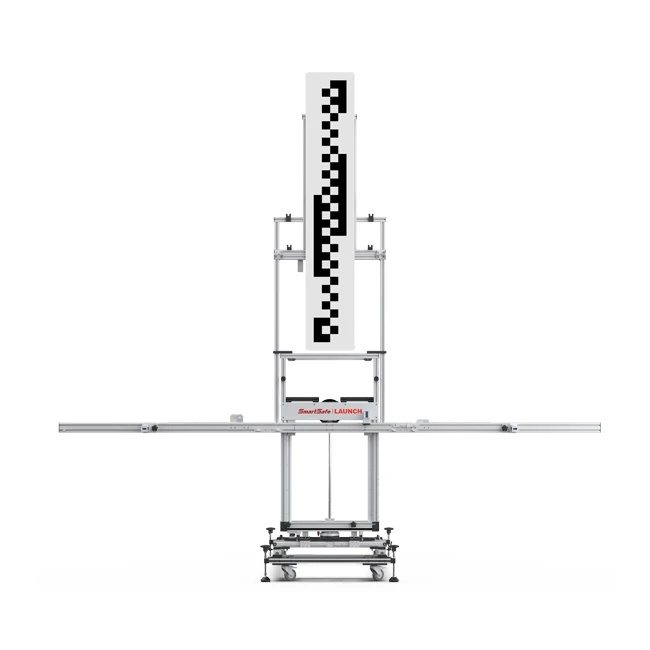

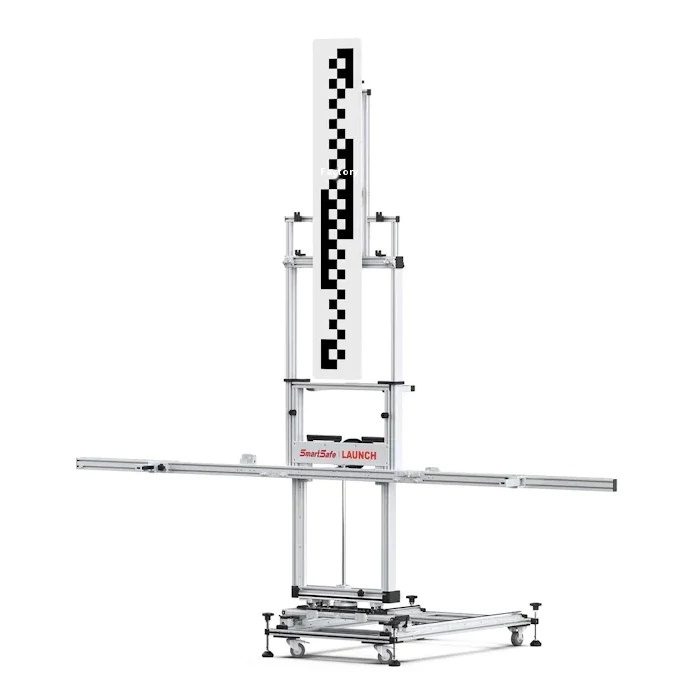

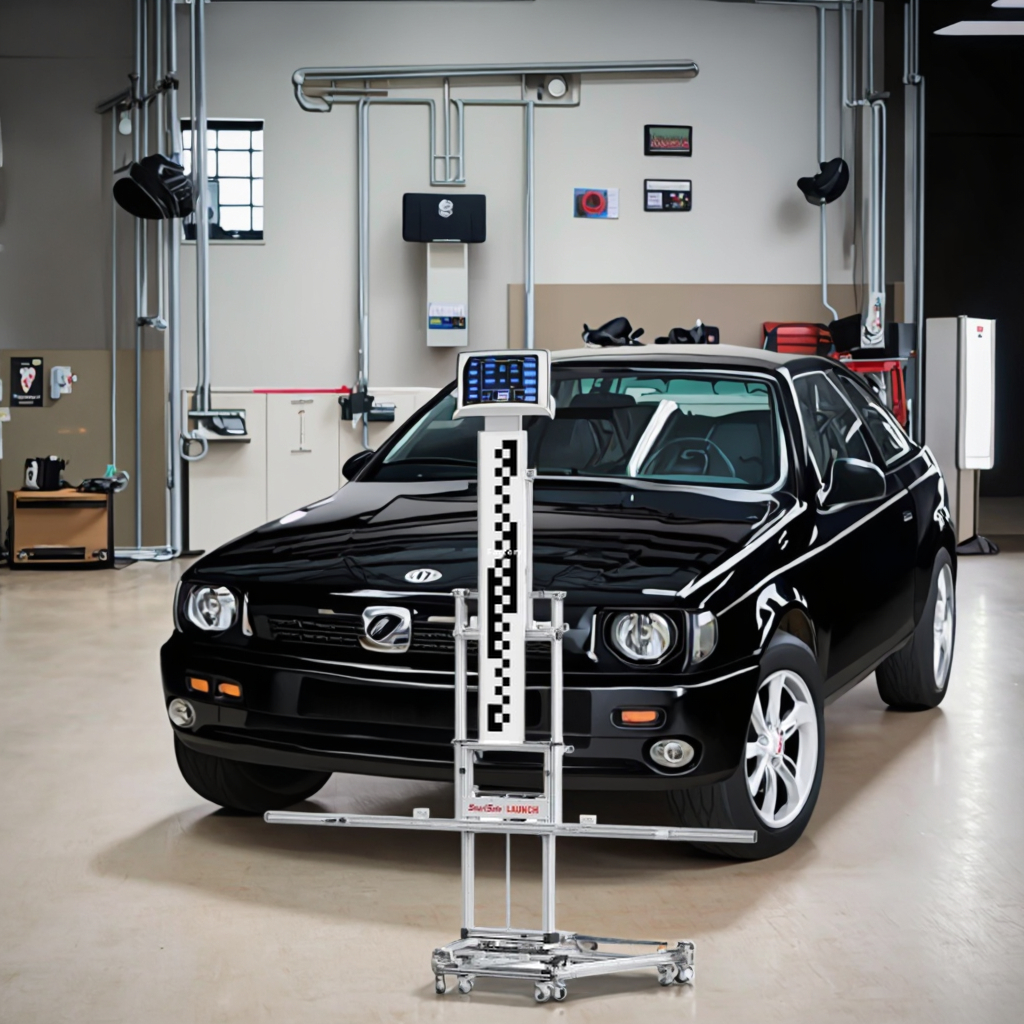

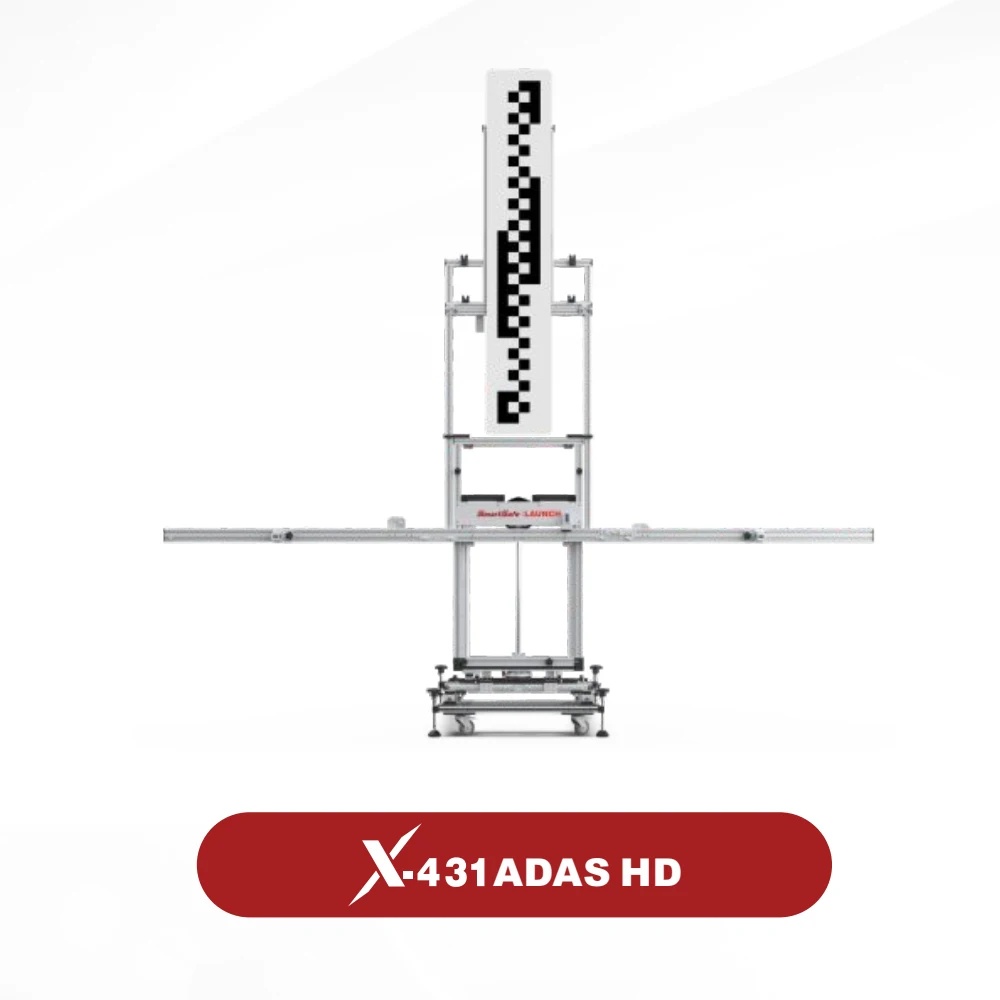

LAUNCH/SmartSafe X431 ADAS HD

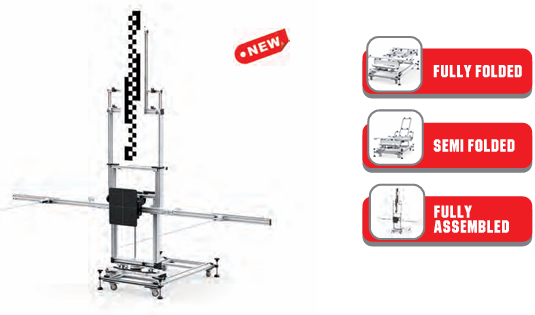

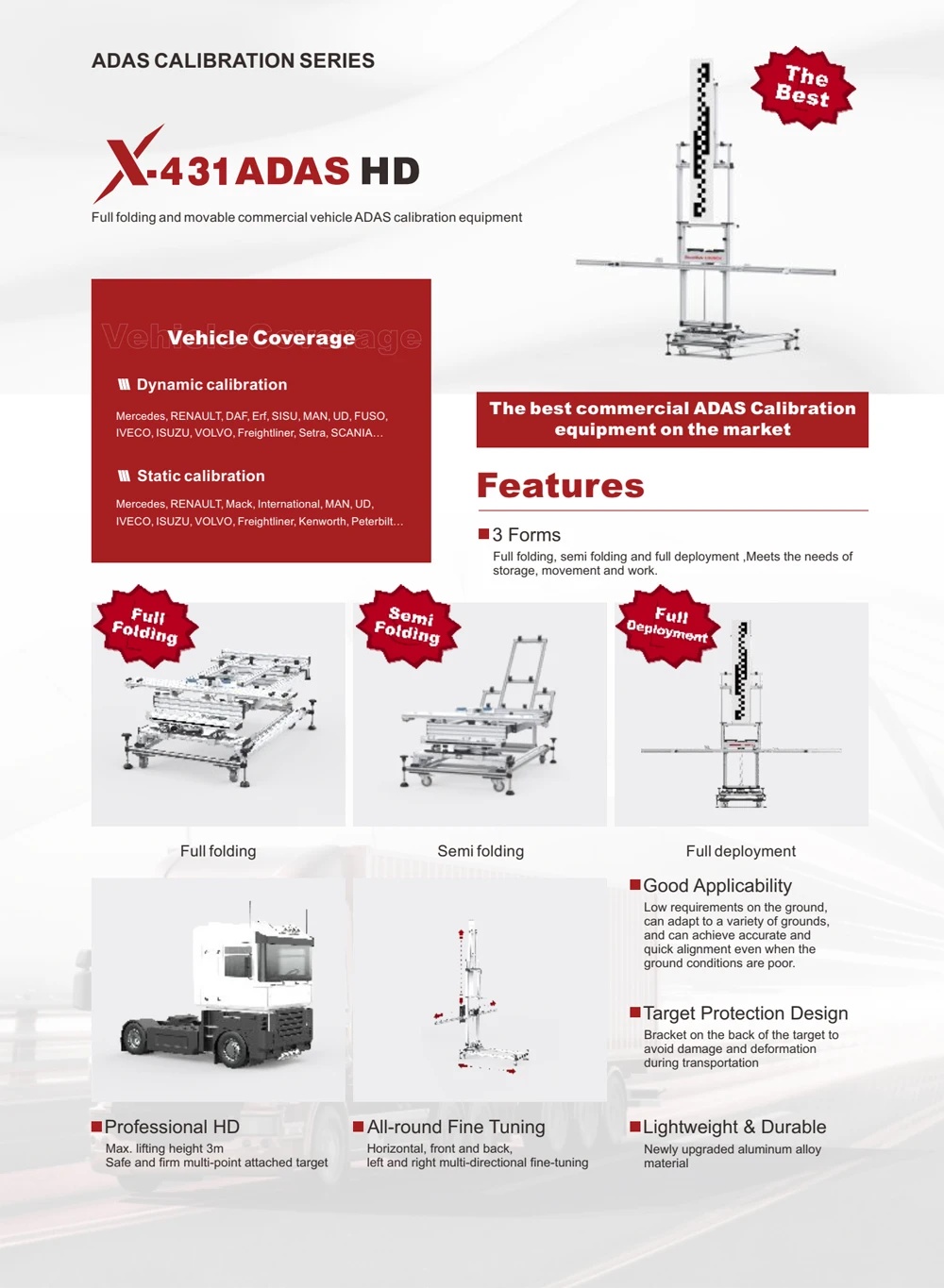

The X-431 ADAS HD is an advanced ADAS calibration tool that especially designs for Heavy Duty Vehicles. It provides multi-system calibration service including the ADAS systems of LDW, ACC, BSD, RCW, NVS, AVM, etc. The innovative fully foldable structure design offers 3 different forms (fully folded, half folded, fully expanded) to meet the demands of the daily storage, movement and calibrate. Equip with the millimeter precision laser rangefinder, the X-431 ADAS HD can measure distance without mechanical measurement.
The foldability and mobility of the X-431 ADAS HD save a lot of space and time for maintenance personnel. Regarding the functions that can be realized by X-431 ADAS HD, LAUNCH/SmartSafe provides a more comprehensive solution.

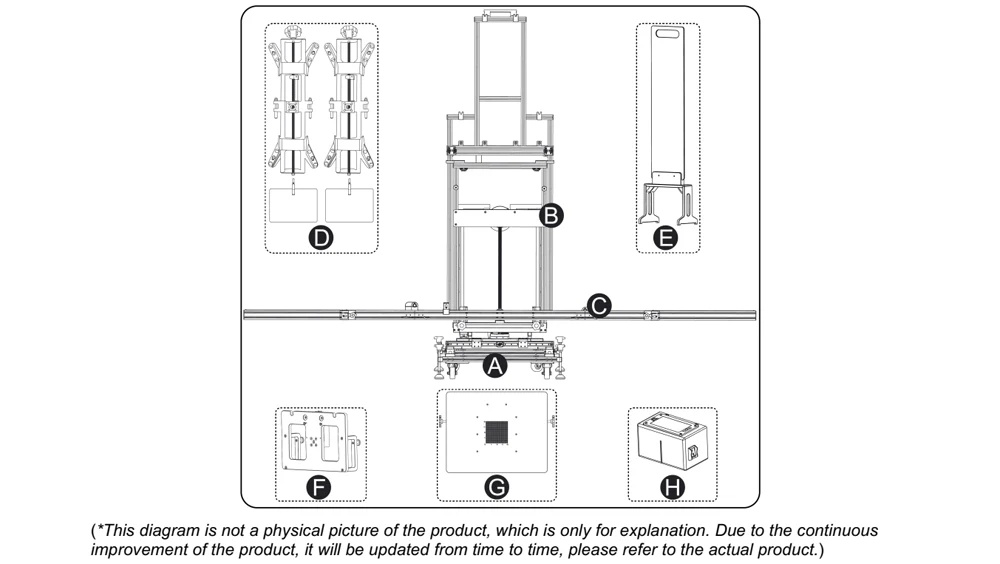

The X-431 ADAS HD calibration tool is mainly composed of the following components:
| No. | Specific Description |
|---|---|
| A | Base Components Used to fix the lifting components, balance the cross members and target brackets installed on the lifting components, and support front and back adjustment. The base is equipped with 4 rollers, which is convenient for users to move the equipment. |
| B | Lifting Components It is fixed on the base and is used to fix the cross member and the target bracket, which can realize the height lifting of the equipment and the fine adjustment of the left and right sides and the parallel fine adjustment of the equipment. |
| C | Cross Member Components It is installed on the lifting assembly and is used to place the central rangefinder and the mounting plate. |
| D | Wheel Clamp Assembly It is installed on the rear wheel of the vehicle and cooperates with the left and right positioning rangefinders on the cross member to adjust the parallelism of the calibration equipment with the vehicle. |
| E | Ranging Panel Used to measure the distance between the device and the vehicle with a central rangefinder. |
| F | Mounting Plate It is used to hang central laser and ACC reflector, etc. |
| G | ACC Reflector Used to calibrate vehicle ACC radar. |
| H | Central Laser Used for auxiliary adjustment to equipment and vehicle center alignment. |
| Item | Value |
|---|---|
| Operating System | None |
| Communication interface | Other |
| Voltage | 12V |
| For Vehicle Brand | Universal |
| Type | Battery Tester |
| Power | W |
| Applicable Models | Universal |
| Combination | Other |
| Place of Origin | China |
| Brand Name | ADAS |
| Model Number | X-431 ADAS HD |
| Warranty | None |
| Specification | X-431 adas hd |
| Support Language | English |
| Make | Universal |
| Color | Silver |
| Item Type | Portable calibration tool |
| Display Type | Other |
| Connectivity | Other |
