Autel MaxiSys Ultra EV Intelligent EV Diagnostic Tool With EVDiag Kit VCMI EV High-Voltage System & Battery Pack Analysis PK Ultra
Autel MaxiSys Ultra EV Overview

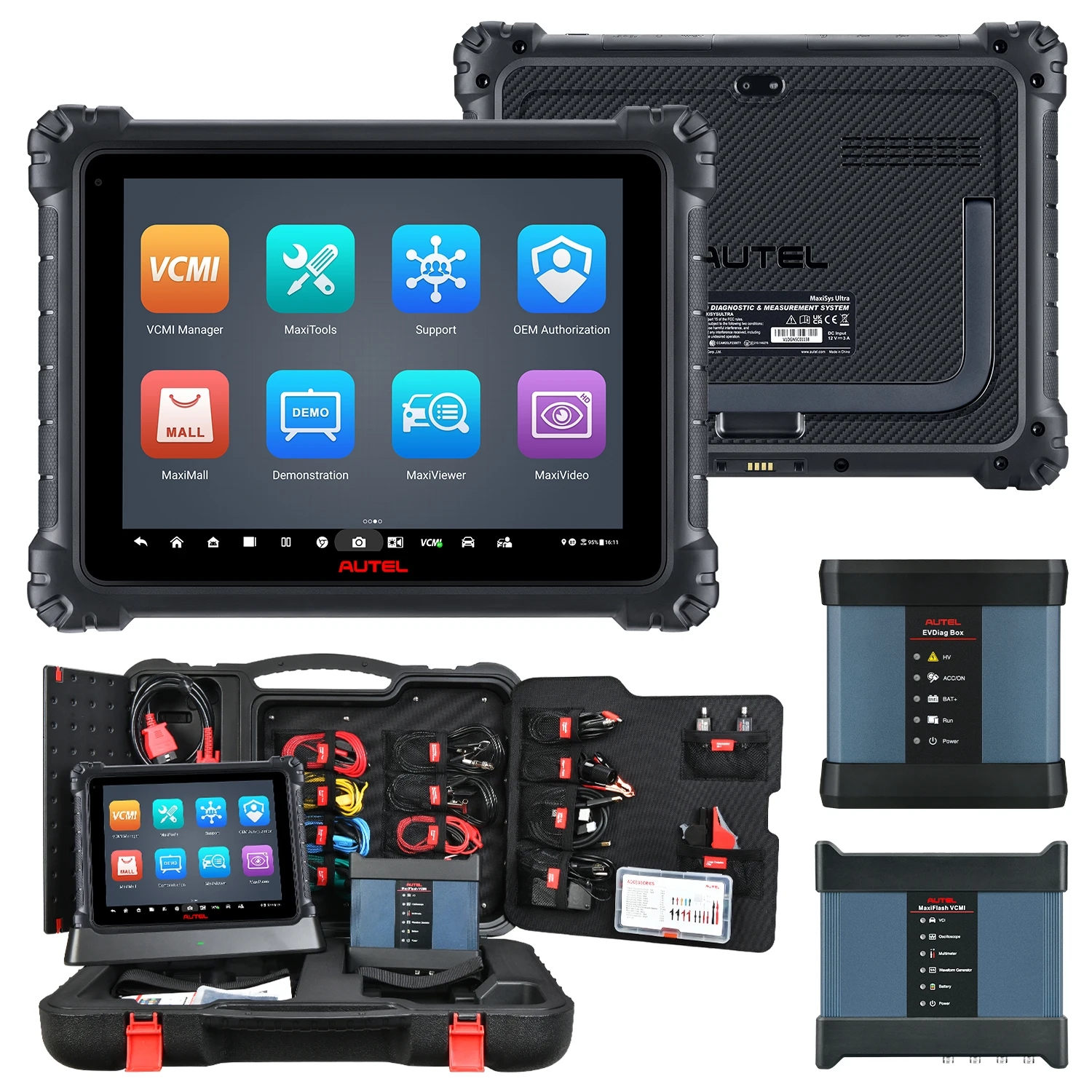

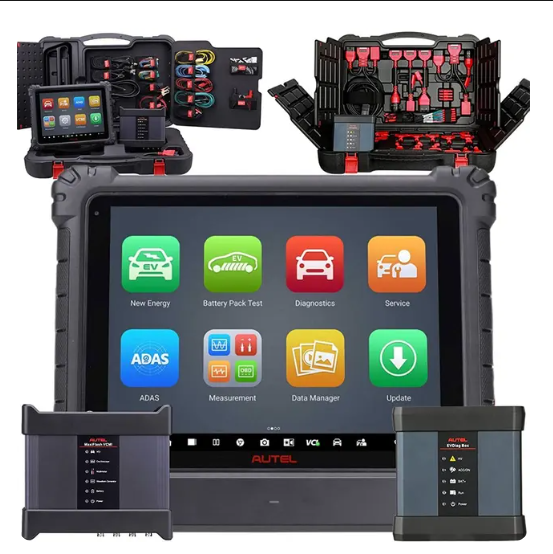

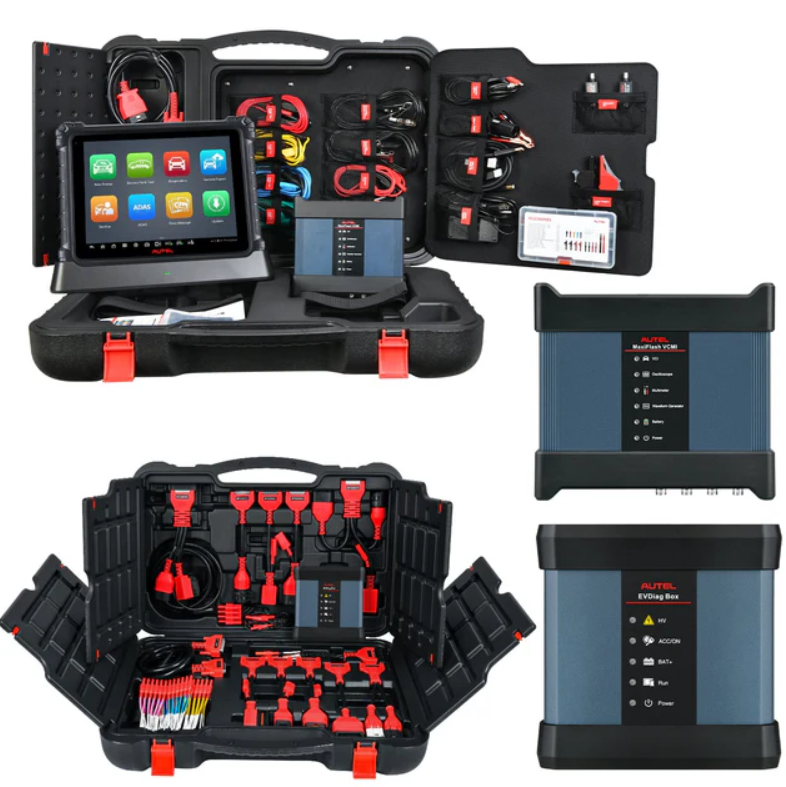

The MaxiSys Ultra EV is a new generation of intelligent diagnostics for electric, hybrid, gas, and diesel vehicles. The Ultra EV provides a comprehensive analysis of electric and hybrid vehicles with expanded topology mapping and battery pack analysis that can be performed via OBD or directly with included specialty cables and jumpers. The Ultra EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing. The 12.9-inch Ultra EV touchscreen tablet comes equipped with the MaxiFlash VCMI (5-in-1) measurement device, Bluetooth-enabled vehicle communication interface and J2534 pass-thru programming device, and a dedicated EVDiag box.
Supported Languages
English, Spanish, Portuguese, German, French, Nederlands, Polish, Russian, Swedish
Key Description & Features
Advanced diagnostics for U.S., European and Asian electric, gas and diesel, and hybrid vehicles.
Rapid analysis of EV high-voltage system including ability to read and erase codes and view live data.
Comprehensive diagrams of high-voltage system block, components and sockets; Step-by-step system disassembly instructions.
State of Charge and State of Health analysis for true battery condition.
Battery pack analysis can be performed via OBD or analyze the pack directly with included specialty cables and jumpers; the Ultra EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing.
Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors.
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized.
Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes.

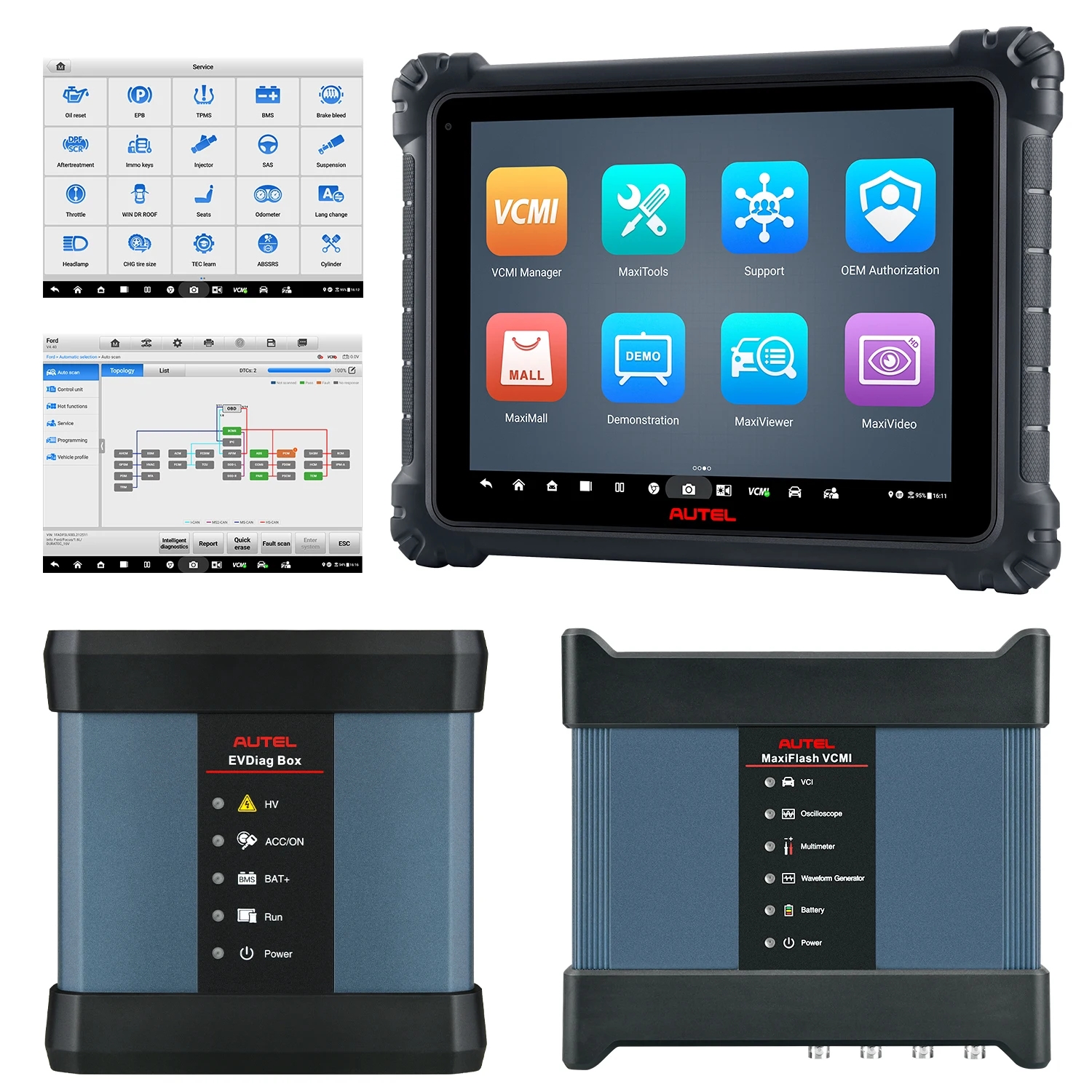

5-IN-1 VCMI
VCI Connection + Oscilloscope + Waveform Generator + Multimeter + CAN BUS CHECK
Differing from most traditional scan tools, the intelligent diagnostic scan tool Autel MaxiSys Ultra comes equipped with an advanced 5-in-1 VCMI combining VCI, oscilloscope, waveform generator, multimeter, and OBD2 CAN BUS Check. It can perform super precise and comprehensive diagnostics and services on 99% of vehicles on the market. Autel MaxiSys Ultra meets your every need and is the premier selection for large car repair businesses.

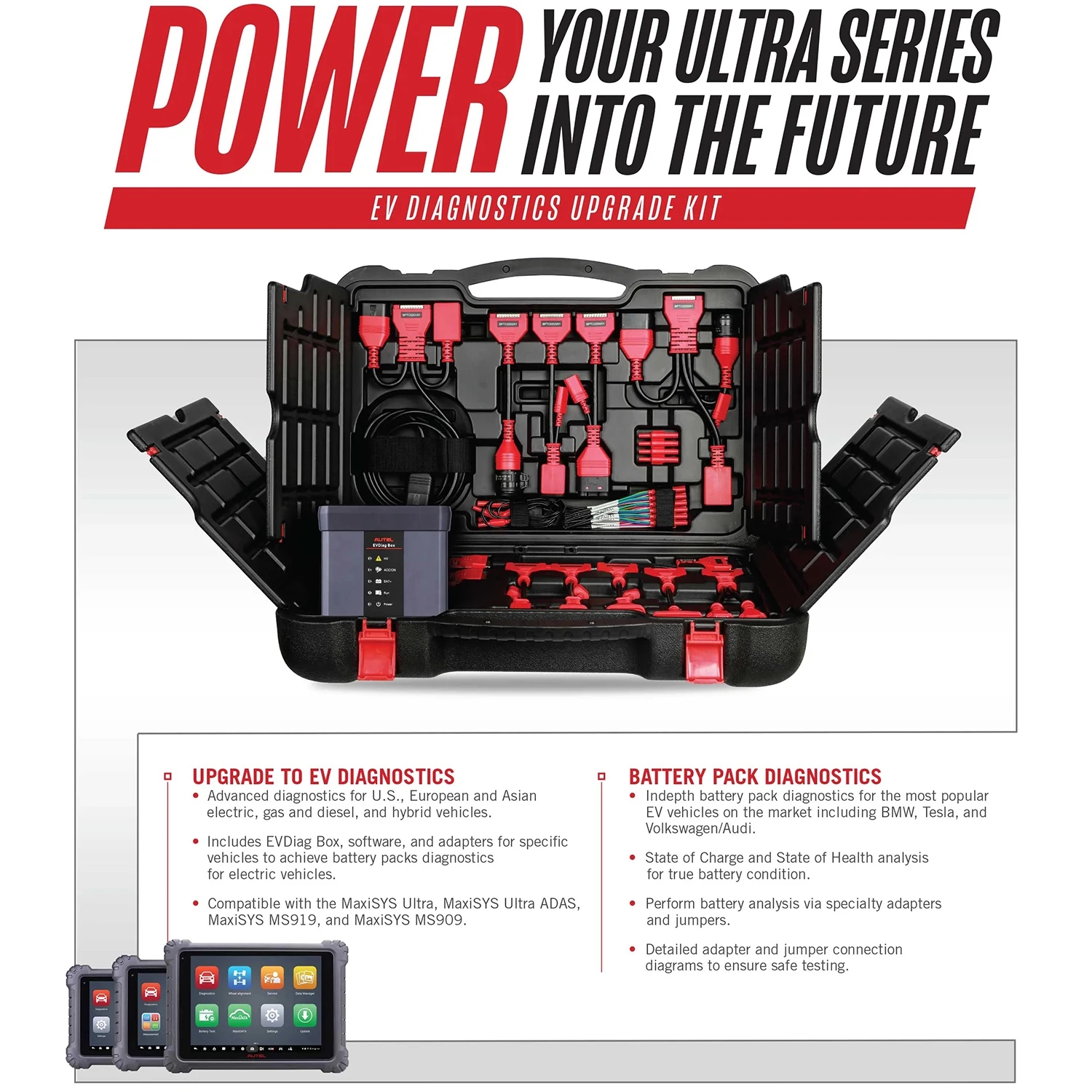

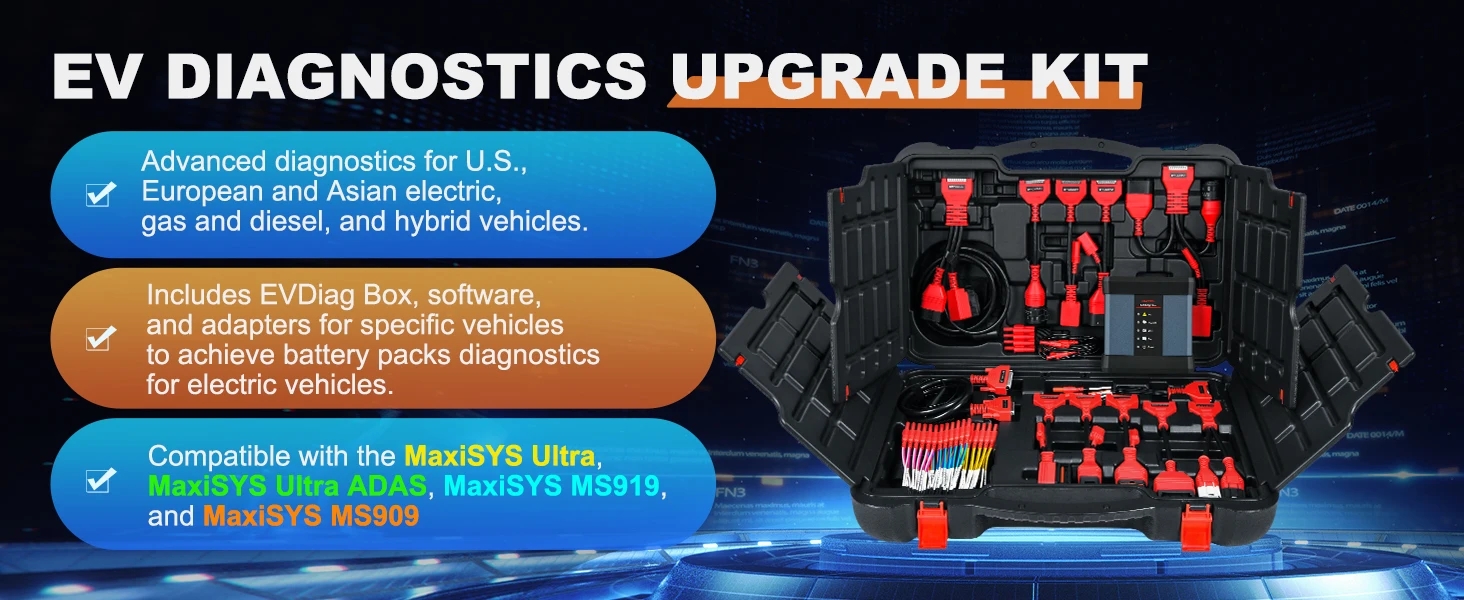

EV Diagnostics Upgrade Kit

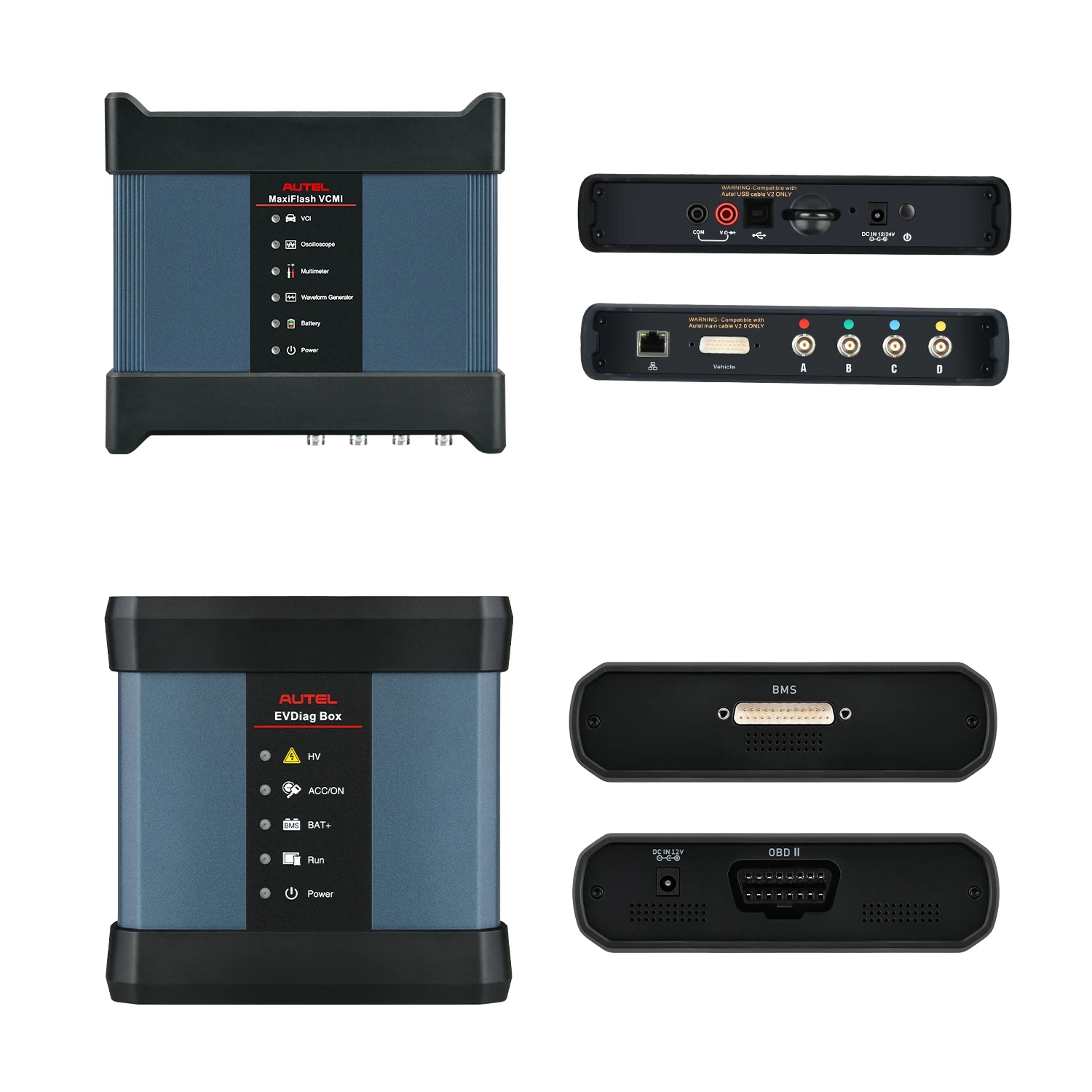

The EV Diagnostics Upgrade Kit includes the EVDiag Box and adapters for specific electric vehicles to perform battery pack analysis. It is also compatible with gasoline vehicles. The EVDiag Box works seamlessly with the MaxiSys Ultra, MaxiSys Ultra ADAS, MaxiSys MS919, and MaxiSys MS909 tablets. The EVDiag Box connects directly to the MaxiFlash VCI or VCMI.
ECU Programming & Coding
Autel MaxiSys Ultra enhances the process of ECU programming, allowing you to complete program/rewrite/code/match processes on new ECUs after a new module replacement. Besides ECU Programming, the Autel MaxiSys Ultra supports advanced ECU Coding on 90% of cars, unlocking hidden features and activating high-end functions to improve overall vehicle performance. Note: ECU Programming and Coding compatibility is not universal.
40+ Functions & Intelligent All-System Diagnostics & Bi-directional Control
The top-tier car diagnostic scanner MaxiSys Ultra supports the most comprehensive service functions on 99% of vehicles. Services of the Autel Ultra include EPB Reset, SAS, Battery Reset, Throttle Reset, ABS Bleed, Injector Coding, Power Balance, Key Coding, Suspension Calibration, VGT Turbo Calibration, Transmission, Headlamps, Window/Door/Roof systems, and more. Together with bi-directional control, you can solve vehicle-related issues without needing other scan tools.
0000+ Coverage
Autel Ultra supports D-PDU / SAE J2534 / RP1210 / DoIP / CAN FD protocols. With wide coverage of 99.99% of vehicles in the market, the Autel Ultra is compatible with OE factory tools to perform advanced services and programming tasks.
Frequently Asked Questions (FAQs)
Q1: What makes the Autel MaxiSys Ultra EV different from standard diagnostic scanners?
A1: The MaxiSys Ultra EV is specially designed for electric, hybrid, gas, and diesel vehicles. It includes specialized EV high-voltage system topology mapping, safe battery pack analysis (directly or via OBD), and a dedicated EVDiag Box alongside the advanced 5-in-1 VCMI.
Q2: What functionalities does the 5-in-1 VCMI device provide?
A2: The VCMI functions as a wireless vehicle communication interface (VCI), oscilloscope, waveform generator, multimeter, and OBD2 CAN BUS tester, offering extensive and precise diagnostics.
Q3: Can I perform ECU Programming and Coding with the Autel MaxiSys Ultra EV?
A3: Yes, the tool supports advanced ECU programming and coding for rewriting, matching, and programming new ECUs after a module replacement. Please note that compatibility depends on the vehicle make and model.
Q4: Does the EVDiag Box work with other Autel MaxiSys tablets?
A4: Yes, the EVDiag Box included in the upgrade kit is compatible with the MaxiSys Ultra, MaxiSys Ultra ADAS, MaxiSys MS919, and MaxiSys MS909 diagnostic tablets.
Q5: Which diagnostic protocols are supported by the MaxiSys Ultra EV?
A5: It supports D-PDU, SAE J2534, RP1210, DoIP, and CAN FD protocols, allowing compatibility with original equipment (OE) factory tools.
Q6: Does the tool support multi-language interfaces?
A6: Yes, it supports English, Spanish, Portuguese, German, French, Nederlands, Polish, Russian, and Swedish, allowing global technicians to work comfortably in their preferred language.
