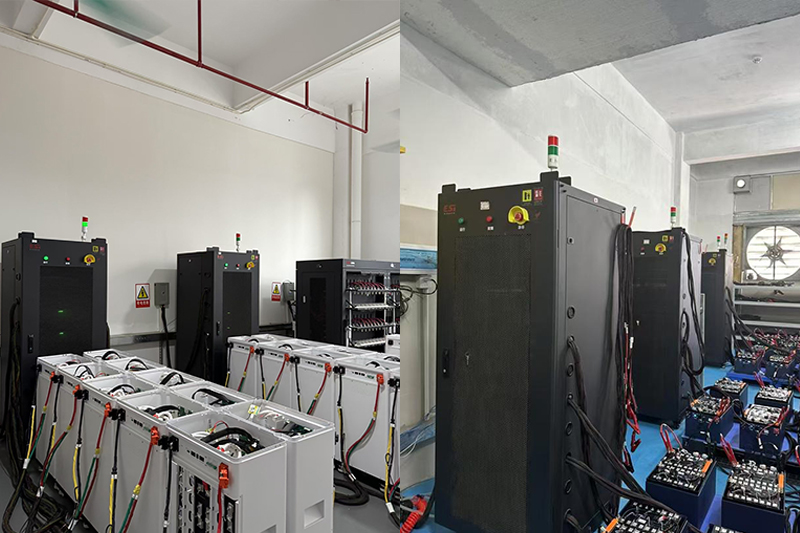

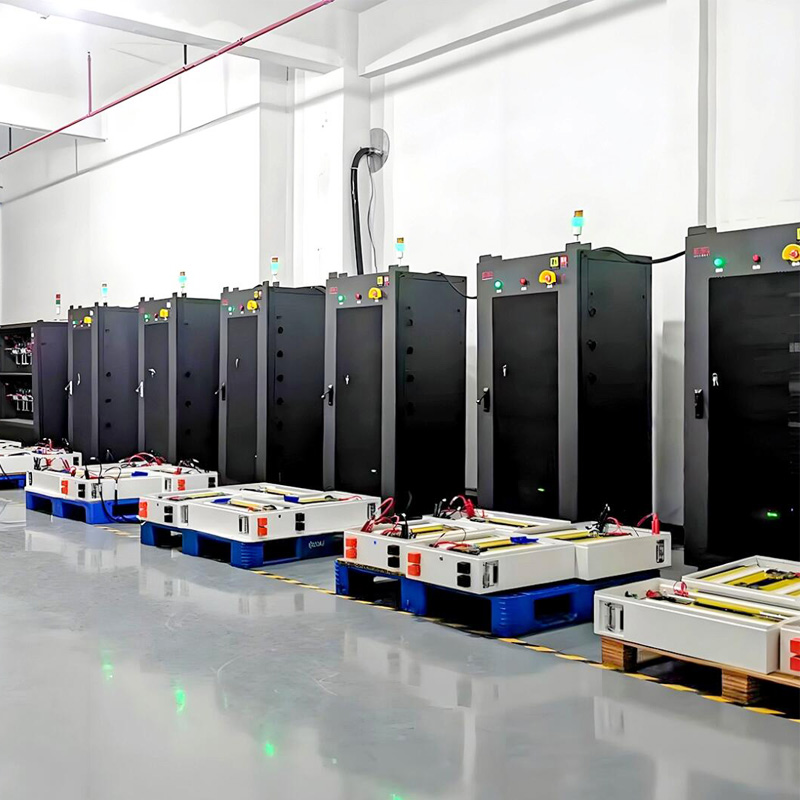

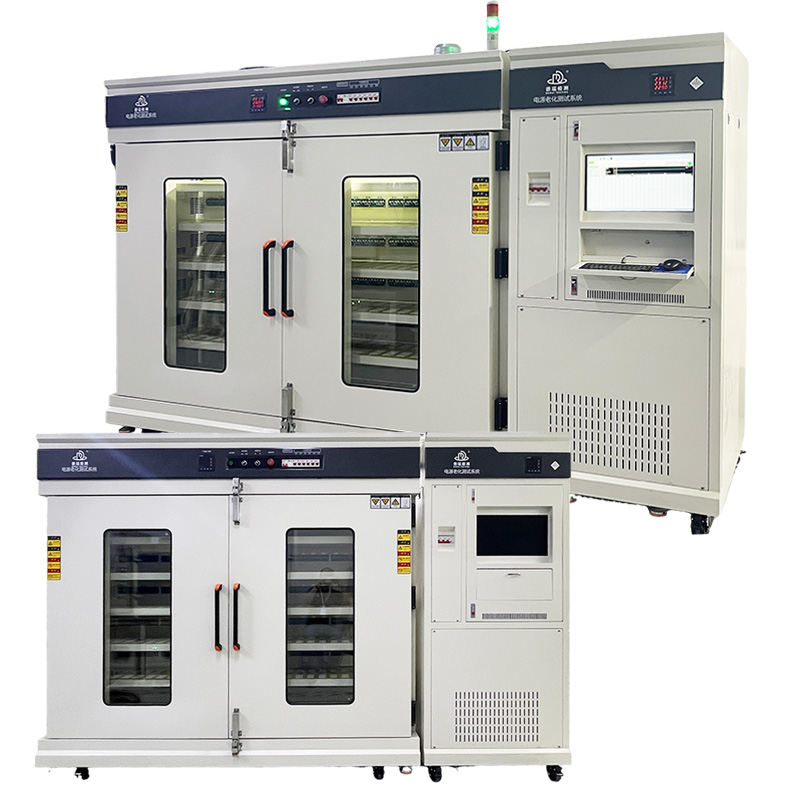

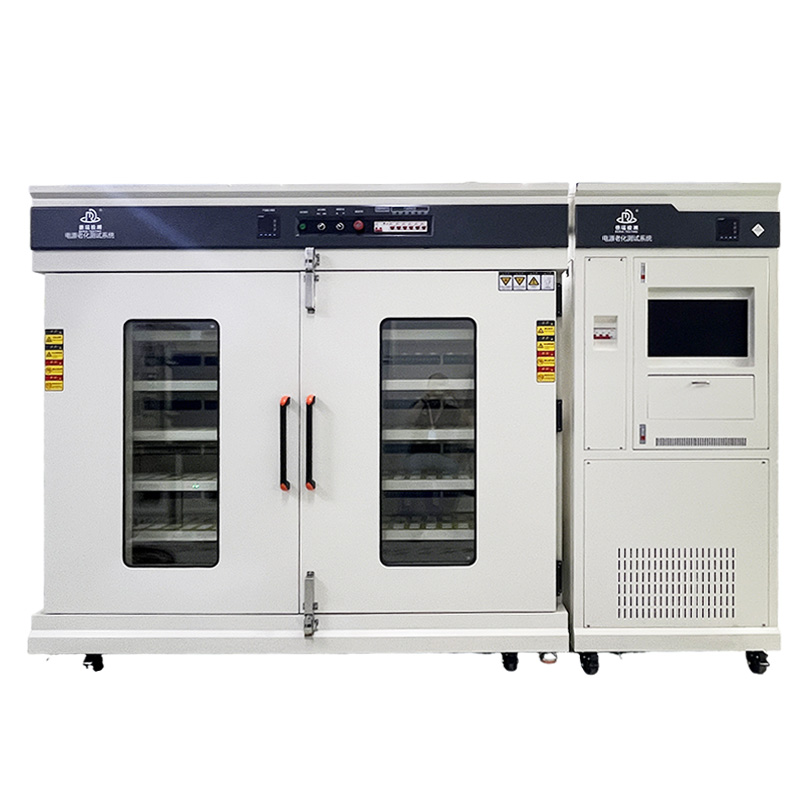

Applied in the testing and quality control of lithium battery modules & packs such as new energy vehicles, energy storage base stations, and can realize the integration of charging and discharging data monitoring.
| AC parameters | |
|---|---|
| Wiring method | AC three-phase four-wire |
| Power supply voltage | 380±10% VAC |
| Power supply frequency | 50±5% Hz |
| Power factor | > 0.99 |
| Max. power feedback efficiency | ≥ 96% |
| THD | < 3% |
| DC parameters | |
| Output current | 300A/400A/600A/1000A/2000A/4000A |
| Single channel voltage range | 750V~1500V...2000V |
| Voltage accuracy | ± 0.02% F.S |
| Voltage resolution | 0.1mV |
| Current accuracy | ± 0.02% F.S |
| Current resolution | 1mA |
| Current response time | 3ms (10%~90% F.S) |
| Current switching time | 5ms (-90%~90% F.S) |
| Min. Working Condition Simulation Interval | 10ms |
| Upper computer software function | |
| Charging mode | CC, CV, CCCV, CP, Slope, etc. |
| Discharge mode | CC, CV, CP, CR, Slope, etc. |
| Other working mode | Still, Pause, Working condition test, Pulse test, DCIR |
| Test cut-off condition | Battery voltage, current, time, capacity, temperature |
| Data export format | Excel, TXT, etc. |
| Time recording interval | 10ms |
| Editable step | Max. 10000 |
| Programmable step | Max. 10000 |
| Nested loop | Max. 10 layers |
| Software protection | OCP/OVP/UVP/Reverse or wrong connection protection, Protection for abnormal communication |
| Third-party device integration | Support linkage of temperature box, MTV/MTS, and I/O control box, and chiller |
| Other parameters | |
| IP grade | IP20 |
| Working temperature | 0℃ ~ 40℃ |
| Cooling method | Air Cooling |
| Noise | < 75dB |
| Cabinet size | (1600-2800)*1100*2000 (W*D*H mm) |
| Note: For specific models and parameters, please refer to the corresponding technical specifications. | |
