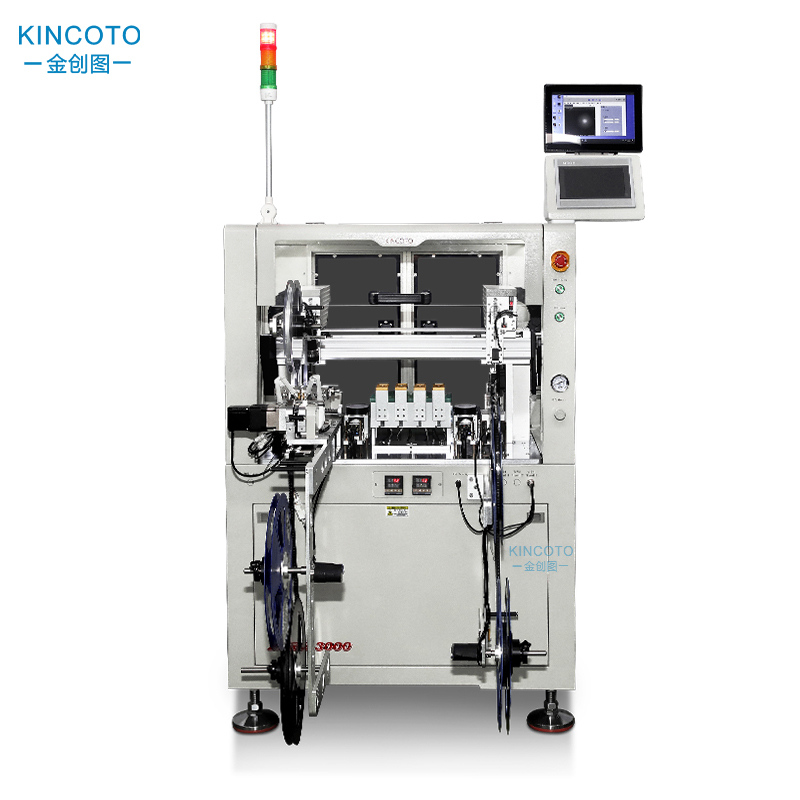

Automatic Equipment 4 Programming Stations And Support Large Capacity Tape Programming Machine KA42-3000-AOI

Product Description

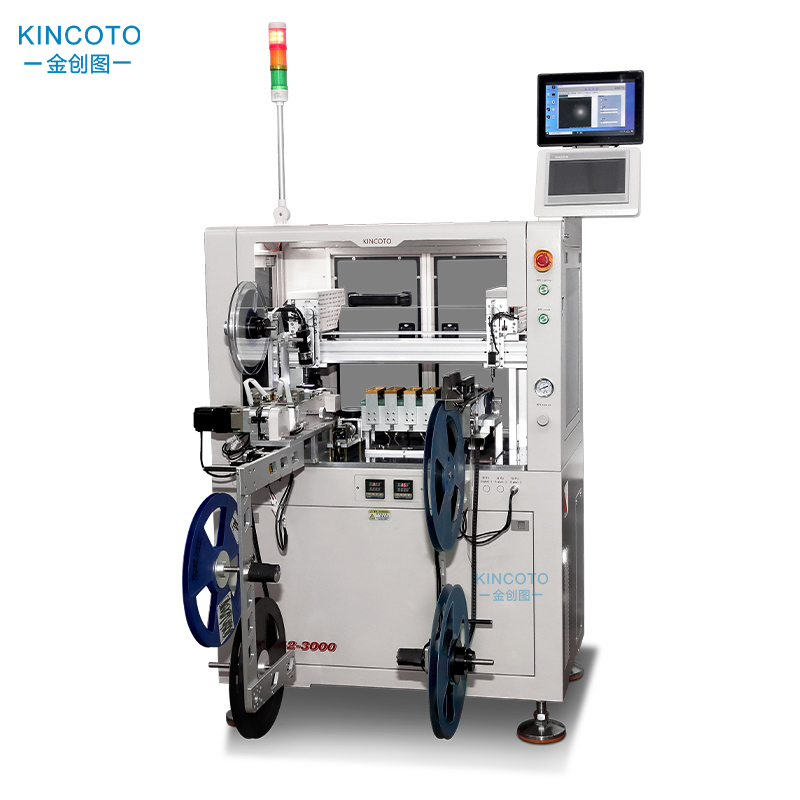

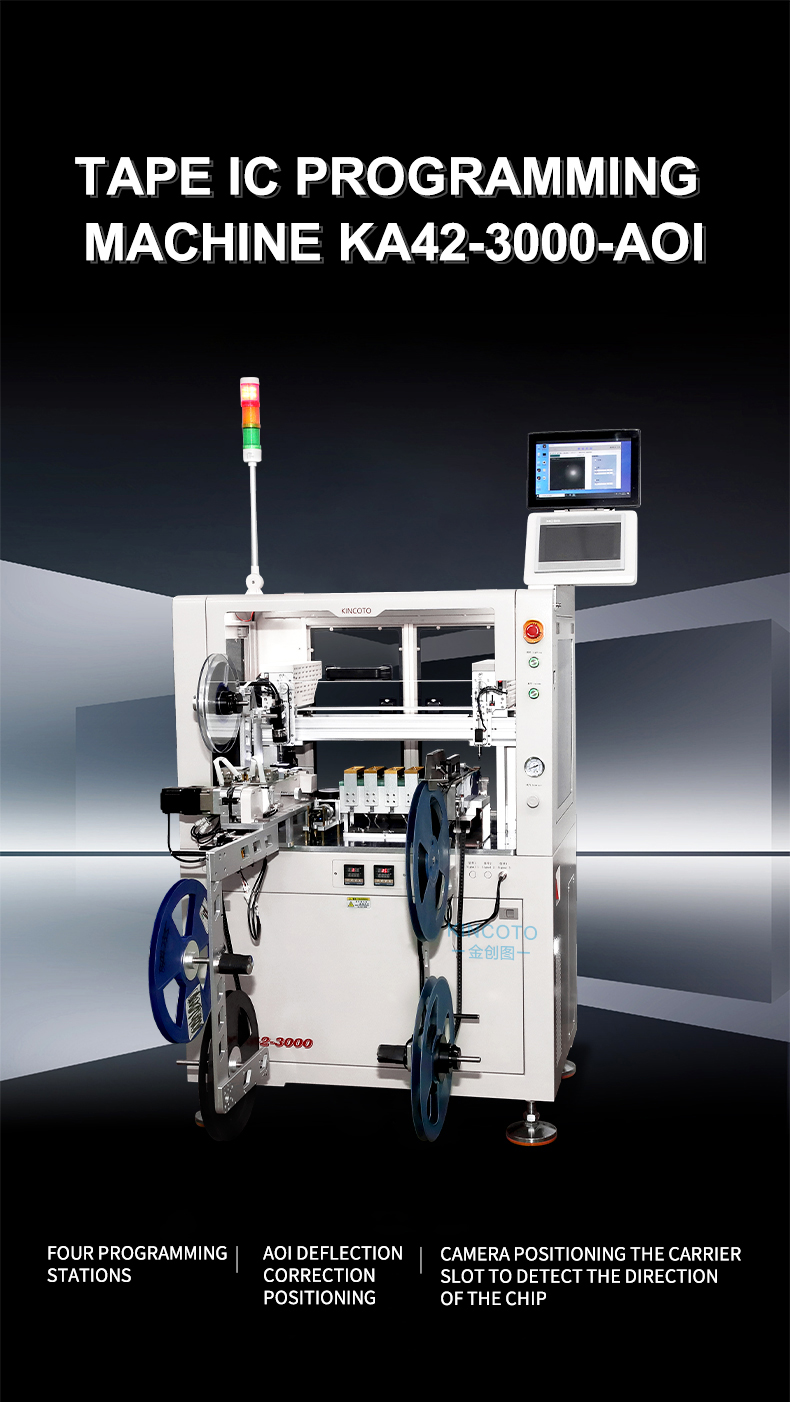

Automatic Tape IC Programming Machine KA42-3000-AOI
Automatic Tape IC Programming Machine KA42-3000-AOI
Products Description

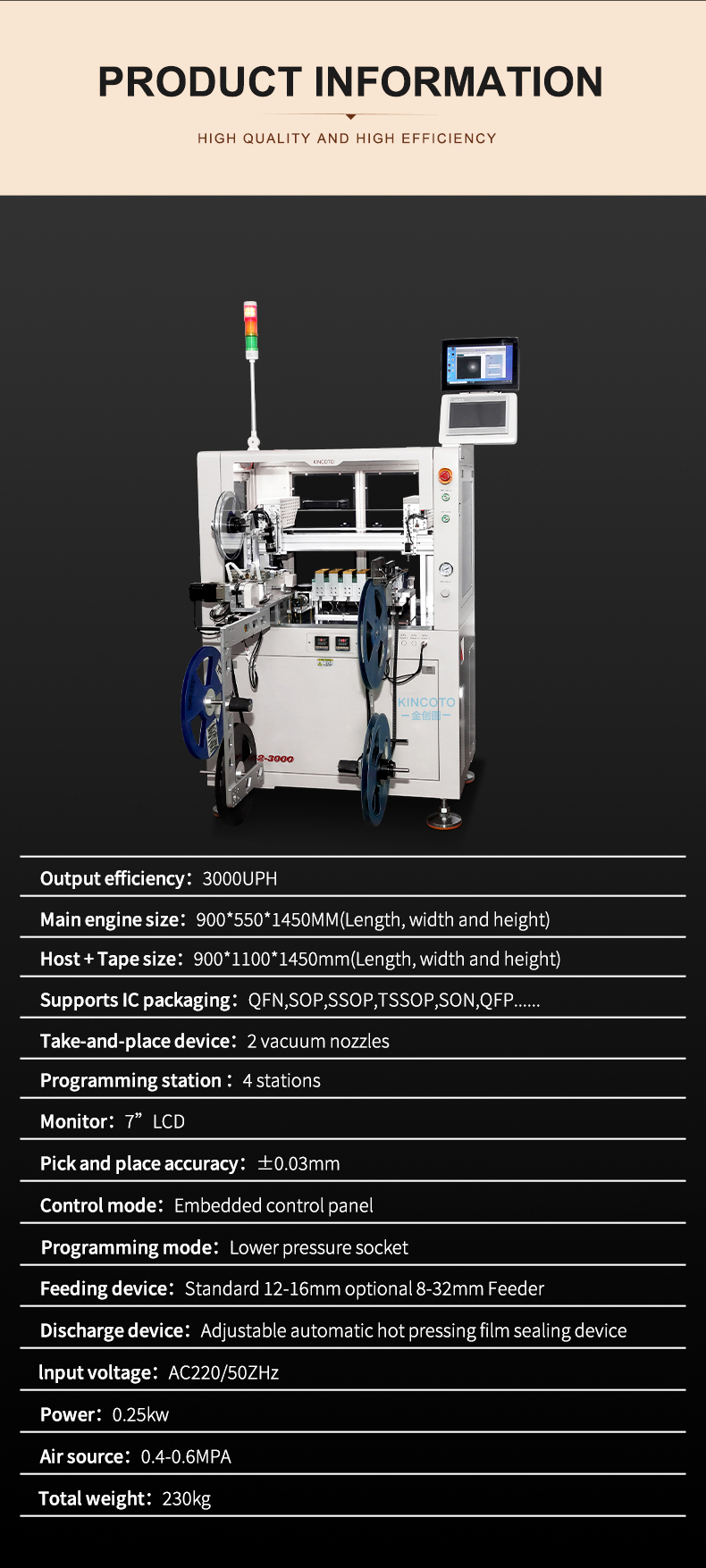

Product View 1
Product View 2
Model NO. KA42-3000-AOI
Output efficiency 3000UPH
Host size 900x550x1450mm (Length, width and height)
Overall Size 900x1100x1450mm (Length, width and height)
Support IC packaging QFN,SOP,SSOP,TSSOP,SON,QFP...
Pick and place device Vacuum nozzle*2

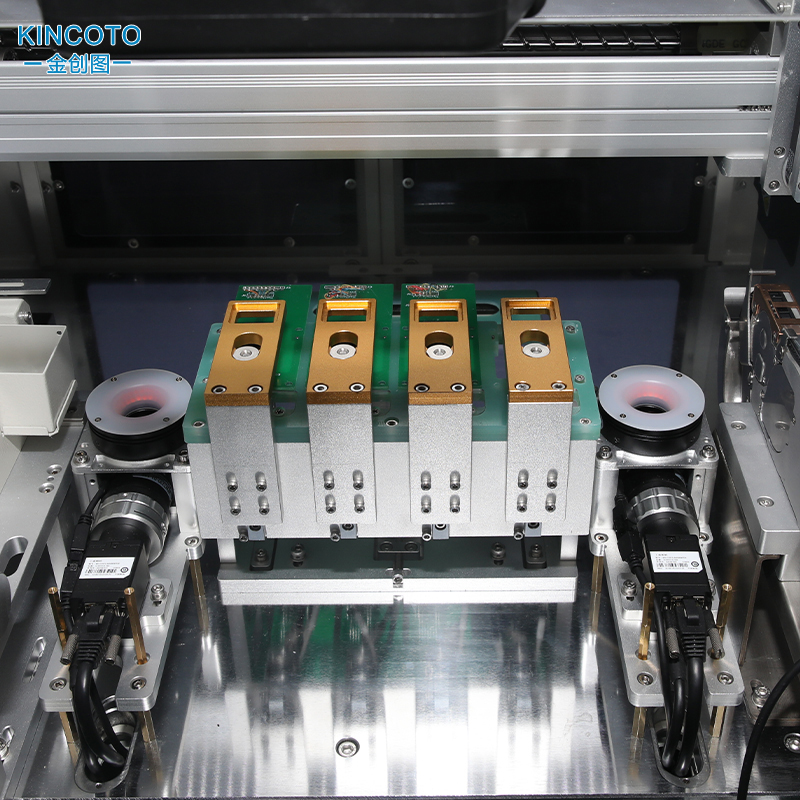

Programming Station 4 stations
Monitor 7'LCD
Pick and place accuracy ±0.03mm
Way to control Embedded control panel
Burning method Lower pressure socket
Tape Input Standard 12-16mm optional 8 32mm feeder
Tape output Adjustable hot-pressing automatic film sealing device
Input voltage AC220/50ZHz.
Power 0.25 kw
Gas source 0.4-0.6MPA
Total weight 230KG

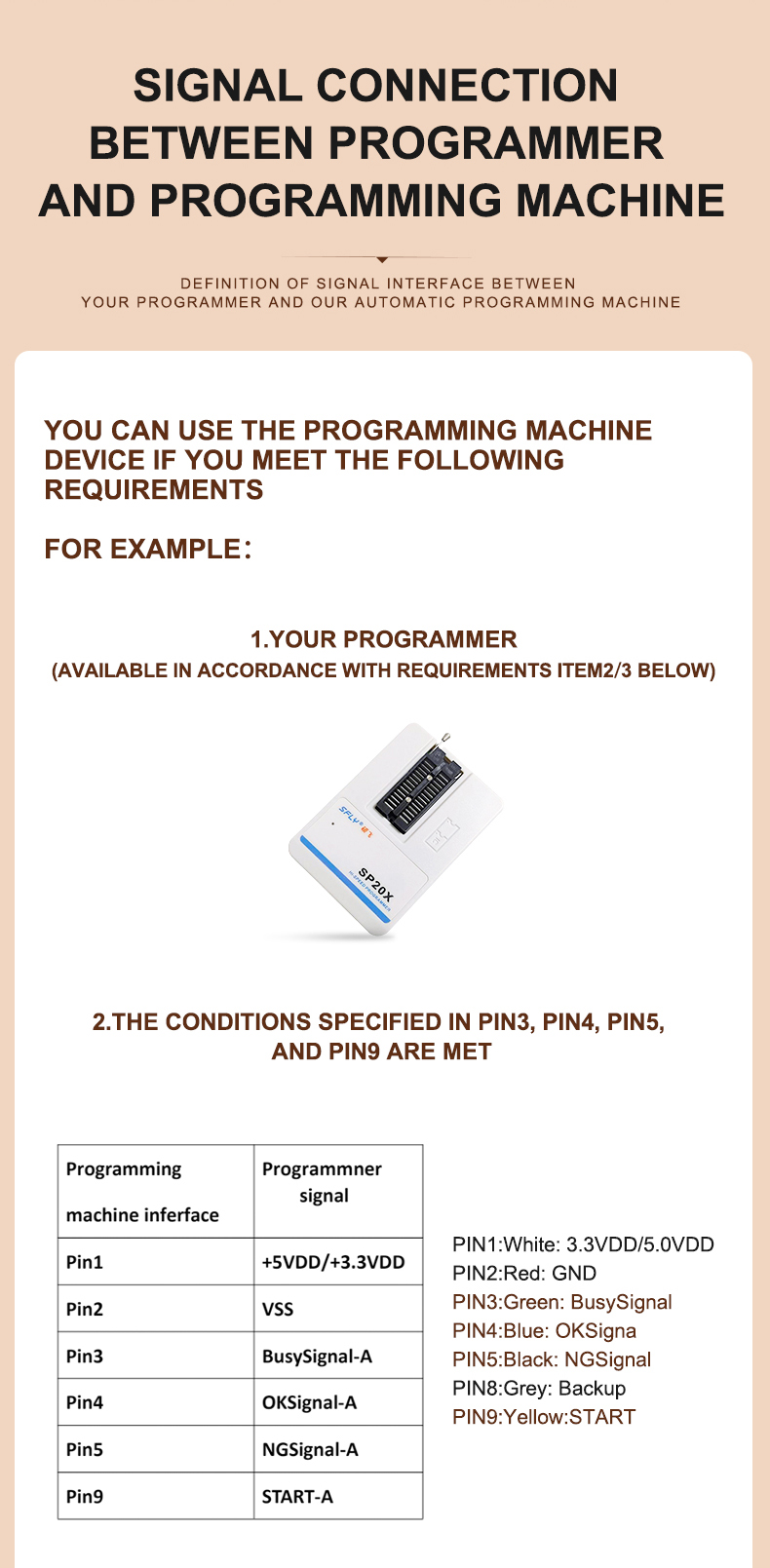

Detail 1

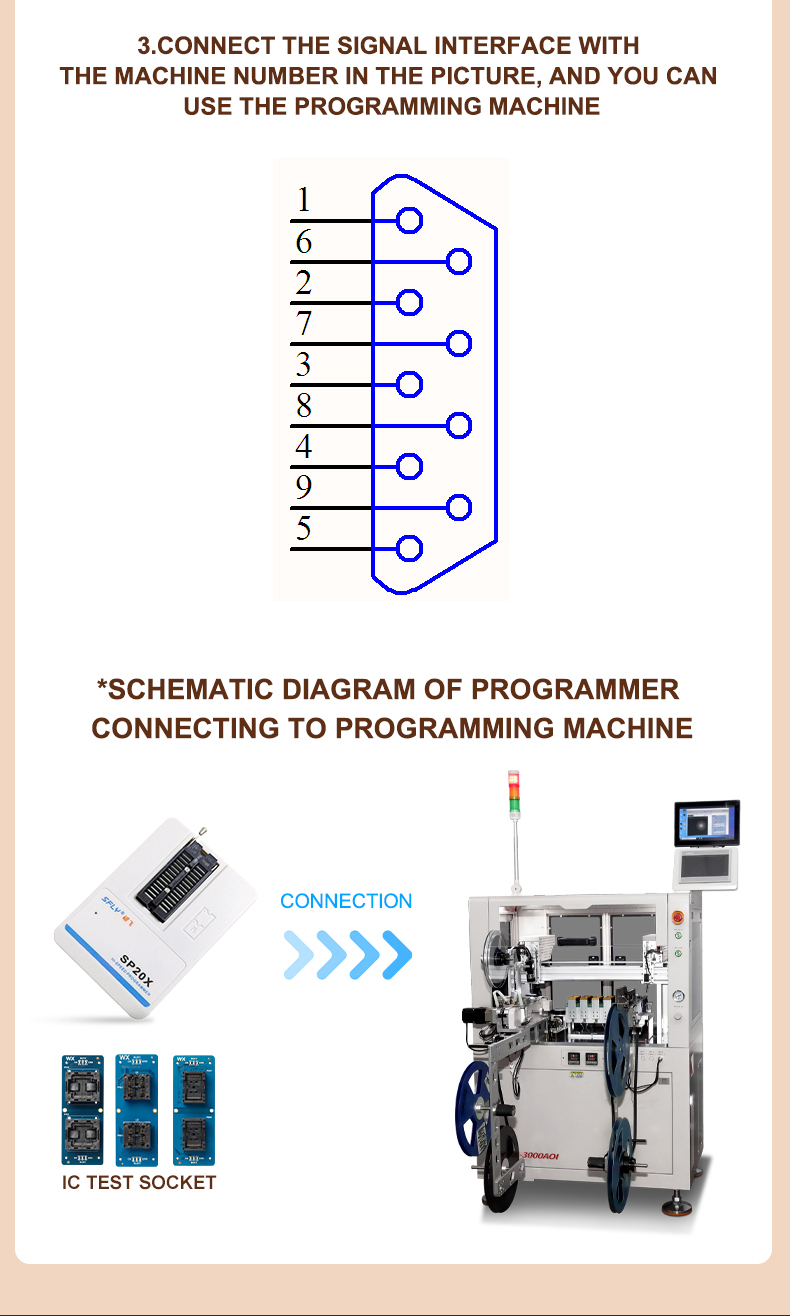

Detail 2

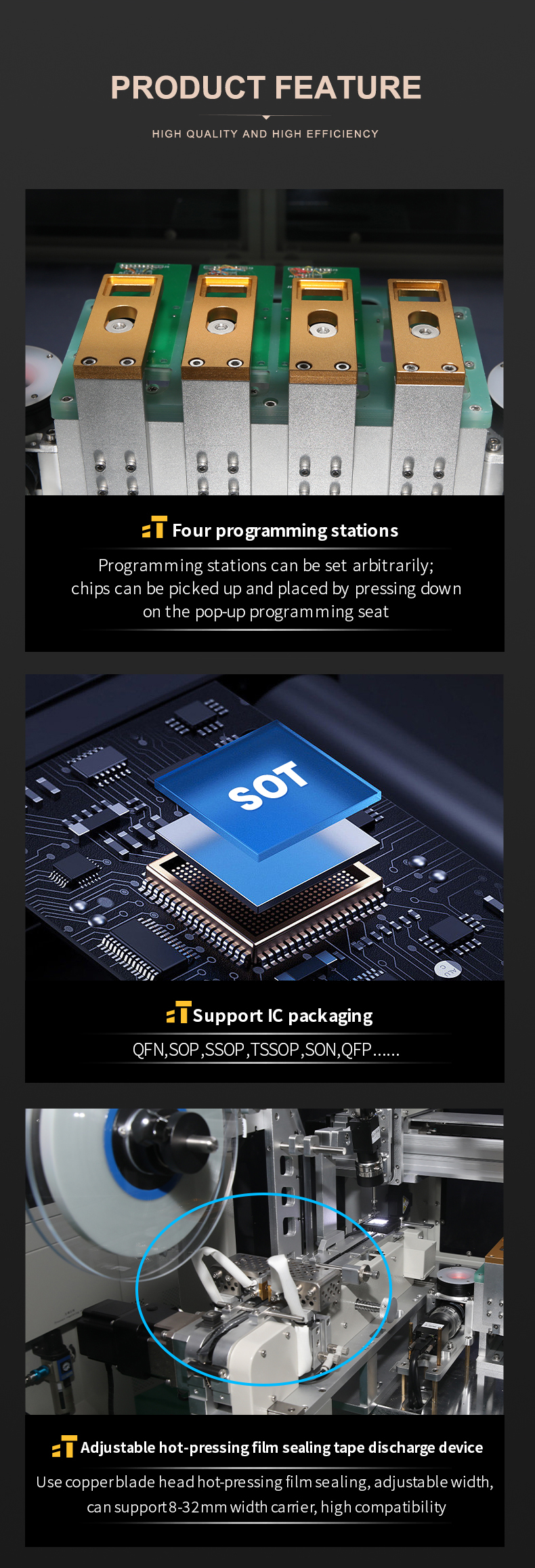

Detail 3

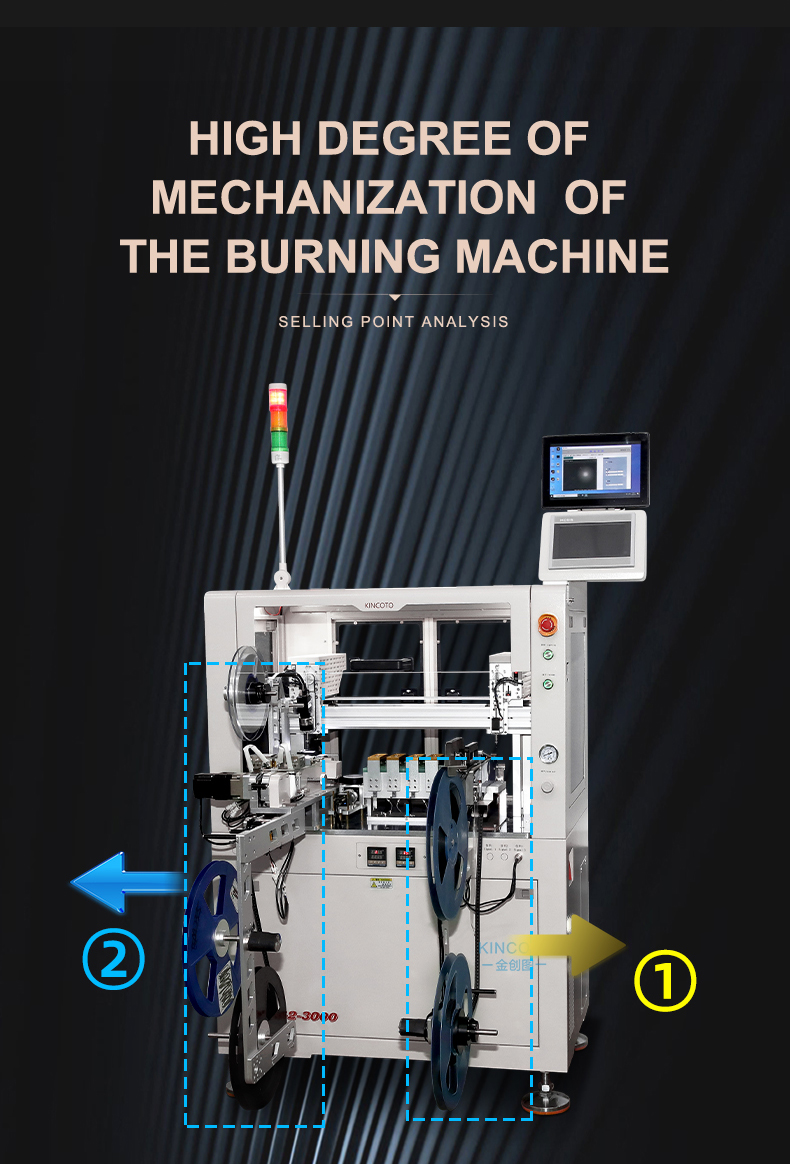

Detail 4

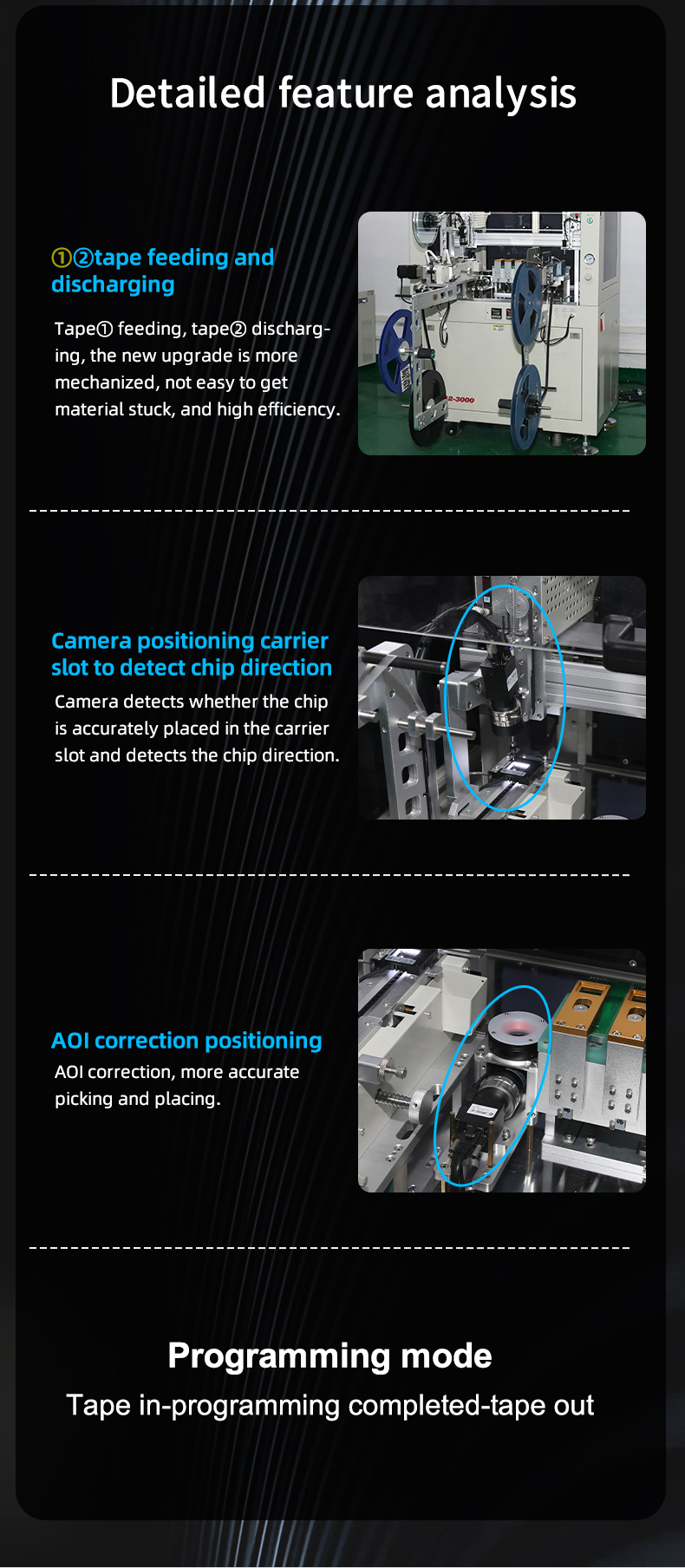

Detail 5
Product Specific Details

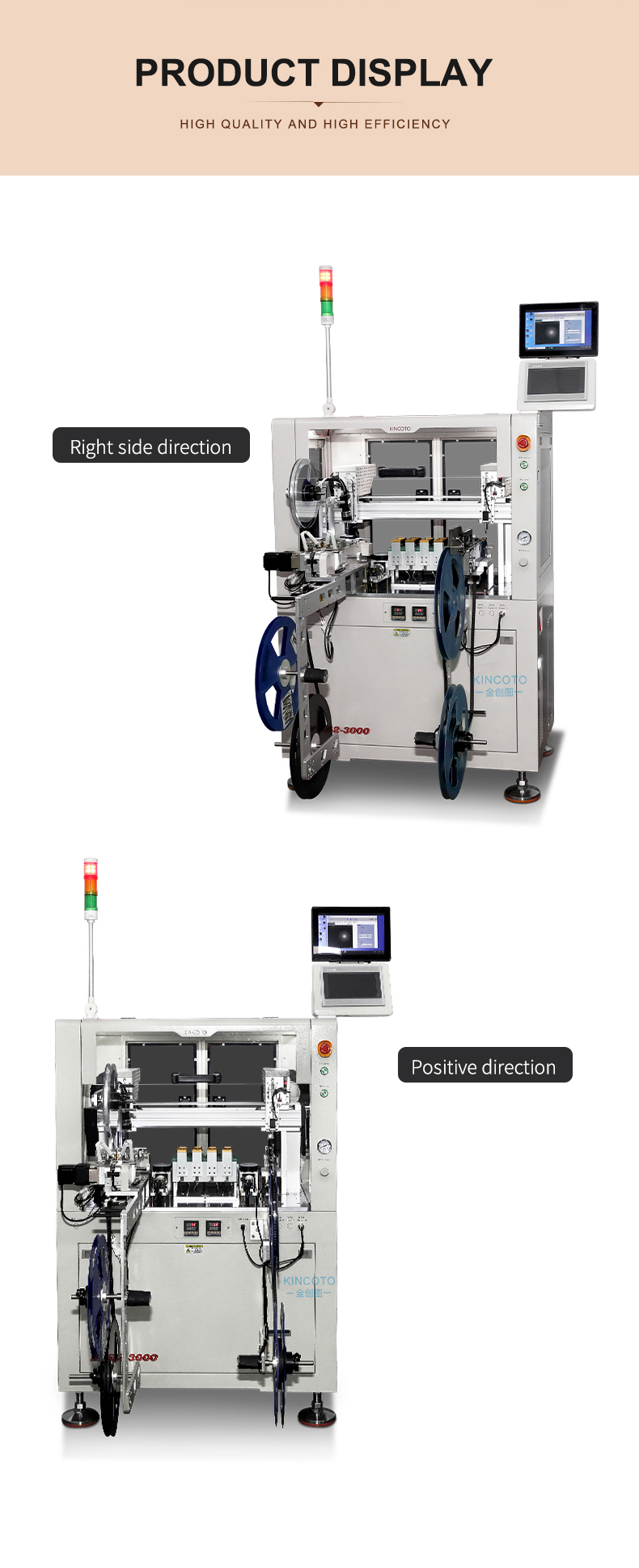

KA42-3000-AOI Detail Layout
KA42-3000-AOI Product Specific

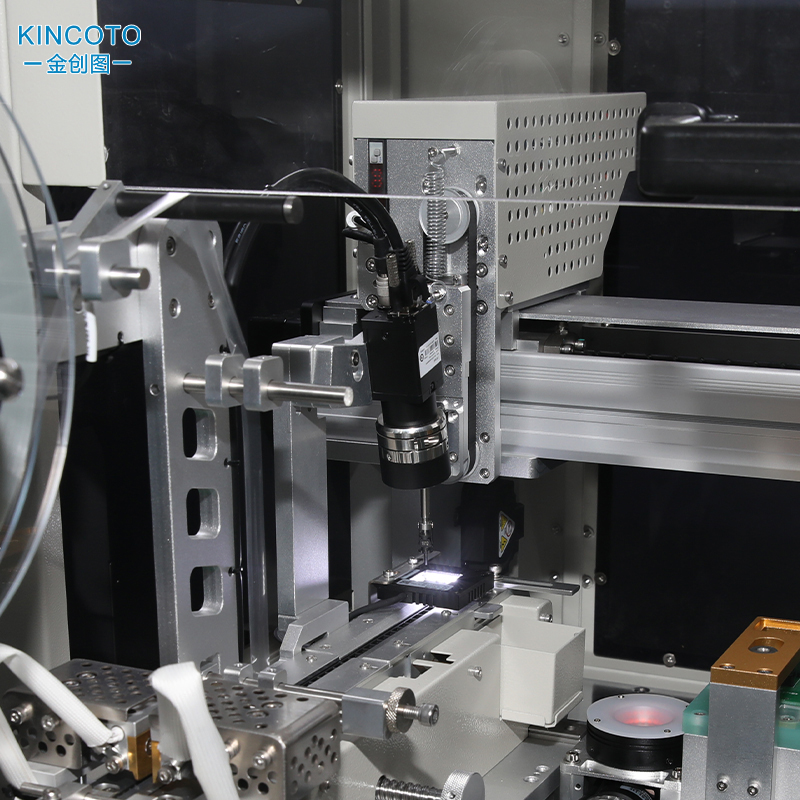

KA42-3000-AOI is an automatic programming device designed for tape packaging. It is a high-stability automated programming system. With ultra-high optical detection system(AOI), it can greatly improve the programming quality of IC products. It adopts dual nozzles reclaiming and discharging structure, and the electric feeder feeds the material, with stable performance. It is equipped with 4 programming stations, and lower pressure socket can be installed, which is simple and convenient. The device is small and does not take up too much space. It supports all offline programmers, which is convenient and efficient. The maximum production capacity can reach 3000UPH.

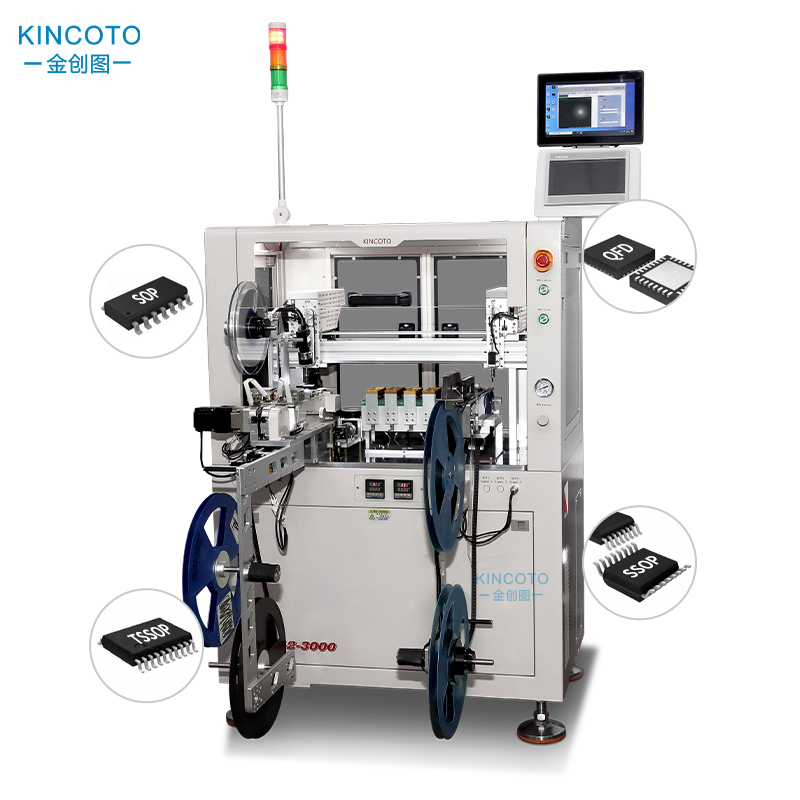

It is a cost-effective and fully automatic intelligent IC programming device designed to adapt to the production of a large number of electronic products. It is compatible with 8-32mm width carrier tapes, with extremely high compatibility. The supported tape IC packages include QFN, SOP, SSOP, TSSOP, SON, QFP, etc.
Exhibition
Exhibition Presence
Certifications
Product Certifications
Product Details
Detailed Component View
Transport Package
Packaging Step 1
Packaging Step 2
Packaging Step 3
Frequently Asked Questions
Q: Are you a factory?
A: Yes.
Q: How about your guarantee? After guarantee if our machine has problems how should we do?
A: All equipment's guarantee is one year except the vulnerable parts. Any problems feel free to ask, we will guide you to repair.
Q: Are all IC programming Machine of the burner suitable?
A: No, it depends on the package and packaging of the chip.
Q: How do I know if my chip is suitable for this device?
A: Send us the chip specification and we will recommend the equipment suitable for your chip based on the chip.
Q: What's your usual delivery time?
A: Mostly normal equipment delivery time is 3 days, while some non-standard types and special motors need more time.
Q: How about your quality? Do you have some certification?
A: Quality and service are our goals, and the point supporting us to go so long. All equipment has ISO and CE certification. Quality is assured and approved by customers.
