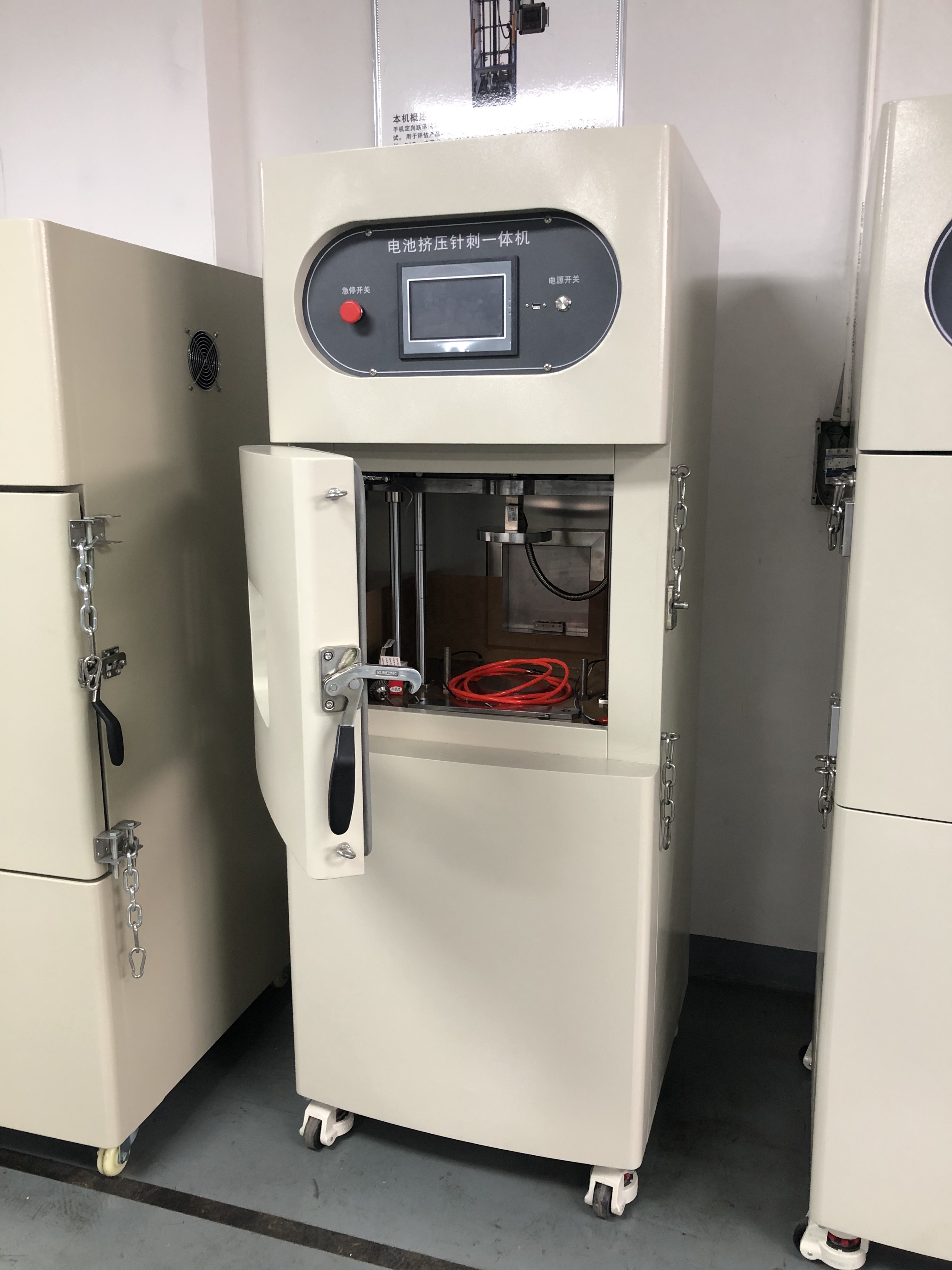

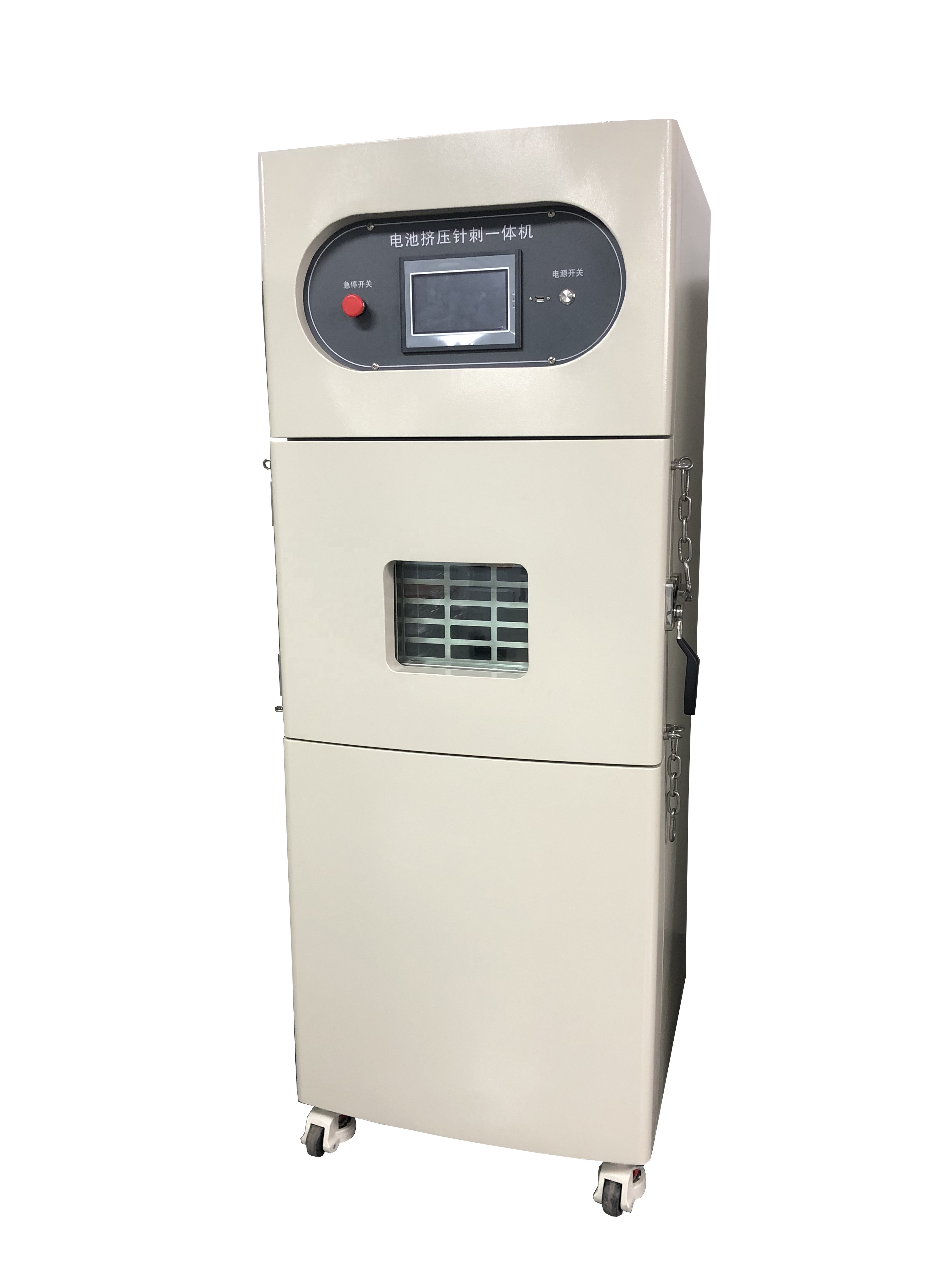

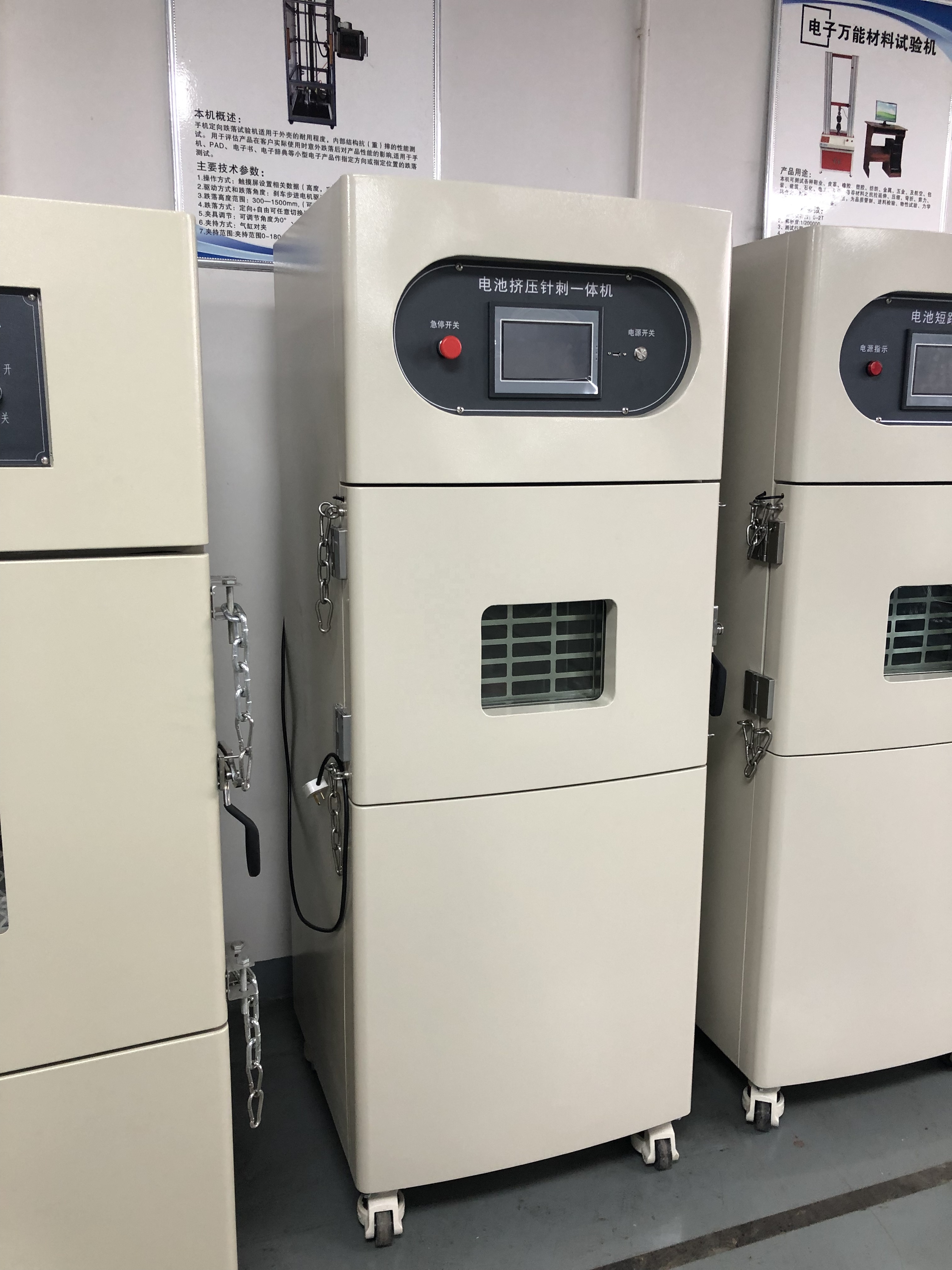

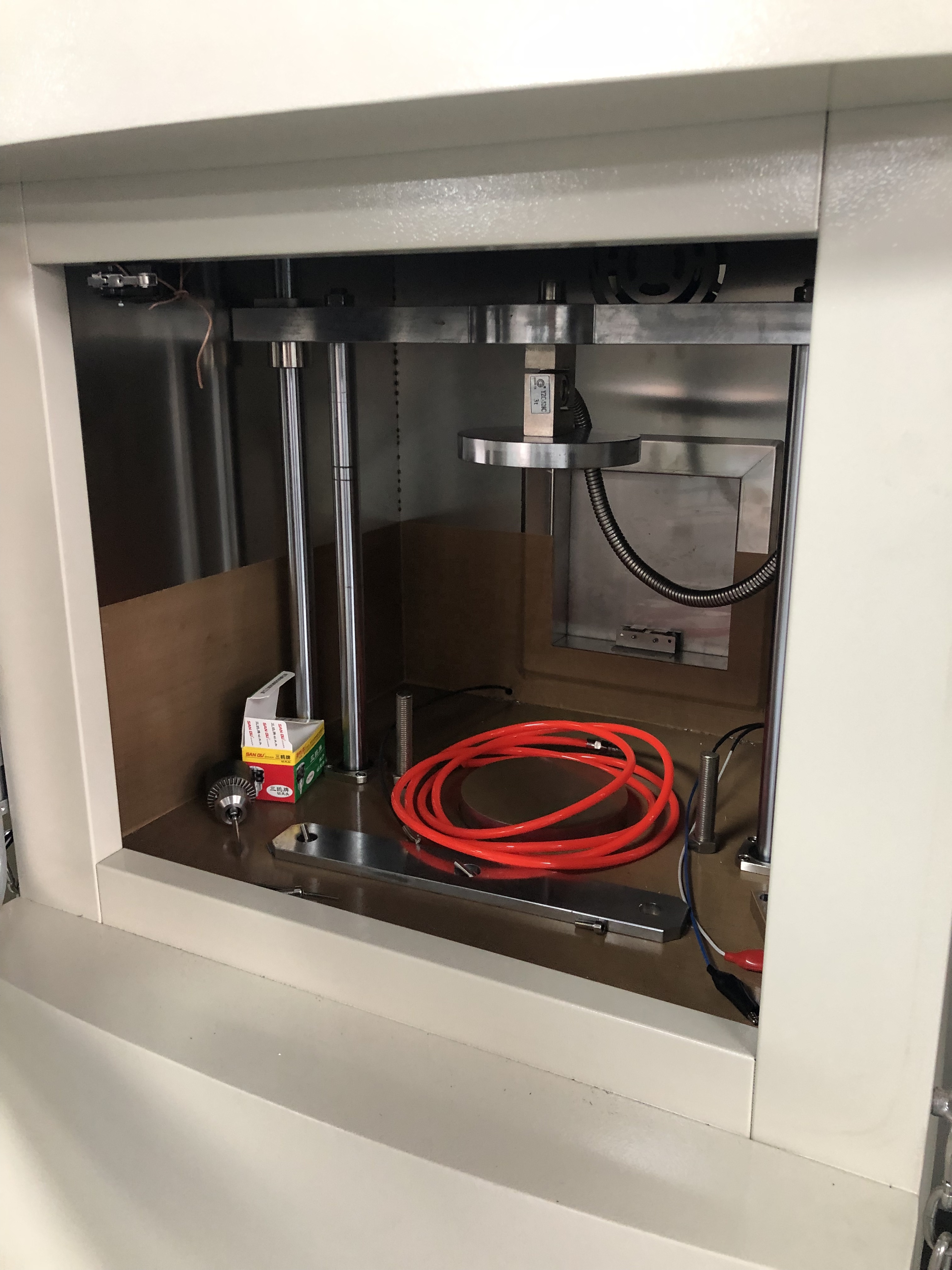

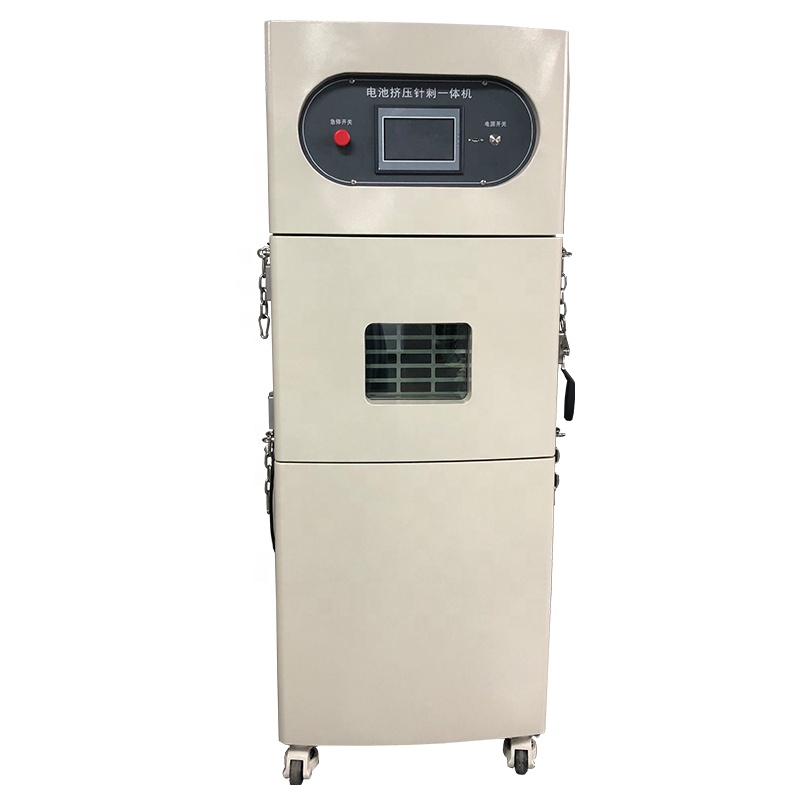

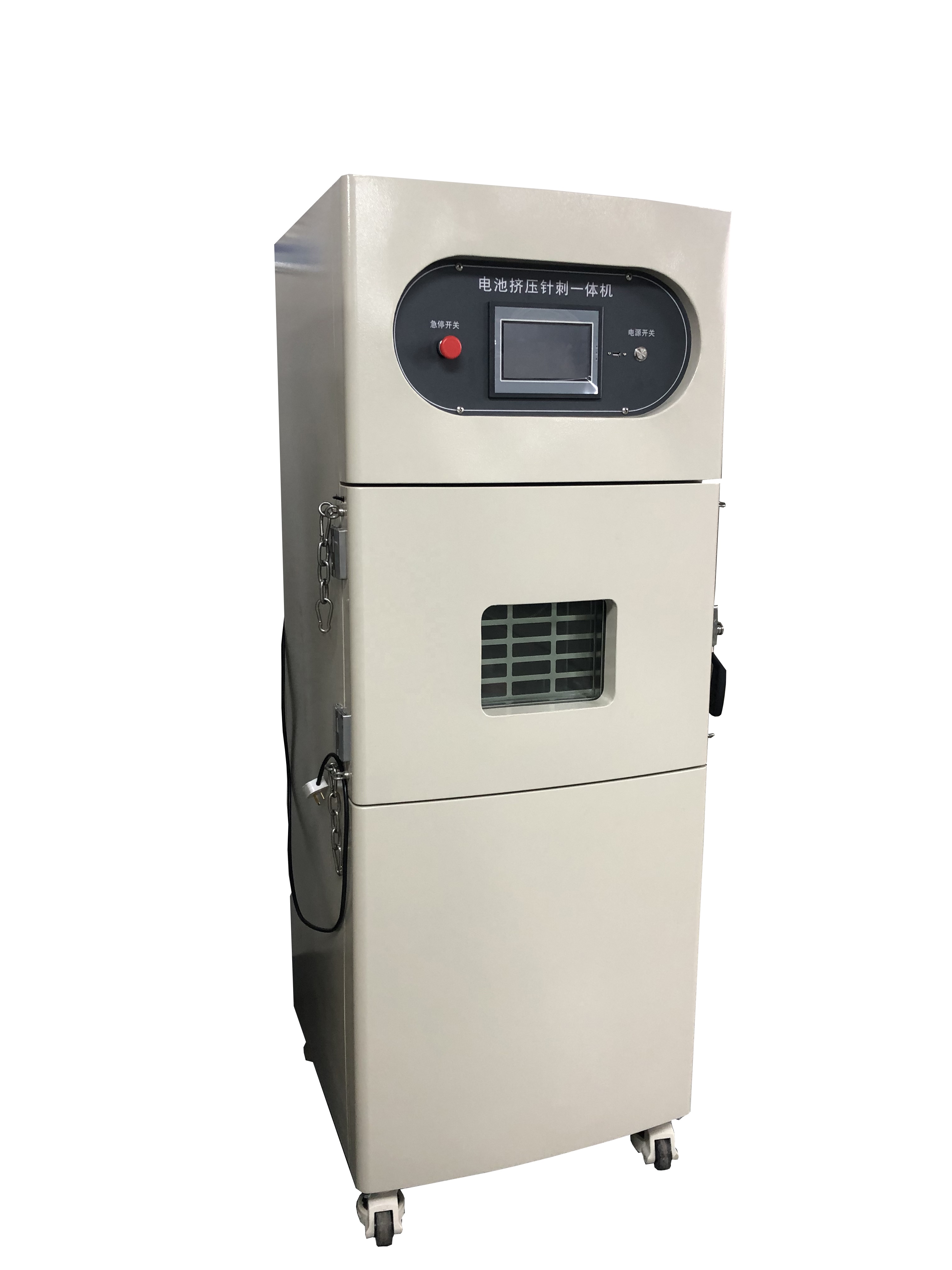

The battery extrusion acupuncture machine is designed to simulate the extrusion and puncture scenarios that various batteries might encounter during usage, transportation, storage, or waste disposal. For the extrusion test, the battery must undergo a single squeeze event, qualifying only if no explosion or fire occurs.
The acupuncture test is conducted in a controlled environment at 20°C ± 5°C. The battery is secured flat on the fixture, and a non-corrosive steel needle (diameter of Φ 3mm to Φ 8mm) is inserted into the center of the battery surface at a speed ranging from 10 mm/s to 40 mm/s. After holding for a specified duration, the results are observed. The battery qualifies if there is no explosion and no fire.
GB 31241-2014, GB/T 8897.4-2008, YD/T 2344.1-2011, GB/T 21966-2008, MT/T 1051-2007, YD 1268-2003, GB/T 19521.11-2005, YDB 032-2009, UL1642, UL 2054, IEC 62281, IEC 60086
| No | Item | Data |
|---|---|---|
| 1 | Drive mode | hybrid servo motor drive |
| 2 | Force value range | 1 ~ 20 kN |
| 3 | Force measurement accuracy | 0.1N |
| 4 | Unit conversion | kg, N, lb |
| 5 | Extrusion travel | 200mm or 300mm |
| 6 | Force value display | PLC touch screen display |
| 7 | Battery extrusion head | standard extrusion head with an area of 20cm² |
| 8 | Extrusion degree | the extrusion pressure reached 13±0.2kN, maintained for 1min |
| 9 | Features | The rear side of the box is designed with exhaust outlet and pressure relief device, and the box is equipped with lights |
| 10 | Test space | 300x300x300mm |
| 11 | Steel needle | Φ 5mm ~ Φ 8mm high temperature resistant steel needle, length of 100mm (can be specified) |
| 12 | Needle stroke | 200mm or 300mm |
| 13 | Clamp battery distance | 200mm |
| 14 | Needle speed | 10 ~ 40 mm/s (can be specified) |
| 15 | Acupuncture force value | 1 ~ 200 Kg (optional) |
| 16 | Force value display | PLC touch screen display |
| 17 | Features | The rear side of the box is designed with exhaust outlet and pressure relief device, and the box is equipped with lights |
| 18 | Drive mode | hybrid servo motor control adjustable speed adjustable pressure |
