| Category | Parameter | Specifications |
|---|---|---|

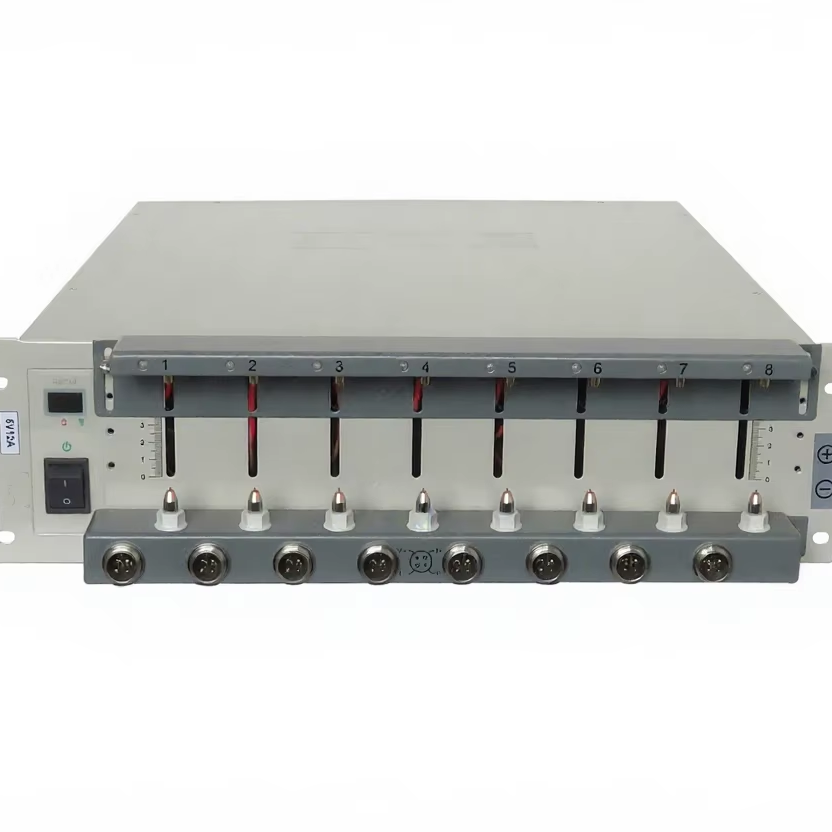

| General | Model | STC-4008Tn-5V6A-F |
| General | Input Power | AC220V ±10% / 50Hz |
| General | Resolution | AD: 24bit; DA: 16bit |
| General | Input Resistance | ≥1MΩ |
| General | Input Power Consumption | 425W |
| Channels | Channel Features | Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure |
| Channels | Channel Control Mode | Independent Control |
| Voltage | Constant Voltage Control Range | 25mV~5V |
| Voltage | Discharge Min Voltage | 0V |
| Voltage | Accuracy & Stability | Accuracy: ± 0.05% of FS; Stability: ± 0.05% of FS |
| Current | Output of Per Channel | Range 1: 0.5mA~0.1A; Range 2: 0.1A~3A; Range 3: 3A~6A |
| Current | Accuracy & Stability | Accuracy: ± 0.05% of FS; Stability: ± 0.05% of FS |
| Current | Cut-off Current of CV | Range 1: 0.2mA; Range 2: 6mA; Range 3: 12mA |
| Power | Per Channel Output Power | 30W (Stability: ± 0.1% of FS) |
| Time | Rise Time | The Current 10%-90% Hardware Response Time is 1ms |
| Time | Step Time Range | Single Step Time Range ≤ 365*24 h (Format: 00:00:00.000 / h, min, s, ms) |
| Data Record | Record Condition | Time Δt: 100ms; Voltage ΔU: 10mV; Current ΔI (Range 1: 0.2mA; Range 2: 6mA; Range 3: 12mA) |
| Data Record | Recording Frequency | 10Hz |
| Modes | Charge & Discharge Mode | Constant Current, Constant Voltage, Constant Current and Constant Voltage, Constant Power, Constant Resistance |
| Modes | End Condition | Voltage, Current, Relative Time, Capacity, -ΔV |
| Pulse | Pulse Mode | Charge: CCC, CPC; Discharge: CCD, CPD (Minimum pulse width: 500ms) |
| Pulse | Pulse Control | 32 pulse setting in one step with automated switch between charge and discharge |
| Cycle | Loop Measure | 1~65535 times (Max steps per loop: 254; Nested loop support: 3 layers) |
| Protection | Software Protection | Low/Upper Voltage limit, Low/Upper Current limit, Delay Time |
| Protection | Hardware Protection | Additional Anti-reverse Protection Model |
| System | Testing Connection | 4-wire connecting |
| System | Communication & Data | TCP/IP Protocol, Ethernet Port, MYSQL Database management |
| System | Data Output | EXCEL, TXT |
| System | Channels count & Noise | 8 Main Channels per Unit; Noise level < 55dB |
| Physical | Dimensions | W*D*H: 480 * 330 * 130 (mm) |
