Chassis road simulator: Fully simulate the vehicle's driving state on the road and detect whether there is any abnormal noise in the chassis.
| No | Item | Data |
|---|---|---|
| 1 | Lifting Technical | 1000kg |
| 2 | working voltage | 380V/220V |
| 3 | Lifting Height | 20mm |
| 4 | Motor power | 2.2KW |
| 5 | control mode | Infinite frequency conversion regulation |
| 6 | Equipment composition | Front host 2 + support frame 2 + stress reliever |
| 7 | Gross weight of equipment | 742KG (Four piece set + 4 wooden boxes) |
| 8 | Net weight of equipment | 658KG (Four piece set of equipment) |
| 9 | Front host size | 760*760*1025mm (LxWxH) |
| 10 | Support frame size | 510*810*1020mm (LxWxH) |
| 11 | Dimensions of the host outer box | 870*820*1100mm (LxWxH) |
| 12 | Supporting frame outer box size | 640*880*1100mm (LxWxH) |

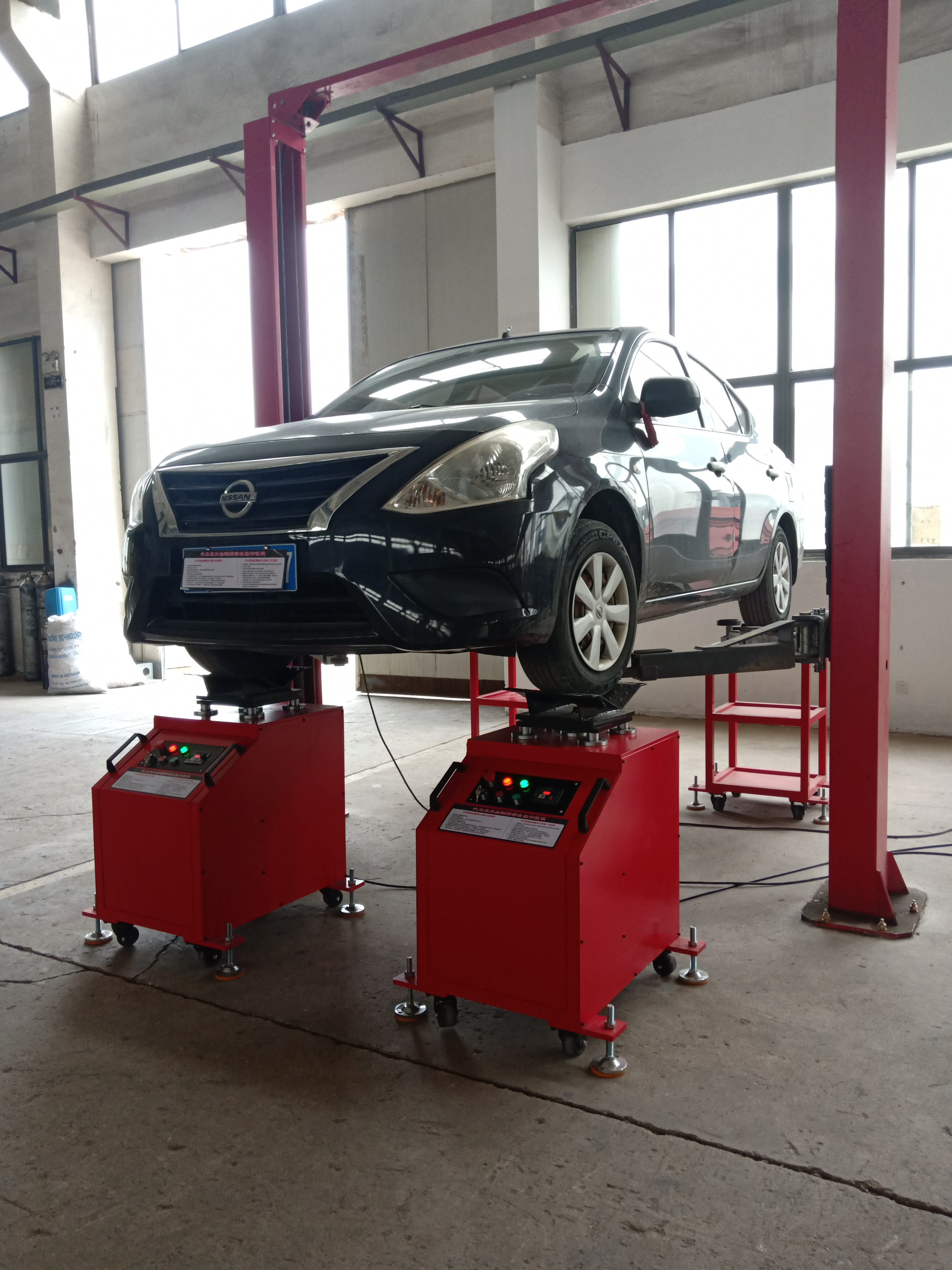

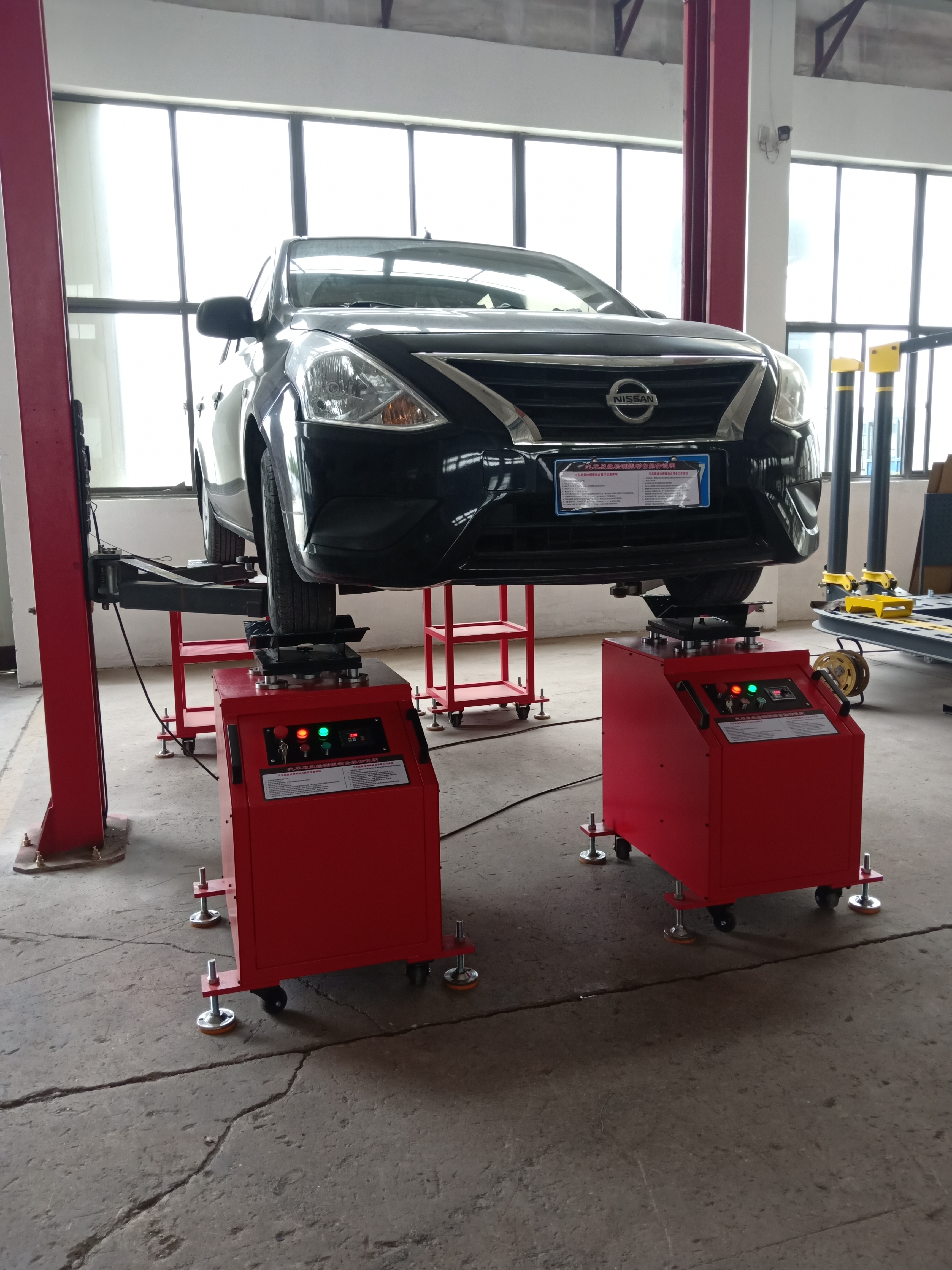

The chassis road simulator is designed to fully simulate a vehicle's actual driving state on the road, allowing technicians to detect and diagnose any abnormal noises in the chassis under realistic conditions.
The simulator has a lifting capacity technical rating of 1000kg and a standard lifting height of 20mm.

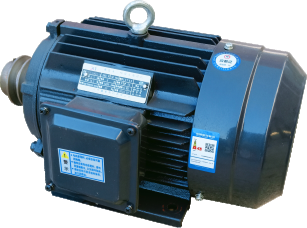

The equipment operates on a working voltage of 380V/220V and is powered by a 2.2KW motor featuring an infinite frequency conversion regulation control mode.

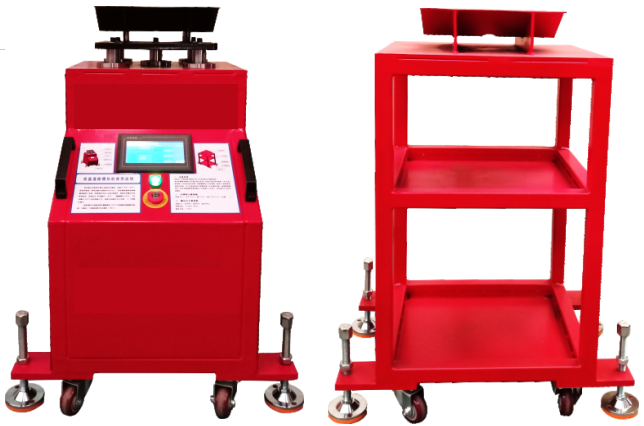

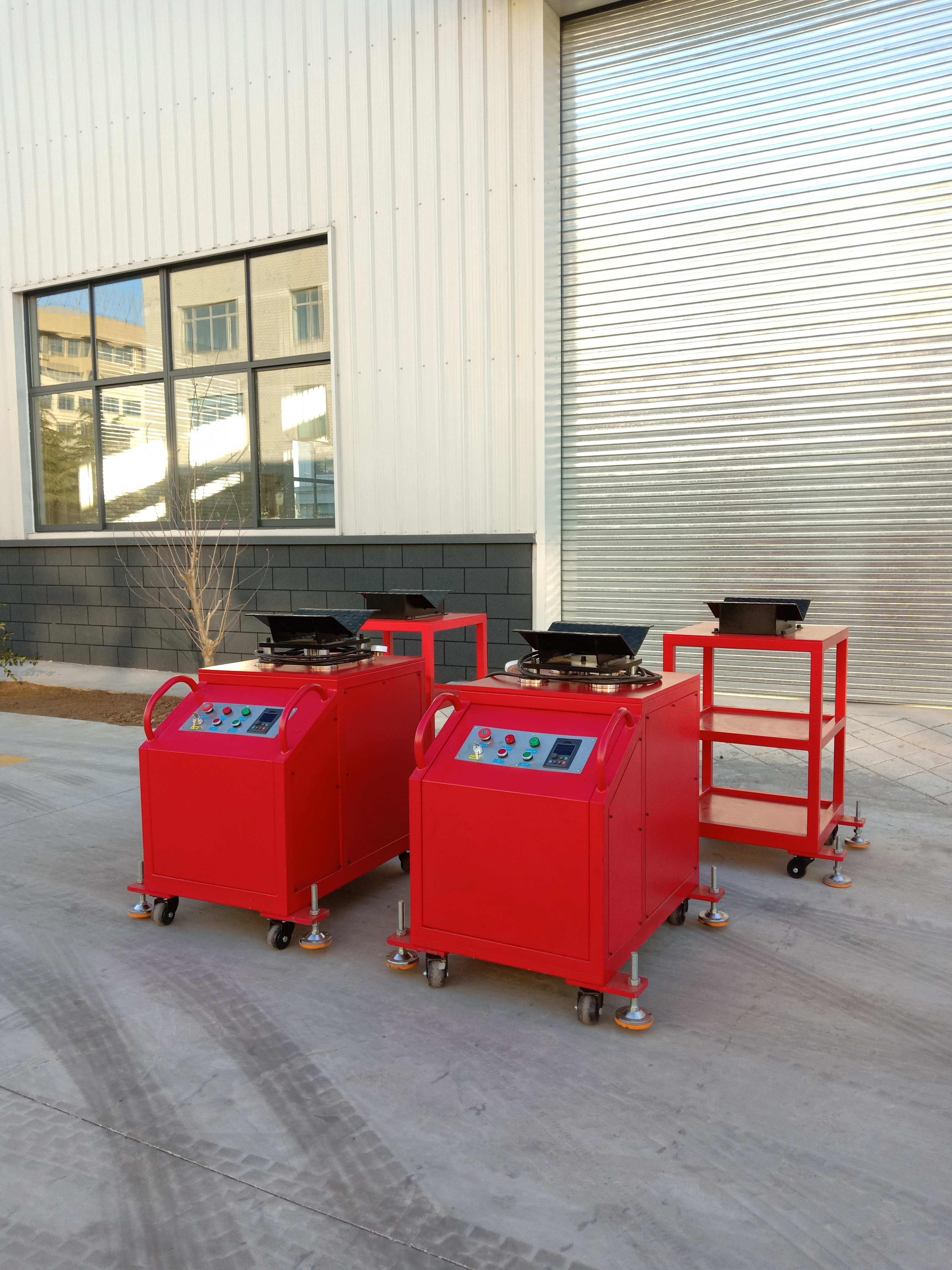

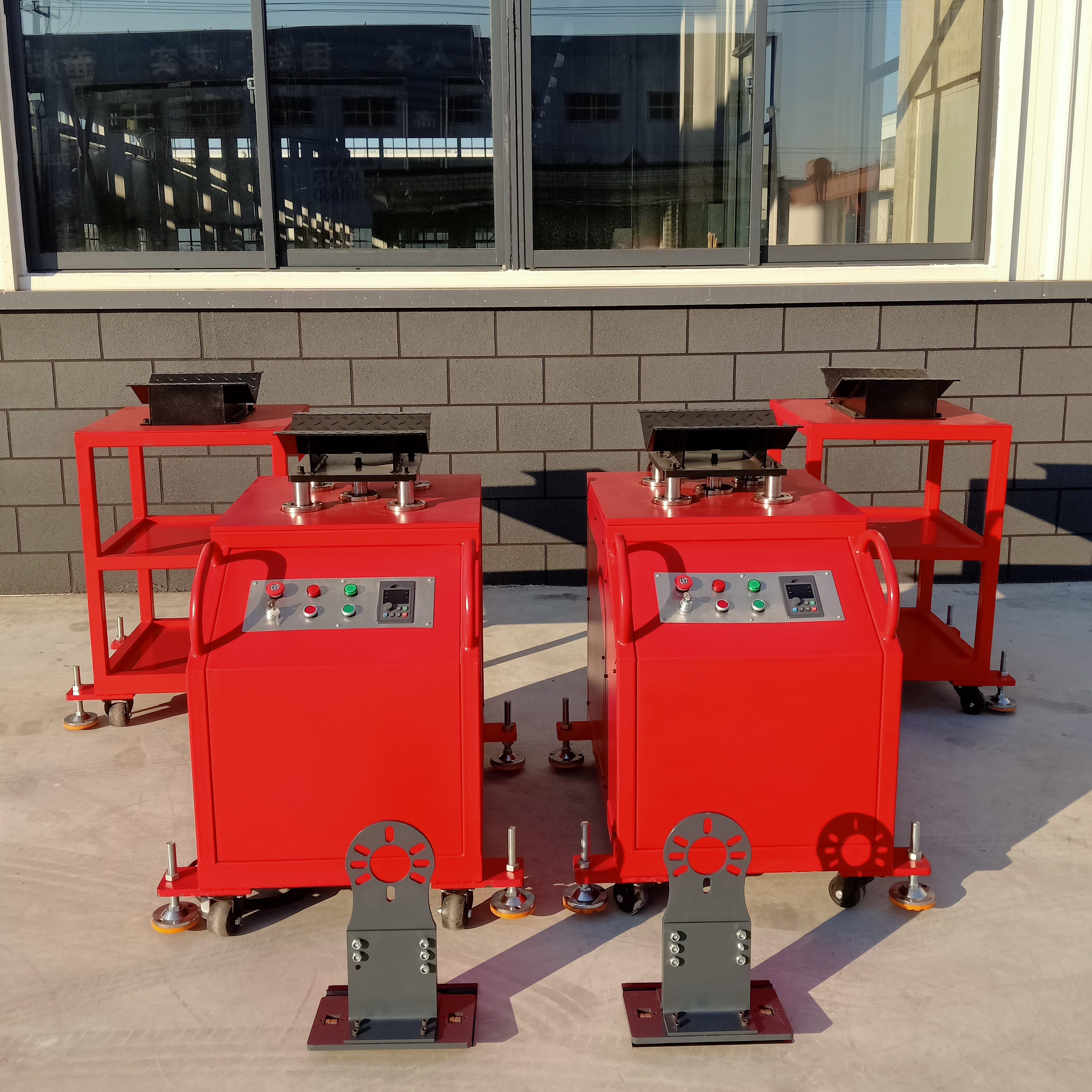

The complete setup consists of a four-piece equipment set: 2 Front hosts, 2 Support frames, and stress relievers.
The front host dimensions are 760*760*1025mm (LxWxH). The net weight of the entire four-piece equipment set is 658KG, with a gross shipping weight of 742KG including the 4 wooden boxes.
