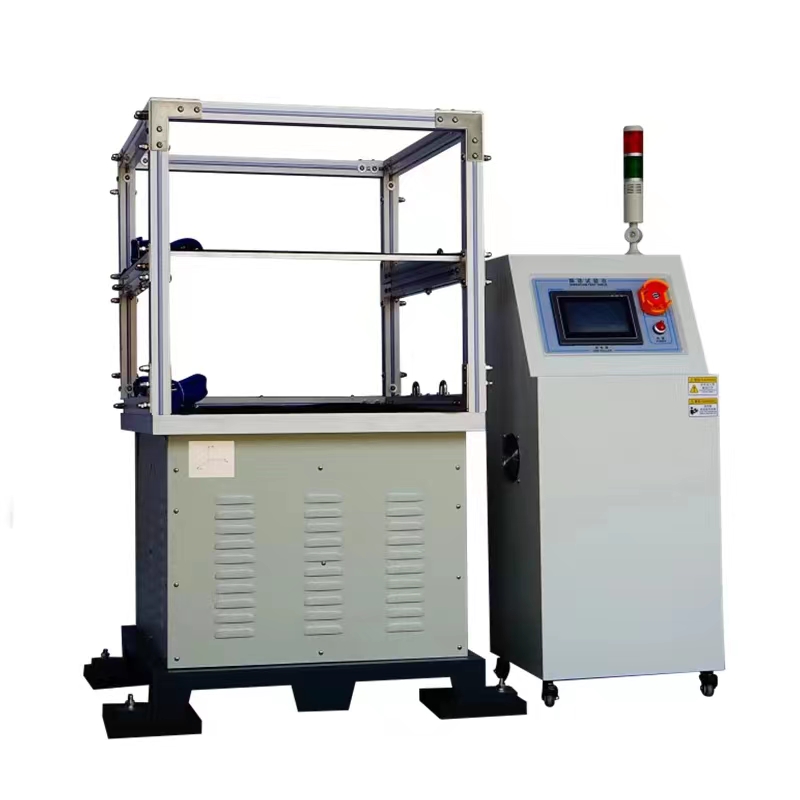

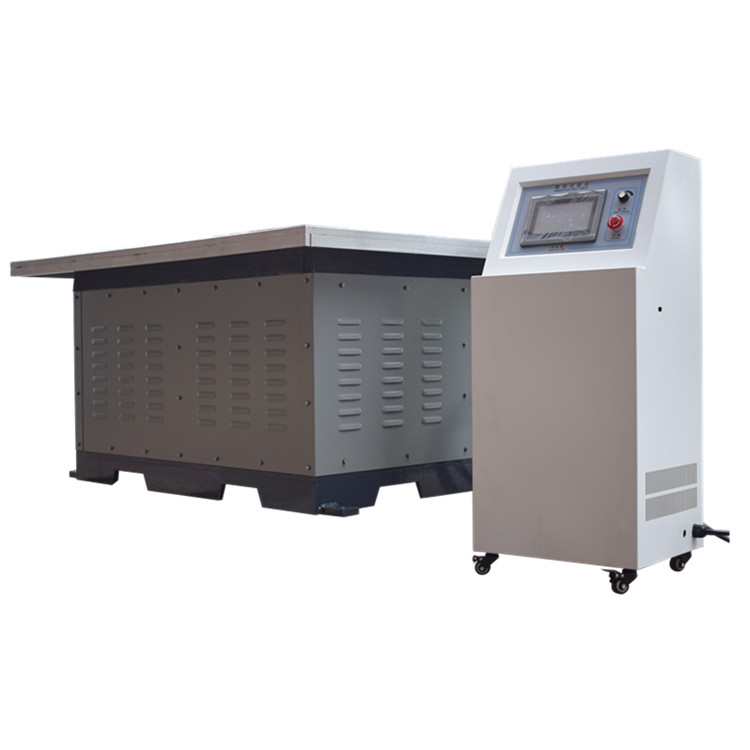

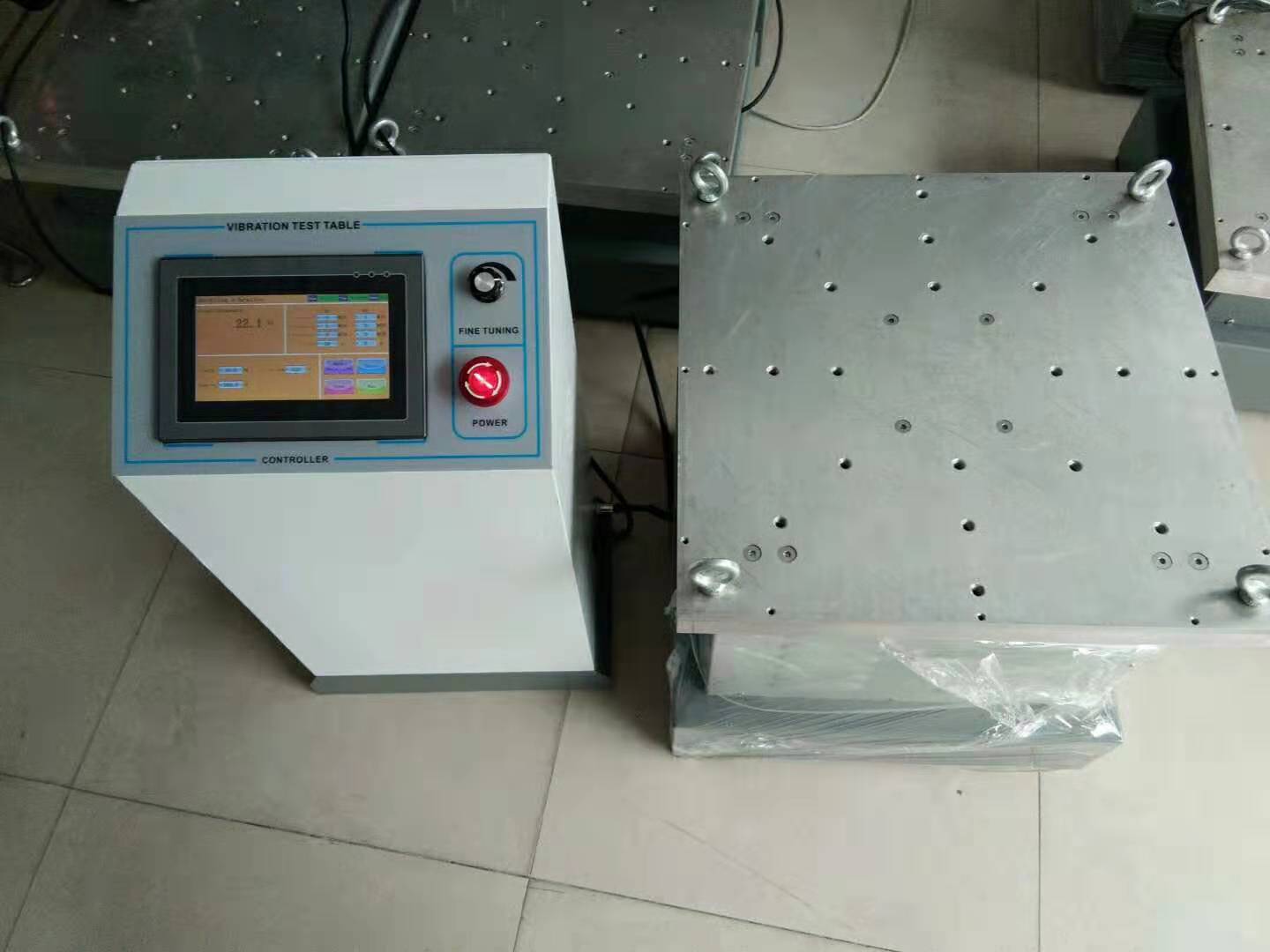

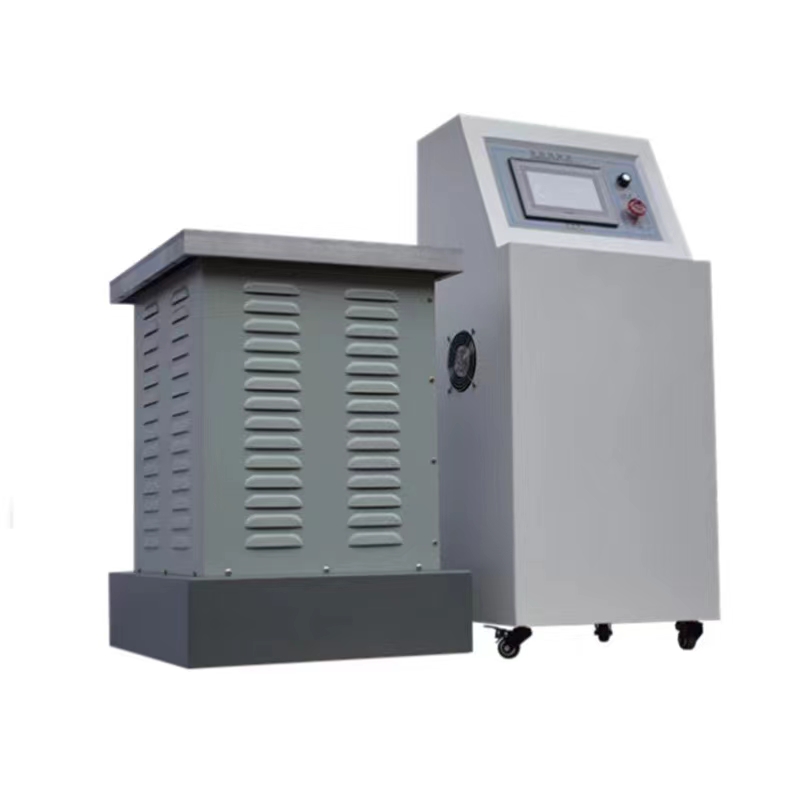

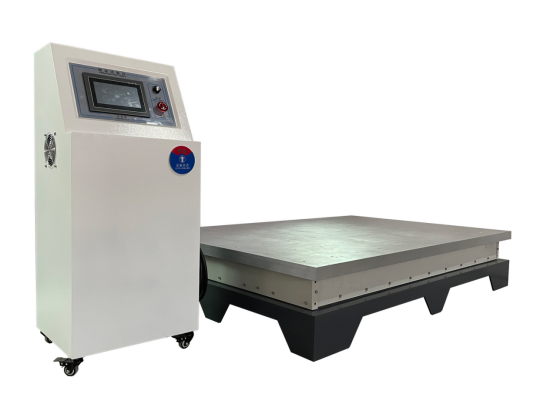

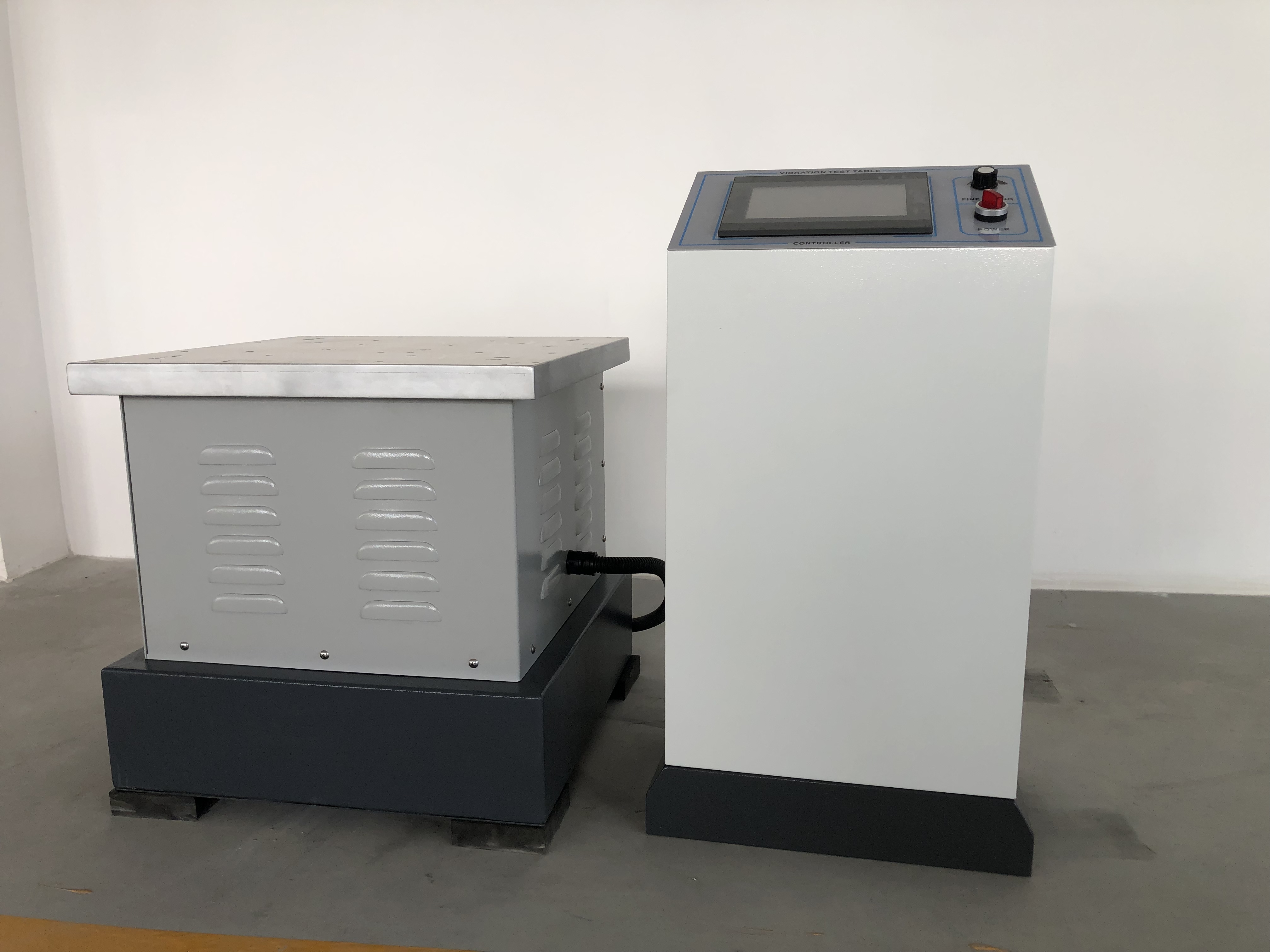

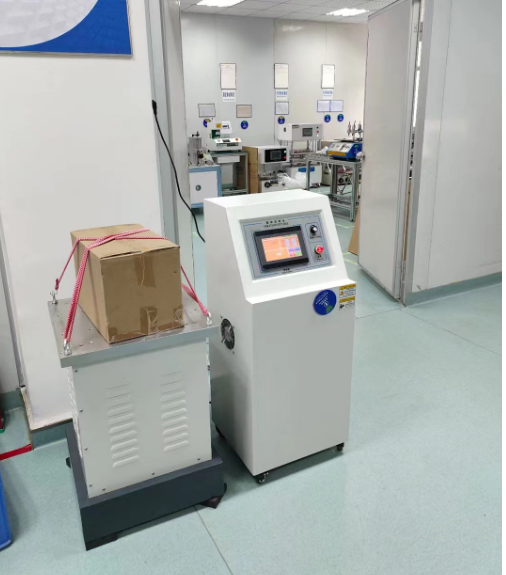

Electromagnetic vibration tables are widely used in national defense, aviation, communications, electronics, automotive, home appliances, and other industries. This type of device is used to detect early failures, simulate actual working conditions for assessment, and conduct structural strength tests. With a very wide service range, test efficiency is remarkable and reliable. Sine wave, FM, frequency sweep, programmable, multiplier, logarithmic, and time settings are all fully controllable.
ISO 2247: Fully loaded transport packaging and unit cargo - Fixed low frequency vibration test
ISO 13355: Packaging - All, filled transport packaging and unit load - Vertical arbitrary vibration test
IEC 60068: Basic environmental test procedures
ASTM D999: Vibration test method for shipping containers
ASTM D4728: Random vibration test method for transport containers
ASTM D3580: Product Vibration Test (Vertical Linear Motion) Standard
GB/T 4857: Packaging transport package basic test
GB/T 2423: Environmental Test for Electrical and Electronic Products
| Specifications | ZH-500AG | ZH-500BG | ZH-500CG | ZH-500GE |
|---|---|---|---|---|
| Vibration direction | One axis - Y | Two axis - Y + X | Three axis - Y + X + Z | |
| Table size (mm) | 500*500 (750*750 / 1000*1000 models are optional; other custom sizes available) | |||
| Max. Test load | 100 kgs | |||
| Frequency | 2 - 600 Hz | 2 - 3000 Hz | ||
| Frequency accuracy | 0.01 Hz | |||
| Amplitude | 0 ~ 5 mm (or higher) | |||
| Maximum acceleration | 20G (with built-in acceleration sensor) | |||
| Vibration waveform | Sine wave | |||
| Function | Fixed, Random Frequency, Sweep Frequency, Log, Doubling Frequency, acceleration curve available | |||
| Controller | 7" programmable touch screen controller (English language support) | |||
| Power supply | AC 220V, 50/60Hz, Single phase, 1.5 ~ 2.5 KW | |||

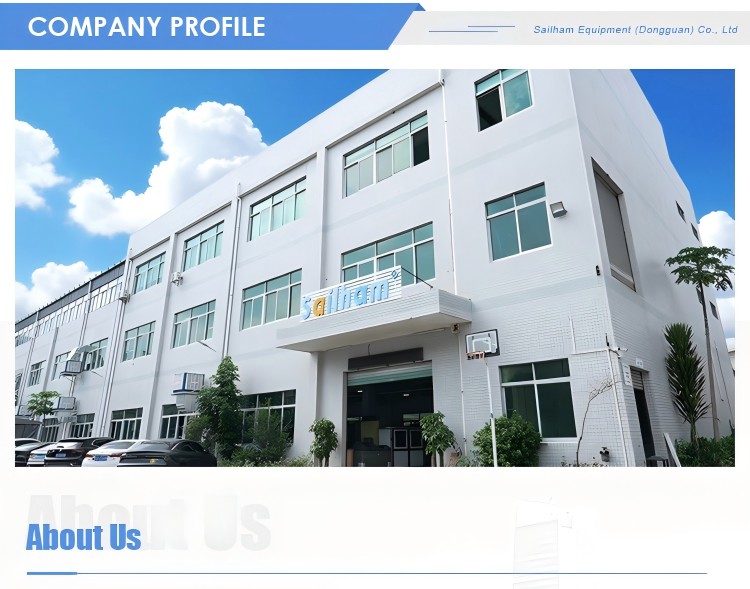

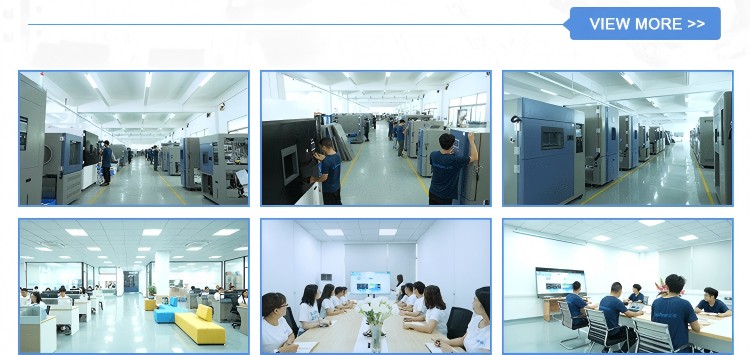

A: We are a joint manufacturer & trade company, operating a production area of over 30,000 square meters. We welcome video calls for factory inspections and visits.

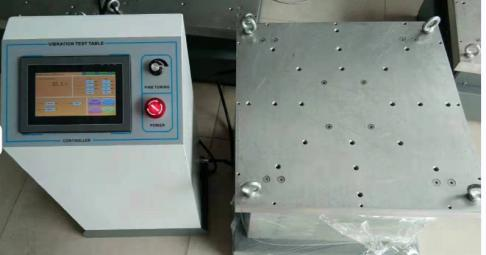

A: Yes. We offer standard models as well as custom-built machines configured to your requirements. This includes adjustments to technical parameters, external design, structures, customized control software interfaces, and physical logos.
A: We provide a one-year warranty. During this period, our technical support team is available to respond to queries within 2 working hours to help diagnose and resolve issues.
A: We maintain stock for regular models. In the absence of available stock, the typical delivery timeline is within 25 working days after receiving advanced payment.

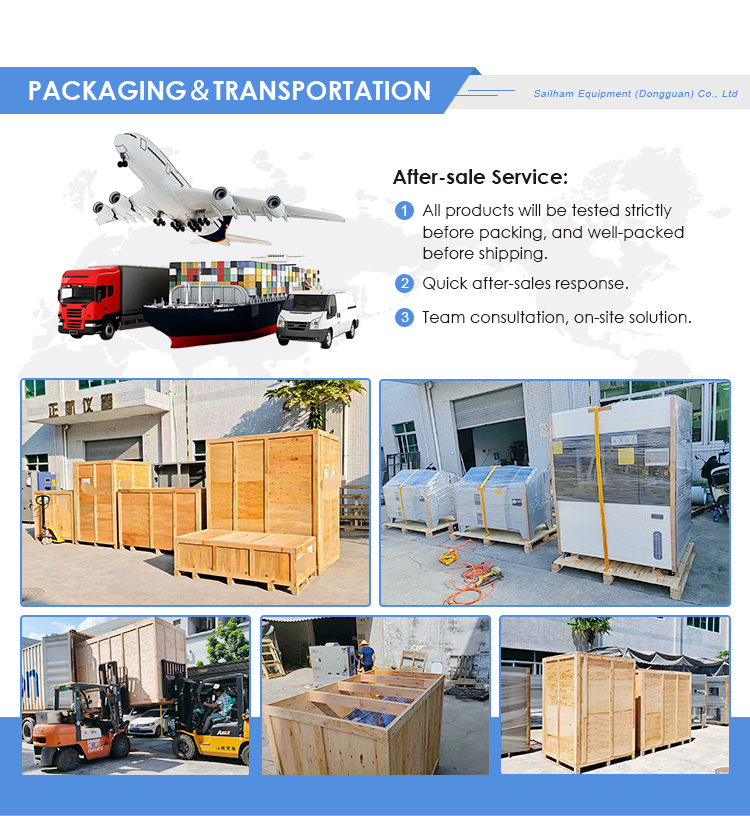

A: Each machine is packed in a fumigation-free wooden case with waterproof inner wrapping. For land transport, we construct cases with thickened boards and reinforce them with crossbeams on top to prevent damage from vertical compression.
A: We provide training in three ways: 1) On-site training at our factory covering installation, operation, and maintenance. 2) Online guidance supported by English operation manuals and videos. 3) Dispatched engineers to your facility to conduct on-site instruction.
