Product Description

LAUNCH X431 EV Diagnostic Upgrade Kit + Activation Card
Compatible with X431 PAD V & PAD VII. The Launch X431 new energy battery Diagnostics Upgrade Kit includes an activation card and adapters for specific electric vehicles to perform battery pack analysis.
Use the Launch EV Diag Upgrade Kit (EV DIAGKIT) to diagnose battery pack State of Charge and State of Health on Tesla, BYD, and many other electric vehicles.
⚡ How to Use It?
Step 1: User has already purchased new energy battery pack diagnostic configuration of the X-431 PAD V/X-431 PAD VII from the seller and received the Activation Card of new energy detection expansion package and diagnostic adaptor cables.
Step 2: Choose either of the following methods to activate it on the diagnostic scanner.
⚙️ Method 1 - Via Job Menu
1) Update the main diagnostic app to V7.03.025 (X-431 PAD V) / V7.00.021 (X-431 PAD VII) or above. A new module "New Energy Diagnose" will appear on the Job menu. (Figure 1)
Figure 1

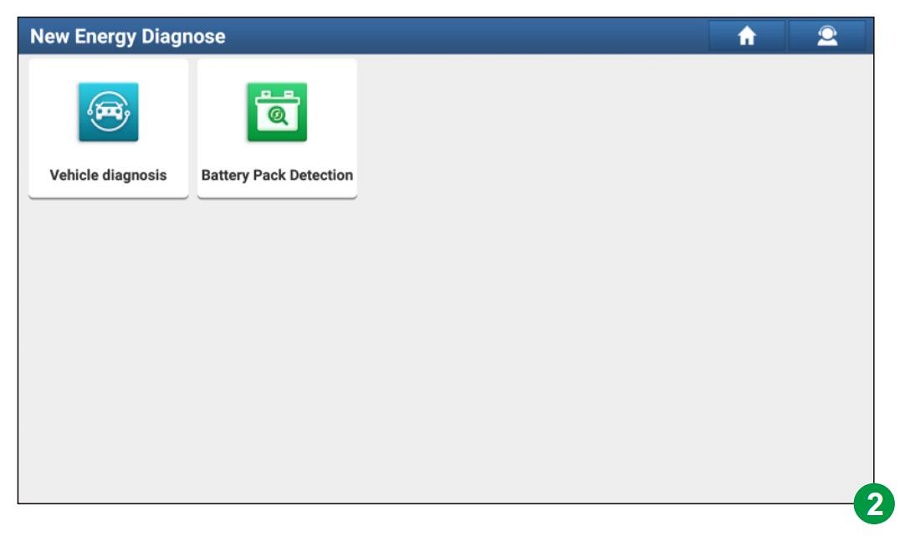

2) Tap "New Energy Diagnose" to enter the setup screen. (Figure 2)
Figure 2

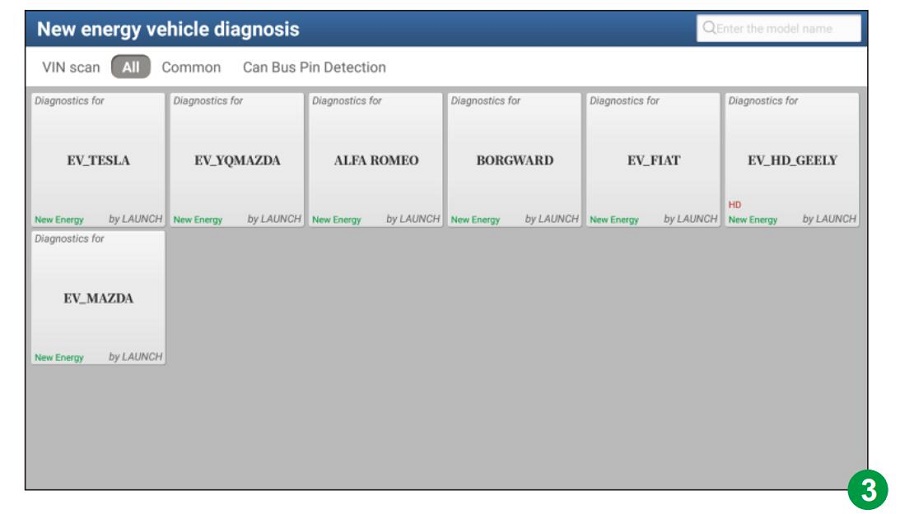

Note: Vehicle Diagnosis covers all new energy vehicle diagnostic software included in the configuration. (Figure 3)
Figure 3
3) Tap Battery Pack Detection: The system will identify whether the current user account has activated the battery pack diagnostic configuration or not.

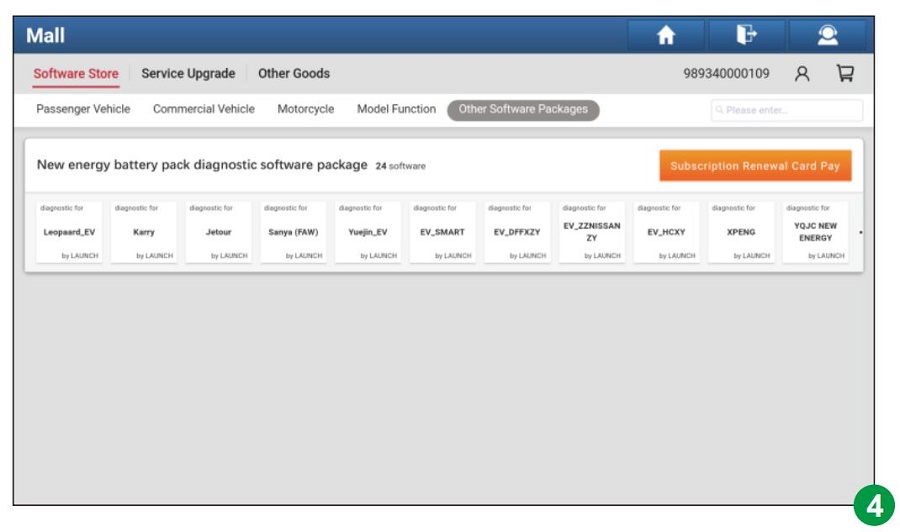

A. If not activated: System navigates to the Mall module. Tap Subscription Renewal Card Pay and enter the 24-digit password to activate. (Figure 4)
Figure 4

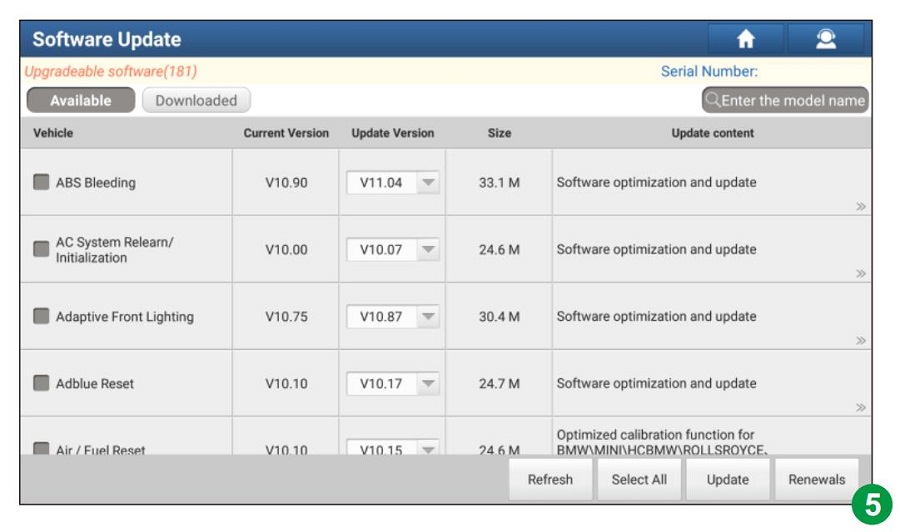

B. If already activated but software is not downloaded: Go to Software Update to download and install. (Figure 5)
Figure 5

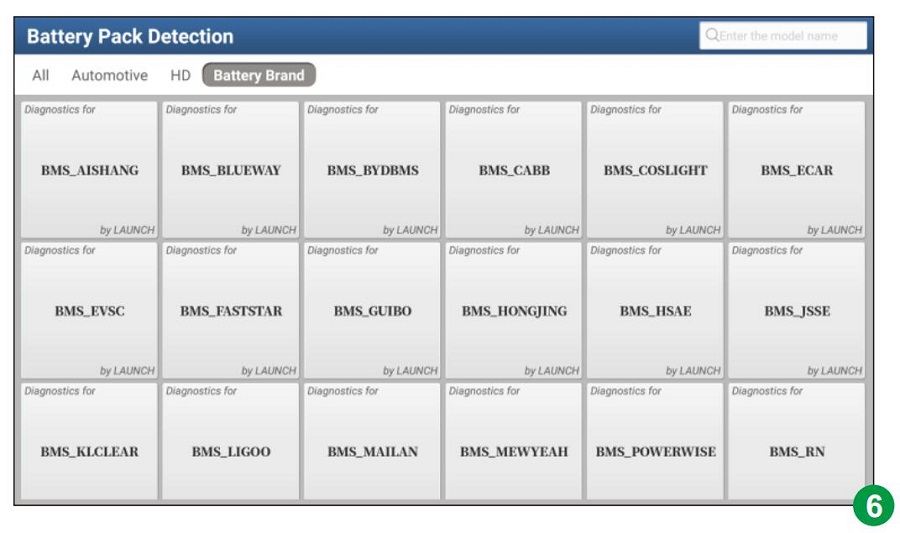

C. If activated and downloaded: The system enters the battery pack brand selection screen directly. (Figure 6)
Figure 6
⚙️ Method 2 - Via Mall

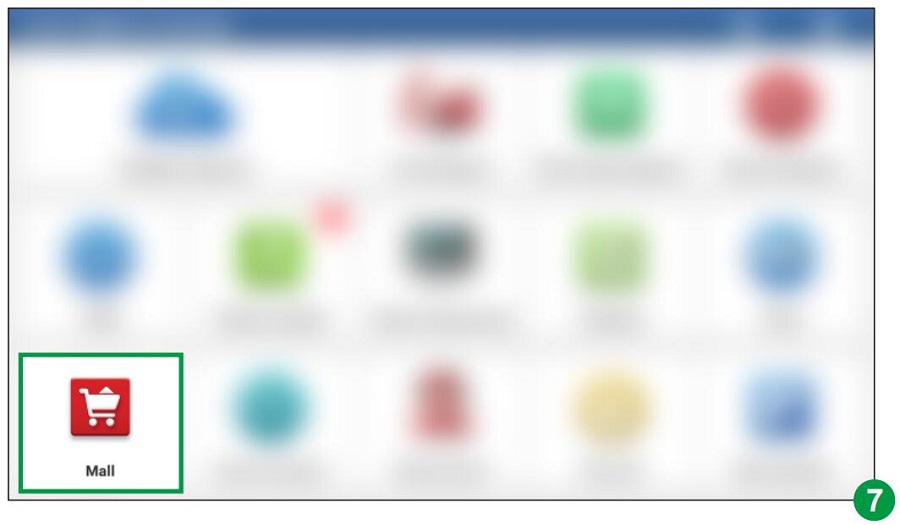

1) Update the main diagnostic app to V7.03.025 or above and tap Mall on the Job menu. (Figure 7)
Figure 7

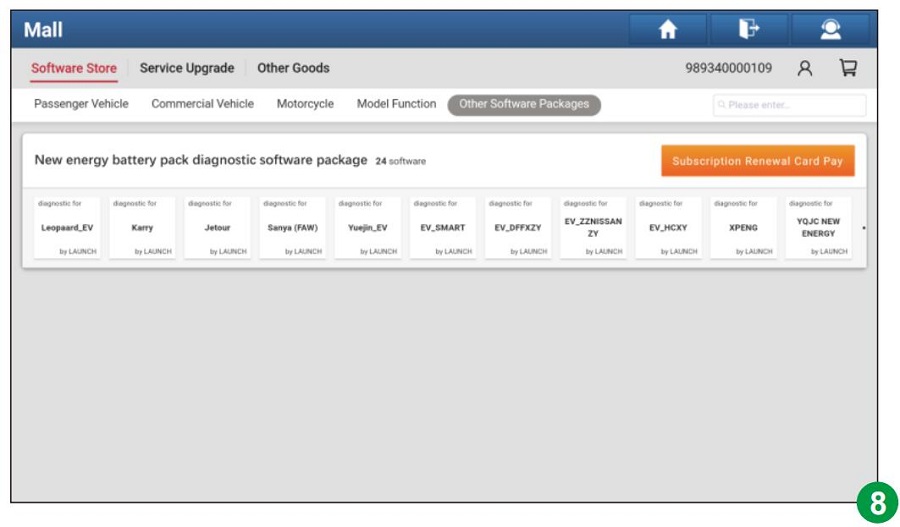

2) Tap "Other Software Packages", and then tap "New energy battery pack diagnostic software package". (Figure 8)
Figure 8

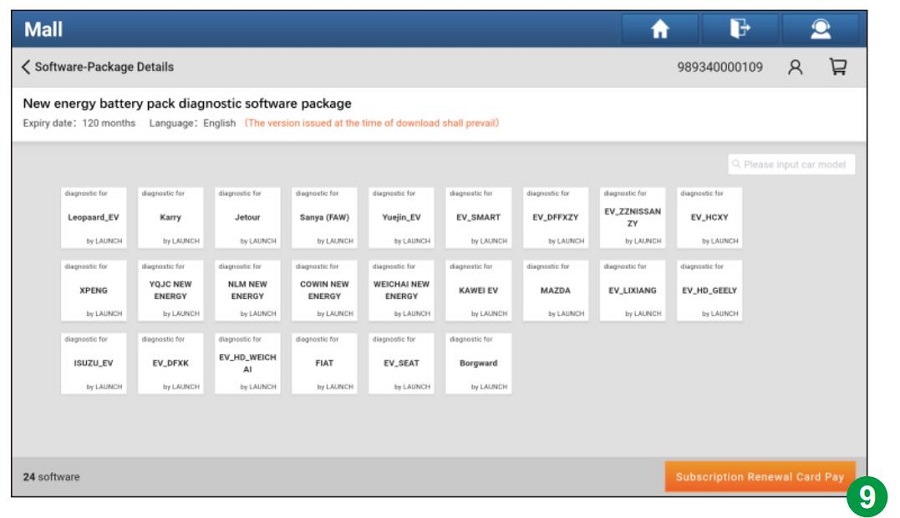

3) Tap "Subscription Renewal Card Pay" to proceed to payment interface. (Figure 9)
Figure 9

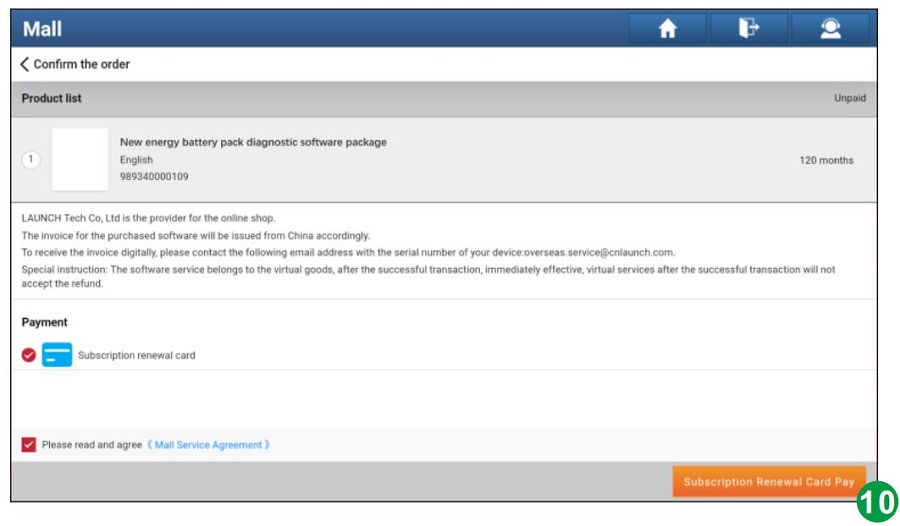

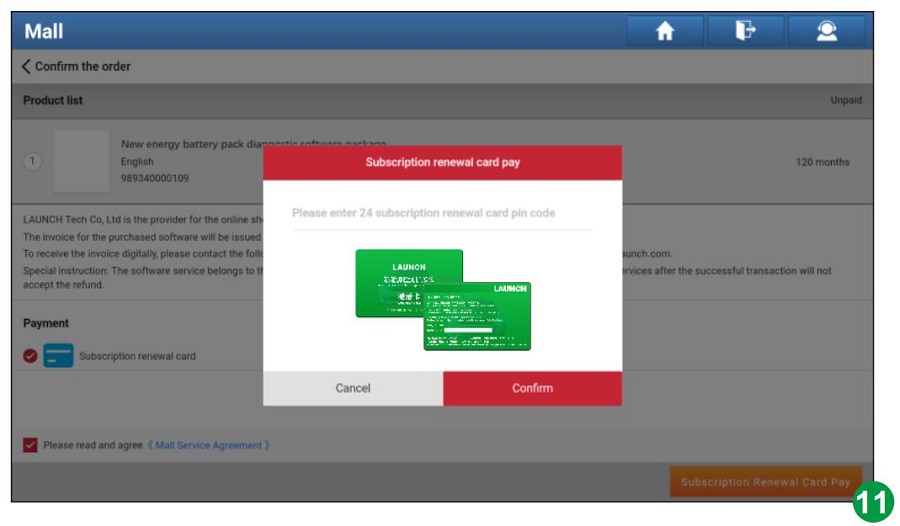

4) Tap "Subscription Renewal Card Pay", enter the 24-digit password and tap Confirm to activate. (Figures 10 & 11)
Figure 10 Figure 11

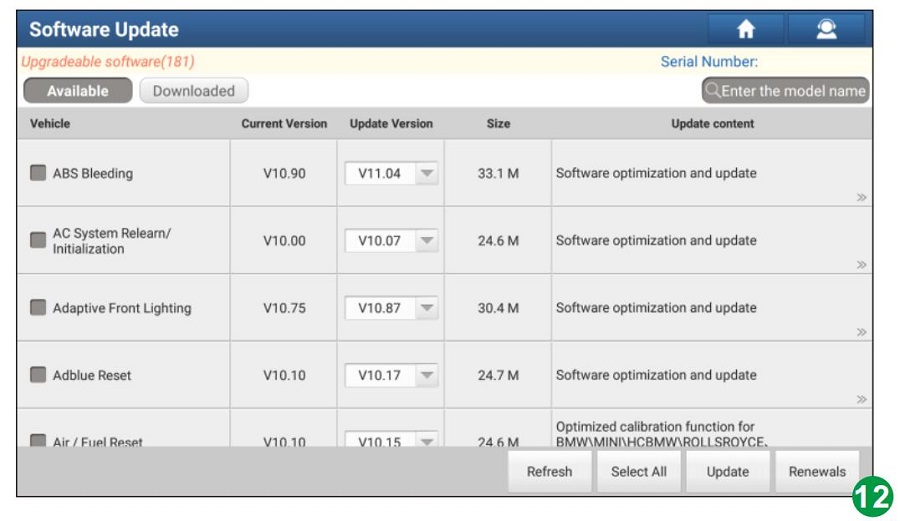

5) After activation, go to Software Update to download and install the diagnostic software of the battery pack. (Figure 12)
Figure 12
6) Once download is complete, tap New Energy Diagnose and then tap Battery Pack Detection to select battery pack brand (Refer to Figure 6).
Figure 6 Reference
*Note: All illustrations and descriptions in this operation instruction are based on the latest information available at the time of publication. Due to continuing improvements, actual product may differ slightly from the product described herein.

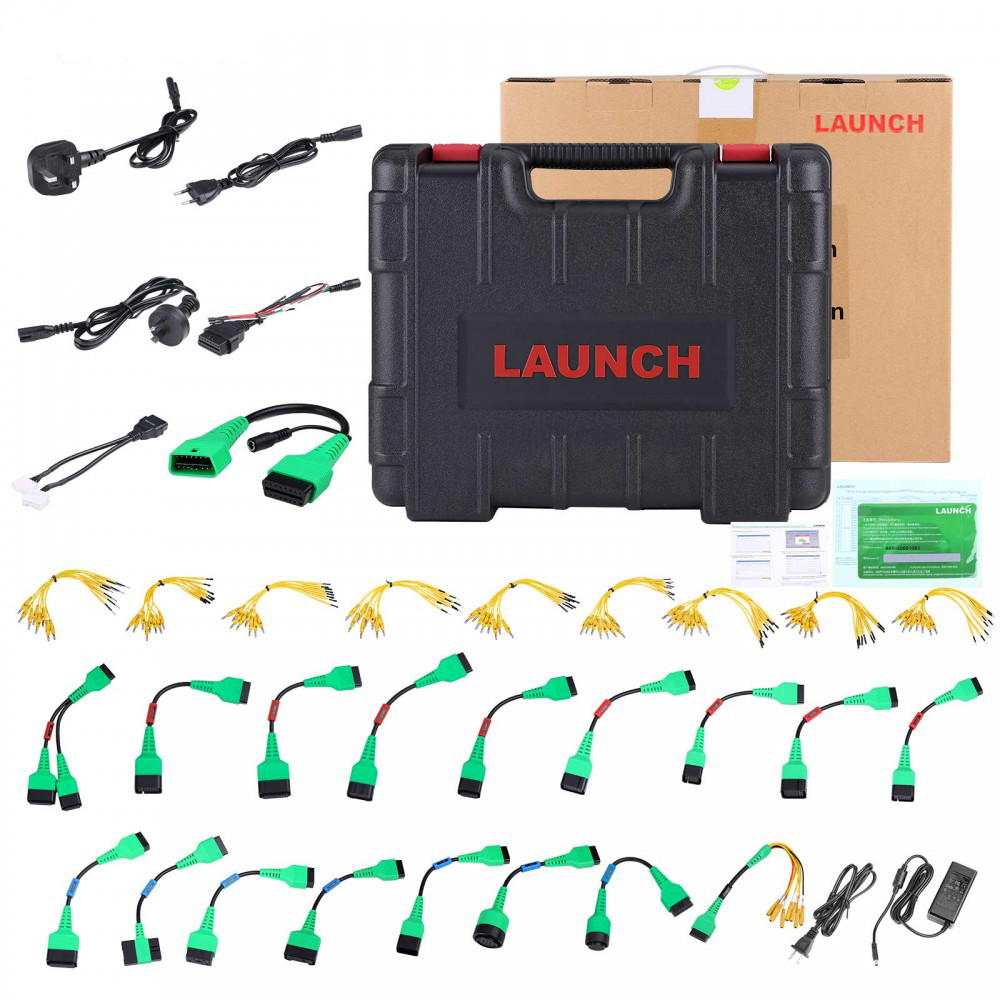

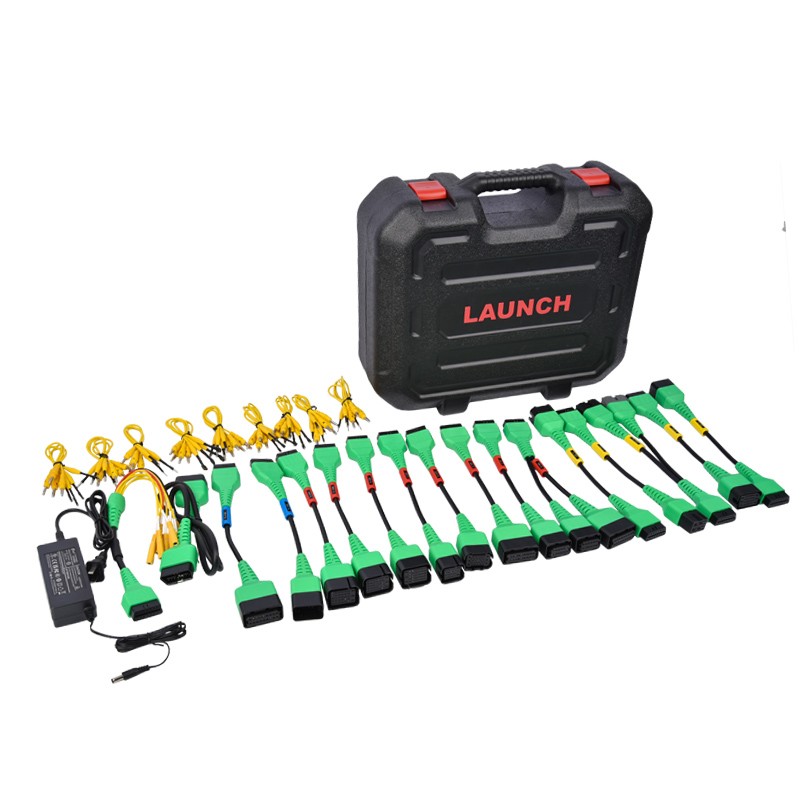

📦 Package Includes:
✓ 1pc x Tesla-12+20 connector, RoHS
✓ 1pc x Special connector for Tesla airbag repair, RoHS
✓ 1pc x (PAD VII) 220V/1.3A, British AC wire, 1M, RoHS
✓ 1pc x OBD16 male to female new energy extension cable, with DC cable, RoHS
✓ 1pc x X431 EV MAX battery pack detection 8PIN diagnostic connector, RoHS
✓ 1pc x X-431 PAD IV electric control adapter cable 1, RoHS
✓ 1pc x X-431 PAD IV electric control adapter cable 10, RoHS
✓ 1pc x X-431 PAD IV electric control adapter cable 11, RoHS
✓ 1pc x X-431 PAD IV electric control adapter cable 12, RoHS
✓ 1pc x X-431 PAD IV electric control adapter cable 2, RoHS
✓ 1pc x X-431 PAD IV electric control adapter cable 3, RoHS
✓ 1pc x X-431 PAD IV electric control adapter cable 6, RoHS
✓ 1pc x X-431 PAD IV electric control adapter cable 7, RoHS
✓ 1pc x X-431 PAD IV electric control adapter cable 8, RoHS

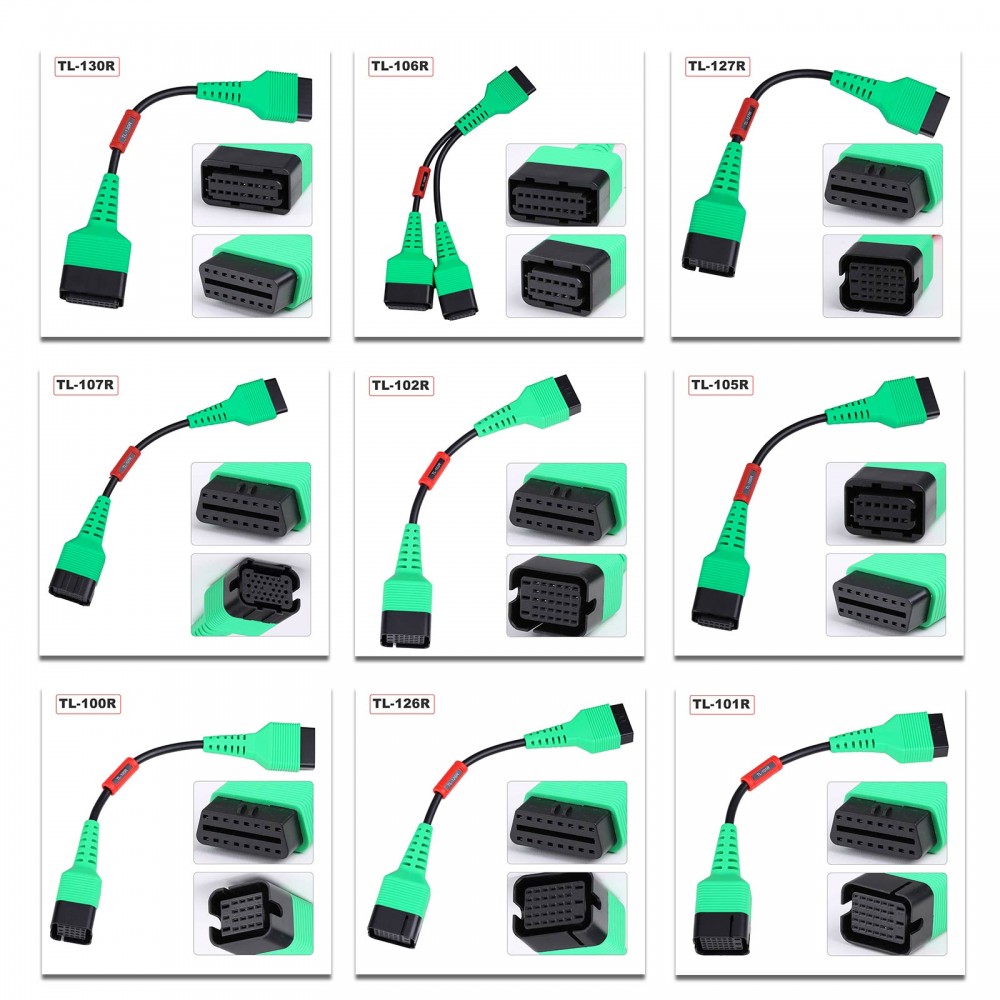

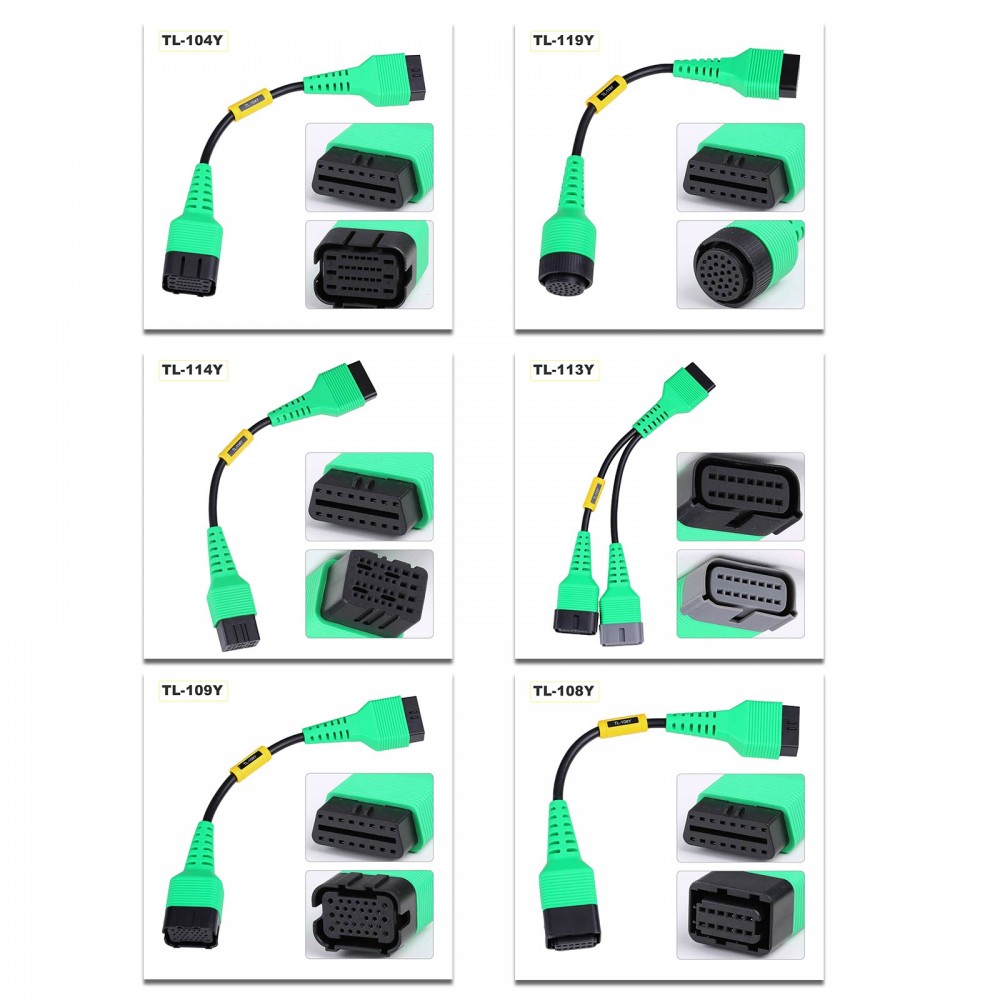

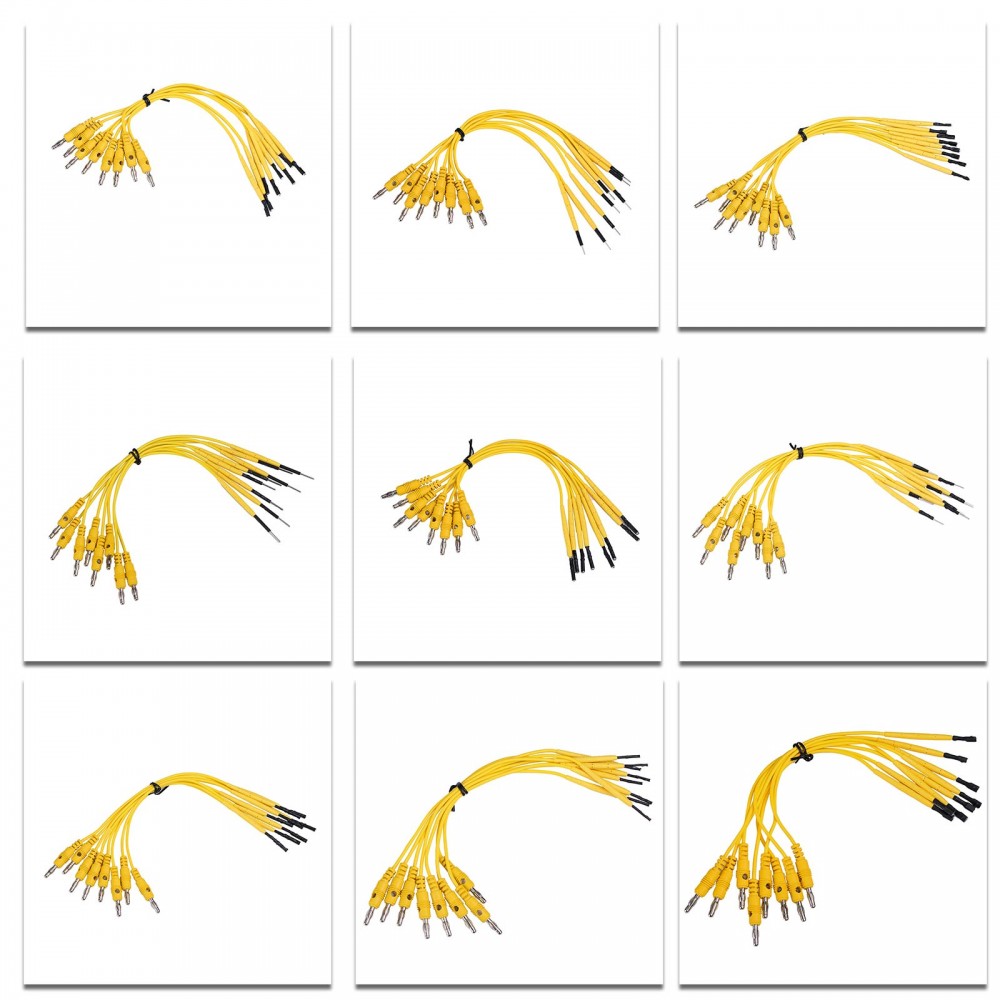

✓ 1pc x Battery pack test line 100 models, RoHS
✓ 1pc x Battery pack test line 101, RoHS
✓ 1pc x Battery pack test line 102, RoHS
✓ 1pc x Battery pack test line 103, RoHS
✓ 1pc x Battery pack test line 104, RoHS
✓ 1pc x Battery pack test line 105, RoHS
✓ 1pc x Battery pack test line 106, RoHS
✓ 1pc x Battery pack test line 107, RoHS
✓ 1pc x Battery pack test line 108, RoHS
✓ 1pc x Battery pack test line 109, RoHS
✓ 1pc x Battery pack test line 110 models, RoHS
✓ 1pc x Battery pack test line 112 models, RoHS
✓ 1pc x Battery pack test line 113, RoHS
✓ 1pc x Battery pack test line 114, RoHS
✓ 1pc x Battery pack test line 115 models, RoHS
✓ 1pc x Battery pack test line 116, RoHS
✓ 1pc x Battery pack test line 119, RoHS
✓ 1pc x Battery pack test line 124 types, RoHS
✓ 1pc x Battery pack test line 126 models, RoHS
✓ 1pc x Battery pack test line 127 models, RoHS
✓ 1pc x Battery pack test line 130 models, RoHS
✓ 1pc x Battery pack test line 152 models, RoHS
✓ 1pc x (PAD VII) Australian standard AC wire, 1M, RoHS
✓ 1pc x (PAD VII) European standard AC wire, 1M, RoHS
✓ 1pc x Power adapter, 12V4A, 48W desktop US standard AC cable, 2M, RoHS
✓ 1pc x Operation Guide, RoHS
✓ 1pc x Activation Card
❓ FAQ (Frequently Asked Questions)
1. What devices is the EV Diagnostic Upgrade Kit compatible with?
The upgrade kit is fully compatible with the X431 PAD V and X431 PAD VII diagnostic scanners.
2. Which electric vehicles can be diagnosed with this kit?
It can perform battery pack State of Charge (SoC) and State of Health (SoH) diagnostics on Tesla, BYD, and many other electric vehicle brands.
3. How do I activate the EV diagnostics package?
You can activate it using your scanner by entering the 24-digit password on the Activation Card. This can be done either directly through the "New Energy Diagnose" option on the Job Menu or through the "Mall" section.
4. What is the process for ensuring product quality?
We ensure high-quality standards by performing a pre-production sample test before mass production and conducting a final inspection on all units before shipment.
5. What other diagnostic and maintenance tools are available?
In addition to the EV kit, you can obtain Car Diagnostic Tools, Car Code Readers, Auto Key Programmers, TPMS Tools, Car Battery Testers, Car Lifts, Spray Booths, Tire Changers, Wheel Balancers, 3D Wheel Aligners, and Chassis Testers.
6. What payment types and delivery terms are supported?
We support accepted delivery terms such as FOB, EXW, and DDP. Payments are accepted via T/T, MoneyGram, Credit Card, PayPal, Western Union, and Cash, processing transactions in USD, EUR, HKD, and CNY. Multi-language services are available in English, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, and Italian.
