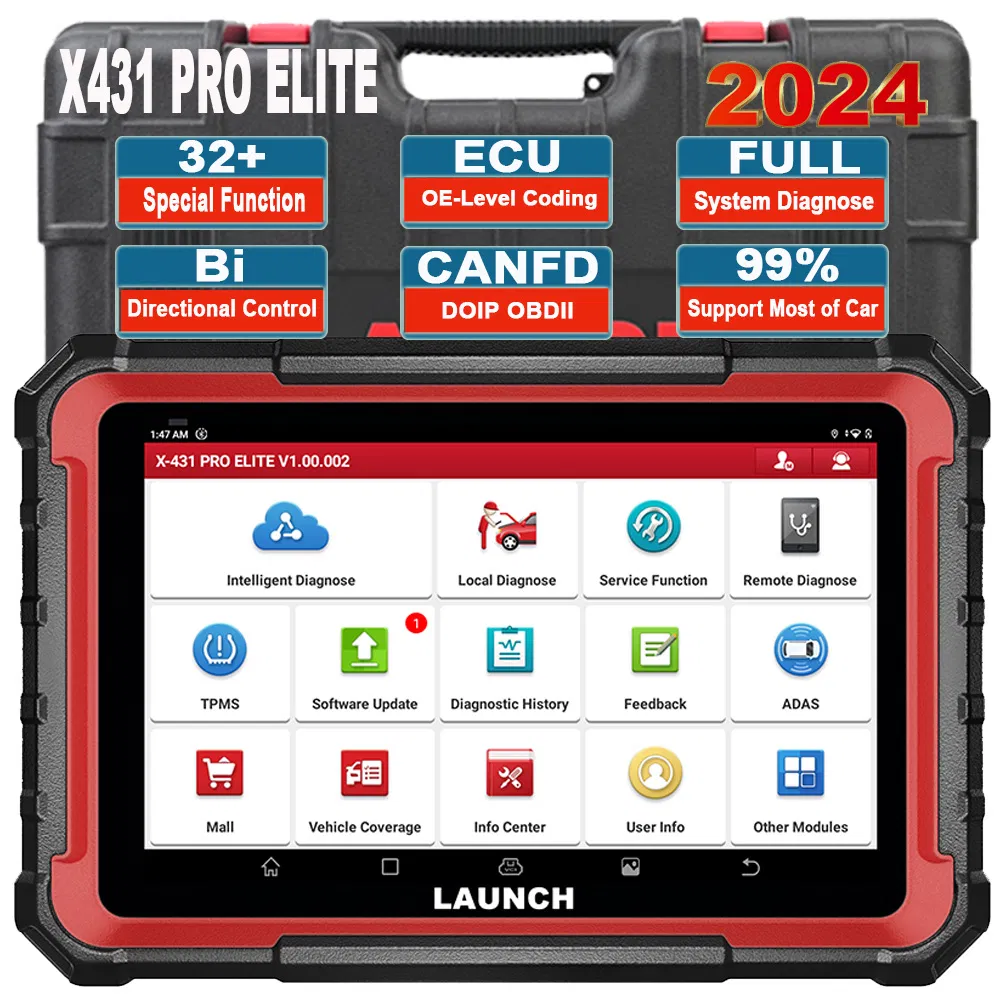

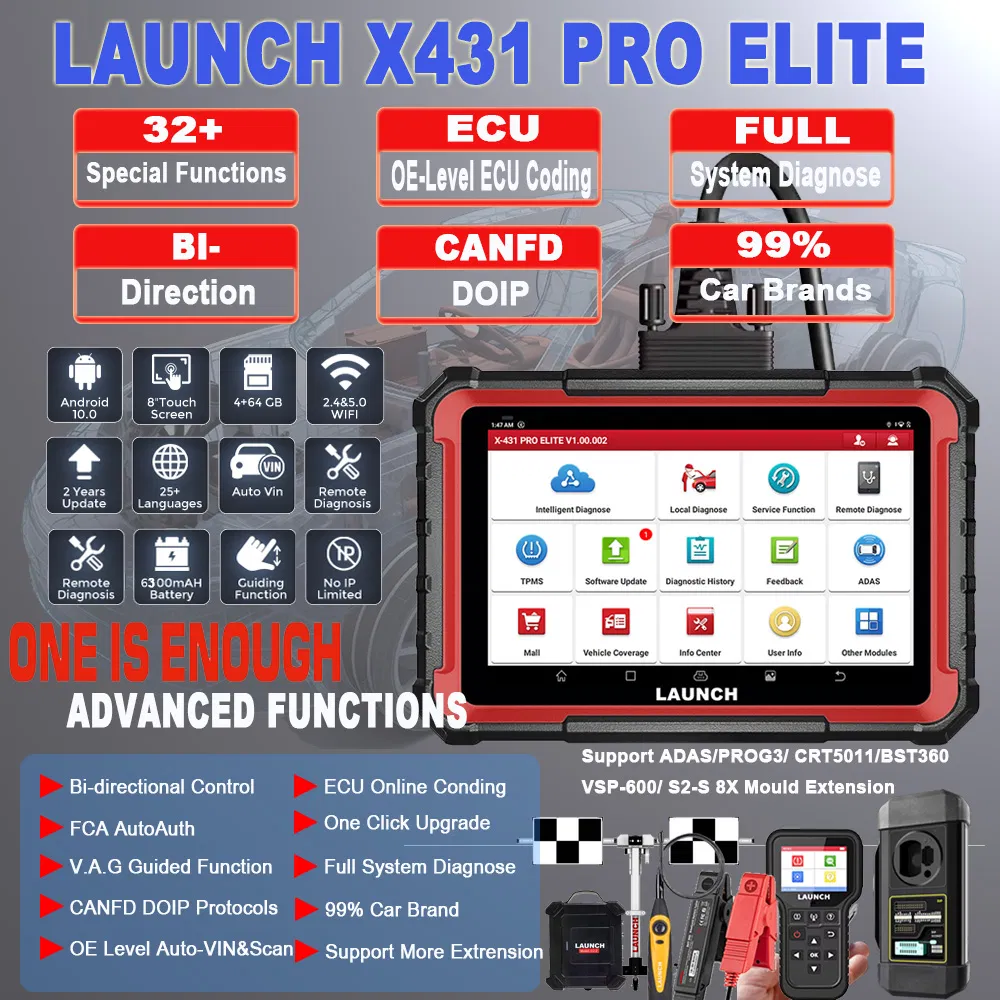

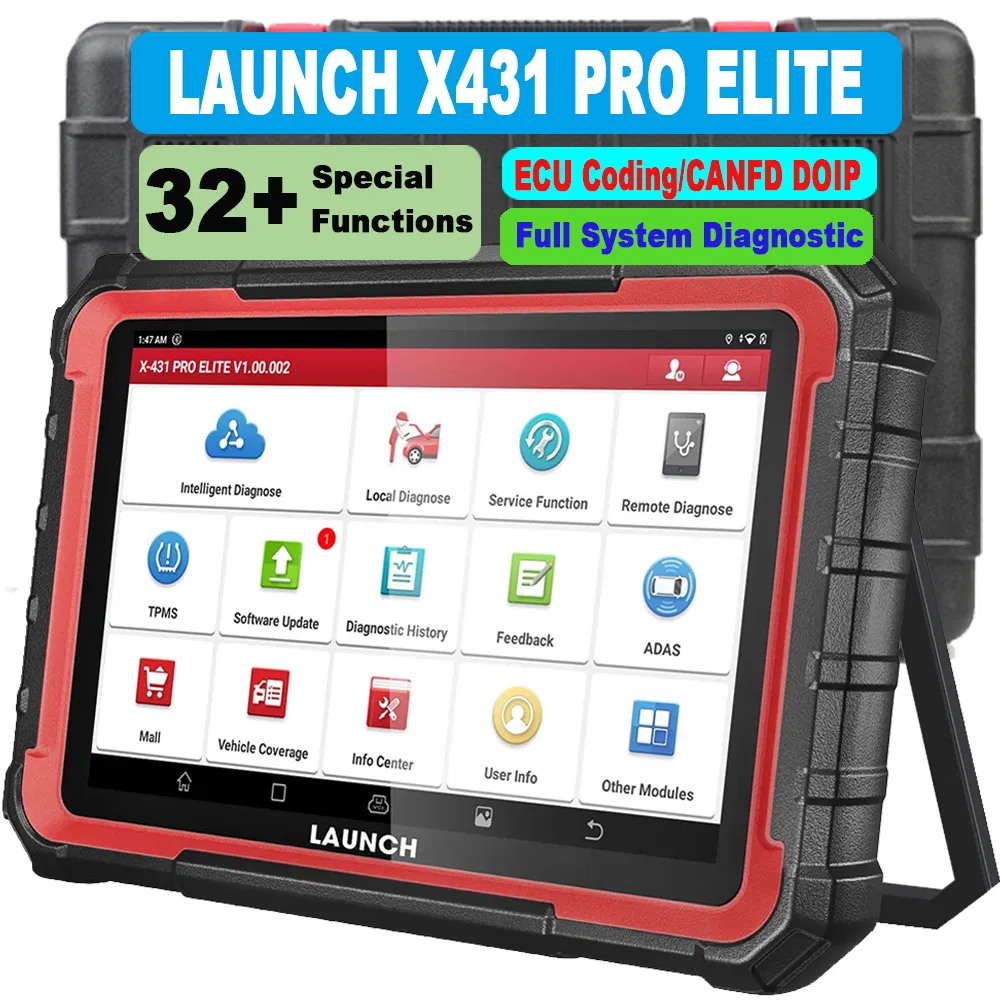

X-431 PRO ELITE is an 8-inch smart car diagnostic device with diagnostic cable inherits the functions and advantages of the X-431V/X-431 PRO /X-431 PROS Elite product, which can cover more than 99% of the cars on the market. Based on Android 10.0 system, it adopts 2.0Ghz 4-core high-efficiency processor, 4GB RAM+64GB ROM large storage, and is equipped with a high-endurance battery 6300mAh, which runs faster, more stably and lasts longer.
| Parameters | Specifications |
| Model | X-431 PRO ELITE |
| OS | Android 10.0 |
| Memory | 4GB |
| Storage | 64GB |
| Screen | 8.0 inch touch screen |
| Battery | 7.6V, 6300mAh |
| Resolution | 1280*800 pixels |
| Camera | Rear 8 Megapixels |
| Ports | TYPE A *1 & TYPE C*1 |
| Working Temp. | 0ºC~50ºC |
Offers several advanced OE-level scan tool functions:
Activate functions not typically available to standard users, such as:
Anti-theft Matching (IMMO): Perform anti-theft key matching to ensure the car's immobilizer control system recognizes and authorizes remote keys for normal use.
Basic TPMS Reset: Displays sensor IDs from the vehicle's ECU, inputs TPMS sensor replacement IDs, and tests sensors.
ABS Bleeding: Bleeds the ABS brake system to ensure firm brake pads after air has been removed following ABS pump repairs.
Stop/Start Reset: Enables you to enable or disable the automatic Start/Stop function by adjusting the hidden ECU settings.
Throttle Relearn: Resets the throttle to accurately regulate throttle operations, ensuring smooth idling and acceleration.
Oil Reset: Resets the Engine Oil Life system for a new calculation after an oil change.
D.P.F Regeneration: Works with the Diesel Particulate Filter system to perform DPF regeneration, component replacement teaching, and post-replacement engine control unit teaching.
Steering Angle Reset: Clears the fault memory of the steering angle sensor and calibrates it.
Brake Reset: After replacing brake pads, reset their position before installing new pads to turn off the warning light.
Gear Learning: Required after replacing the ECU, or disassembling/replacing the timing belt assembly and crankshaft position sensor.
Injector Coding: Writes the new injector code into the car system for correct cylinder injection quantity.
Headlight Matching: Initializes the adaptive headlamp system.
Other Services: Includes SUS Reset, ETS Reset, Sunroof, EGR Adaptation, A/F Reset, Coolant Bleed, NOX Sensor, Seat Calibration, Transport Mode, Tire Reset, Window Calibration, AdBlue Reset, A/C Relearn, Intelligent Cruise, Engine Power Balance, High Voltage Battery, GPF Regeneration, Language Change, and more.
You'll continually receive new models and reset options through online updates. These include fuel-trim reset, zero-point calibration, VIN relearn, HVAC calibration, seat calibration, rain sensor initialization, idle relearn, VGT relearn, gearbox matching, fuel composition reset, suspension calibration, transport mode, transmission quick learn, ABS initialization, turbocharging matching, cylinder power balance test, and more. This feature is particularly beneficial for dealers, helping them attract more business.
The LAUNCH X431 PRO ELITE car diagnostic tool features full Bi-directional control which is advantageous among basic code readers. This can drive solenoids and actuators for active testing, sending commands to the system/component to test its operating status without using the vehicle controls, letting you quickly understand whether a specific system, component, or subsystem is operating normally. It enables accurate pinpointing of issues and greatly improves diagnostic efficiency.
- EVAP Vent / Purge Solenoid;
- Fuel Injector Test;
- Cycling A/C Clutch Relay;
- Cycling ABS Motor Pump;
- Cooling Fan Test;
- Window/Light/Door Lock Actuators/Headlamp Test/Sunroof/Operate mirrors/Turn on sound horn;
And also can perform other actuation test functions including Modulate the throttle, Turn Off ACC Lane Keeping Assist System (LKAS); Turn ON/OFF Front and Rear side ACM Solenoid, Left clutch electromagnetic coil test, Acceleration Device Test, Oil Pressure Control Test DYNAMIC camera aiming, Brake Vacuum Pump, Inlet and Outlet Valve tests, Open Brakes tests, Parking Brake Motors, WheelSpeed Sensor Supply, PARKING BRAKE tests, etc.
This function is an advanced feature of high-end diagnostic tools, primarily used for matching, calibrating, relearning, and personalizing ECU module components. It allows you to update your vehicle's computer software to the latest version and reprogram the adaptive data of certain components after repairs or replacements. This helps address issues such as drivability, fuel efficiency, power loss, fault codes, and mechanical part durability.
BUICK, CADILLAC, CHEVROLET, CHRYSLER, DODGE, FIAT(BRAZIL), FORD, FORD(AUSTRALIA), GM, JEEP, LINCOLN, GM(BRAZIL)
ABARTH, ALFA ROMEO, AUDI, BENTLEY, BMW, BUGATTI, CITROEN, DACIA, EUROFORD, FERRARI, FIAT, GAZ, OPEL(SOUTHAFRICA), IVECO, JAGUAR, LAMBORGHINI, LANCIA, LANDROVER, MASERATI, MAYBACH, MERCEDES, MINI, OPEL, PEUGEOT, PORSCHE, RENAULT, ROLLSROYCE, ROVER, SAAB, SEAT, SKODA, SMART, SPRINTER, VAUXHALL, VAZ, VOLVO, VW, ASTONMARTIN, UAZ
ACURA, DAEWOO, DAIHATSU, HOLDEN(AUSTRALIA), HONDA, HYUNDAI, INFINITI, ISUZU, KIA, LEXUS, LUXGEN, MAHINDRA, MAHINDRA(INDIAN), MARUTI, MARUTI(INDIAN), MAZDA, MITSUBISHI, NISSAN, GTR(NISSAN), PERODUA, PERODUA(MALAYSIA), PROTON, PROTON(MALAYSIA), SAMSUNG, SAIPA, SSANGYONG, SUBARU, SUZUKI, TATA, TATA(INDIAN), TOYOTA, UNITED PAKISTAN
BRILLIANCE, BYD, CHANGAN, CHANGHE, CHBUICK, CHERY, CHANGHE SUZUKI, DFCIROEN, ECUAID, FAW(TIANJIN), FOTON, GONOW, GWM, HAFEI, HAIMA, JAC, JAC REFINE, JMC, JOYLONG, LIFAN, MG(SAIC), QOROS, MAXUS, SGM, SGMW, XINKAI, POLARSUN, ZX AUTO, ZOTYE, SENOUA(BAIC)
(Due to regional and system updates, car models may differ, please contact customer service for confirmation!)
