Product Description

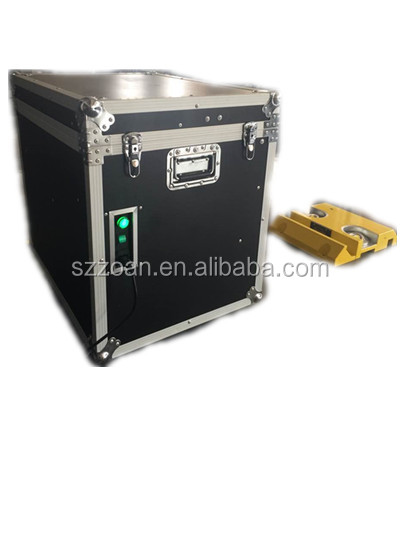

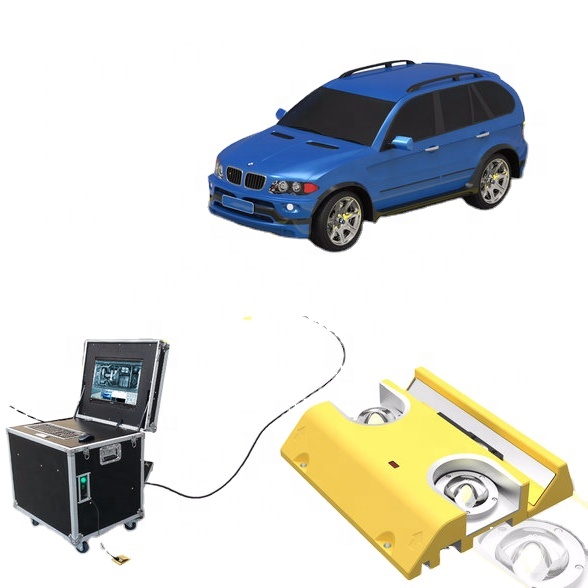

Mobile Vehicle Inspection Equipment AI UVIS Smart Vehicle Tracking System for Railway Station

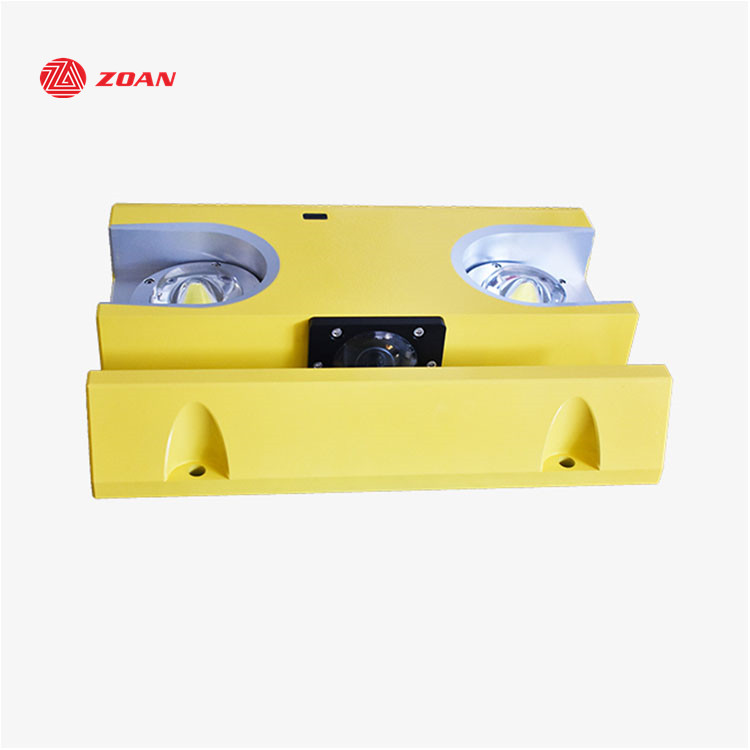

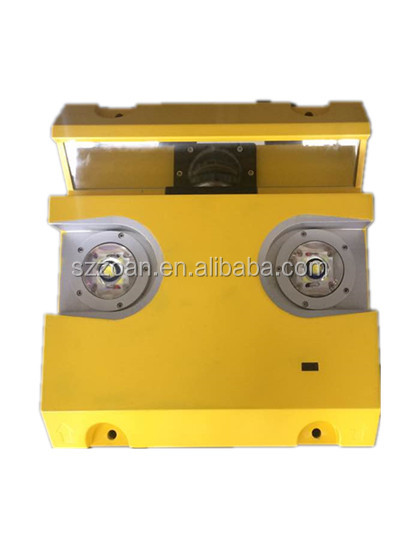

Embedded Screening Part
Camera Sensor: line scans CCD, Resolution: 5000*2048 pixels, Power Supply: 24VDC, 3A
Illumination LED, Power Supply: 24VDC, 120W
Size 1200mm x 350mm x 300mm
Operating Temperature Range -20℃ to +60℃
Controller
Input 2 channels induction coil
Output 1 Channel switch type 12VDC
Communication port RS485, Ethernet (Optional)
Operating Temperature -10℃ to 55℃
System Host
Brand Grantech (SYM76941VGGA)
CPU Intel(R) Celeron(R) CPU
Memory 2G (optional 4G)
Graphics 512M
Hard Disk SATA2 Hard Disk 500G
Monitor 24 inch LCD, resolution up to 1920*1080
★ Main Features
  • Auto digital line scan, high-resolution undercarriage imaging.
  • High automation, easy to be used.
  • Applicable to variety of vehicles, wide vision.
  • Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.
  • Undercarriage image can be stored, retrieved, searched or compared with other images.
  • Variety of image processing methods: enlarge, stretching and cutting.
  • (Optional) ALPR-Automatic License Plate Recognition and RFID technology. associative storage of various vehicle information and undercarriage images.

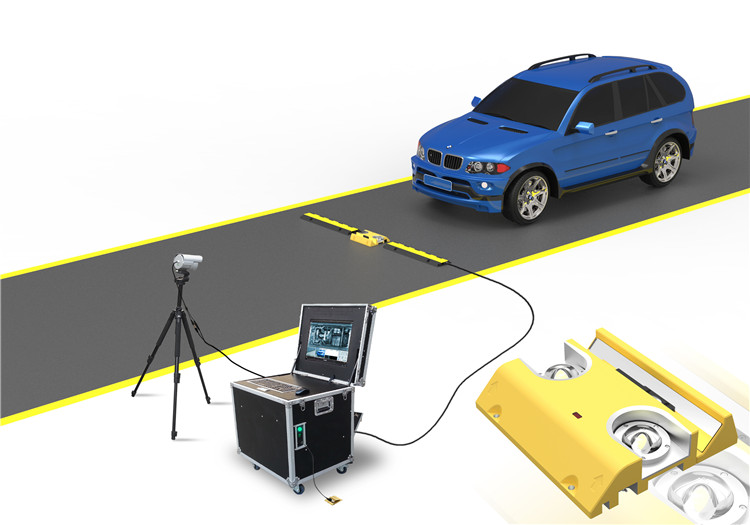

Mobile Vehicle Inspection Equipment Undercarriage Scanner

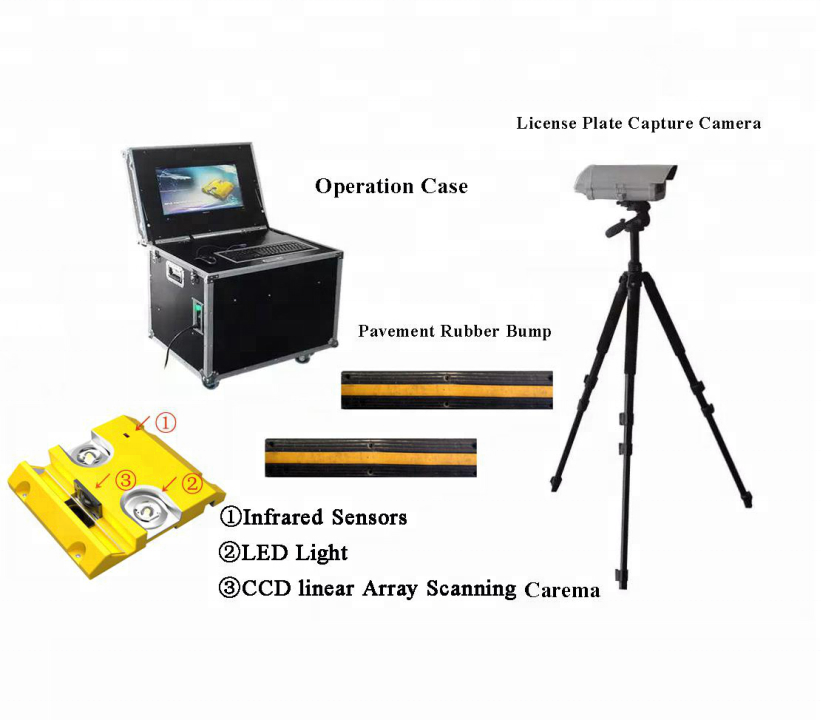

AI Uvis Smart Vehicle Tracking System Interface
Related Products
Airport Baggage X-Ray Scanner Machine
1

Airport/Hotel security equipment airport baggage x ray scanner machine

Walk Through Scanner Security Gate
2

Metal expanding door frame walk through scanner security check gate detector

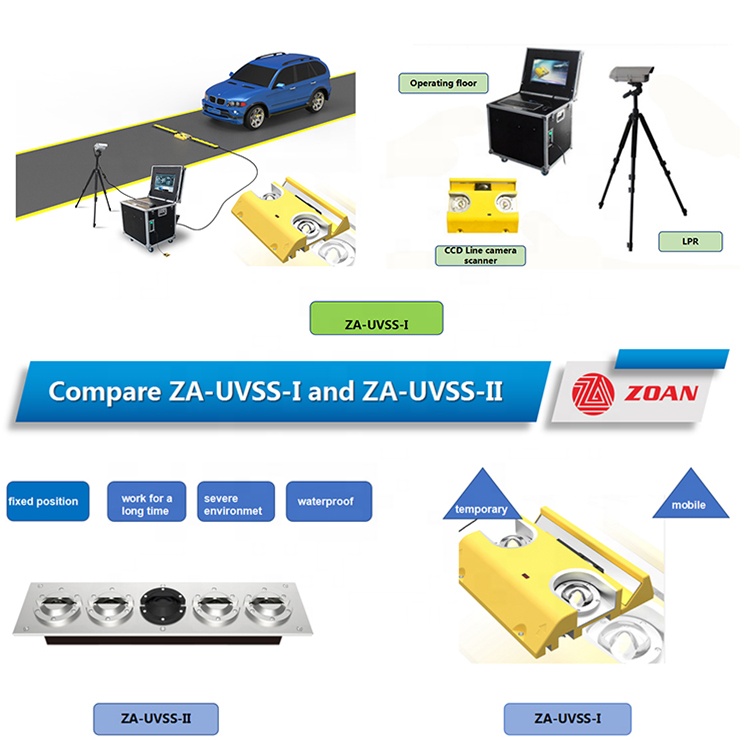

Fixed Under Vehicle Surveillance System
3

Hot sale Fix Under Vehicle Surveillance System used in Airport --ZA-UVSS-II

Company Information
Manufacturing Facility and Quality Management
Product Development and Testing Facility
Our Services
Technical Support and Customer Service Flow
Logistics, Packaging and Global Shipping Services
Frequently Asked Questions
Q1: How does the AI UVIS system scan vehicles while they are moving?
The system features an advanced automatic digital line scan CCD camera. It captures high-resolution undercarriage images seamlessly while the vehicle maneuvers through the checkpoint without needing to come to a stop.
Q2: What is the maximum resolution of the undercarriage camera?
The embedded screening scanner is equipped with a high-resolution line scan CCD sensor that supports resolutions up to 5000*2048 pixels for clear detail capture.
Q3: Can this inspection equipment operate in extreme weather conditions?
Yes. The embedded screening unit has an operating temperature range of -20°C to +60°C, and the controller is rated for temperatures between -10°C to 55°C, ensuring reliability in diverse environments.
Q4: Does the system support License Plate Recognition (LPR)?
Yes, the system offers optional Automatic License Plate Recognition (ALPR) and RFID technology, allowing you to associate and store vehicle license details directly with their corresponding undercarriage images.
Q5: What imaging features are available for analyzing undercarriage scans?
The host software provides a variety of processing tools to analyze scans, including image enlargement (zooming), stretching, cutting, storing, and retrieving past images for easy comparison.
Q6: What kind of display monitor is included with the system host?
The system host comes with a 24-inch LCD monitor that supports high-definition resolutions up to 1920*1080 for clear view and inspection monitoring.
