SHINELY 10 13 15 TonsTruck Brake Tester For Truck Test Lane Equipment Vehicle Full Inspection Lane

Advantages & Services

Products Description

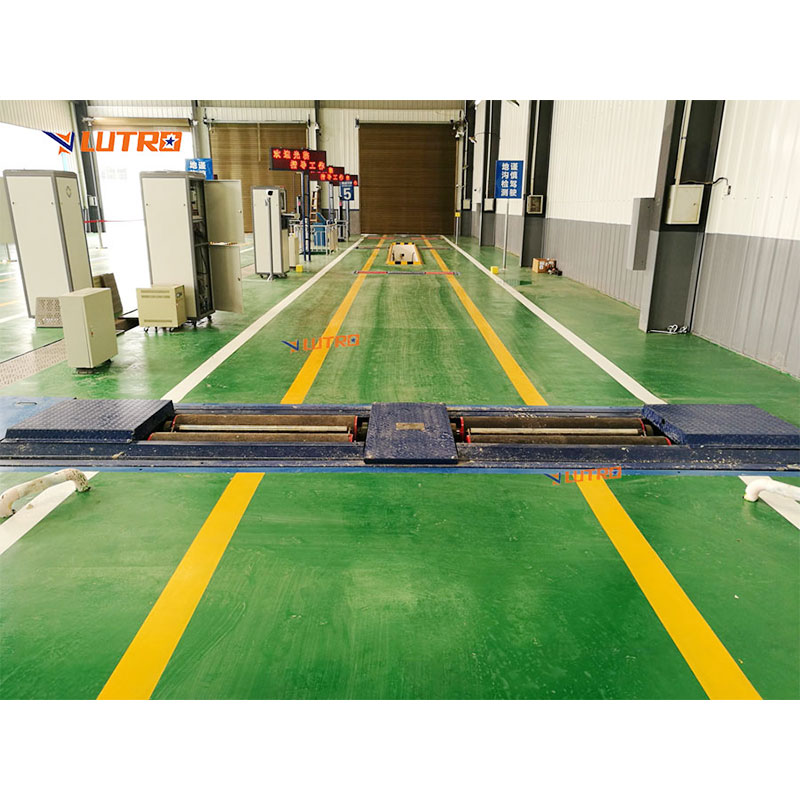

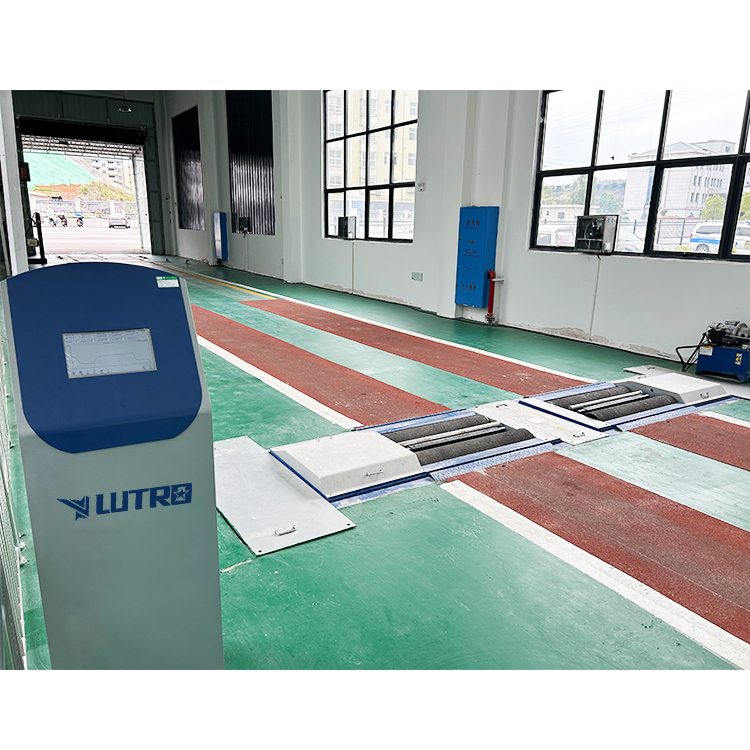

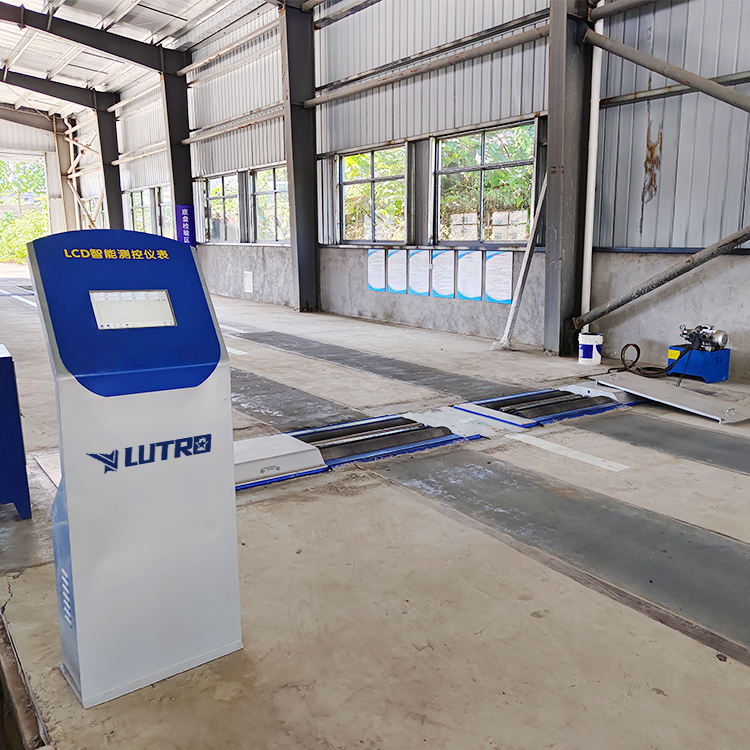

The compact tester is compounded with brake tester and axle load tester, space saving and high repetition of the testing data. It is mainly for brake performance testing and wheel load testing.

1 The main body is wholly welded, with high intension, no need to fix the main body on the ground with ground bolts and it is easy to adjust and install.
2 The rollers are covered with high quality surface sand, advanced adhesives and technology, the adhesion modulus is above 0.85 in case of both dry and wet, the longevity is over 200,000 times. Test precision is high, repetition performance is good, brake force errors < 1.5% (National standard < 3%).
3 The reducer is manufactured by European technology, and the main parts of motor, bearing, sensor, etc. are all domestic famous brand products, which have passed ISO9001 international quality system certification and CE certification.
4 The third roller can response and stop the motor automatically to avoid the wear of the tyre after the tyre locked during the testing.
5 You can choose the tester with or without airbag lifting device. (The airbag lifting device is for the convenience of the vehicle entering and leaving the tester).

Technical Parameters
Using of reinforced steel guarantees strong and durable structure-bodies. Corundum-sand roller sets with high adhesion in both dry and wet conditions. Automatic start and tyre anti-skid program. With calibration device.
Roller diameter * length	245mm * 1100mm
Motor power (kw)	2 × 15
Braking force measurement range (kN)	2 × (0 - 45)
The power supply	380V 50/60HZ.
The equipment is equipped with 8 wheel load sensors with high test accuracy, which can test the wheel load.

Certifications

Exhibition

Company Profile

Packaging & Shipping

FAQ Information

What are the main functions of this compact tester?

This system combines both a brake tester and an axle load tester into a single, space-saving unit. It is primarily designed for high-repetition brake performance testing and wheel load testing.

Does the main body require ground bolts for installation?

No, the main body is wholly welded with high-intensity structure. It does not require ground bolts to fix it to the ground, making the overall adjustment and installation process simple and convenient.

What makes the rollers suitable for both dry and wet conditions?

The rollers are coated with high-quality surface sand using advanced adhesives and technologies. This keeps the adhesion modulus above 0.85 in both wet and dry conditions, yielding a service life of over 200,000 runs.

How accurate is the braking force measurement?

The tester delivers highly precise measurements with excellent repetition performance. The brake force error is kept under 1.5%, which is significantly better than the national standard limit of < 3%.

How does the tester protect tires from excessive wear during testing?

The equipment features a third roller control safety system. When a tire locks, the system automatically responds by stopping the motor to avoid tire wear.

Is the airbag lifting device optional?

Yes, you can choose to purchase the tester with or without the airbag lifting device. This device is specifically designed to facilitate smooth vehicle entry and exit from the tester.
