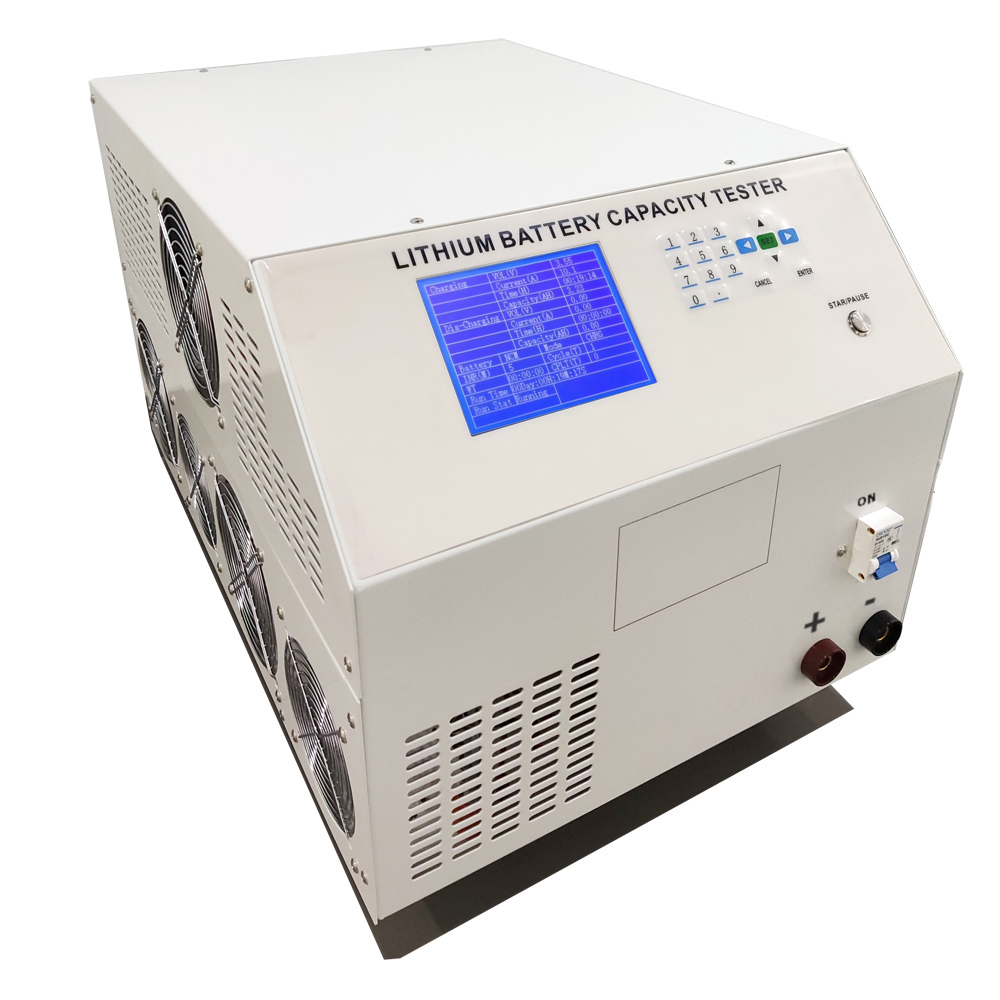

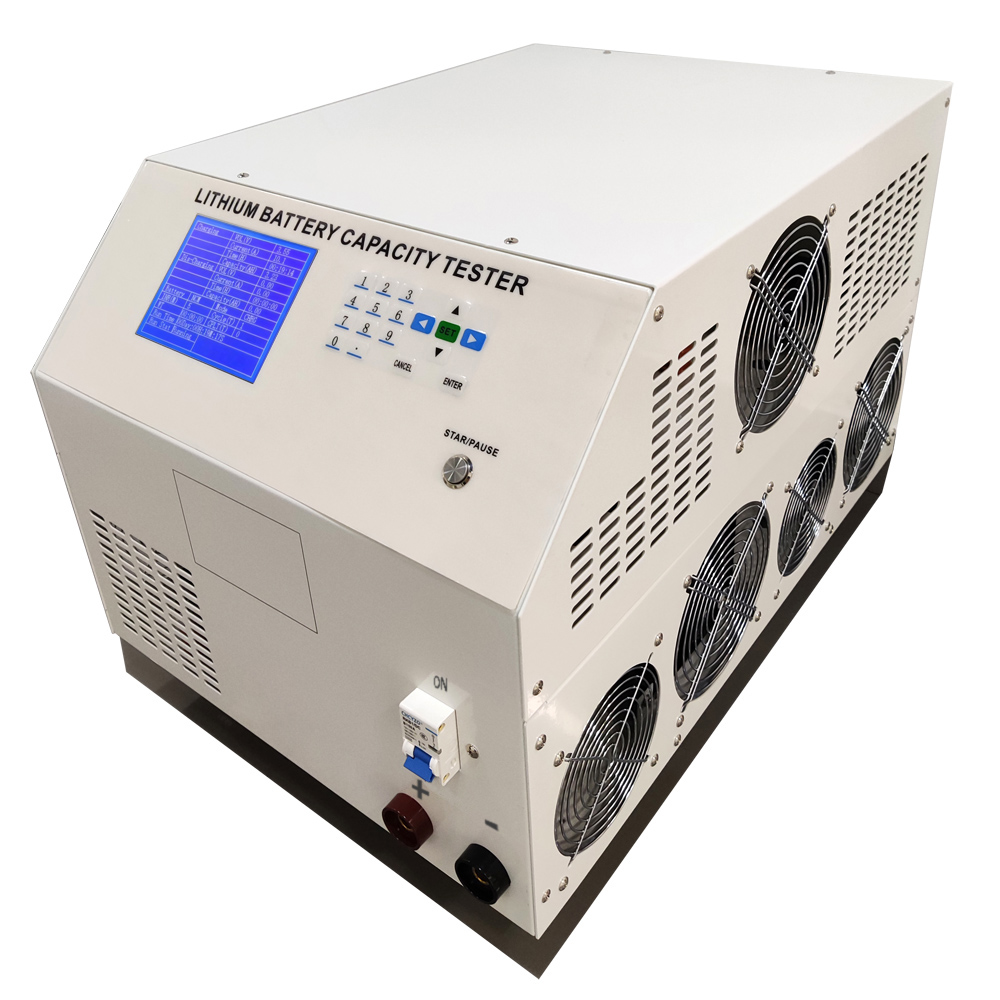

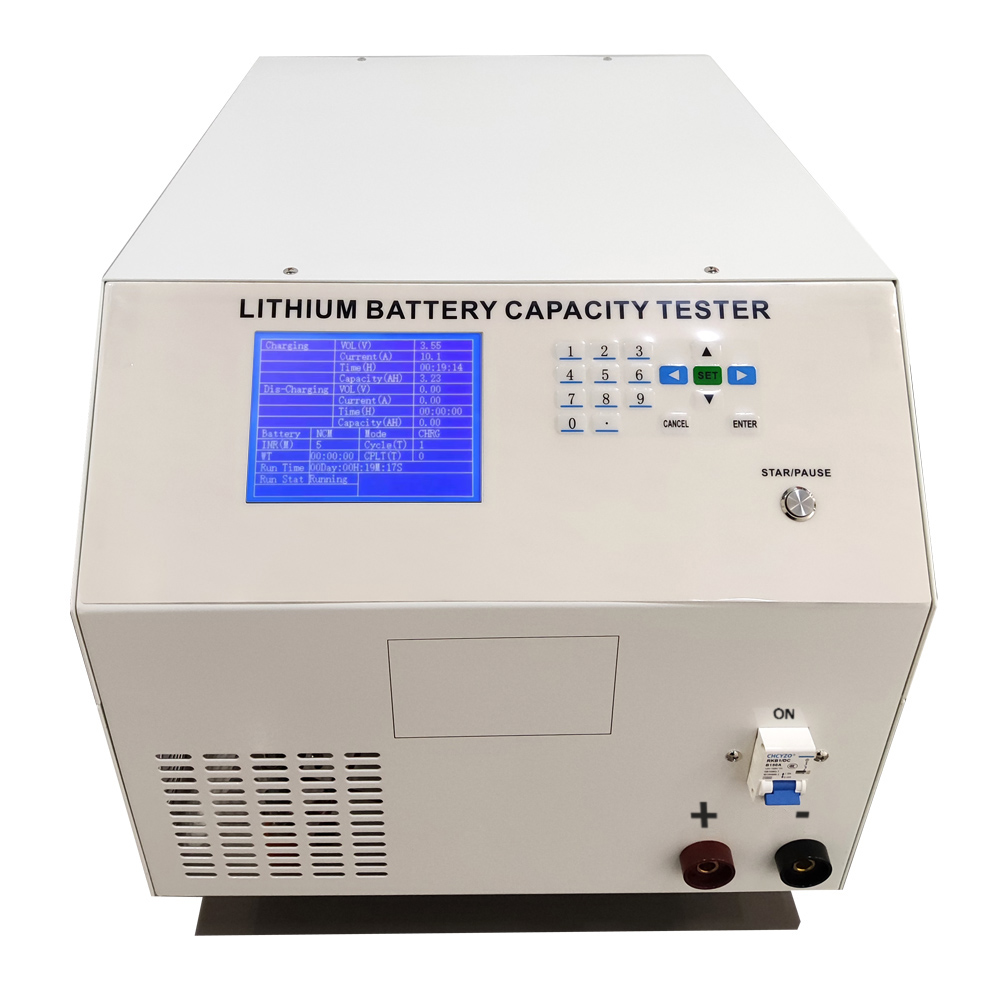

A high-performance lithium battery pack capacity tester and battery pack discharger designed with multi-functional testing capabilities.
| Model | HF10060 |
| Power Supply | AC 110V / 220V |
| Discharge Voltage range | 2VDC-110VDC |
| Voltage accuracy | ±0.5%, two decimal places |
| Maximum discharge current | 1-60A |
| Maximum charging current | Internal charger model - 20A, External charger model - 30A |
| Current accuracy | ±1% to two decimal places |
| Discharge mode | constant current discharge |
| Discharge termination voltage | The minimum protection voltage of the battery pack-2V or low-voltage protection of the battery pack |
| Charging mode | Charging by external charger |
| Charge termination voltage | Current is less than 0.3A, the instrument opens the connection between the charger and the battery |
| Capacity measurement accuracy | ±0.05AH |

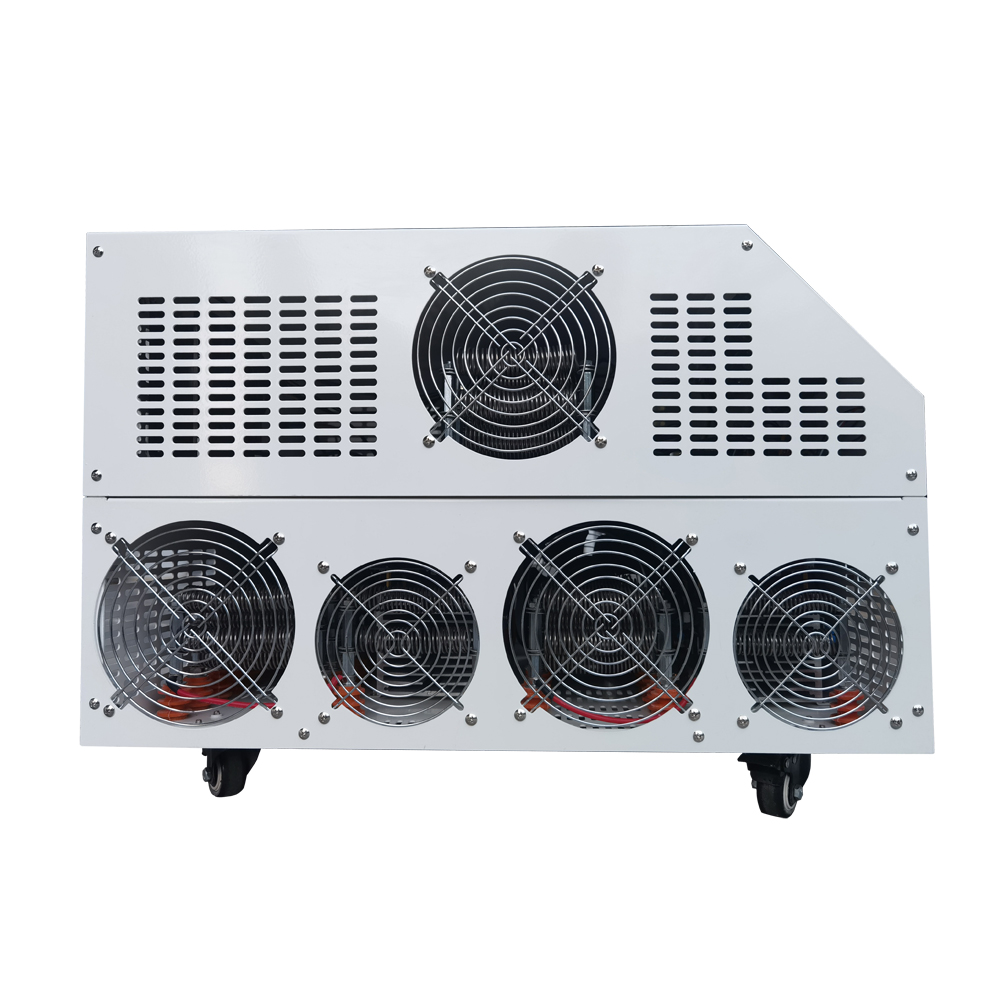

| Cooling method | dual-roller high-speed cooling fan cooling |
| Product Size | 603mm*428mm*426mm |
