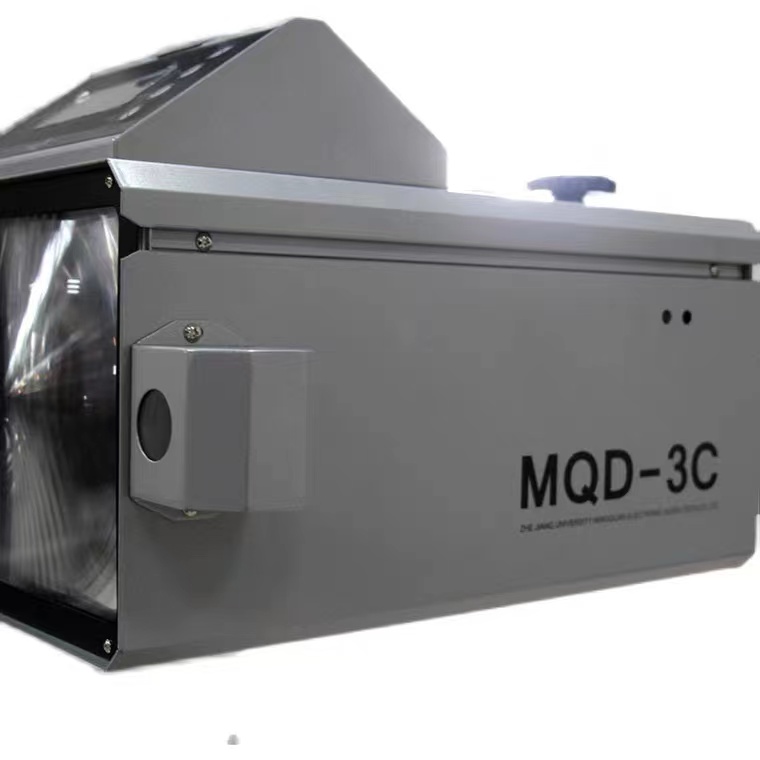

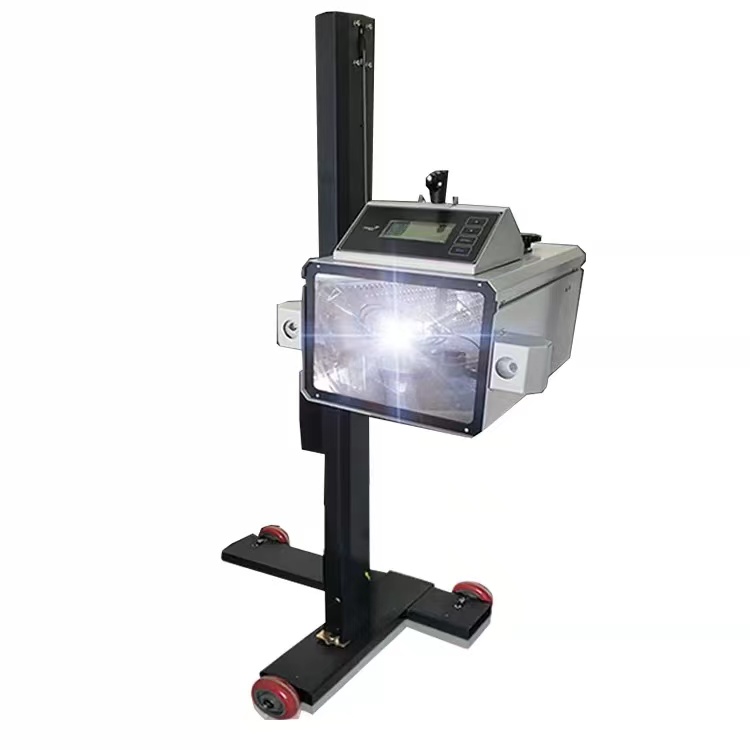

Vehicle Manual Headlight Tester Vehicle test Line Car Inspection Station Equipment MQD-3C Auto Headlamp Detector
Vehicle Manual Headlight Tester Vehicle test Line Car Inspection Station Equipment MQD-3C Auto Headlamp Detector
Vehicle Manual Headlight Tester Vehicle test Line Car Inspection Station Equipment MQD-3C Auto Headlamp Detector
Vehicle Manual Headlight Tester Vehicle test Line Car Inspection Station Equipment MQD-3C Auto Headlamp Detector
Vehicle Manual Headlight Tester Vehicle test Line Car Inspection Station Equipment MQD-3C Auto Headlamp Detector
1 / 5
Vehicle Manual Headlight Tester Vehicle test Line Car Inspection Station Equipment MQD-3C Auto Headlamp Detector
Vehicle Manual Headlight Tester Vehicle test Line Car Inspection Station Equipment MQD-3C Auto Headlamp Detector
Vehicle Manual Headlight Tester Vehicle test Line Car Inspection Station Equipment MQD-3C Auto Headlamp Detector
Vehicle Manual Headlight Tester Vehicle test Line Car Inspection Station Equipment MQD-3C Auto Headlamp Detector
Vehicle Manual Headlight Tester Vehicle test Line Car Inspection Station Equipment MQD-3C Auto Headlamp Detector

Vehicle Manual Headlight Tester Vehicle test Line Car Inspection Station Equipment MQD-3C Auto Headlamp Detector

Send Inquiry

Product Description

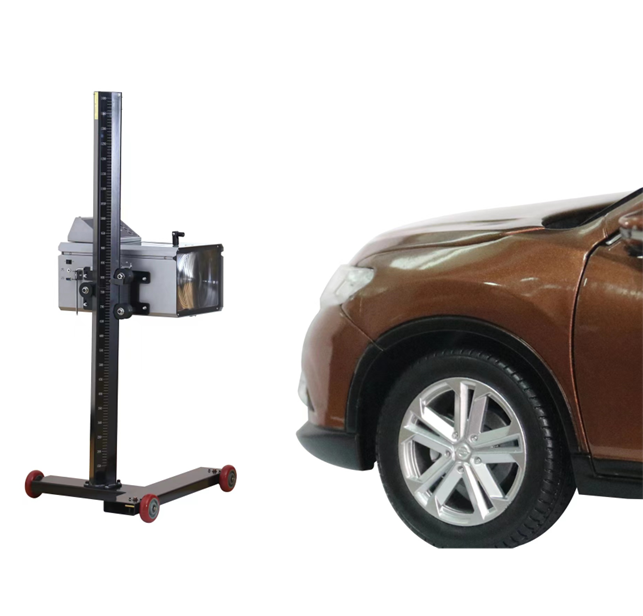

Headlight Tester MQD-3C Introduction

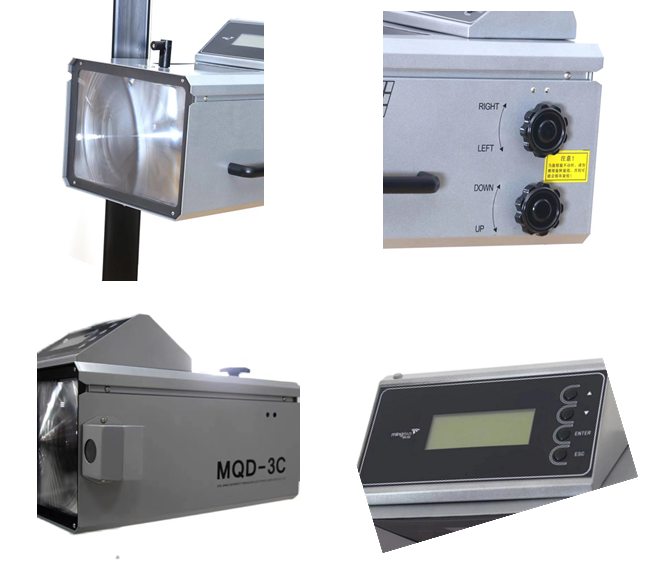

Headlight Tester MQD-3C Features
Headlight Tester MQD-3C Operation

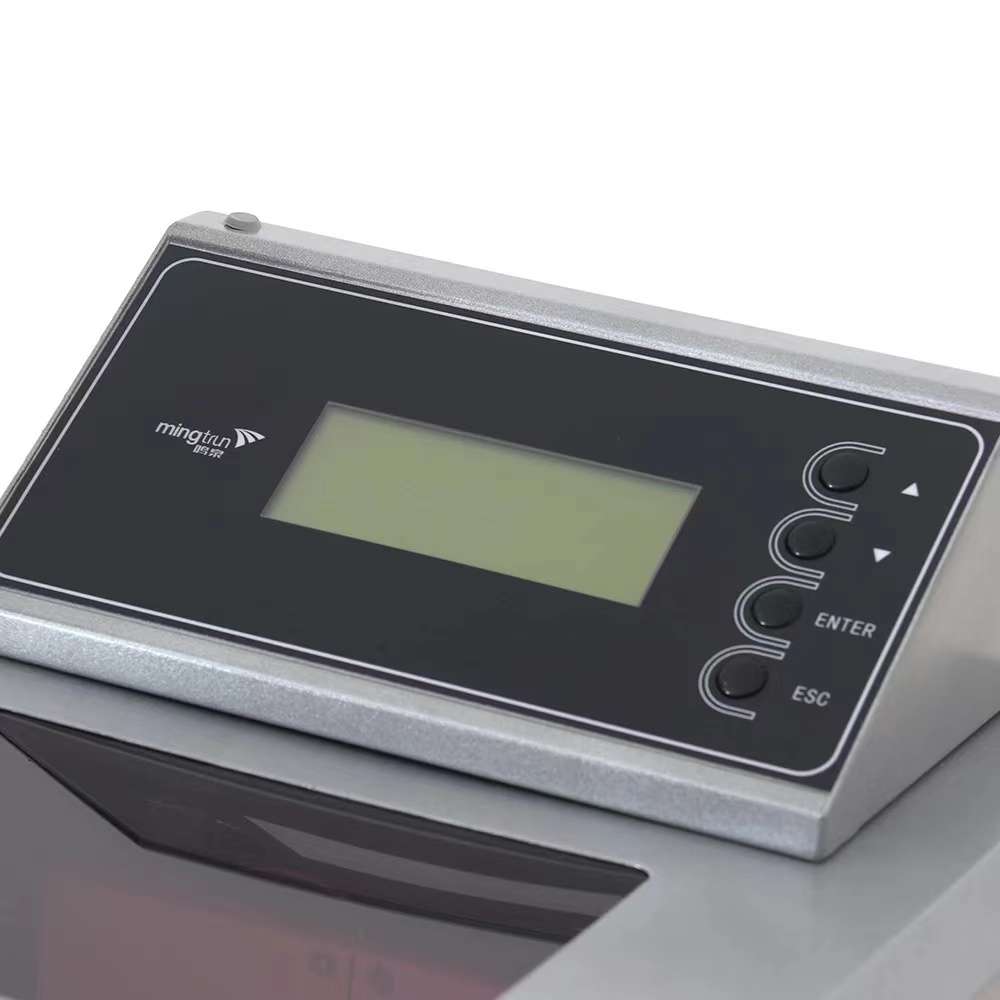

Headlight Tester MQD-3C Display Panel

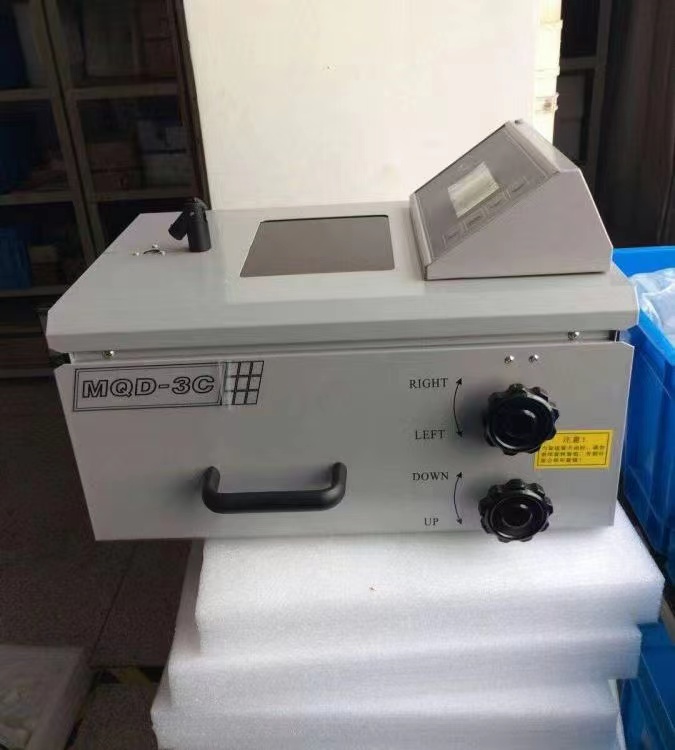

Headlight Tester MQD-3C Internal Structures

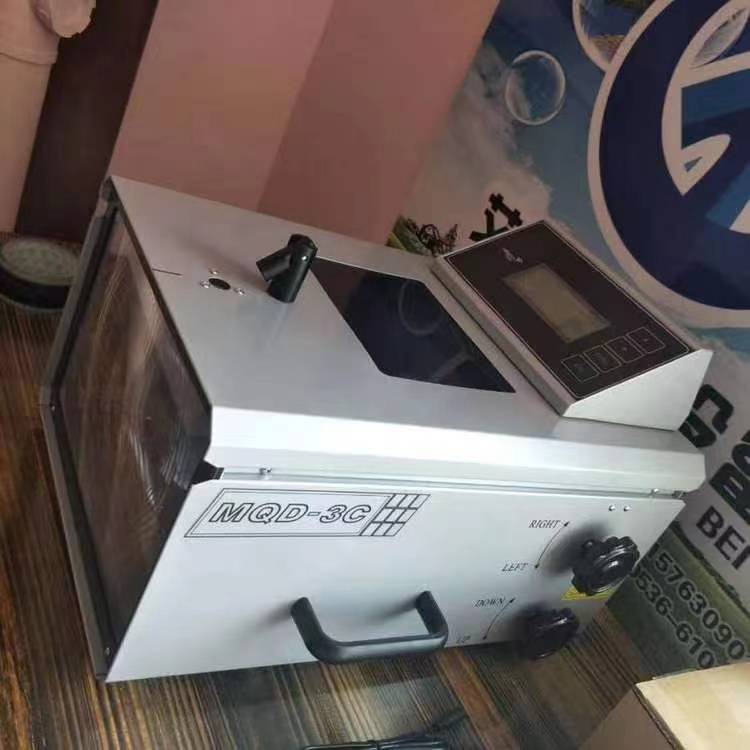

Headlight Tester MQD-3C Alignment Screen

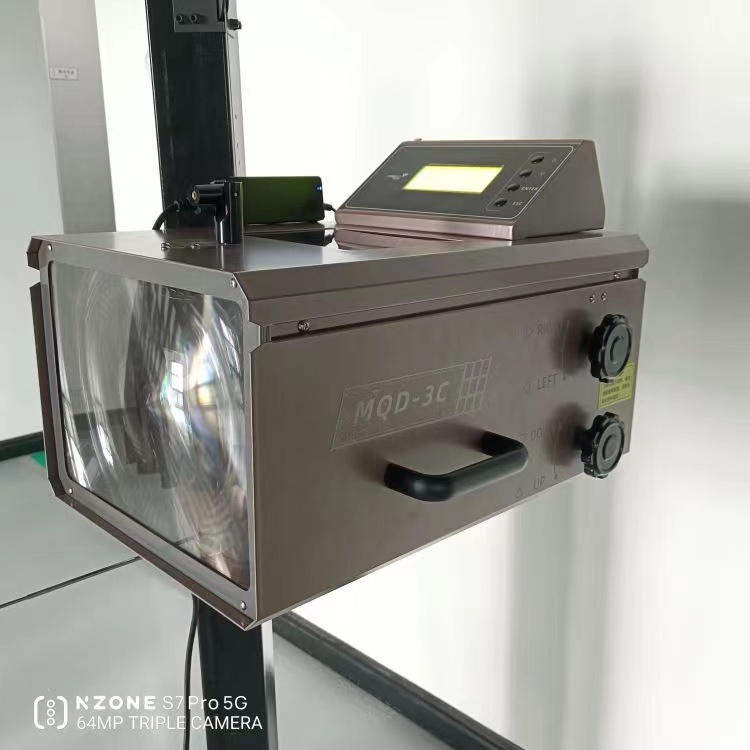

Headlight Tester MQD-3C Optical Sensors

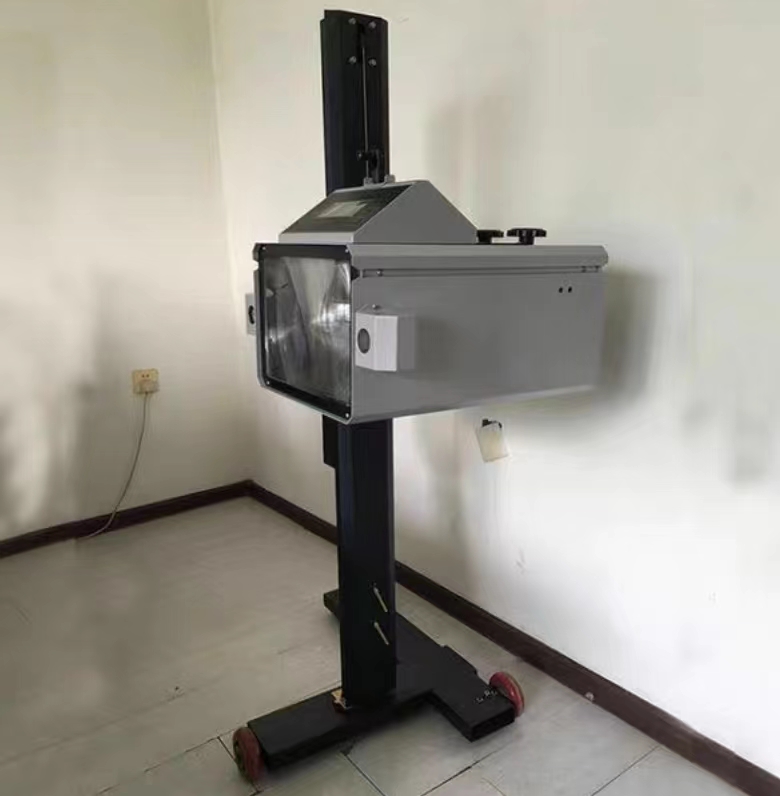

Headlight Tester MQD-3C Adjustment Mechanism

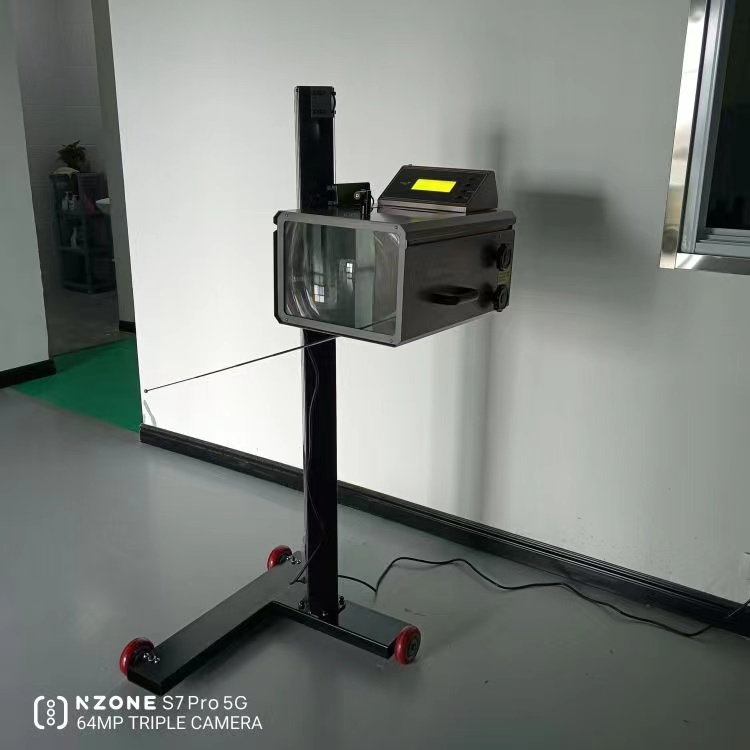

Headlight Tester MQD-3C Rail System
Headlight Tester MQD-3C Measuring Scale

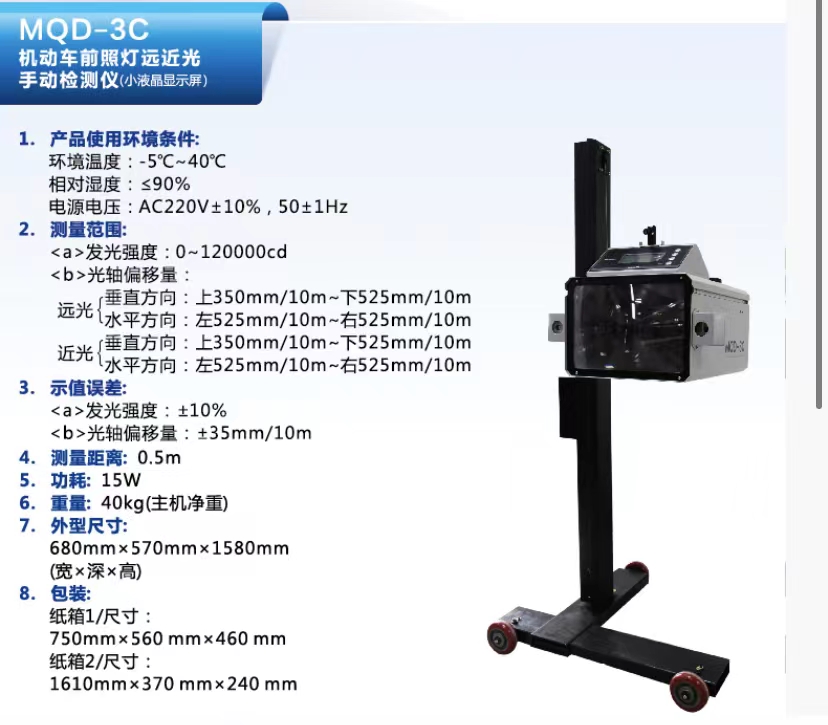

Technical Specifications
Type Headlight Tester, MQD-3C
Machine size 680*570*1580mm (W*H*L)
Working temperature -5°C to 40°C
Power 15W, AC220V 50Hz
Light strength 0-120,000cd
Up: 1°30′ — Down: 2°30′
Left: 2°30′ — Right: 2°30′
Package size 1# 75X56X46cm
2# 161X37X24cm
Weight and volume 50kg, 0.35 CBM
MQD-3C Component Quality
MQD-3C Testing Environment
MQD-3C Structural Stability
MQD-3C Base Configuration
MQD-3C Precise Optical Lens
MQD-3C Manufacturing Process
MQD-3C Calibration Unit
MQD-3C Packing Box
Frequently Asked Questions (FAQ)
What is the primary measurement function of the MQD-3C Headlight Tester?
The MQD-3C Headlight Tester is designed to measure the light intensity (strength) and the optical axis deviation (both vertical and horizontal angles) of vehicle headlights.
What is the measuring range for light intensity on this model?
The light strength measuring range for the MQD-3C model ranges from 0 to 120,000cd, allowing it to test standard and high-performance headlight systems.
What power specifications does the MQD-3C require for operation?
It operates on a standard AC 220V power supply at 50Hz frequency. The energy consumption of this system is exceptionally low, requiring only 15W.
Can the MQD-3C be operated in extreme weather conditions?
This tester is built to work reliably within an environmental temperature range of -5°C to 40°C, making it suitable for most indoor workshop and testing center environments.
What are the physical dimensions and shipping details?
The machine size is 680*570*1580mm (W*H*L). For secure transport, it is packed in two separate boxes (75X56X46cm and 161X37X24cm) with a total gross weight of 50kg and a shipping volume of 0.35 CBM.
