Product Description

This innovative NT630Plus ABS & Airbag Reset Tool with SAS calibration does not only have extensive coverage of vehicles but also provides accurate and professional diagnosis of ABS and airbag faults. This new NT630 Plus scanner is just the perfect tool that professional mechanics can’t wait to have.

Foxwell NT630 Plus OBD2 Scanner Key Features:

• It delivers SAS (steering Angel sensor) calibration on more than 65 vehicle makes.
• Compatible with both OBDI and OBDII cars, SUVs, minivans, light-duty trucks sold worldwide, including the latest 2018/2019 models on selected.
• Identifies the vehicle you are testing rapidly and accurately on basis of its VIN number.
• Reads and clear codes and turns off ABS/Airbag warning indicator.
• Requests and records live sensor data and provides live data graphing.
• Merges graphs for easy and intuitive diagnosis; Performs bi-directional control tests, such as ABS motor test, SAS, actuator test and retrieves ECU information.
• Supports all 10 OBDII test modes, such as live data, O2 sensor test, component test, and enhanced OBDII Mode 6 functionality.
• Multilingual menu options, code definitions, and SD memory card for data backup and software update.
• As easy as 1-2-3 with large TFT color screen and menu-driven operations.
• Ergonomic design and ruggedly built for both shop and road test.

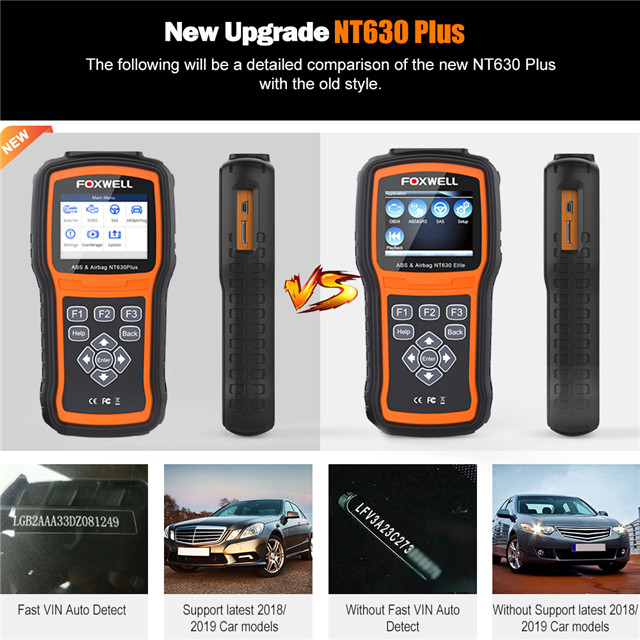

Difference Between NT630 Plus & NT630 Elite

• The Scanner interface is different.
• NT630 Plus supports Auto Scan VIN number Function.
• NT630 Plus supports some newest 2018/2019 car models.
• Compared to NT630 Elite, NT630 Plus fixes various software bugs and supports car models that the Elite version does not.

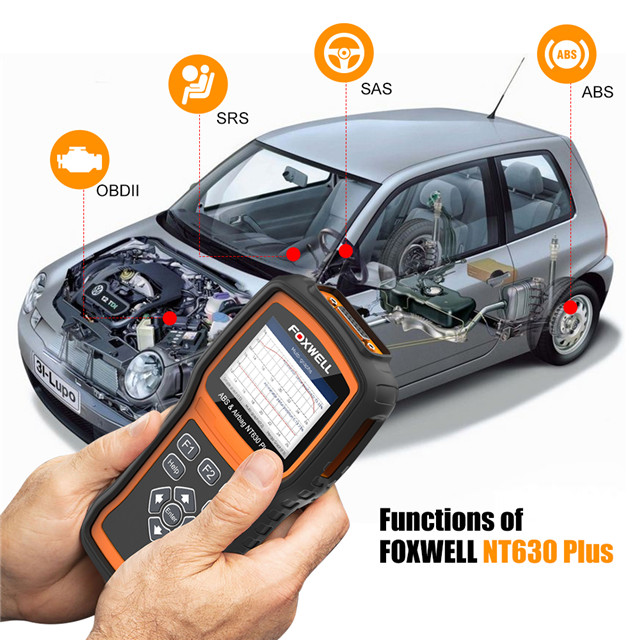

Support Functions

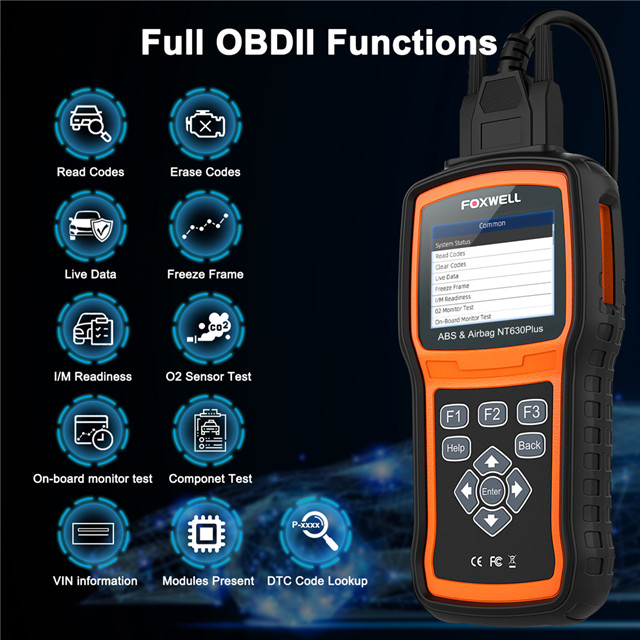

Full OBDII Functions:

Fast read and clear check engine light codes on all 12 OBDII compliant cars, such as live data, O2 sensor test, component test, and more. Access to emissions readiness status, on-screen DTC definitions, and built-in DTC lookup library allows you to accurately determine causes of the check engine light and turn off the MIL.

Special Functions:

• ABS Manual Control Tests: Allows manual control of actuators in order to test ABS motors, solenoids, solenoid enable relays, EMBs, and more.
• ABS Motor Test: Allows manual control of the ABS pump motor.
• ABS Version Test: Displays the name of the brake system and the ABS controller version number, software ID, and sequence value.
• Actuator Tests: Allows manual control of actuators to test AYC valves, inlet valves, outlet valves, pump motors, and TRACS valves.
• Auto Bleed Test / Automated Bleed: Removes air from the internal brake fluid chambers after servicing the brakes.

SRS (Airbag Crash Data) Reset Tool:

Compared to other SRS scanners, the diagnostic tool can reset the airbag control module after airbag replacement.

Steering Angle Sensor (SAS) Calibration:

SAS Calibration menu lets you perform calibration of the steering angle sensor, which permanently stores the current steering wheel position as straight-ahead in the sensor EEPROM. On successful calibration of the sensor, its fault memory is automatically cleared.

Live Data In Graph

Provides real-time visualization of sensor data in graphical formats for quick and intuitive diagnosing.

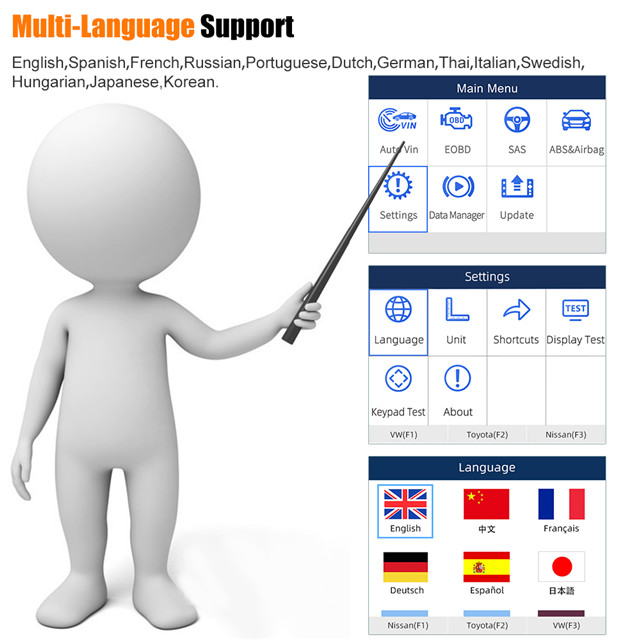

Support Languages

English, French, German, Spanish, Korean, Russian, Portuguese, Dutch, Swedish, Japanese, Italian. (Please note: One device only includes 2 languages: English + one selected language from the list).

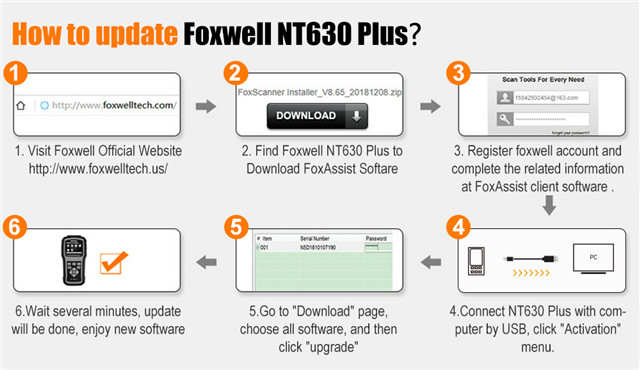

How to Update NT630 Plus

1. Go to the official website, find your product page, click "Download", and download the FoxAssist Installer.zip.
2. Register your account and complete the required registration steps within the FoxAssist client software.
3. Connect your NT630 Plus scanner to the computer via USB cable, and click the "Activation" menu.
4. The program will automatically identify your SN number. Select your serial number and click "Activation".
5. Navigate to the "Download" page, select all available software update options, and click "Upgrade".
6. Wait a few minutes for the installation to finish, and your scanner is ready to use with the new software.

Vehicle Coverage

OBD2 Engine Diagnostics Support:

Compatible with all 12V standard OBD2 certified cars, typically supporting:
• American (USA) cars: 2001 to present
• European cars: 2004 to present
• France cars: 2006 to present
• Japanese cars: 2007 to present
• Chinese cars: 2011 to present

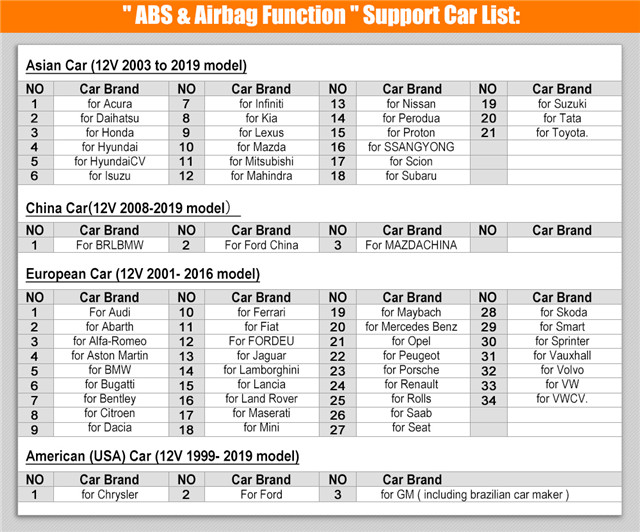

ABS & Airbag (SRS) Diagnostic Support:

Asian Cars (12V models, 2003 to 2016): Acura, Daewoo, Honda, Holden, Hyundai, Isuzu, Infiniti, Kia, Lexus, Mazda, Mitsubishi, Nissan, Perodua, Proton, Scion, Subaru, Suzuki, Toyota, AU Ford (Australian market only).

European Cars (12V models, 2001 to 2016): Audi, Abarth, Alfa-Romeo, Aston Martin, BMW, Bugatti, Bentley, Citroen, Dacia, EU Ford, Ferrari, Fiat, Jaguar, Lamborghini, Lancia, Land Rover, Maserati, Mini, Maybach, Mercedes Benz, Opel, Peugeot, Porsche, Renault, Rolls, Saab, Seat, Skoda, Smart, Sprinter, Vauxhall, Volvo, VW, VWCV.

American Cars (12V models, 2000 to 2016): Chrysler, Ford, GM (including Brazilian car manufacturers).

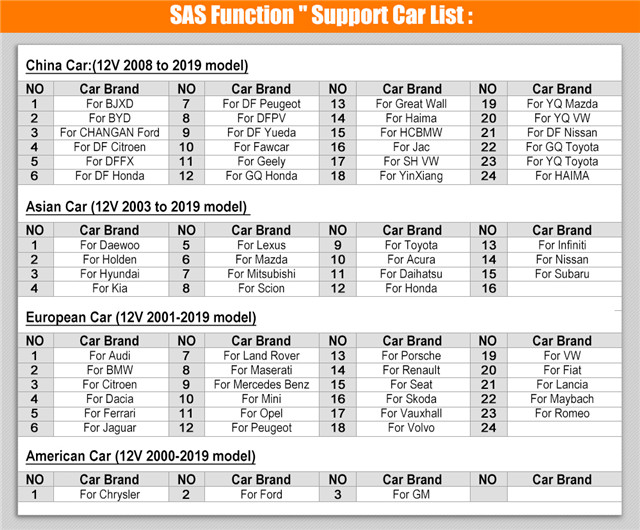

SAS (Steering Angle Sensor) Calibration Support:

Supports 12V vehicles from Asian (2003-2016), European (2001-2016), and American (2000-2016) markets, including: Audi, Abarth, Acura, Alfa-Romeo, BMW, Bugatti, Bentley, Chrysler, Citroen, Dacia, GM, Fiat, Honda, Holden, Hyundai, Infiniti, Jaguar, Kia, Lamborghini, Lancia, Land Rover, Lexus, Maserati, Mini, Maybach, Mercedes Benz, Mitsubishi, Nissan, Opel, Peugeot, Renault, Rolls, Scion, Seat, Skoda, Subaru, Suzuki, Toyota, Vauxhall, VW, VWCV.

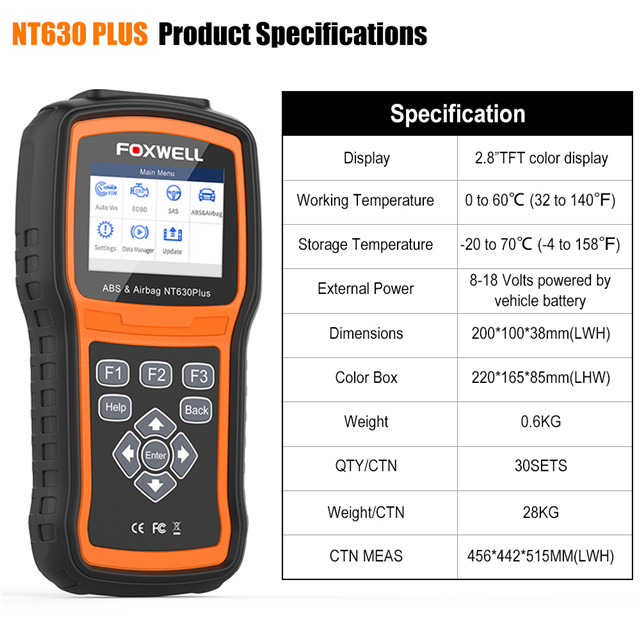

Product Specifications

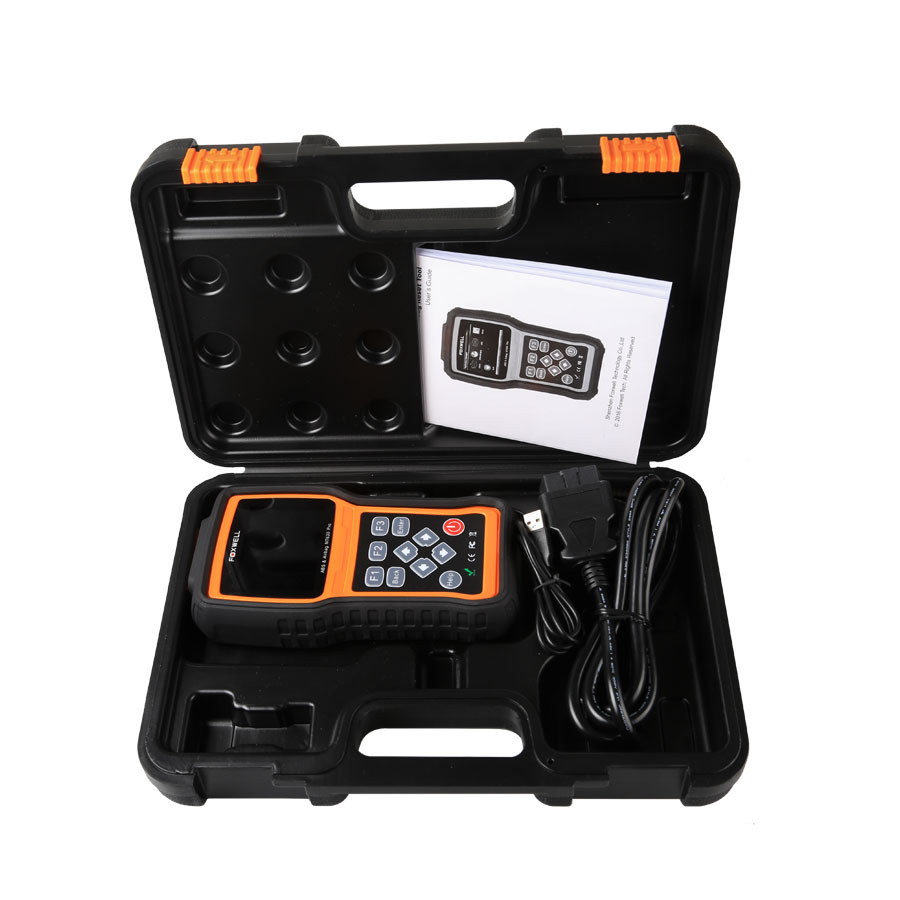

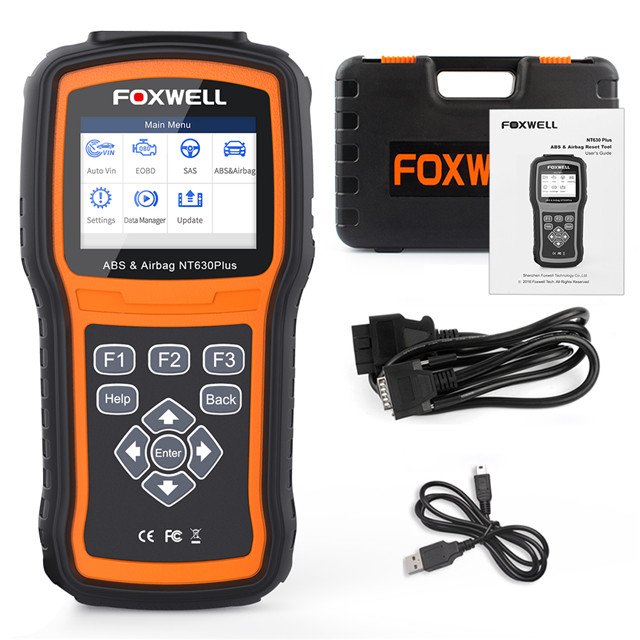

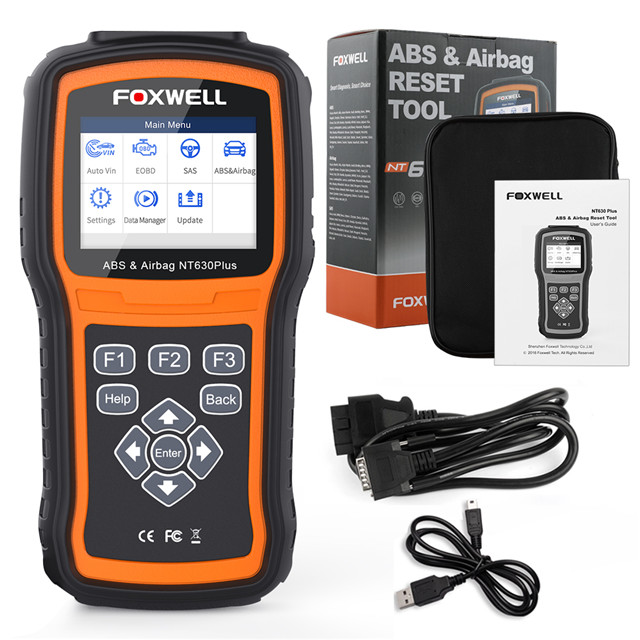

Packing List

• 1 pc x Foxwell NT630 Plus ABS Airbag SAS Scanner
• 1 pc x User’s Guide
• 1 pc x Memory Card
• 1 pc x USB Cable
• 1 pc x Diagnostic Cable
• 1 pc x Plastic Case or Carton Box
