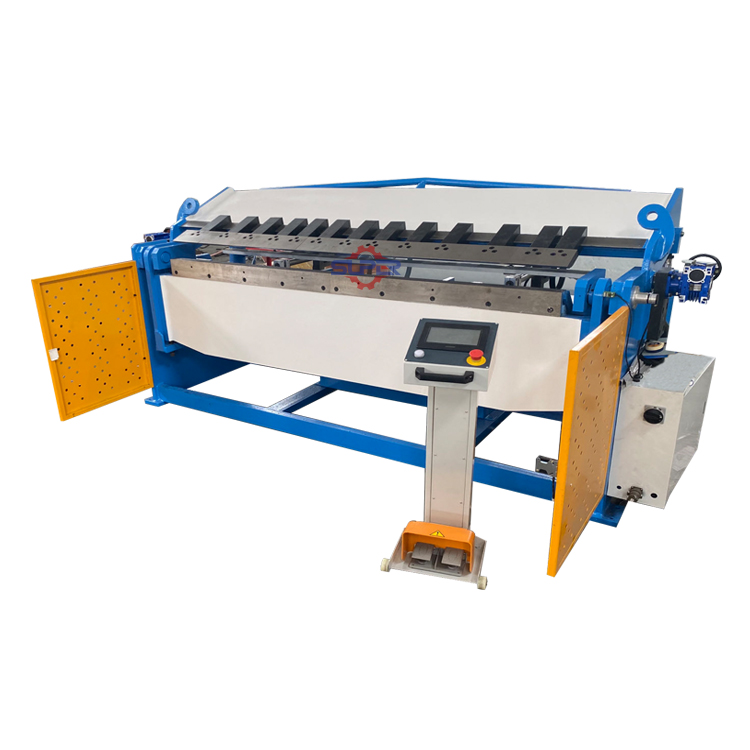

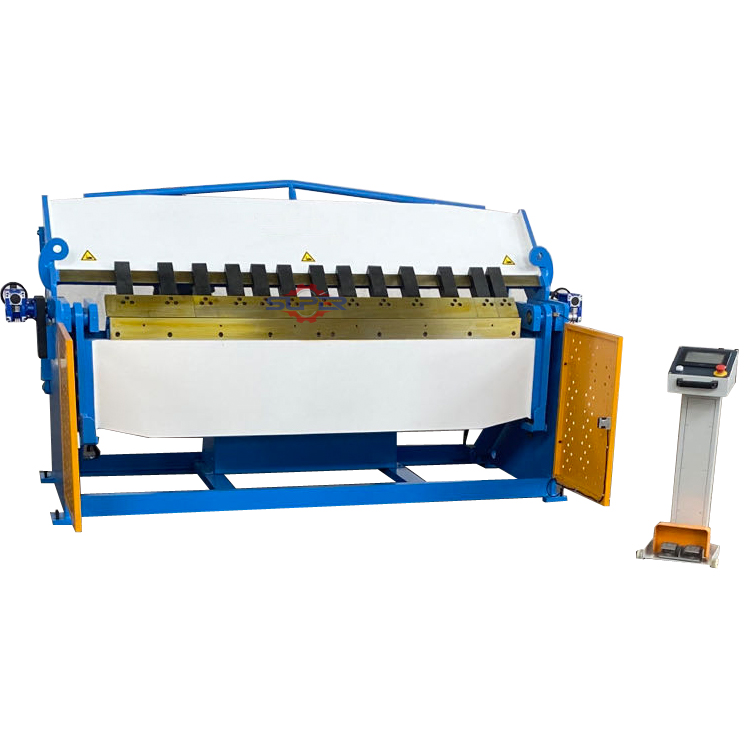

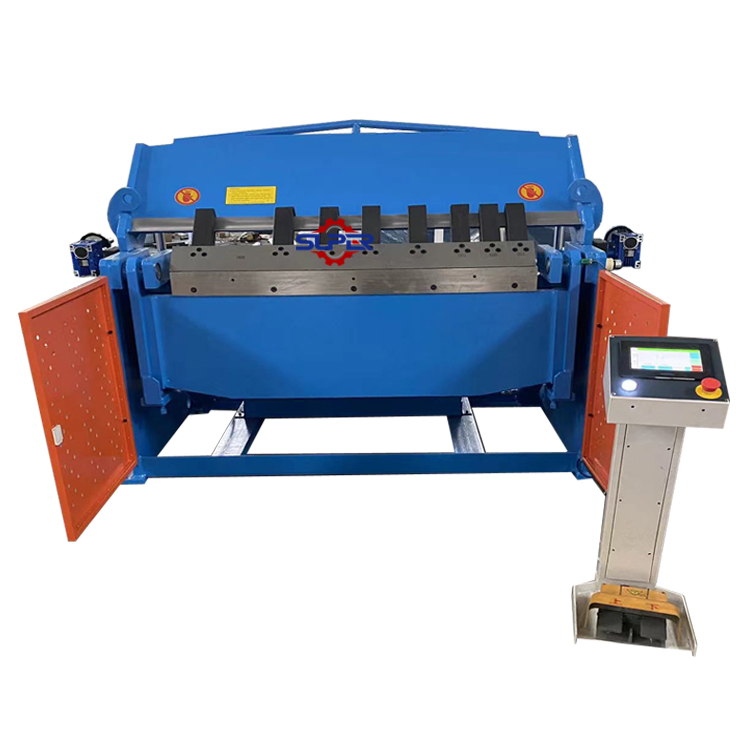

4x2500 Digital Programming Bending Angle Pan Brake Hem Folder
4x2500 Digital Programming Bending Angle Pan Brake Hem Folder
4x2500 Digital Programming Bending Angle Pan Brake Hem Folder
4x2500 Digital Programming Bending Angle Pan Brake Hem Folder
4x2500 Digital Programming Bending Angle Pan Brake Hem Folder
1 / 5
4x2500 Digital Programming Bending Angle Pan Brake Hem Folder
4x2500 Digital Programming Bending Angle Pan Brake Hem Folder
4x2500 Digital Programming Bending Angle Pan Brake Hem Folder
4x2500 Digital Programming Bending Angle Pan Brake Hem Folder
4x2500 Digital Programming Bending Angle Pan Brake Hem Folder

4x2500 Digital Programming Bending Angle Pan Brake Hem Folder

Send Inquiry

Product Description

Digital Programming Bending Angle Pan Brake Hem Folder View 1

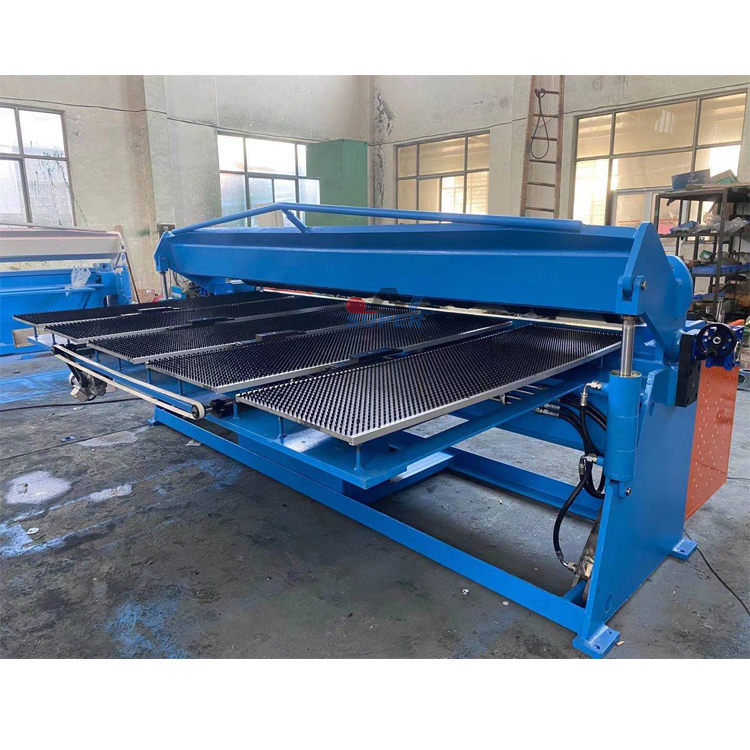

Digital Programming Bending Angle Pan Brake Hem Folder View 2
Products Description
NAME: 4x2500 Digital Programming Bending Angle Pan Brake Hem Folder
Structural & Operating Features
  • Hydraulically operated folding and clamping beam for efficient heavy duty operation.
  • High Structural Rigidity from Heavy Plate steel box construction with continuous welded seams.
  • Folding beam powered by dual hydraulic cylinders.
  • Fully integrated and enclosed electric/ hydraulic system with large oil reservoir.
  • High load dual spherical plane bearings utilized at folding beam pivots and over-centre clamp bearings.
  • Precise electric/ hydraulic controls with manual inching of folding beam.
  • Utilization of easy to set micro-switches provides accurate adjustable angle control to the folding apron.
  • Comprehensive equipment protection from electric and hydraulic overload systems.
Hydraulic System
  • High quality components ensure reliable performance for years of continuous operation.
  • Powerful direct coupled hydraulic pump and motor provides efficient, rapid operation.
  • Unique electric/ hydraulic control ensures safe and simple operation.
Specifications
  • Up to 4000 mm folding length available - Capacity 4.0 to 6.0 mm available.
  • High bending angle of 0-135° - Up to 145mm depth of box bent - Up to 150mm lift of clamping beam.
  • 24V control wiring – segmented folding tools made from hardened material maximizing life.
  • Instruction, Hydraulic and Electrical Manuals – CE Marked.
Key Features
  • 14'-1" bending width, 14 gauge maximum thickness
  • Box and Pan upper clamp
  • Advanced BANNER-USA Control System
  • 1-axis CNC for Programming bending angle.
  • Operate on Banner system, manually adjust the back table, this semi-automatic type is Very easy to use.
  • Servo controlled bending angle
  • Light curtain – safety device
  • Video of operation available
  • CE&ISO 9001:2000 standard certification.

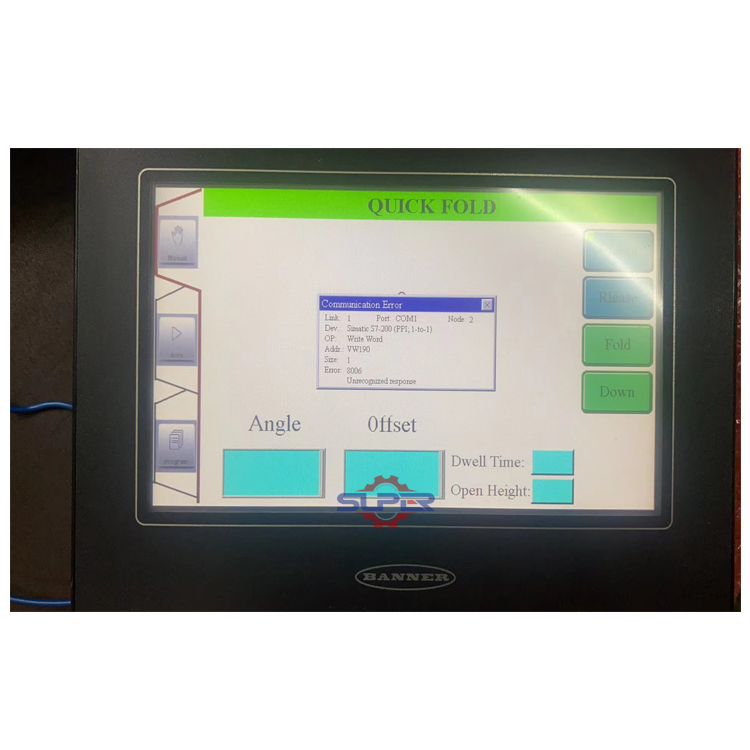

CNC Folding Control Interface
Options & System Configuration
  • Touch screen computer controller
  • Rear ball roller table
  • Back gauge extended
  • Pneumatic back gauge block finger
Product Parameters
Model Capacity (mm) Folding angle (°) Open Height (mm) Motor Power (kw) Net Weight (kg) Dimension (L*W*H) (mm)
W62K 2*2500 0~120 110 2.2 1700 3300x850x1550
W62K 2*3200 0~120 110 2.2 3600 4100x1550x1550
W62K 3*2500 0~120 110 4 3100 3450x1130x1800
W62K 3*3200 0~120 110 4 3800 4150x1130x1800
W62K 3*4000 0~120 110 4 6100 4900x1150x1900
W62K 4*1320 0~120 110 4 1800 2270x1130x1800
W62K 4*2000 0~120 110 4 2500 2900x1130x1700
W62K 5*2500 0~120 110 5.5 4000 3500x1130x1800
W62K 5*3200 0~120 110 5.5 5500 4150x1130x1900
W62K 2*4300 0~120 110 4 6100 5400*1150*1650
W62K 1.5*6300 0~120 110 5.5 12000 7100*1850*1650
Control Panels & Displays

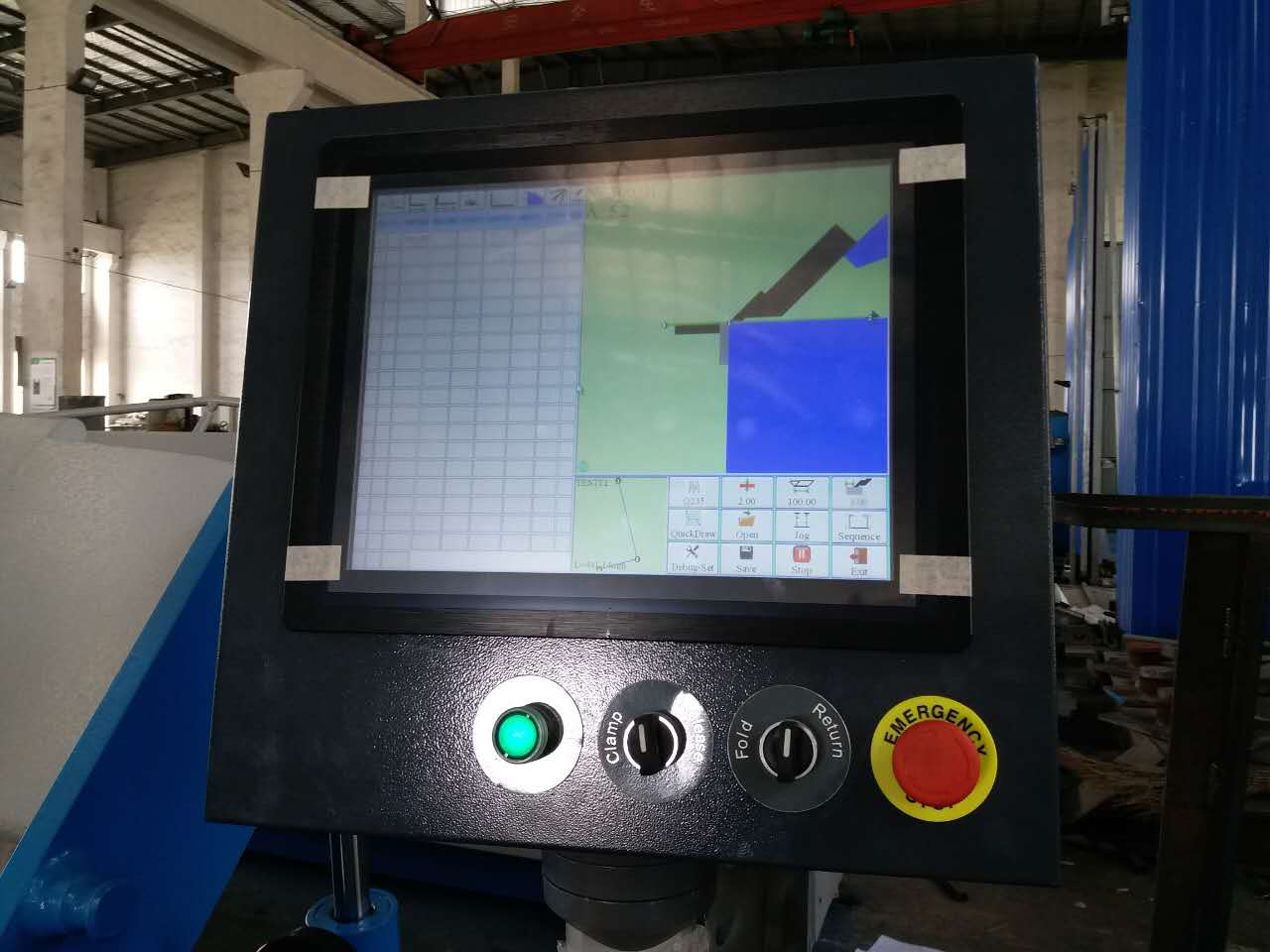

Graphic touch panel (standard)
Graphic touch panel (standard)

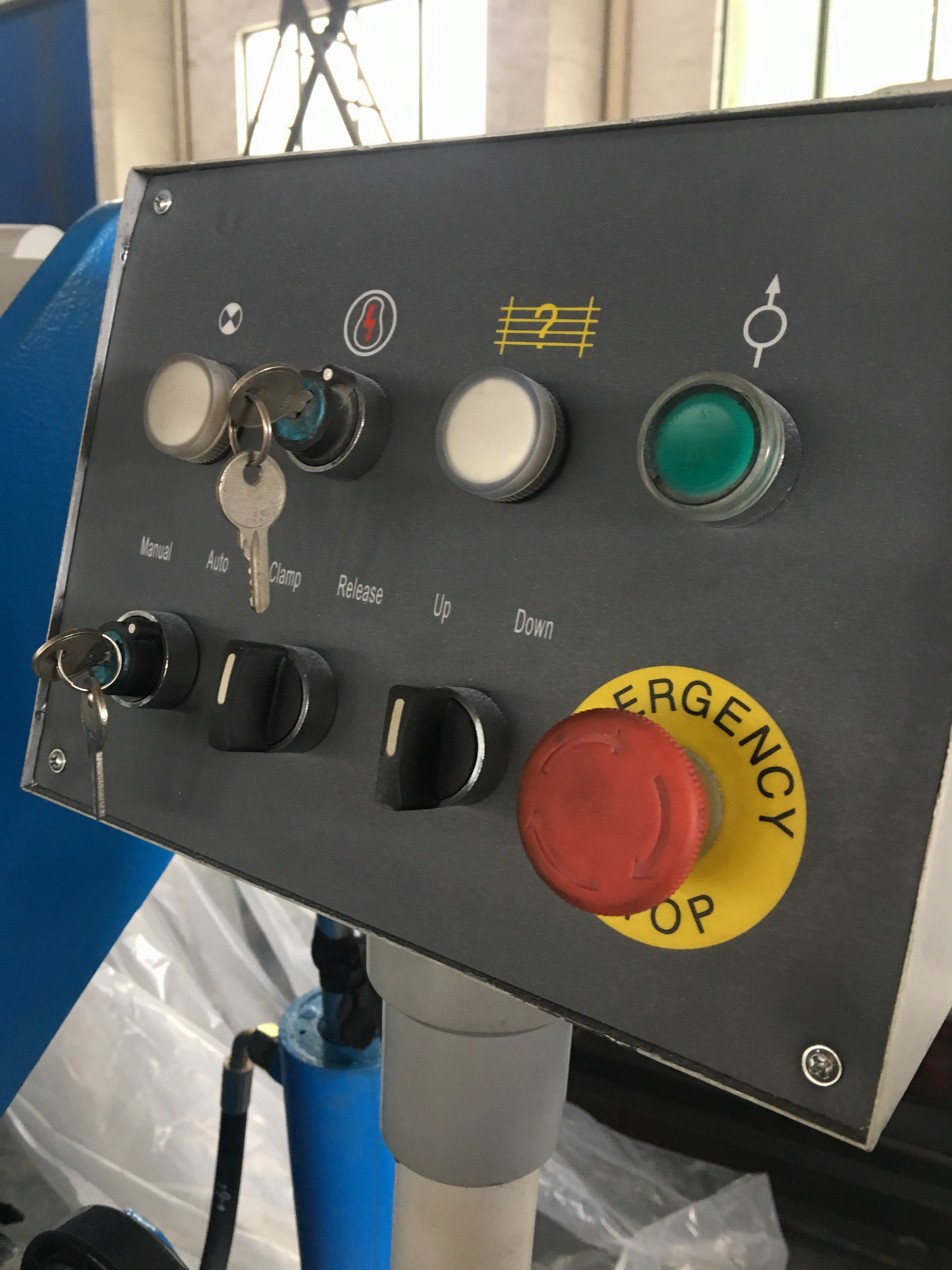

Button panel (optional)
Button panel (optional)

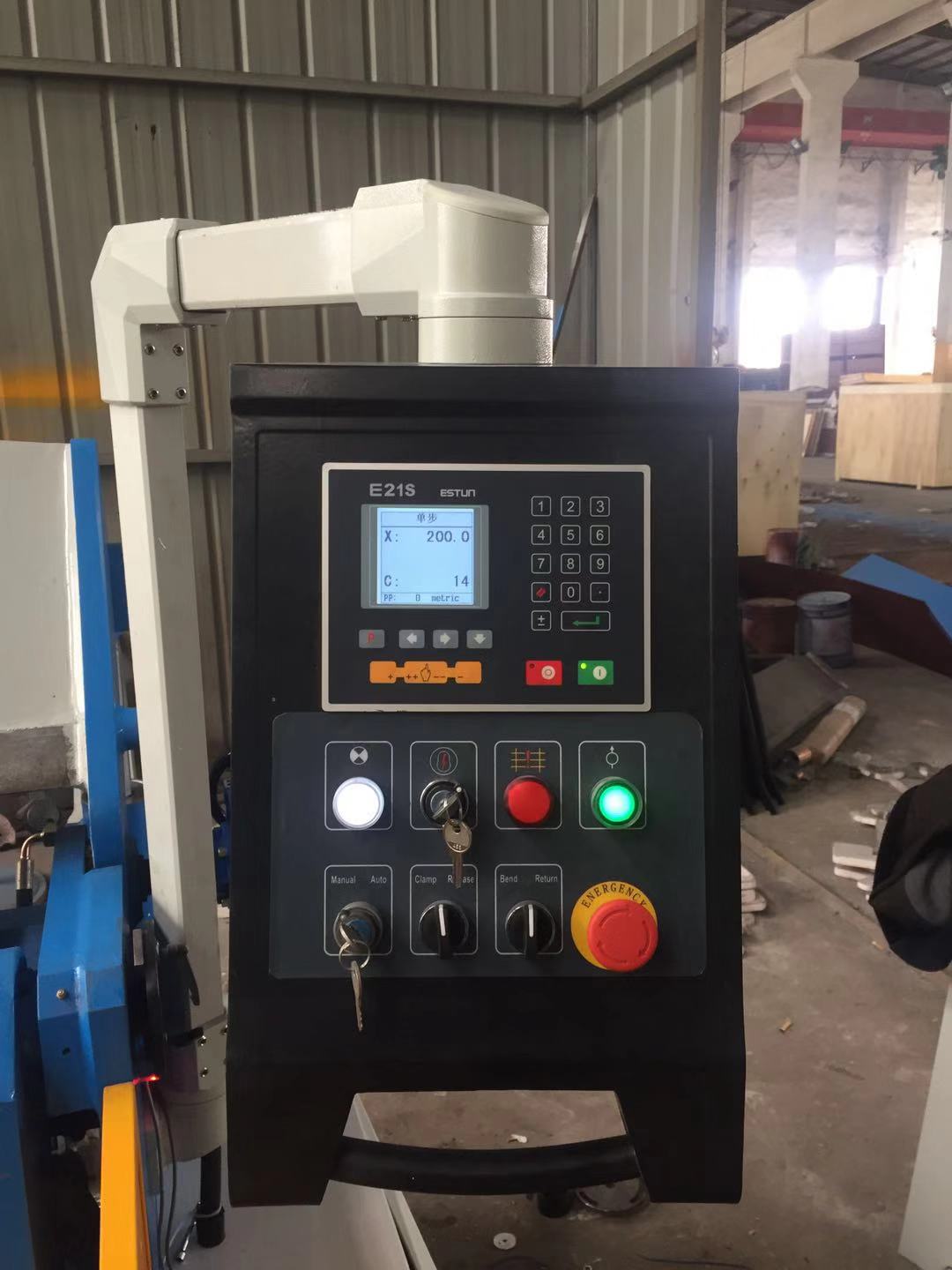

E21S Digital read out panel (optional)
E21S Digital read out panel (optional)
Detailed Specifications & Components

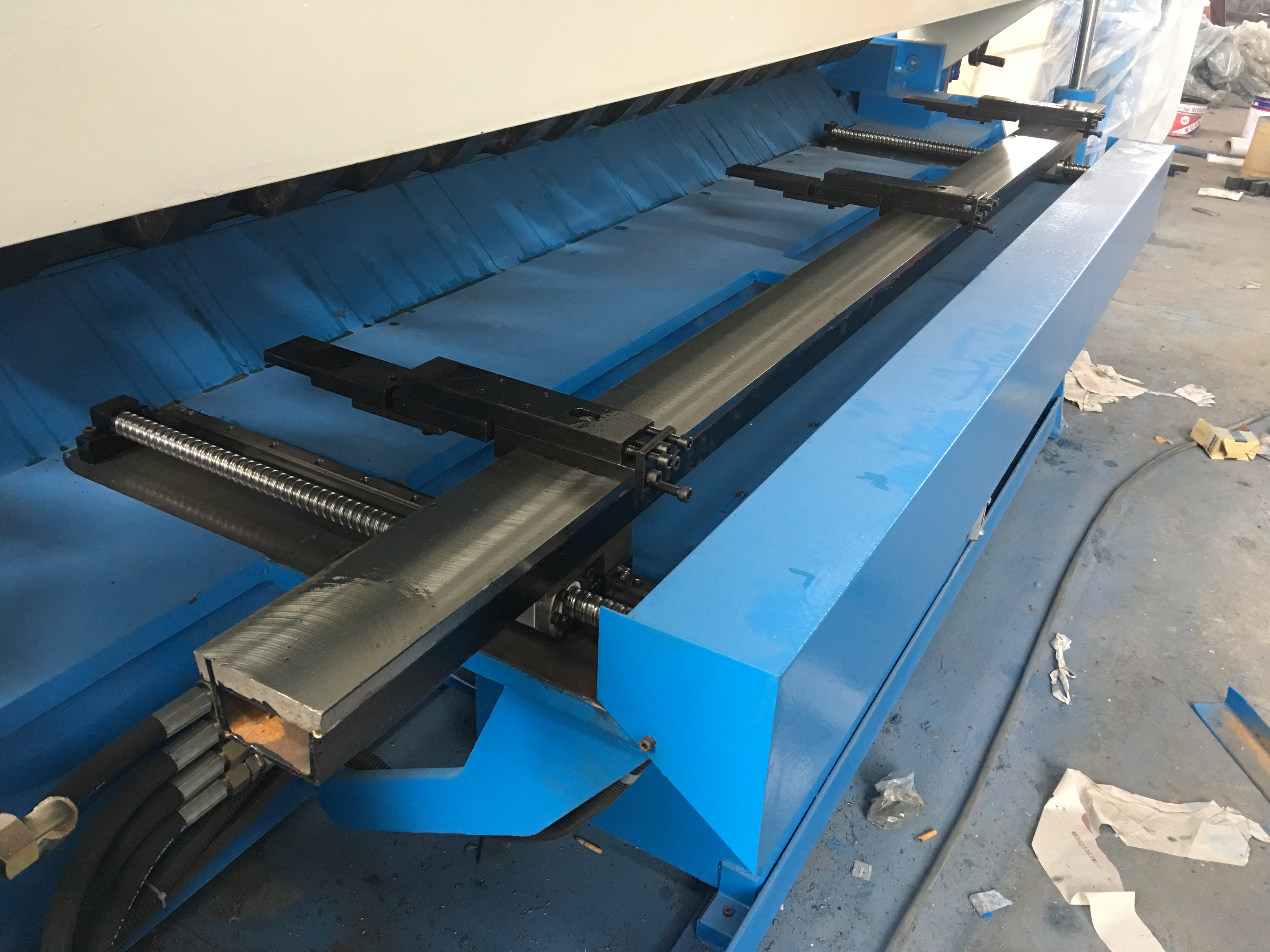

Standard back gauge
Standard back gauge (servo motor drive, linear guide and ball screw)

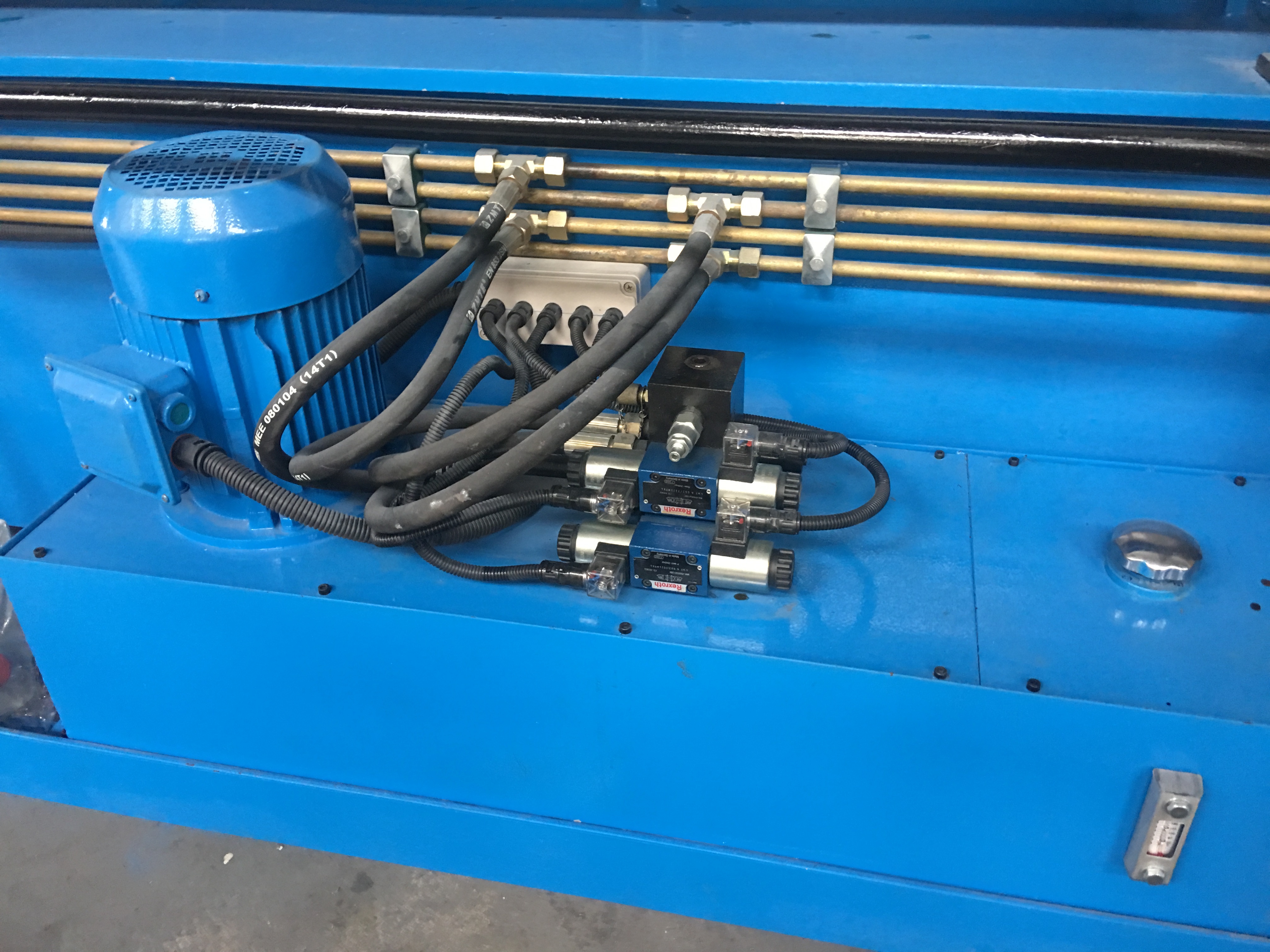

Main motor and hydraulic system
Main motor (Siemens), magnetic valve (Rexroth), hydraulic system

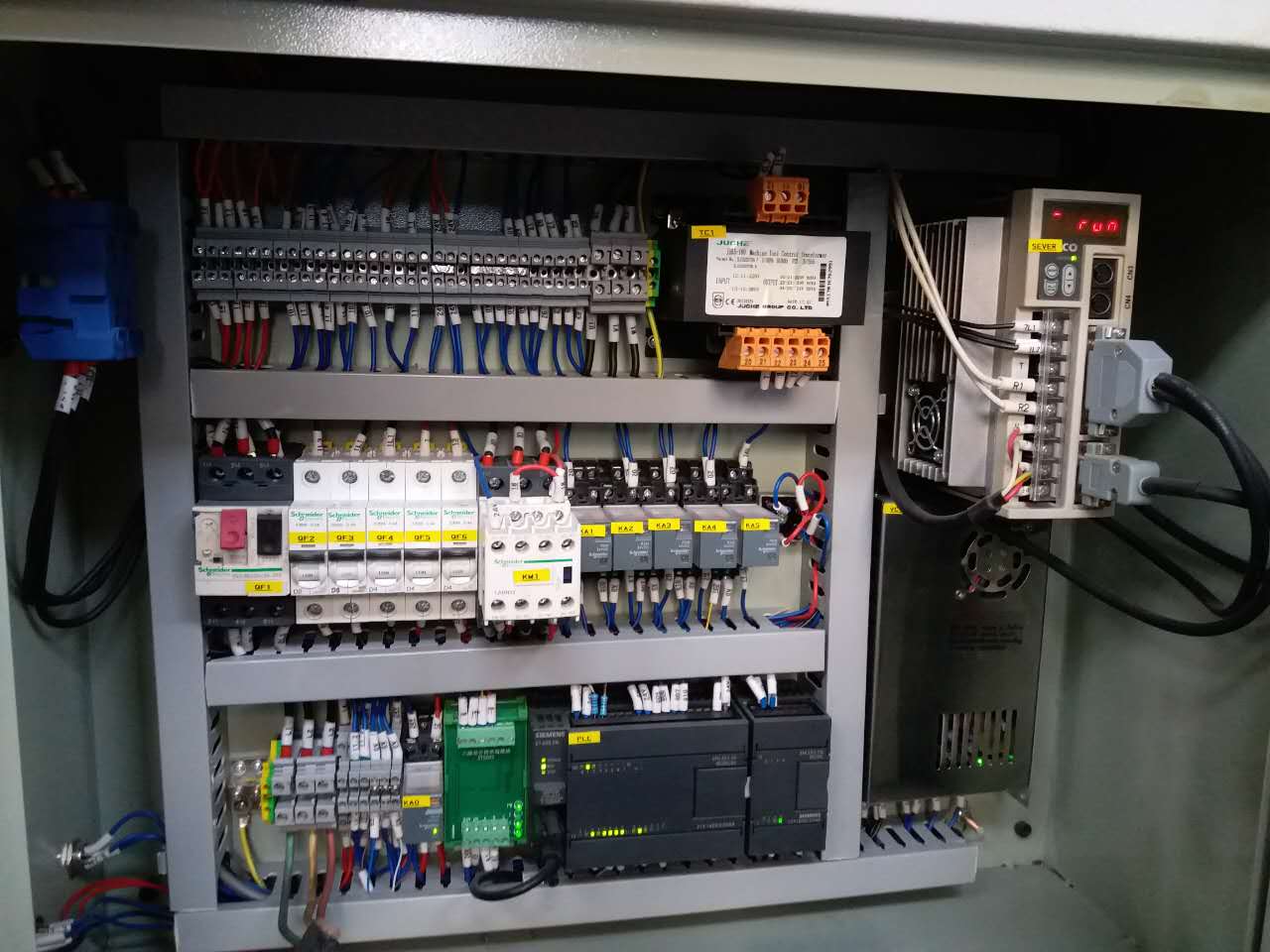

Electric component
Electric component (Schneider), PLC + touch screen (Xinjie)

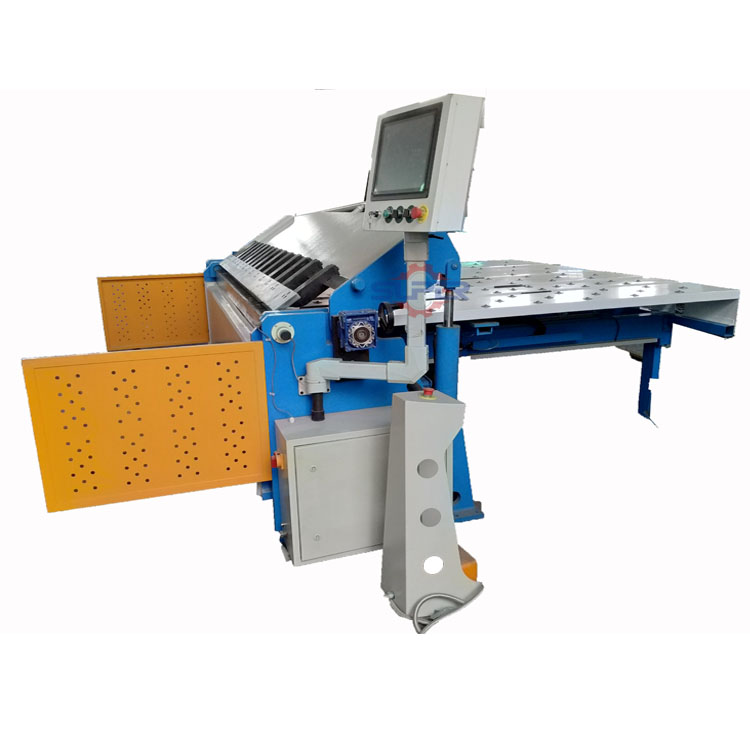

Rear roller table
Rear roller table and pneumatic block finger (optional)

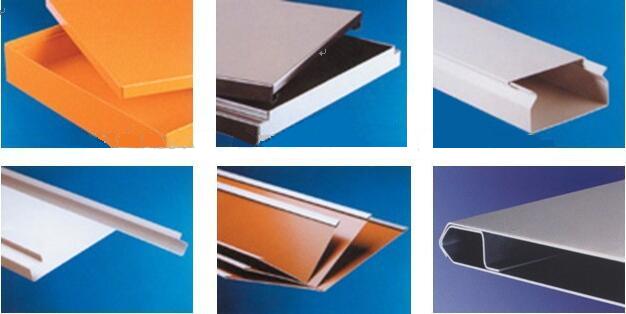

CNC folding brake samples
CNC folding brake samples
Sheet metal box and pan folding brake machine configurations:
  • A. Hydraulic with manual back gauge
  • B. 1-axis digital CNC for bending angle / back gauge with manual back gauge / bending angle.
  • C. 2-axis graphic CNC for bending angle and back gauge
Production & Facility

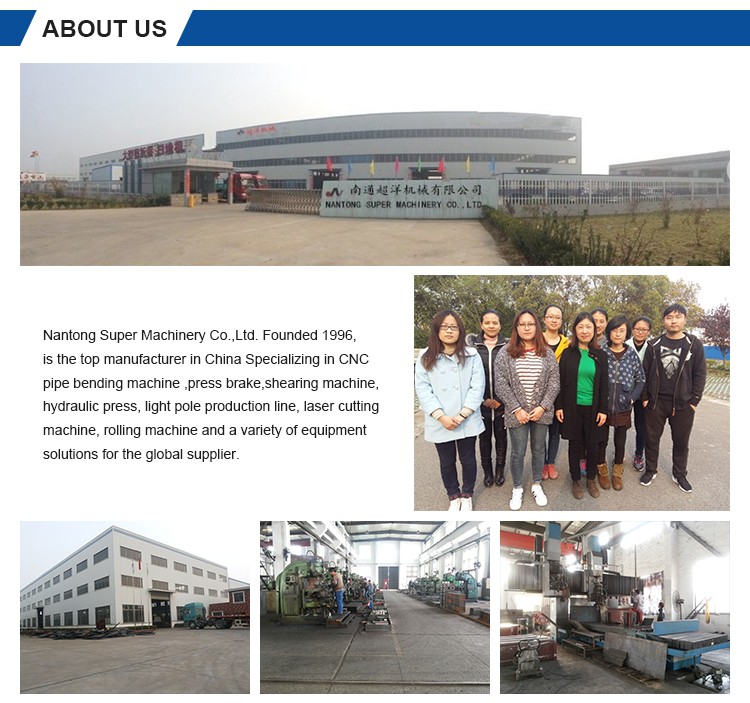

Factory Workshop Area 1
Factory Workshop Area 2
Packaging & Logistics
Logistics and Transport Packaging
Frequently Asked Questions (FAQ)
What are the main structural and operating features of this folding brake machine?
The machine utilizes a hydraulically operated folding and clamping beam powered by dual hydraulic cylinders. The structure is constructed from heavy plate steel box welding with continuous seams for maximum structural rigidity. Standard features include precise electric/hydraulic controls and micro-switches for accurate bending angle adjustment.
What controls and axes options are available?
We offer three main configurations: Option A features hydraulic operation with manual back gauge control. Option B includes a 1-axis digital CNC setup for adjusting the bending angle/back gauge. Option C provides a 2-axis graphic CNC controller that automatically manages both the bending angle and back gauge movements.
What are the system specifications for the electrical and hydraulic units?
The machine integrates premium standard electrical and hydraulic units, including a Siemens main motor, Rexroth magnetic valves, Schneider electrical components, and a Xinjie PLC system paired with a touch screen controller.
What is the range of material thickness and length capacities?
Depending on the specific configuration, model folding lengths range from 1320 mm to 6300 mm, with bending thickness capacities supporting sheets from 1.5 mm up to 6.0 mm. Folding angles are adjustable from 0 to 120° or 0 to 135° depending on parameters.
Does this machine support optional customization?
Yes, there are several upgrade options available, including a touch screen computer controller, rear ball roller table, extended back gauge length, pneumatic back gauge block fingers, and alternative panel configurations like the E21S Digital read out.
What quality standards and safety certifications are met?
The machinery comes standard with CE marking, meets ISO 9001:2000 quality standards, and integrates a safety light curtain system to safeguard operators during production.
