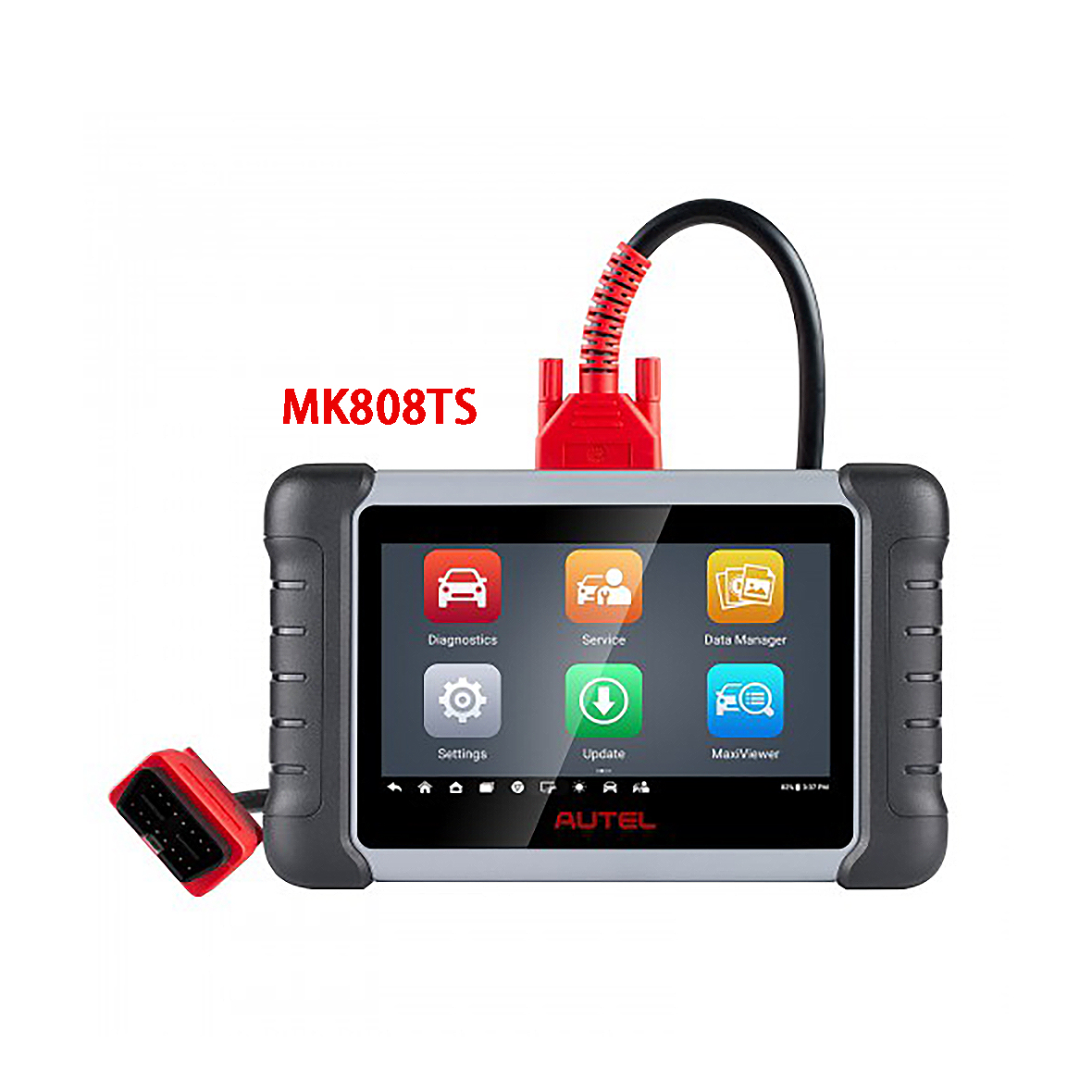

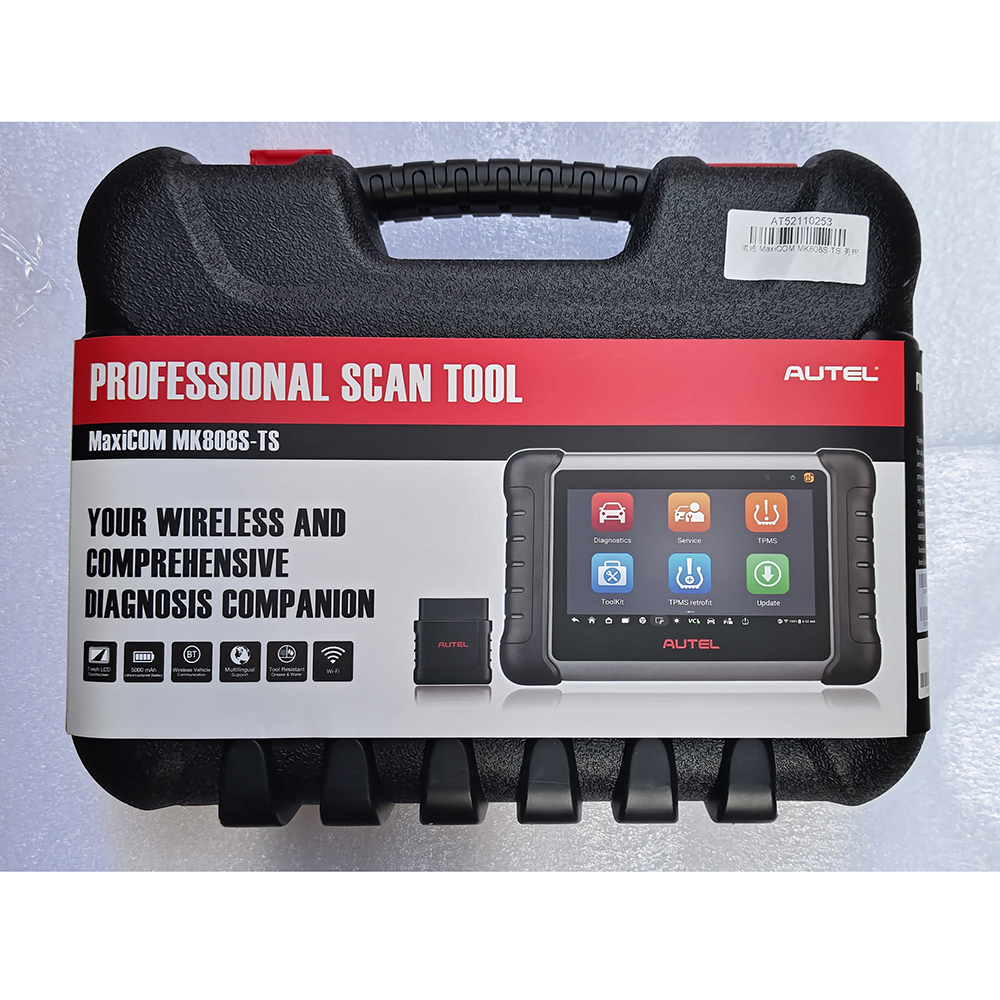

| Product Name | car diagnostic tool |
| Operating System | Android™ 4.4.4, KitKat |
| Processor | Cortex-A9 quad-core processor (1.6 GHz) |
| Memory | 64GB |
| Display | 7-inch LCD capacitive touchscreen with 1024x600 resolution |
| Connectivity | Mini USB 2.0 USB 2.0, Wi-Fi, HDMI Type A, Micro SD card slot (supports up to 32GB) |
| Sensors | normal 3-15 days after payment confirmation |
| Price service | Light sensor for brightness auto adjust |
| Power and Battery | 3.7 V/5000 mAh lithium-polymer battery, Charges via 5 VDC power supply |
| Tested Battery Life | Around 7 hours of continuous use |
| Battery Charging Input | 5 V/1.5 A |
| Power Consumption | 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
| Operating Temp | 0 to 55°C (32 to 131°F) |
| Storage Temp | -20 to 60°C (-4 to 140°F) |
| Operating Humidity | 5% - 95% non-condensing |
| Dimensions (W x H x D) | 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”) |
| Net Weight | 885 g (2.31 lb.) |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |
