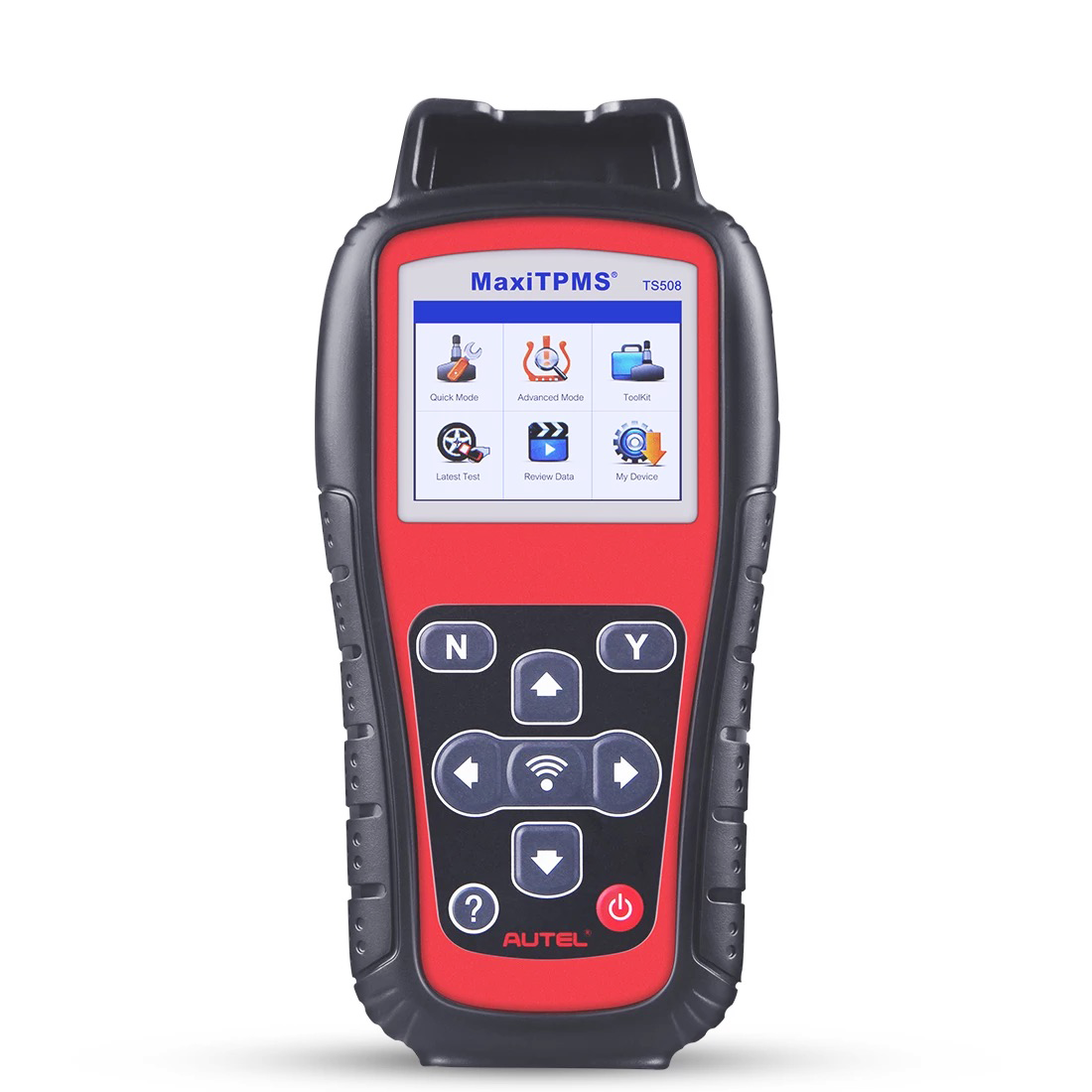

Autel MaxiTPMS TS508WF Maxi TPMS WiFi Diagnostic Tool Vehicle Universal MX Sensor TPMS Sensor Programming Tool TPMS Tool

Product Introduction

This device is a professional tire pressure maintenance programming hand tool, integrating the programming, activation, diagnosis, and system learning functions of tire pressure sensors, making it your choice for TPMS (Tire Pressure Monitoring System) maintenance. As a smart device, its core features include:

WIFI Quick Upgrade

Rapid device updates/optimizations via wireless networks, compatible with 98%+ mainstream vehicle models.

Multi-Sensor Synchronous Programming

Can synchronize multiple tire pressure sensors wirelessly to improve efficiency.

Factory-Level Learning Assistance

Built-in professional diagnostics (e.g., read/clear fault codes, OE number lookup) to meet diverse maintenance needs.

Dual-F Sensor Adaptation

Full compatibility with dual-frequency sensors for expanded applications.

Notes:

This device is specially designed for compatible tire pressure sensors. The programmed sensor can be used to replace the original sensor. Accessories or replacement parts can be ordered through official channels or authorized dealers.

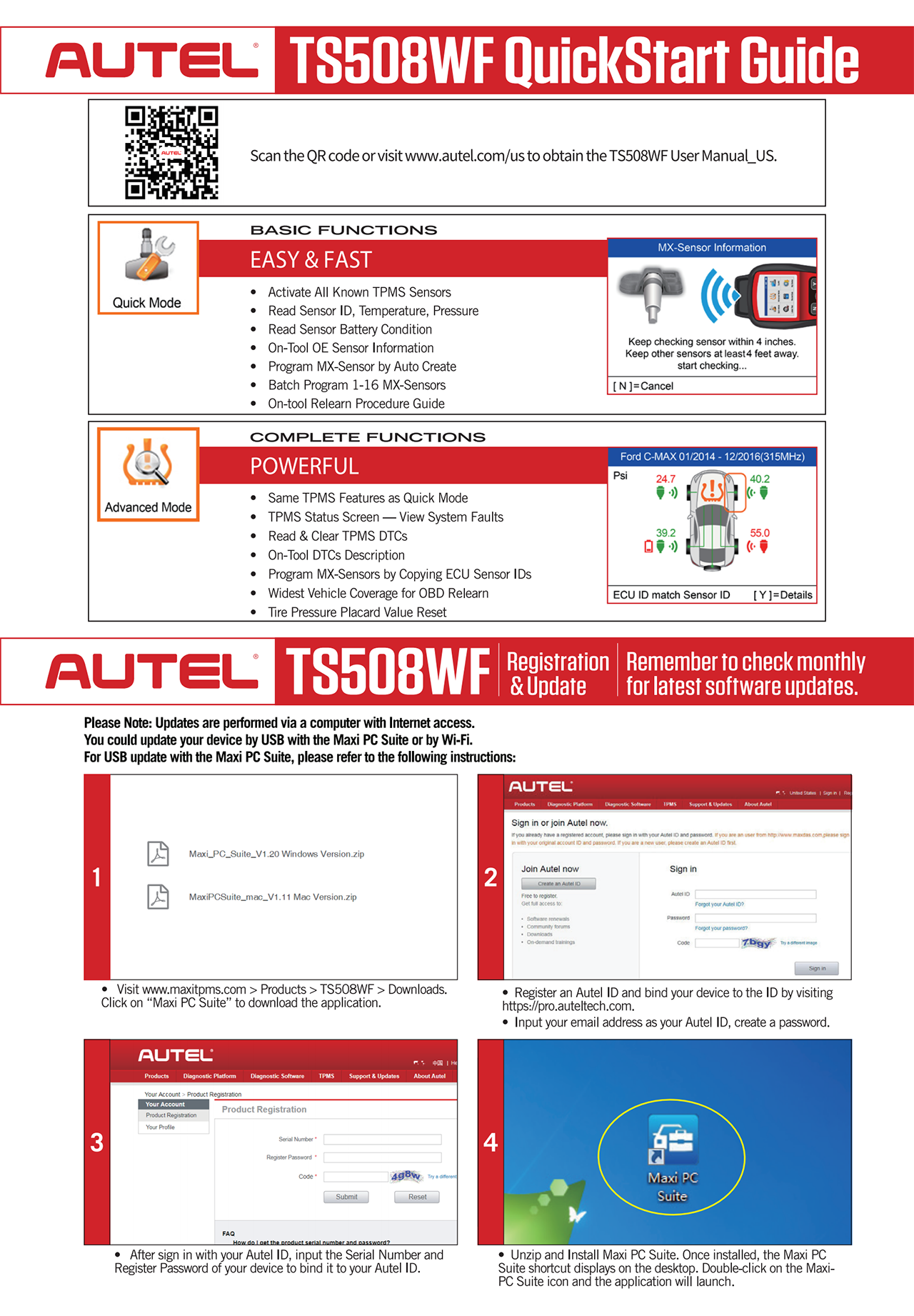

Core Function

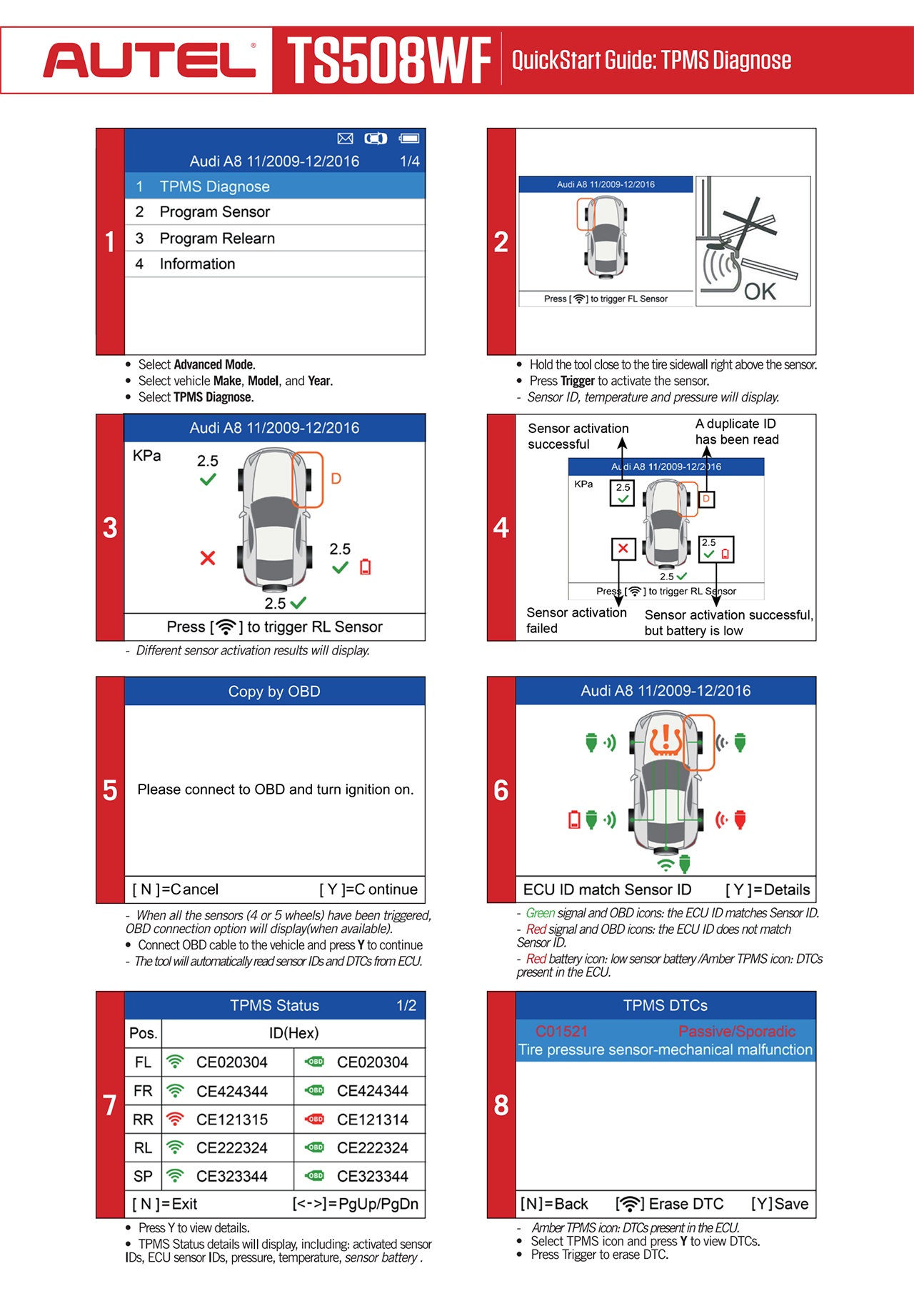

OBD Diagnosis

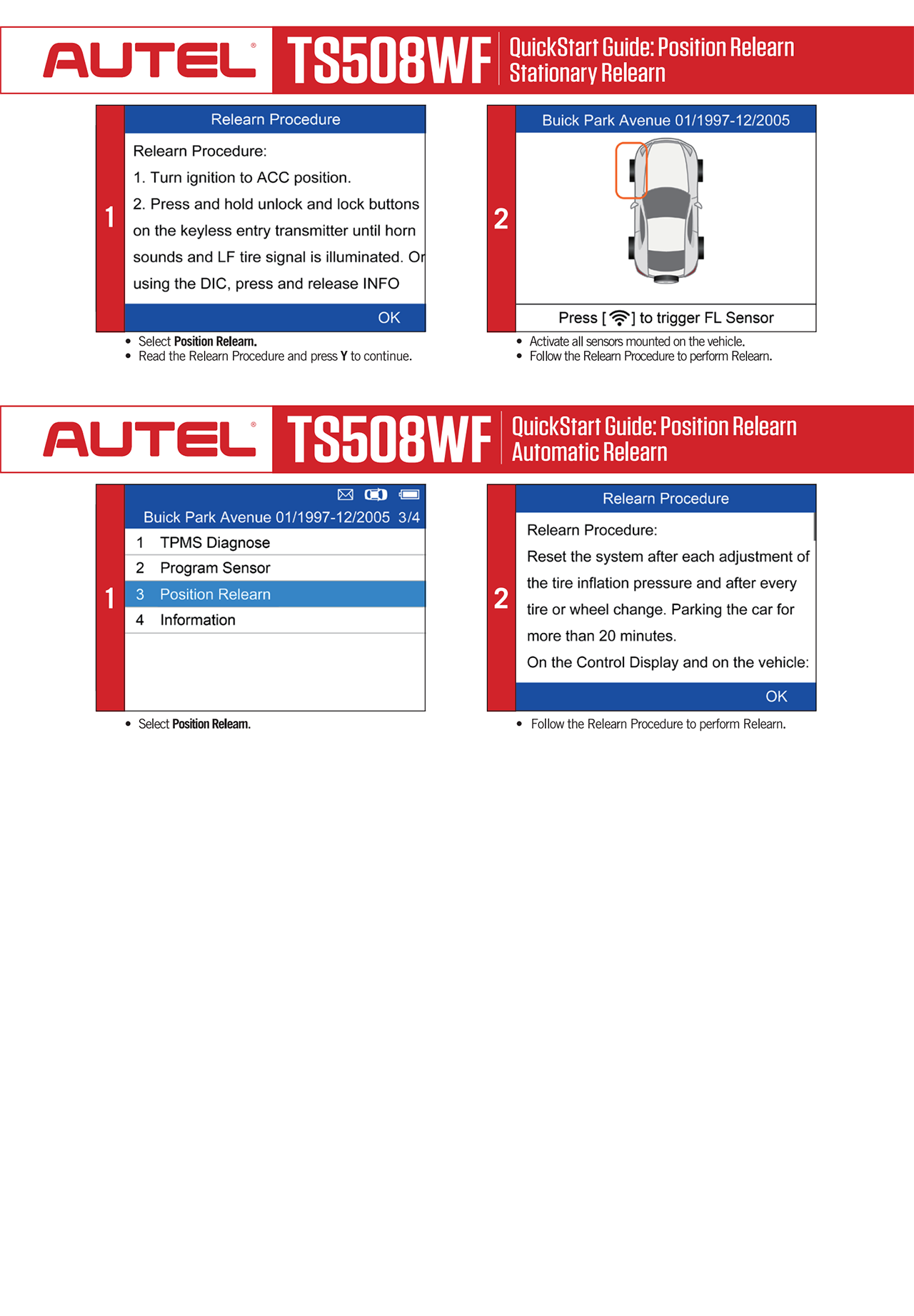

Reads sensor ID/fault codes and supports clear fault code, matching, and relearning.

WIFI Upgrade

Wireless remote updates (no USB needed) for easier operation.

OE Online Search

Quick OE number queries for compatible vehicle models via network.

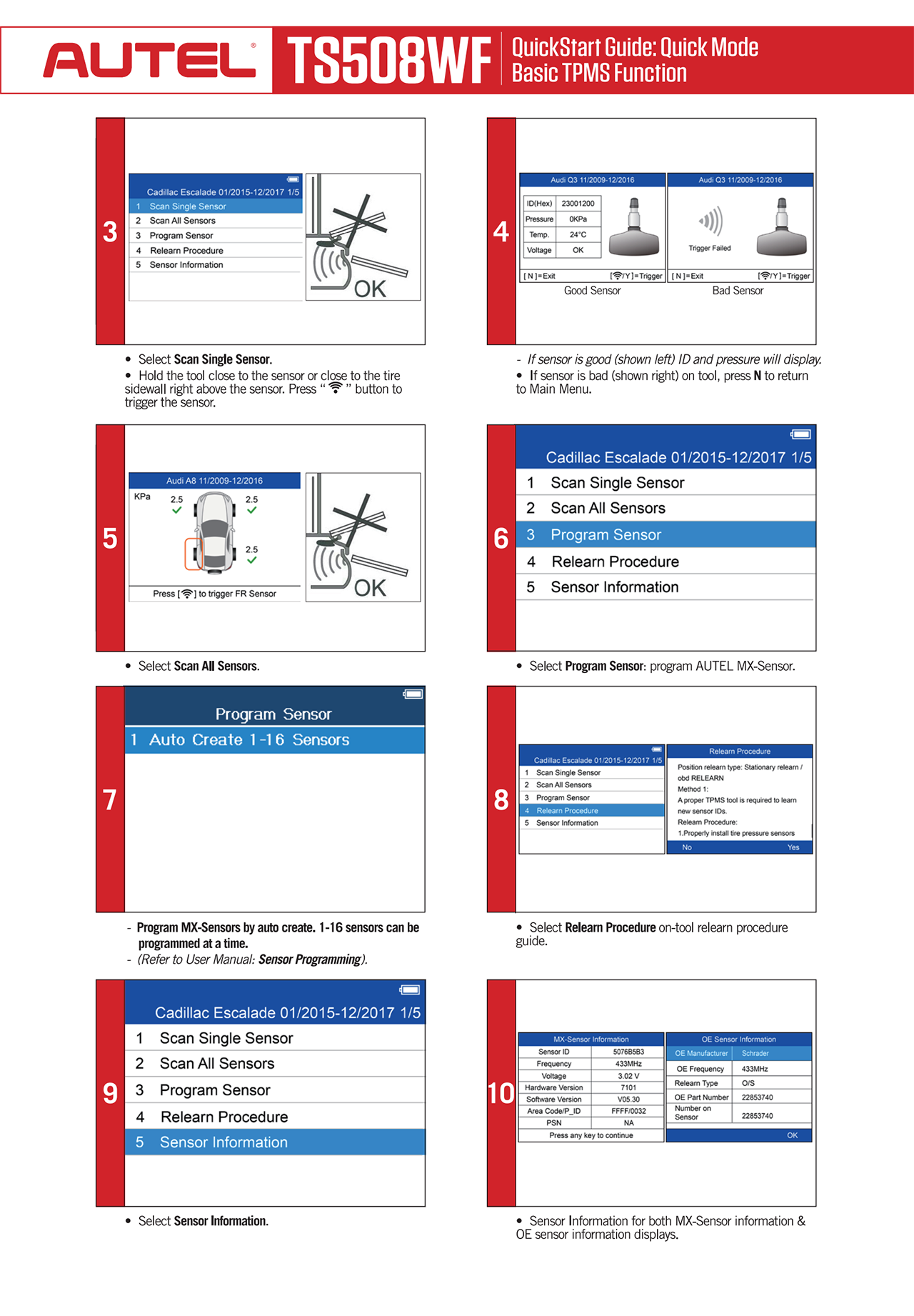

Sensor Detection

Real-time data display including sensor ID, pressure, temperature, and battery level.

Sensor Programming

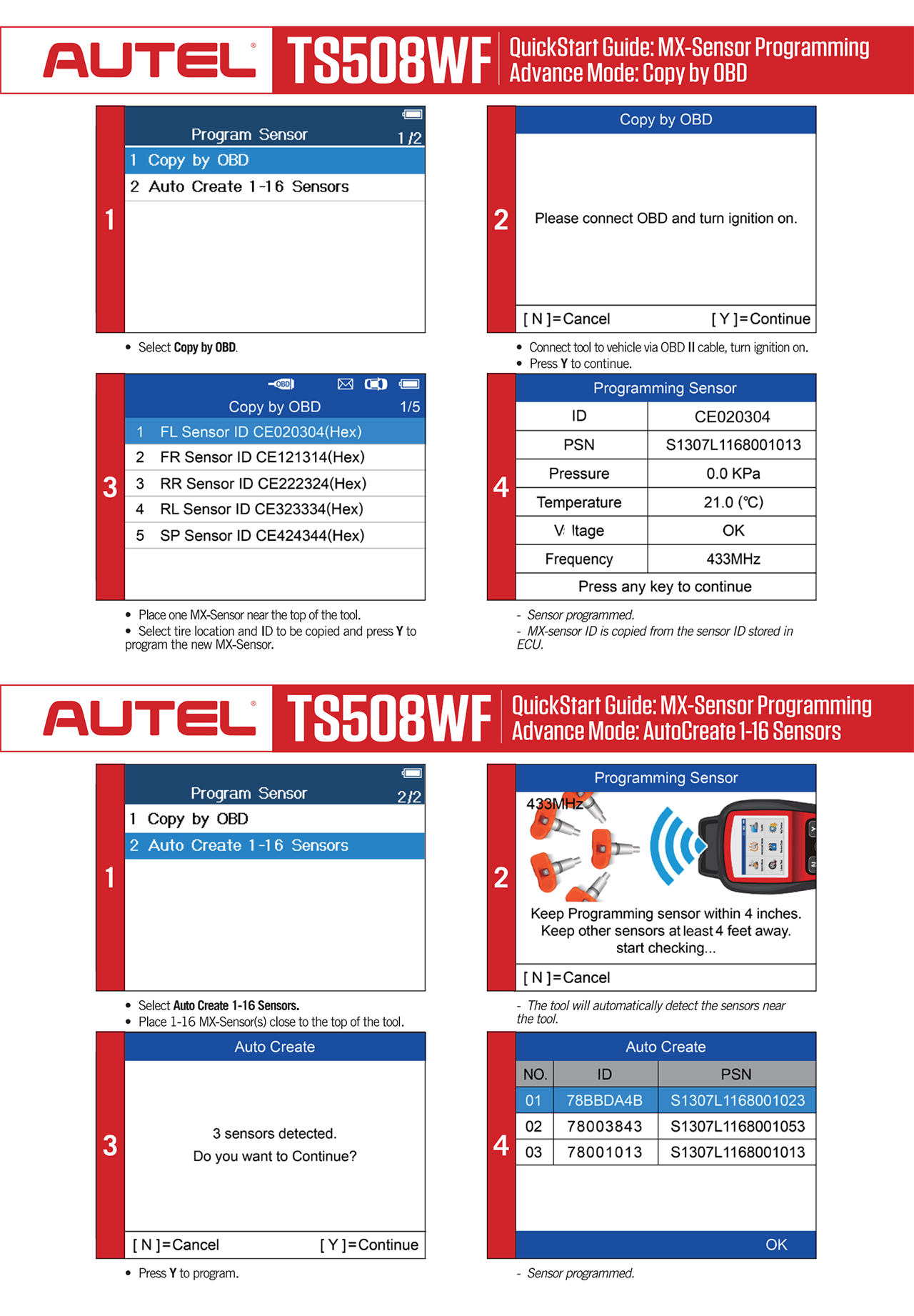

Supports manual input, OBD copy, auto-creation, and copy activation.

Frequency Detection

Identifies vehicle remote controller frequencies (315MHz / 433MHz).

Product Parameters

Host Specifications

Display size: 2.8-inch TFT color LCD screen (320*240 DPI)

Charging Voltage/Current: DC 5V / 1.5A

Battery Capacity: 3.7V / 3000mAh lithium polymer battery

Receiving Frequency: 315MHz / 433MHz

Upgrade Method: 2.4G WIFI wireless / USB upgrade

Working Temperature: -20℃ ~ 60℃ (-4℉ ~ 140℉)

Storage Temperature: -20℃ ~ 60℃ (-4℉ ~ 140℉)

Dimensions: 207.1 * 112.2 * 38.4 mm

Weight: 0.40 kilograms (net weight)

Diagnostic Protocol: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (high speed, medium speed, low speed, single wire CAN)

Product Gallery

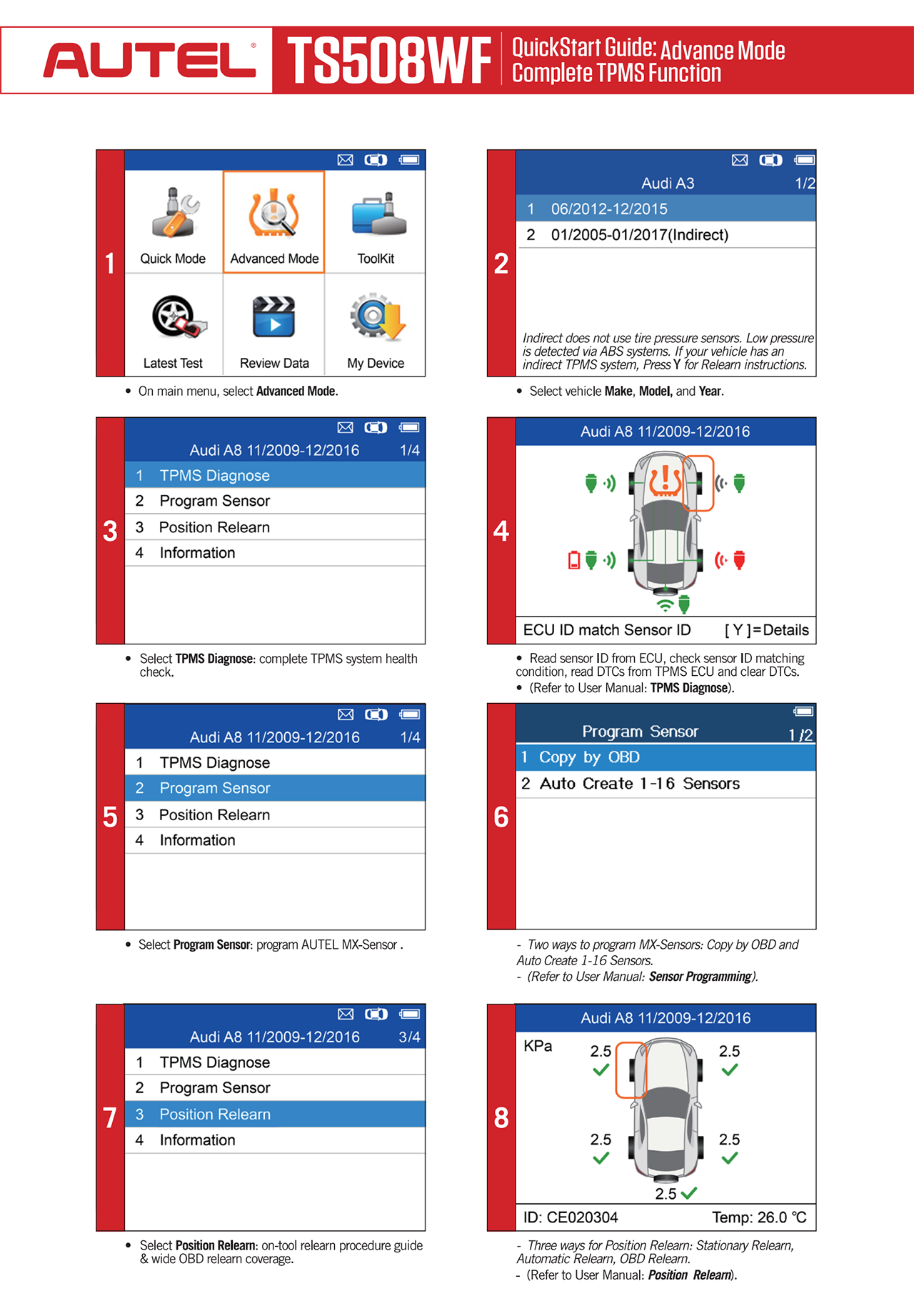

Automotive Diagnostic Application Screen

Frequently Asked Questions

What core TPMS functions does this device support?

This device integrates the programming, activation, diagnosis, and system learning functions of tire pressure sensors, making it a comprehensive choice for TPMS maintenance.

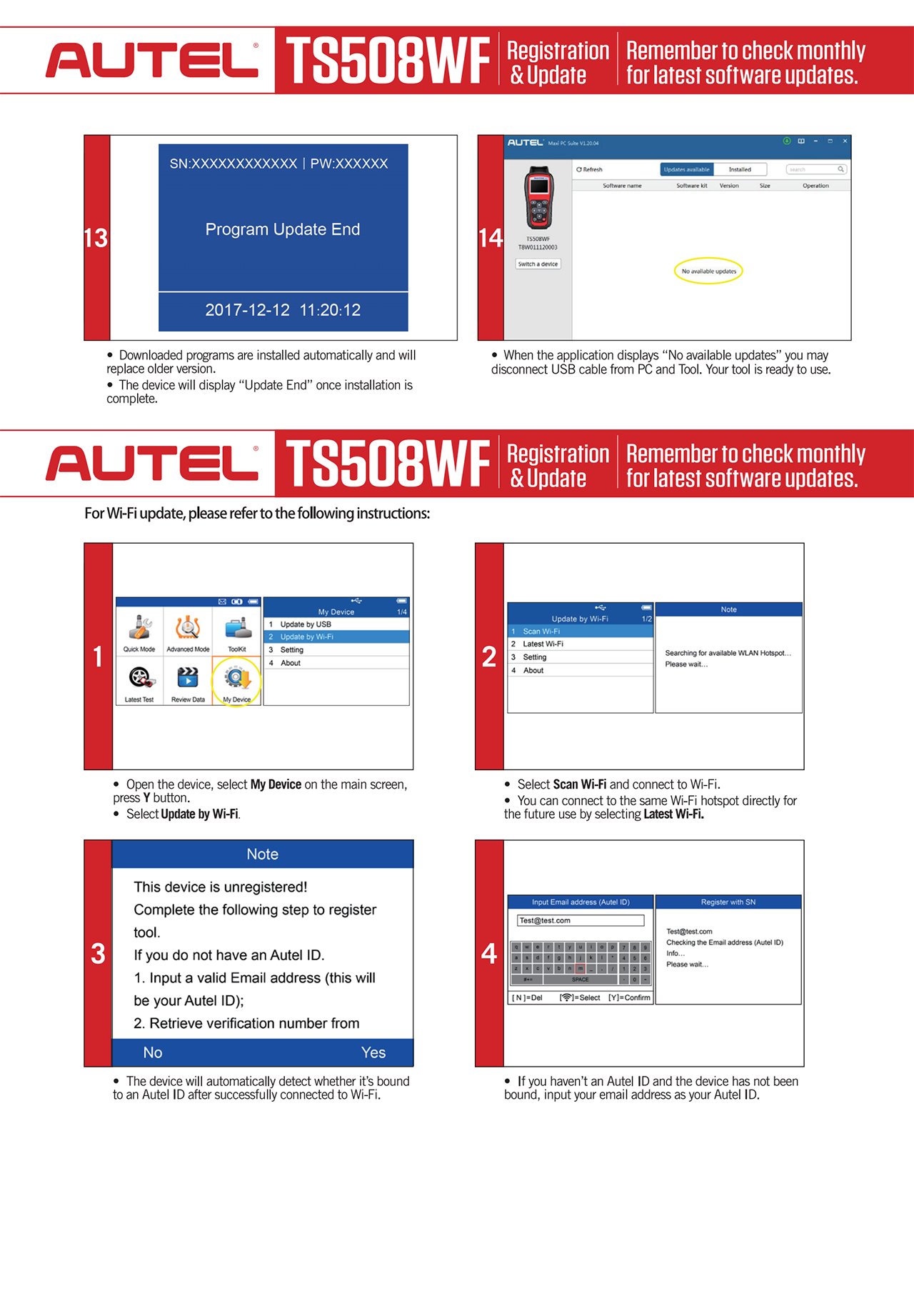

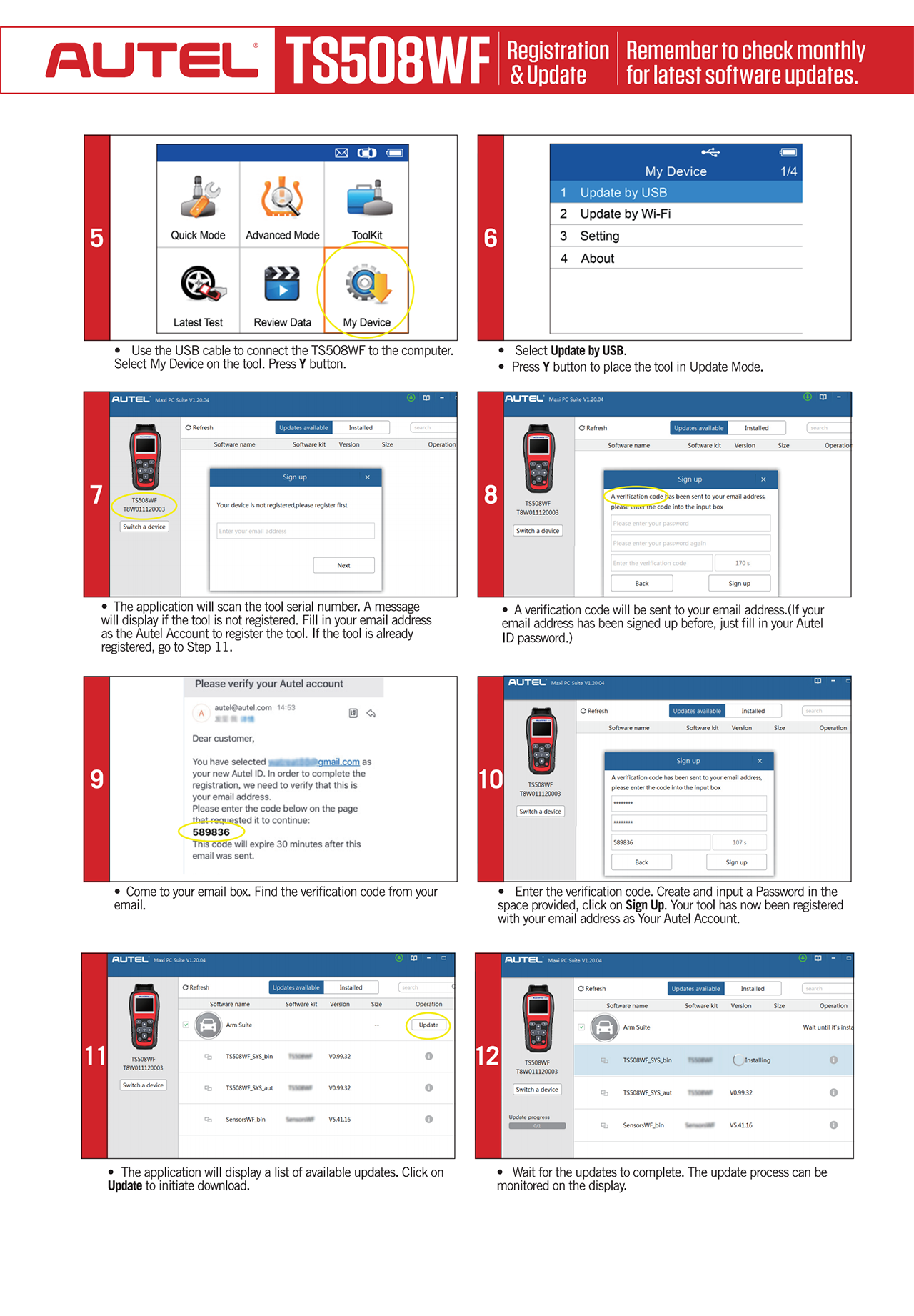

How can the device firmware and software be updated?

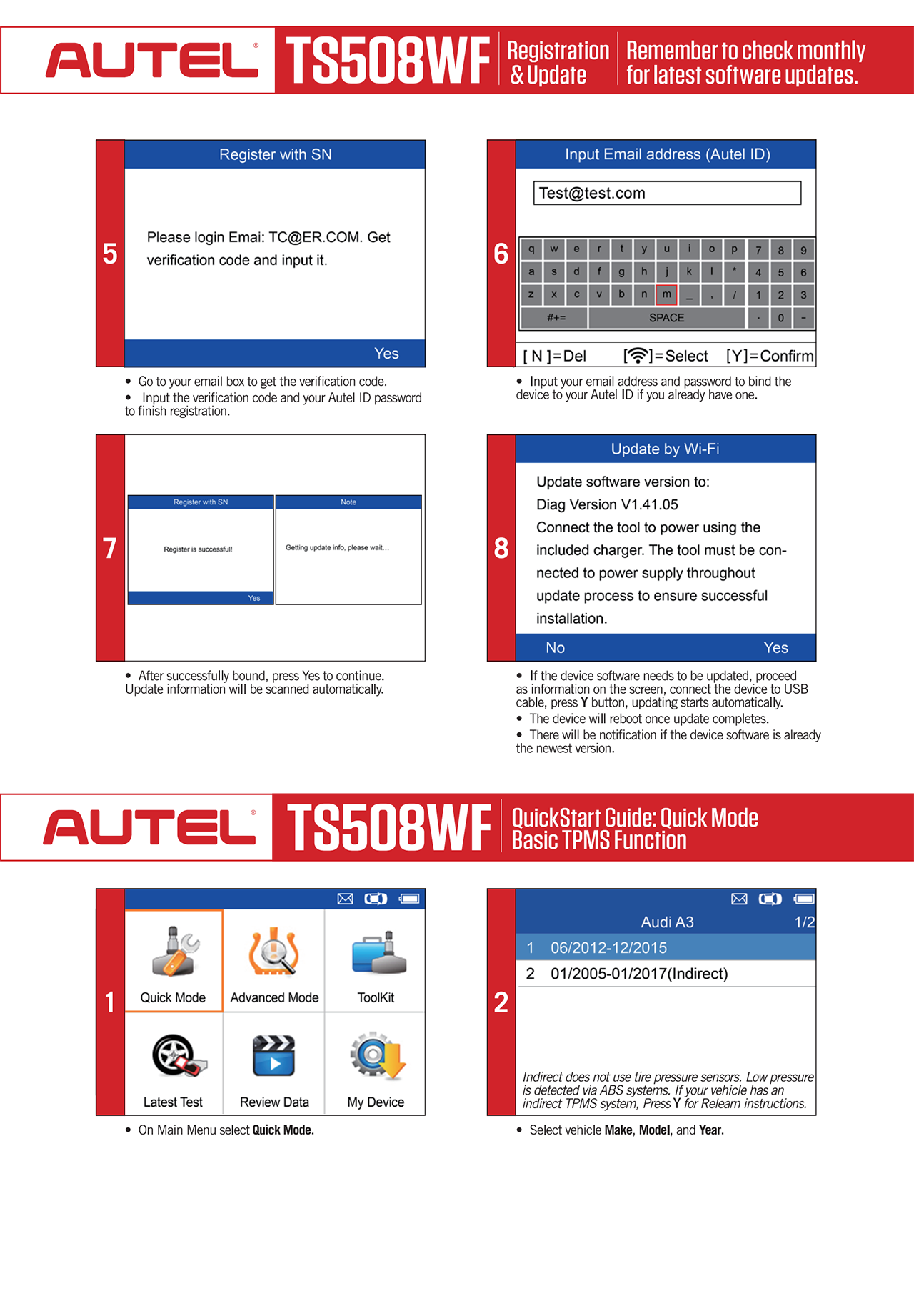

The device supports dual upgrade methods: 2.4G wireless WIFI remote upgrade (no USB cable needed) or standard USB connection upgrade.

What are the methods for programming tire pressure sensors?

The device supports four programming methods: manual input, OBD copy, auto-creation, and copy activation.

What vehicle and sensor frequencies is this tool compatible with?

It supports both 315MHz and 433MHz frequencies. It is compatible with dual-frequency sensors and supports 98%+ of mainstream vehicle models.

What diagnostic data can be viewed in real-time?

The scanner displays real-time data from the sensors, including sensor ID, tire pressure, tire temperature, and sensor battery level.

What type of battery does the device use and what is its capacity?

The host is powered by a built-in 3.7V 3000mAh lithium polymer battery and supports DC 5V 1.5A charging.

Product Detail

Autel MaxiTPMS TS508WF Maxi TPMS WiFi Diagnostic Tool Vehicle Universal MX Sensor TPMS Sensor Programming Tool TPMS Tool

Product Description
